Defining the GroupWise System As a Notes Foreign Domain

In order for messages to be routed between the Notes and GroupWise systems, you must define the GroupWise system as a foreign domain in the Notes public Address Book.

  1. Start the Notes/Domino Administrator as a user with write access to the Notes public Address Book (worksheet item 11).

  2. Open the Notes public Address Book:

    1. Click File > Database > Open.


      Open Database dialog box

    2. In the Server field, select the Notes domain where you want to open the public Address Book.

    3. In the Database field, select the Address Book for that domain.

    4. Click Open.

  3. Click Create > Server > Domain.

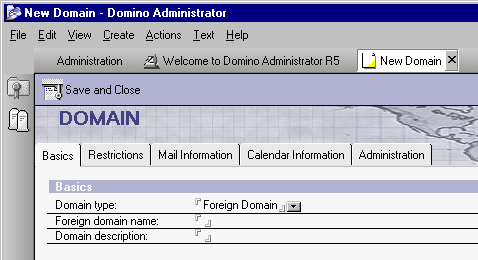

    Basics tab

  4. Leave Foreign as the default domain type, then fill in the following fields:

    Foreign Domain Name: Specify a name for the GroupWise system (worksheet item 10). This name must be unique in the Notes system.

    Domain Description: Optionally, provide descriptive details about the GroupWise domain.

  5. Click Mail Information.

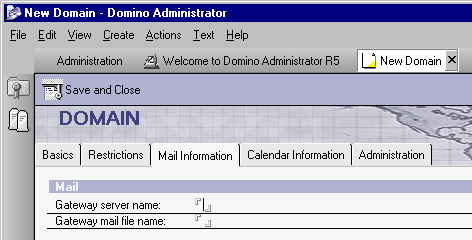

    Mail Information tab

  6. Fill in the following fields:

    Gateway Server Name: Specify the fully qualified name of the Notes/Domino server that will route messages to the Notes Gateway (worksheet item 11).

    Gateway Mail File Name: Specify the name of the mail file (worksheet item 11) through which communication between the Notes and GroupWise systems will occur. Do not specify an extension; the .nsf extension is automatically appended.

  7. Click Restrictions.

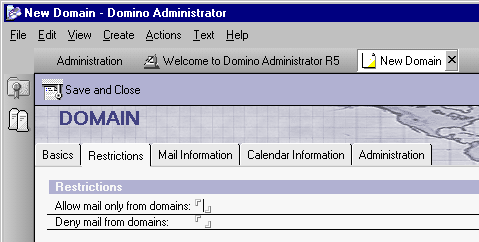

    Restrictions tab

  8. As needed for your system, fill in the following fields:

    Allow Mail Only from Domains: This is a Lotus Notes feature that does not affect the operation of the Notes Gateway. For more information, see your Lotus Notes administration documentation.

    Deny Mail from Domains: This is a Lotus Notes feature that does not affect the operation of the Notes Gateway. For more information, see your Lotus Notes administration documentation.

  9. Click Save and Close.

  10. Unless you are planning to run the Notes Gateway on the Notes/Domino server (not recommended), continue with Registering the Notes Gateway As a Notes User.

    or

    If you must install the Notes Gateway on the Notes/Domino server, skip to Configuring the GroupWise Side of the Notes Gateway.
