6.1 Providing Foreign System Configuration Information

  1. In ConsoleOne, connect to the domain where you installed the Exchange Gateway (worksheet item 4), then select the Domain object.

  2. Right-click the Exchange Gateway object, then click Properties.

    Foreign System Configuration page

  3. On the Foreign System Configuration page, click Default to populate the fields.

    NOTE:If the Foreign System Configuration page is not available, then the Exchange Gateway snap-in is not installed in ConsoleOne.

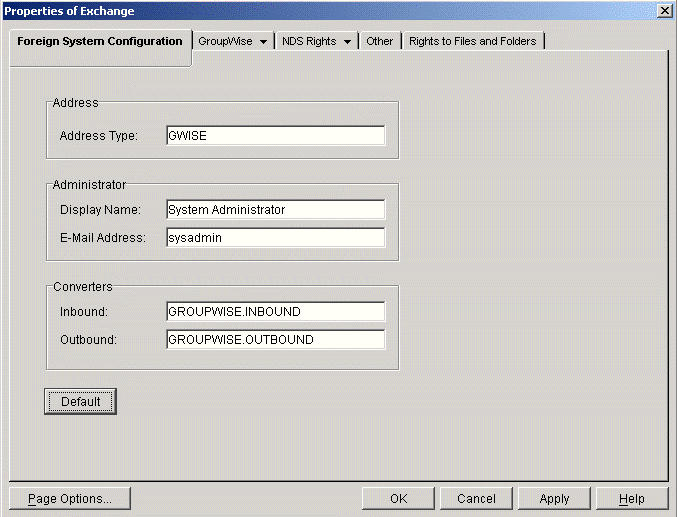

    Foreign System Configuration page with defaults

    The defaults are typically acceptable, but you can change the information if needed.

    Address: Specify the name of the Exchange address type (worksheet item 11) that you want the gateway to create in the Exchange system. The default is GWise.

    Administrator: Specify the name and e-mail address of the administrator of the Exchange system.

    Converters: The locations of the conversion DLLs is provided automatically.

    IMPORTANT:We highly recommend that you do not change the default information.

  4. Click Apply to save the foreign system configuration information.

  5. Continue with Section 6.2, Providing Gateway Information.
