16.2 Setting Up Workflows to Start Automatically

When the provisioning module is installed, workflows are automatically started when a user starts a provisioning request by requesting a resource. In addition, the Identity Manager User Application driver listens for events in the Identity Vault and, when configured to do so, responds to events by starting the appropriate provisioning workflows. For example, you can configure the User Application driver to automatically start a provisioning workflow if a new user is added to the Identity Vault. You configure the User Application driver to automatically start workflows using Identity Manager policies and rules.

16.2.1 About Policies

You can use filters and policies with the User Application driver in the same way that you can with other Identity Manager drivers. When an event occurs in the Identity Vault, Identity Manager creates an XML document that describes the event. The XML document is passed along the channel to the connected system (in this case, the connected system is the User Application). Filters and policies associated with a driver allow you to define how to respond to the event, and in the process transform that XML document to the format that is expected by the connected system. Identity Manager provides several categories of policies (for example, Event Transformation, Command Transformation, Schema Mapping, Output Transformation) that you can apply, in a prescribed order, to transform the XML document.

This section provides an example of starting a workflow based on events in the Identity Vault. Although any of the policies can be used to trigger a workflow, the example presented in this section demonstrates the easiest and most useful method.

When you create a User Application driver, an Event Transformation Policy is created for use by the driver. The Event Transformation Policy is responsible for creating the XML document that is processed by the remaining Subscriber channel policies.

NOTE:Do not change the Event Transformation policy that was created when the User Application driver was created. The DN of this policy begins with Manage.Modify.Subscriber. Changing this policy might cause the workflow process to fail.

An empty Schema Mapping Policy is also created. You can use this policy as a starting point for triggering a workflow, based on events in the Identity Vault.

16.2.2 Using the Policy Builder

The easiest way to automatically start a workflow based on an Identity Vault event is to use the Policy Builder. The Policy Builder provides a Start Workflow action that simplifies the process of setting up a workflow to start automatically.

  1. In iManager, expand the Identity Manager Role, then click Identity Manager Overview.

  2. Specify a driver set.

  3. Click the driver for which you want to manage policies. The Identity Manager Driver Overview opens.

  4. Click the policy that you want to edit.

  5. Click Insert to open the Policy Builder.

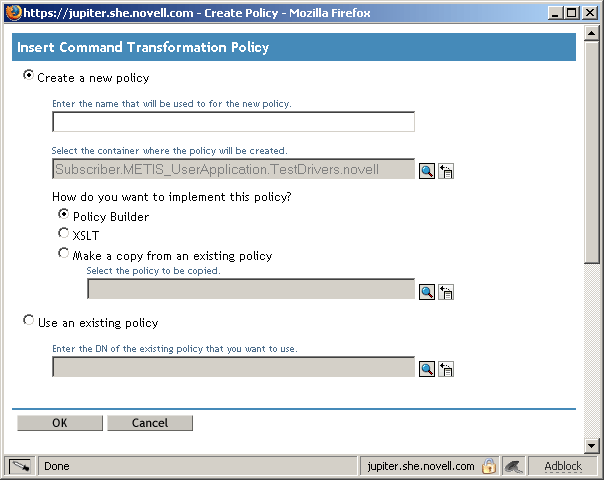

  6. Click Create a new policy.

  7. Type a name for the policy.

  8. Click Policy Builder.

  9. Click OK.

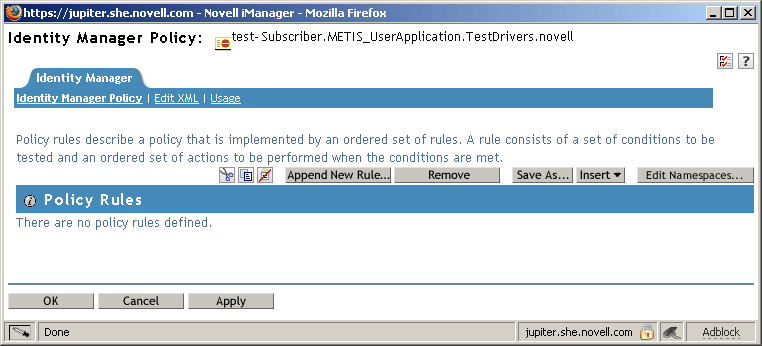

    iManager displays a screen that lists defined policy rules.

  10. Click Append New Rule.

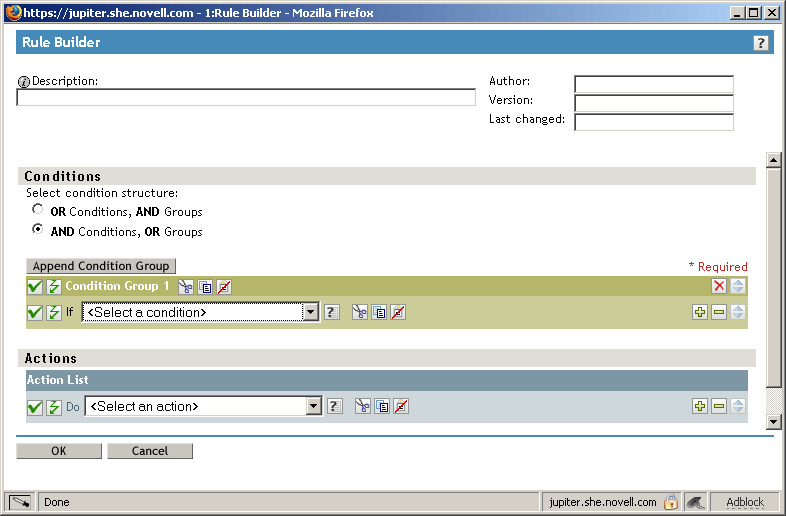

    iManager displays the Rule Builder.

  11. Type a Description for the rule.

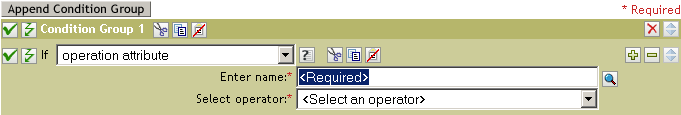

  12. Select operation attribute for the If condition in Condition Group 1.

  13. Use the Browse attributes button for the Enter name field to specify the Identity Vault attribute that you want to use to start the workflow.

    For example, to start a workflow when a telephone number changes, select the Telephone Number attribute.

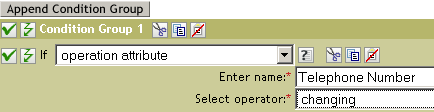

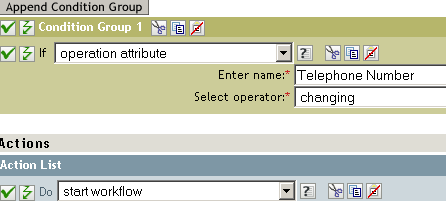

  14. Use the Select Operator list to select the operator to use to test the specified attribute.

    For example, to start a workflow when a telephone number changes, select changing.

  15. Select start workflow from the Action list.

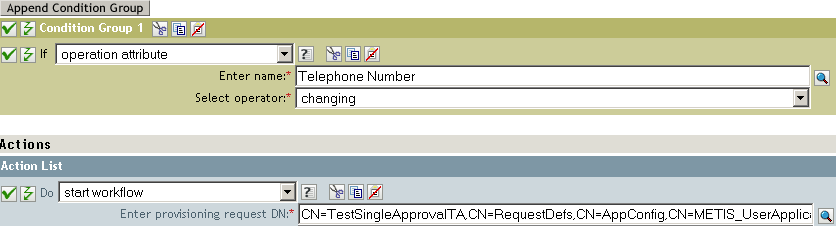

  16. Use the Object Selector in the Enter provisioning request DN field to select the provisioning request definition that you want to be executed when the if condition is true.

    The Enter user application URL and Enter authorized user DN fields are filled in automatically.

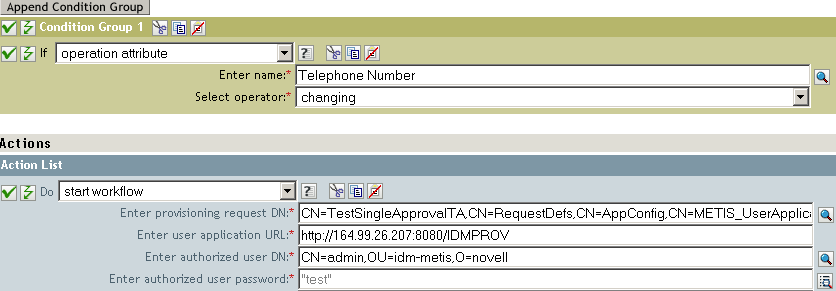

  17. Type the password for the User Application administrator in the Enter authorized user password field.

    We recommend using a named password, because typing a password in clear text is a security risk. See “Named Password” in the Policies in iManager in Identity Manager 3.5 guide.

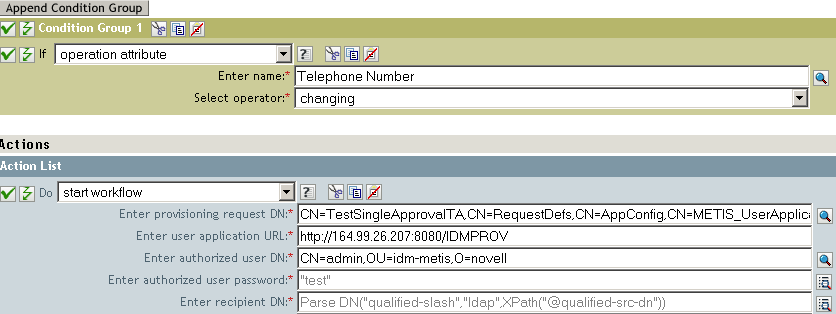

  18. In the Enter recipient DN field, specify the DN of the recipient of the workflow in LDAP format.

    The expression for the recipient DN must evaluate to a DN that conforms to RFC 2253 format (in other words, cn=user,ou=organizational unit,o=organization). For example, you can click the Argument Builder button in the Enter recipient DN field to create the following expression to pass the recipient’s DN to the workflow:

    Parse DN("qualified-slash","ldap",XPath("@qualified-src-dn"))

  19. Specify the arguments for the workflow in the Enter additional arguments field.

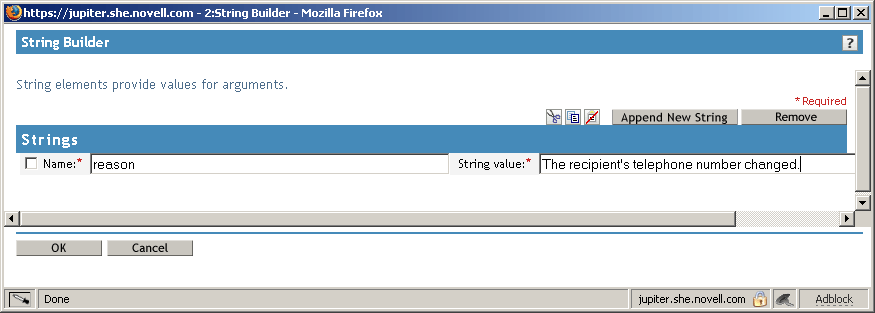

    You must use this field to specify the reason attribute, which is required by the workflow. You can click the String Builder button in the Enter additional arguments field to specify the reason attribute and create a value for the attribute (for example, “the recipient’s telephone number has changed”).

  20. Click OK to close the Rule Builder.

  21. Click OK to close the Policy Builder.

  22. Click OK to close the Policies screen.

  23. Make sure that you add any attributes needed by the workflow to the filter.

    In the example described in this procedure, you would need to add Telephone Number and CN to the filter. For information about adding objects to the filter, see “Controlling the Flow of Objects with the Filter” in the Policies in iManager in Identity Manager 3.5 guide.

16.2.3 Using the Schema Mapping Policy Editor

The Schema Mapping Policy Editor provides an alternative method of starting a workflow automatically, by mapping Identity Vault attributes to workflow runtime data. To get you started, the User Application driver provides an empty policy to edit. Workflow runtime data is available from the workflow definition template described in Section 17.0, Configuring Provisioning Request Definitions.

When a workflow is created, the following global attributes are created in the Identity Vault:

  • <workflowName> _StartWorkflow. This attribute starts a workflow.

  • <workflowName> _recipient. This attribute accepts runtime data needed by the workflow from the Identity Vault.

  • <workflowName> _reason. This attribute accepts runtime data needed by the workflow from the Identity Vault.

Two other attributes always exist and accept runtime data needed by the workflow from the Identity Vault:

  • AllWorkflows:reason

  • AllWorkflows:recipient

Ensure you have the following information before you set up a workflow to start based on an event in the Identity Vault:

  • The name of the Identity Vault attribute that you want to use as a trigger for the workflow

  • The name of the workflow that you want to start. All workflows include a special attribute named <workflowName>_StartApprovalFlow. You configure a workflow to start automatically based on an event in the Identity Vault by mapping the desired eDirectory attribute to the <workflowName>_StartApprovalFlow attribute for the workflow.

To set up a workflow to start based on an event in the Identity Vault:

  1. In iManager, click the Identity Manager Overview link under Identity Manager in the iManager navigation tree.

    Illustration

    The Identity Manager Overview page displays. This page prompts you to select a driver set.

  2. Click Search Entire Tree; then click Search. The Identity Manager Overview page displays, with a graphic that depicts the drivers in the currently selected driver set.

  3. Click the large driver icon for the User Application driver:

    Illustration

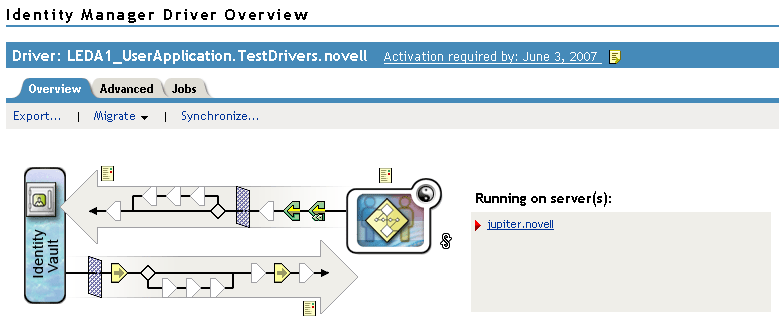

    The Identity Manager Driver Overview displays:

    Illustration

    The top horizontal arrow represents the Publisher channel (which is not used in the User Application driver) and the bottom horizontal arrow represents the Subscriber channel. As you pass the mouse pointer over an object in the graphic, a description of the object displays:

    Illustration

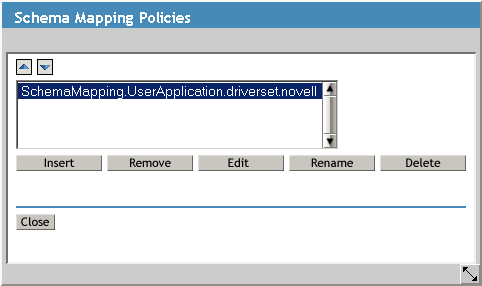

  4. Click the Schema Mapping Policies icon. The Schema Mapping Policies dialog box displays:

    Illustration

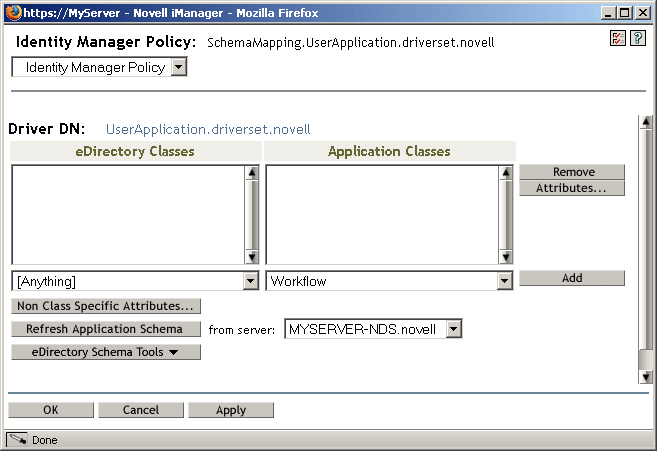

  5. Click Edit. The Identity Manager Policy dialog box displays. (This dialog box maps Identity Vault classes to application classes, but this procedure uses it to map eDirectory attributes to global User Application attributes.)

    Illustration
  6. Click Refresh Application Schema. A message displays informing you that the driver must be stopped in order to read the schema, then restarted. It might take about 60 seconds to refresh the schema. This step reads the latest set of workflow information in preparation for the following step, which specifies the information to move from the Identity Vault to the workflow that will be started.

  7. Click OK to refresh the schema. A message displays when the schema refresh is completed.

  8. Click OK to close the schema refresh message. You are returned to the Identity Manager Policy dialog box.

  9. Click Non Class Specific Attributes. The Identity Manager Schema Mapping Policy Editor displays.

    Illustration

    The eDirectory Attributes drop-down list contains all eDirectory attributes.

    The Application Attributes drop-down list contains the attributes in all active Workflows. Attributes in the list are prefaced with either AllWorkflows (meaning that the attribute applies to all workflows) or the name of a specific workflow. If you want the same eDirectory attribute (for example manager) to be mapped to the manager attribute for all workflows, map manager to Allworkflows:manager. If you want a different eDirectory attribute (for example, HRmanager) to be used for a specific workflow, map the eDirectory attribute to the specific workflow attribute (for example BusinessCardChange:manager).

    Attributes that have been mapped are displayed side-by-side in the eDirectory Attributes and Application Attributes columns.

    In the following steps, map the eDirectory attribute that you want to use to start the workflow to the _StartWorkflow attribute for that workflow. If additional eDirectory attributes are expected by the workflow, you should also map those attributes. For example, if an eDirectory Address attribute is the trigger for a workflow, the workflow can also require attributes like City and State. Alternatively, these attributes can be mapped in policies.

  10. In the Application Attributes list, select the _StartWorkflow attribute for the workflow that you want to configure. The following example shows the _StartWorkflow attribute for a BusinessCardChange workflow (BusinessCardChange_StartWorkflow).

    Illustration

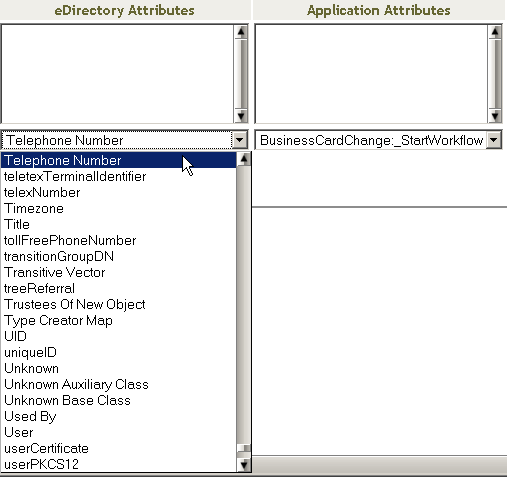

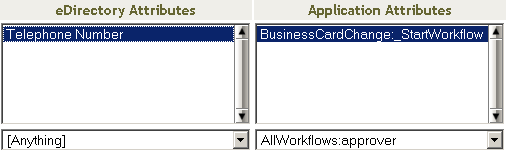

  11. In the eDirectory Attributes list, select the eDirectory attribute that you want to use to start the workflow when that attribute changes. In the following example, the Telephone attribute is selected. This means that the BusinessCardChange workflow starts whenever an employee’s telephone number changes.

    Illustration
  12. Click Add. The eDirectory attribute is mapped to the Application attribute.

    Illustration
  13. Repeat Step 10 through Step 12 to map eDirectory attributes to the workflow _reason and _recipient attributes.

  14. If additional eDirectory attributes are needed by the workflow, repeat Step 10 through Step 12 until you have mapped all of the attributes that you need to map.

    The workflow starts automatically when a change occurs in the eDirectory attribute that is mapped to an application _StartApprovalFlow attribute. However, the eDirectory attribute only reaches the Schema Mapping policy if the eDirectory attribute is included in the Driver Filter. In the following steps, add the eDirectory attribute to the Driver Filter.

  15. Click OK to close the Schema Mapping Policy Editor.

  16. Click OK to close the Identity Manager Policy dialog box.

  17. Click Close to close the Schema Mapping Policies dialog box.

  18. Click the Driver Filter icon.

    Illustration

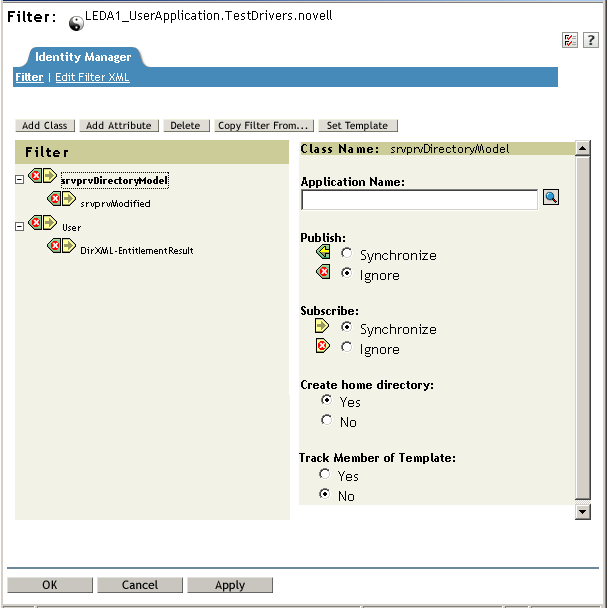

    The filter window displays:

    Illustration

    Event filters specify the object classes and the attributes for which the Identity Manager engine processes events. The read-only Filter list on the left shows the attributes of the class. The Class Name list on the right displays options associated with the target object.

  19. Click the name of the class to which the attribute that you want to add to the filter belongs (for example, User).

  20. Click Add Attribute. A list of attributes displays.

  21. Select an attribute, then click OK. The attribute is added to the Filter list.

    Illustration
  22. Click the attribute name. The synchronization options for the attribute are displayed on the panel on the right.

    Illustration

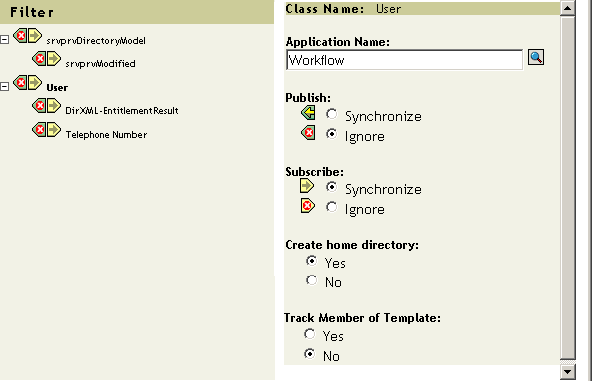

  23. Under Subscribe, click Synchronize.

    Illustration
  24. Specify any other attributes for the filter. Select Synchronize for an attribute if you want changes to attribute values to be reported and synchronized. Select Ignore if you do not want changes to attribute values to be reported and synchronized.

  25. Click OK. A message displays asking you if you would like the driver to be restarted to put the changes into effect.

  26. Click OK. You are returned to the Identity Manager Driver Overview page.
