6.1 Accessing the Schema Map Editor
The Schema Map editor allows you to edit the Schema Mapping policies. There are three different ways to access the Schema Map editor in Designer: through the Outline view, through the Policy Flow view, or through the Policy Set view.

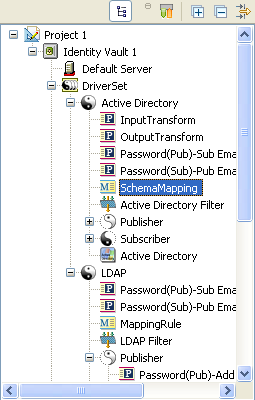

6.1.1 Outline View
-
In an open project, click the tab.
-
Click the icon.
-
Select the driver you want to manage the schema mapping policy on, and click the plus sign to the right.
-
Double-click the Schema Map icon to launch the Schema Map editor.
or
Right-click and select .
6.1.2 Policy Flow View
-
In an open project, click the tab.
-
Click the icon.
-
Double-click the Schema Mapping policy to launch the Schema Map editor.
or
Right-click and select to launch the Schema Map editor.

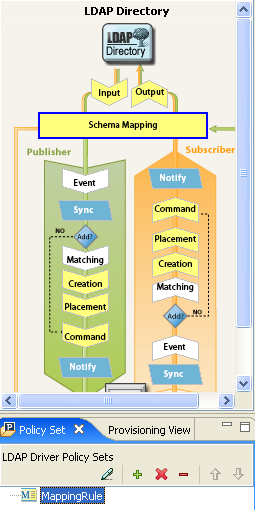

6.1.3 Policy Set View
-
Double-click the Schema Map policy in the Policy Set view.
or
Right-click the Schema Map policy and select .
6.1.4 Keyboard Support
Table 6-1 Schema Map Editor Keyboard Support
