4.3 Creating the Driver in iManager

You create the WorkOrder driver by importing the driver’s basic configuration file and then modifying the configuration to suit your environment. After you’ve created and configured the driver, you need to start it.

4.3.1 Importing the Driver Configuration File

  1. In iManager, click Driver icon to display the Identity Manager Administration page.

  2. In the Administration list, click Import Configuration to launch the Import Configuration wizard.

  3. Follow the wizard prompts, filling in the requested information (described below) until you reach the Summary page.

    Prompt

    Description

    Where do you want to place the new driver?

    You can add the driver to an existing driver set, or you can create a new driver set and add the driver to the new set. If you choose to create a new driver set, you are prompted to specify the name, context, and server for the driver set.

    Import a configuration into this driver set

    Use the default option, Import a configuration from the server (.XML file).

    In the Show field, select Identity Manager 3.6.1 configurations.

    In the Configurations field, select the WorkOrder file.

    Driver name

    Type a name for the driver. The name must be unique within the driver set.

    WorkOrder Container

    Browse for and select the container you created for WorkOrder objects (see Section 4.1, Creating the WorkOrder Container in the Identity Vault).

    Driver is Local/Remote

    Select Local if this driver will run on the Metadirectory server without using the Remote Loader service. Select Remote if you want the driver to use the Remote Loader service, either locally on the Metadirectory server or remotely on another server.

    Remote Host Name and Port

    This applies only if the driver is running remotely.

    Specify the hostname or IP address of the server where the driver’s Remote Loader service is running.

    Driver Password

    This applies only if the driver is running remotely.

    Specify the driver object password that is defined in the Remote Loader service. The Remote Loader requires this password to authenticate to the Metadirectory server.

    Remote Password

    This applies only if the driver is running remotely.

    Specify the Remote Loader’s password (as defined on the Remote Loader service). The Metadirectory engine (or Remote Loader shim) requires this password to authenticate to the Remote Loader

    Define Security Equivalences

    The driver requires rights to objects within the Identity Vault and to the input and output directories on the server. The Admin user object is most often used to supply these rights. However, you might want to create a DriversUser (for example) and assign security equivalence to that user. Whatever rights that the driver needs to have on the server, the DriversUser object must have the same security rights.

    Exclude Administrative Roles

    You should exclude any administrative User objects (for example, Admin and DriversUser) from synchronization.

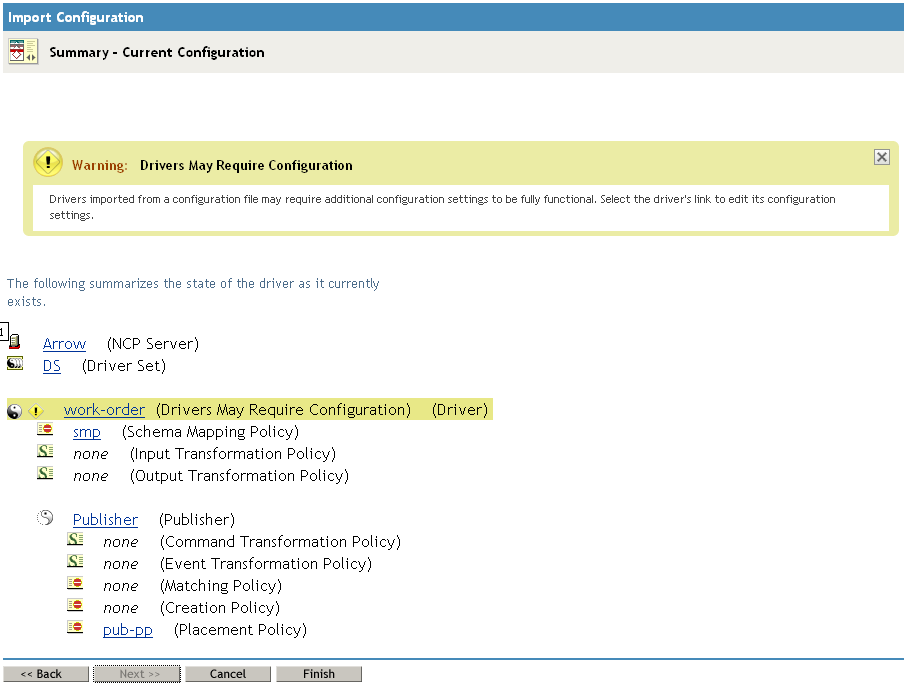

    When you finish providing the information required by the wizard, a Summary page similar to the following is displayed.

    At this point, the driver is created from the basic configuration file. To ensure that the driver works the way you want it to for your environment, you must review and modify (if necessary) the driver’s default configuration settings.

  4. To modify the default configuration settings, click the linked driver name, then continue with the next section, Configuring the Driver Settings.

    or

    To skip the configuration settings at this time, click Finish. When you are ready to configure the settings, continue with the next section, Configuring the Driver Settings.

4.3.2 Configuring the Driver Settings

After importing the driver configuration file, the WorkOrder driver will run. However, the basic configuration might not meet the requirements for your environment. For example, you might need to change whether the driver checks for new work orders in the WorkOrder container at a specific interval throughout the day or only at a specific time each day. The default setting is to poll the WorkOrder container every minute.

In addition to the polling setting, there are addtional settings that can help you customize and optimize the driver. The settings are divided into categories such as Driver Configuration, Engine Control Values, and Global Configuration Values (GCVs).

To configure the settings:

  1. Make sure the Modify Object page for the WorkOrder driver is displayed in iManager. If it is not:

    1. In iManager, click to display the Identity Manager Administration page.

    2. Click Identity Manager Overview.

    3. Browse to and select the driver set object that contains the new driver.

    4. Click the driver set name to access the Driver Set Overview page.

    5. Click the upper right corner of the driver, then click Edit properties.

  2. Review the settings on the various pages and modify them as needed for your environment. The configuration settings are explained in Driver Parameters.

    Although it is important for you to understand all of the settings, your first priority should be to review the Driver Parameters located on the Driver Configuration page. These settings let you control the method the driver uses to check for new work orders.

  3. After modifying the settings, click OK to save the settings and close the Modify Object page.

  4. (Conditional) If the WorkOrder driver’s Summary page for the Import Configuration Wizard is still displayed, click Finish.

    WARNING:Do not click Cancel on the Summary page. This removes the driver from the Identity Vault and loses your work.

4.3.3 Starting the Driver

When a driver is created, it is stopped by default. To make the driver work, you must start the driver and cause events to occur. Identity Manager is an event-driven system, so after the driver is started, it doesn’t do anything until an event occurs.

To start the driver:

  1. In iManager, click to display the Identity Manager Administration page.

  2. Click Identity Manager Overview.

  3. Browse to and select the driver set object that contains the driver you want to start.

  4. Click the driver set name to access the Driver Set Overview page.

  5. Click the upper right corner of the driver, then click Start driver.

For information about management tasks with the driver, see Section 8.0, Managing the Driver.
