1. Open Designer.

2. In the toolbar, click Help > Check for Package Updates.

3. Click OK to update the packages

   or

   Click OK if the packages are up-to-date.

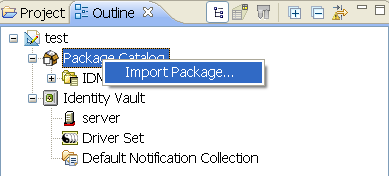

4. In the Outline view, right-click the Package Catalog.

5. Click Import Package.



6. Select any WorkOrder driver packages

   or

   Click Select All to import all of the packages displayed.

   By default, only the base packages are displayed. Deselect Show Base Packages Only to display all packages.

7. Click OK to import the selected packages, then click OK in the successfully imported packages message.

8. After the current packages are imported, continue with Section 4.2.2, Installing the Driver Packages.

1. In Designer, open your project.

2. In the Modeler, right-click the driver set where you want to create the driver, then click New > Driver.

3. Select WorkOrder Base, then click Next.

4. Click Next.

5. On the Driver Information page, specify a name for the driver, then click Next.

6. On the Install WorkOrder Base page, specify the name of the container that holds the WorkOrder objects.

7. Click Next.

8. Fill in the following fields for Remote Loader information:

   Connect To Remote Loader: Select Yes or No to determine if the driver will use the Remote Loader. For more information, see the Identity Manager 4.0 Remote Loader Guide.

   If you select No, skip to Step 9. If you select Yes, use the following information to complete the configuration of the Remote Loader:

   Host Name: Specify the IP address or DNS name of the server where the Remote Loader is installed and running.

   Port: Specify the port number for this driver. Each driver connects to the Remote Loader on a separate port. The default value is 8090.

   Remote Loader Password: Specify a password to control access to the Remote Loader. It must be the same password that is specified as the Remote Loader password on the Remote Loader.

   Driver Password: Specify a password for the driver to authenticate to the Metadirectory server. It must be the same password that is specified as the Driver Object Password on the Remote Loader.

9. Click Next.

10. Review the summary of tasks that will be completed to create the driver, then click Finish.

11. After you have installed the driver, you must change the configuration for your environment. Proceed to Section 4.2.3, Configuring the Driver Settings.

If you do not have the Driver Properties page displayed in Designer:

1. Open your project.

2. In the Modeler, right-click the driver icon or the driver line, then select Properties.

   Although it is important for you to understand all of the settings, your first priority should be to review the Driver Parameters located on the Driver Configuration page. These settings let you control the method the driver uses to check for new work orders.

3. After you configure the driver, continue with Section 4.2.4, Deploying the Driver.

1. In Designer, open your project.

2. In the Modeler, right-click the driver icon or the driver line, then select Live > Deploy.

3. If you are authenticated to the Identity Vault, skip to Step 5; otherwise, specify the following information to authenticate:

   Host: Specify the IP address or DNS name of the server hosting the Identity Vault.

   Username: Specify the DN of the user object used to authenticate to the Identity Vault.

   Password: Specify the user’s password.

4. Click OK.

5. Read the deployment summary, then click Deploy.

6. Read the message, then click OK.

7. Click Define Security Equivalence to assign rights to the driver.

   The driver requires rights to objects within the Identity Vault. The Admin user object is most often used to supply these rights. However, you might want to create a DriversUser (for example) and assign security equivalence to that user. Whatever rights that the driver needs to have on the server, the DriversUser object must have the same security rights.

   1. Click Add, then browse to and select the object with the correct rights.

   2. Click OK twice.

8. Click Exclude Administrative Roles to exclude users that should not be synchronized.

   You should exclude any administrative User objects (for example, Admin and DriversUser) from synchronization.

   1. Click Add, then browse to and select the user object you want to exclude.

   2. Click OK.

   3. Repeat Step 8.a and Step 8.b for each object you want to exclude.

   4. Click OK.

9. Click OK.

1. In Designer, open your project.

2. In the Modeler, right-click the driver icon or the driver line, then select Live > Start Driver.
