4.2 Using the Provisioning Request Definition Editor

The provisioning request definition editor allows you to create provisioning request definitions that bind corporate resources or roles to a workflow. The provisioning request definition editor includes the following tools:

For provisioning request definitions that are not based on roles, you can use a provisioning request template to create your definitions. The templates model some common workflow design patterns. However, if you want complete control over the behavior of your workflows, you can create your own custom provisioning request definitions.

4.2.1 Creating a Provisioning Request Definition

This section describes how to create both provisioning requests that are based on roles and provisioning requests that are not based on roles by using the following methods:

  • From a template (not supported for roles based provisioning request definitions).

  • From a copy of an existing provisioning request definition.

  • As a custom provisioning request definition.

When possible, you should use a template or a copy of an existing definition because it saves you time, and allows you to make targeted changes to an existing provisioning request definition. However, if no existing provisioning request definition resembles new work that you want to do, you can create a custom provisioning request.

The following table describes the steps for defining a provisioning request.

Table 4-1 Basic Steps for Defining a Provisioning Request

Task

Action

For More Information

1

Create a provisioning request definition.

Depending on what you want to create, see:

2

Create the request and approval forms.

HINT:Creating the forms before the workflow simplifies the process of mapping the form fields to the application data.

See Section 5.0, Creating Forms for a Provisioning Request Definition

3

Create the workflow diagram by adding activities to the workflow diagram and connecting them with flow paths.

See Section 6.0, Creating the Workflow for a Provisioning Request Definition

4

Configure the activities and flow paths by specifying the properties, data item mappings, and e-mail notification settings for the actvities. Then define the semantics for the flow paths.

See Section 7.0, Workflow Activity Reference

4.2.2 Starting the Provisioning Request Definition Editor

  1. Open the Provisioning view and double-click the Provisioning Request Definitions node.

    Designer displays the provisioning request definitions tree containing nodes for the default provisioning definition request definition categories of Accounts, Attestations, Entitlements, Groups, Roles, and Uncategorized.

    These default categories are defined by the directory abstraction layer Provisioning Category list. For information on managing categories, see Section 3.3, Working with Lists.

    The installed templates are available in the Entitlements node, and the default role provisioning request definitions are available in the Roles node.

  2. Use the Provisioning view pane to navigate the provisioning request definition categories. The right-click menu is available from the top-level node or when you select an existing provisioning request definition. You cannot create a provisioning request definition by selecting a category node.

  3. Double-click a provisioning request definition to open it in the editor in the right pane.

    Provisioning request definitions are stored locally in the Provisioning\AppConfig\ RequestDefs directory within your workspace.

4.2.3 Creating a Provisioning Request Definition By Using a Template

  1. Launch the Create A New PRD wizard in one of these ways:

    • From the Provisioning view, right-click the Provisioning Request Definitions node and choose New.

    • From the Provisioning view, click a User Application or provisioning request container, then select Insert > Provisioning Request Definition.

    • Select File > New > Provisioning.

    • Choose Provisioning Request Definition, then click Next.

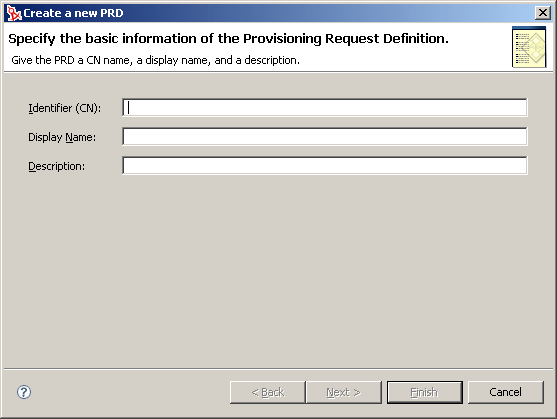

    The first page of the Create a New PRD Wizard is displayed.

  2. Fill in the fields as follows:

    Field

    Description

    Identifier (CN)

    The CN (common name) identifier for the provisioning request definition. The name cannot be longer than 64 characters.

    Display Name

    The display name for the provisioning request definition. This is the name that is displayed in the provisioning view.

    Description

    A description of the provisioning request definition.

  3. Click Next. The next page of the wizard is displayed.

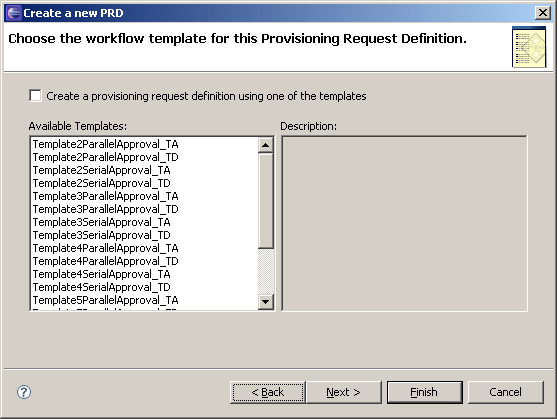

  4. Select Create a provisioning request definition using one of the templates, then select the desired template (for example, TemplateSingleApproval_TA) from the Available Templates list, then click Next.

    You use the next panel of the wizard to specify the provisioning request definition’s category and trustees (the users, groups, or containers) who can access the provisioning request definition after it is deployed.

  5. Select a category from the list.

  6. Select Notify participants by e-mail if you want approvers to be notified by e-mail about pending approval tasks, and also want initiators to be notified by e-mail of workflow completion. If Notify participants by e-mail is not selected, users must look at the Requests and Approvals tab in the User Application for notifications about tasks.

  7. Click the plus (+) icon to add a trustee.

    Designer displays a panel that allows you to browse the Identity Vault to select a trustee. You can select a user, group, or container. If you cannot connect to the Identity Vault, you can type trustee DNs directly in the Trustee DN field.

  8. Select the trustee, then click OK.

    Designer returns you to the previous panel. If desired, add additional trustees by repeating the previous step.

  9. When you have finished adding trustees, click Finish.

    Designer displays the Provisioning Request Definition Details panel on the Overview tab (see Section 4.2.6, Modifying Settings of a Provisioning Request Definition).

  10. Click the Workflow tab. The Workflow view is displayed.

    The provisioning request definition template includes some default values that you must customize for your environment. For example, the Entitlement Provisioning Activity contains placeholder values for several data item mapping properties. You need to replace the placeholder values with the actual values for your provisioning request.

  11. Click the Entitlement Provisioning activity, then click the Data Item Mapping tab.

  12. Double-click in the Source Expression field to display the DirXML-Entitlement-DN target field, then click the button that appears in the field to display the ECMA expression builder.

    See Section 9.0, Working with ECMA Expressions for information about the ECMA expression builder.

  13. Use the ECMA expression builder to replace the placeholder expression with an expression that specifies the entitlement that you want to provision with this provisioning request.

  14. Replace the placeholder expression in the Source Expression field for the DirXML-Entitlement-Parameter.

  15. Click the Forms tab and customize the forms for the provisioning request to meet your needs.

    See Section 5.0, Creating Forms for a Provisioning Request Definition.The template includes predefined request and approval forms. You might want to add additional forms, or add or remove form controls.

  16. Click the Workflow tab and customize the properties of the workflow to your needs.

    See Section 6.0, Creating the Workflow for a Provisioning Request Definition and Section 7.0, Workflow Activity Reference.

For more information about the preconfigured templates, see the following:

About the Installed Templates

Identity Manager ships with a set of preconfigured provisioning request definitions and workflows. You can use these as templates for building your own provisioning system. To set up your system, you define new objects based on the installed templates and customize these objects to suit the needs of your organization.

The installed templates let you determine the number of approval steps required for the request to be fulfilled. You can configure a provisioning request to require from zero to five approval steps.

You can also specify whether you want to support sequential or parallel processing, and whether you want to approve or deny the request if the workflow times out during the course of processing.

The following table lists the templates included with Identity Manager.

Table 4-2 Preconfigured Provisioning Request Definitions and Workflows

Template

Description

Self Provision Approval

Allows a provisioning request to be fulfilled without any approvals.

One Step Approval (Timeout Approves)

Requires a single approval for the provisioning request to be fulfilled. If an activity times out, the activity approves the request and the work item is forwarded to the next activity.

Two Step Sequential Approval (Timeout Approves)

Requires two approvals for the provisioning request to be fulfilled. If an activity times out, the activity approves the request and the work item is forwarded to the next activity.

This template supports sequential processing.

Three Step Sequential Approval (Timeout Approves)

Requires three approvals for the provisioning request to be fulfilled. If an activity times out, the activity approves the request and the work item is forwarded to the next activity.

This template supports sequential processing.

Four Step Sequential Approval (Timeout Approves)

Requires four approvals for the provisioning request to be fulfilled. If an activity times out, the activity approves the request and the work item is forwarded to the next activity.

This template supports sequential processing.

Five Step Sequential Approval (Timeout Approves)

Requires five approvals for the provisioning request to be fulfilled. If an activity times out, the activity approves the request and the work item is forwarded to the next activity.

This template supports sequential processing.

One Step Approval (Timeout Denies)

Requires a single approval for the provisioning request to be fulfilled. If an activity times out, the workflow denies the request.

Two Step Sequential Approval (Timeout Denies)

Requires two approvals for the provisioning request to be fulfilled. If an activity times out, the workflow denies the request.

This template supports sequential processing.

Three Step Sequential Approval (Timeout Denies)

Requires three approvals for the provisioning request to be fulfilled. If an activity times out, the workflow denies the request.

This template supports sequential processing.

Four Step Sequential Approval (Timeout Denies)

Requires four approvals for the provisioning request to be fulfilled. If an activity times out, the workflow denies the request.

This template supports sequential processing.

Five Step Sequential Approval (Timeout Denies)

Requires five approvals for the provisioning request to be fulfilled. If an activity times out, the workflow denies the request.

This template supports sequential processing.

Two Step Parallel Approval (Timeout Approves)

Requires two approvals for the provisioning request to be fulfilled. If an activity times out, the activity approves the request and the work item is forwarded to the next activity.

This template supports parallel processing.

Three Step Parallel Approval (Timeout Approves)

Requires three approvals for the provisioning request to be fulfilled. If an activity times out, the activity approves the request and the work item is forwarded to the next activity.

This template supports parallel processing.

Four Step Parallel Approval (Timeout Approves)

Requires four approvals for the provisioning request to be fulfilled. If an activity times out, the activity approves the request and the work item is forwarded to the next activity.

This template supports parallel processing.

Five Step Parallel Approval (Timeout Approves)

Requires five approvals for the provisioning request to be fulfilled. If an activity times out, the activity approves the request and the work item is forwarded to the next activity.

This template supports parallel processing.

Two Step Parallel Approval (Timeout Denies)

Requires two approvals for the provisioning request to be fulfilled. If an activity times out, the workflow denies the request.

This template supports parallel processing.

Three Step Parallel Approval (Timeout Denies)

Requires three approvals for the provisioning request to be fulfilled. If an activity times out, the workflow denies the request.

This template supports parallel processing.

Four Step Parallel Approval (Timeout Denies)

Requires four approvals for the provisioning request to be fulfilled. If an activity times out, the workflow denies the request.

This template supports parallel processing.

Five Step Parallel Approval (Timeout Denies)

Requires five approvals for the provisioning request to be fulfilled. If an activity times out, the workflow denies the request.

This template supports parallel processing.

About the Installed Templates and Flow Strategy

By default, provisioning request definition templates use the Single Flow flow strategy. The templates assume that the recipient is a user DN. If you change the flow strategy, you must modify the template. If you change the flow strategy to:

  • Flow per member: Remove the recipient reference from the request form.

  • Single flow provision members: Remove the recipient from the request form and add logic to determine the addressee for the approval activity. The templates assume the recipient is a user DN, so you must determine if the recipient is a user or group DN. You can use the IDVault isGroup(String dn) method to determine if the DN is a group. If the recipient is a group DN, you must provide logic for assigning the approval activity addressee.

4.2.4 Creating a Custom Provisioning Request Definition

If no existing provisioning request definition resembles the new work that you want to do, then you need to build a custom provisioning request definition.You can still save time and effort by re-using forms from other workflows.

NOTE:The procedure in this section does not use roles. To create a custom roles based provisioning request definition, see Section 4.2.5, Creating a Roles Based Provisioning Request Definition

  1. Create the basic information for a new provisioning request definition (see Section 4.2.3, Creating a Provisioning Request Definition By Using a Template). In step Step 4, do not select Create a provisioning request definition using one of the templates, and do not select a template. When you are finished, the Overview tab for the new provisioning request is displayed.

  2. Create the forms for the provisioning request definition. Defining forms before you create the workflow topology ensures that data bindings can be set up automatically for each activity when you create activities.

    To create the forms, see Section 5.3, Creating Forms.

  3. Click the Workflow tab and create the workflow topology.

    You create the topology of a workflow by creating and linking activities into the desired workflow pattern, and by assigning rules to the flowpaths between activities. For information about creating a workflow topology, see Section 6.0, Creating the Workflow for a Provisioning Request Definition.

  4. Specify the details (properties, data item mappings, e-mail notification) for each workflow activity.

    To specify workflow activity details, see Section 7.0, Workflow Activity Reference.

  5. Configure the flowpaths between workflow activities.

    To configure flowpaths, see Section 6.4, Configuring Flow Paths.

4.2.5 Creating a Roles Based Provisioning Request Definition

Designer supplies two Roles Based provisioning request definitions that you should use as a basis for your custom roles based provisioning request definitions. They are:

  • Role Approval

  • SoD Conflict Approval

To create a copy and customize its contents:

  1. From the Provisioning view, open Roles in the Provisioning Request Definitions node.

  2. Select one of the roles-based provisioning request definition (depending on which type of approval you want to create), right-click, then select Create From.

    • Role Approval: Choose this for role requests.

    • SoD Conflict Approval: Choose this for SoD conflict approval requests.

    Designer displays the Create a New PRD Wizard.

  3. Fill in the fields as follows:

    Field

    Description

    Identifier (CN)

    The CN (common name) identifier for the provisioning request definition. The name cannot be longer than 64 characters.

    Display Name

    The display name for the provisioning request definition. This is the name that is displayed in the provisioning view.

    Description

    A description of the provisioning request definition.

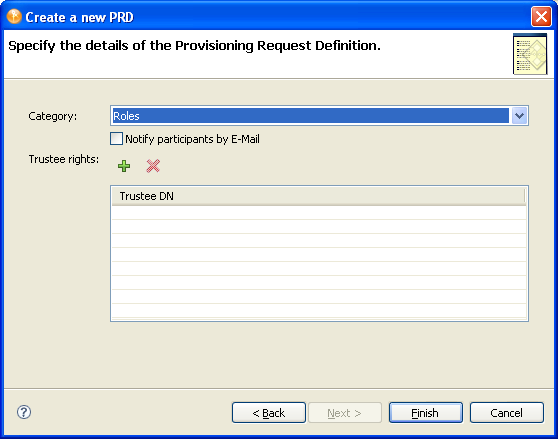

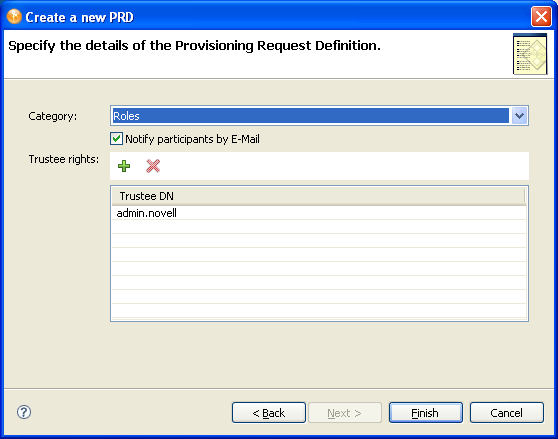

  4. Click Next. Designer displays the following dialog box.

  5. Specify Roles for the category.

  6. Select Notify participants by e-mail if you want approvers to be notified by e-mail about pending approval tasks, and also want initiators to be notified by e-mail of workflow completion. If Notify participants by e-mail is not selected, users must look at the Roles tab in the User Application for notifications about tasks.

  7. (Optional) Click the plus (+) icon to add a trustee.

    Designer displays a panel that allows you to browse the Identity Vault to select a trustee. You can select an individual trustee or a group.If you cannot connect to the Identity Vault, you can type trustee DNs directly in the Trustee DN field.

  8. (Optional) Select the trustee, then click OK.

    Designer returns you to the previous panel. Add additional trustees by repeating the previous step.

  9. Click Finish.

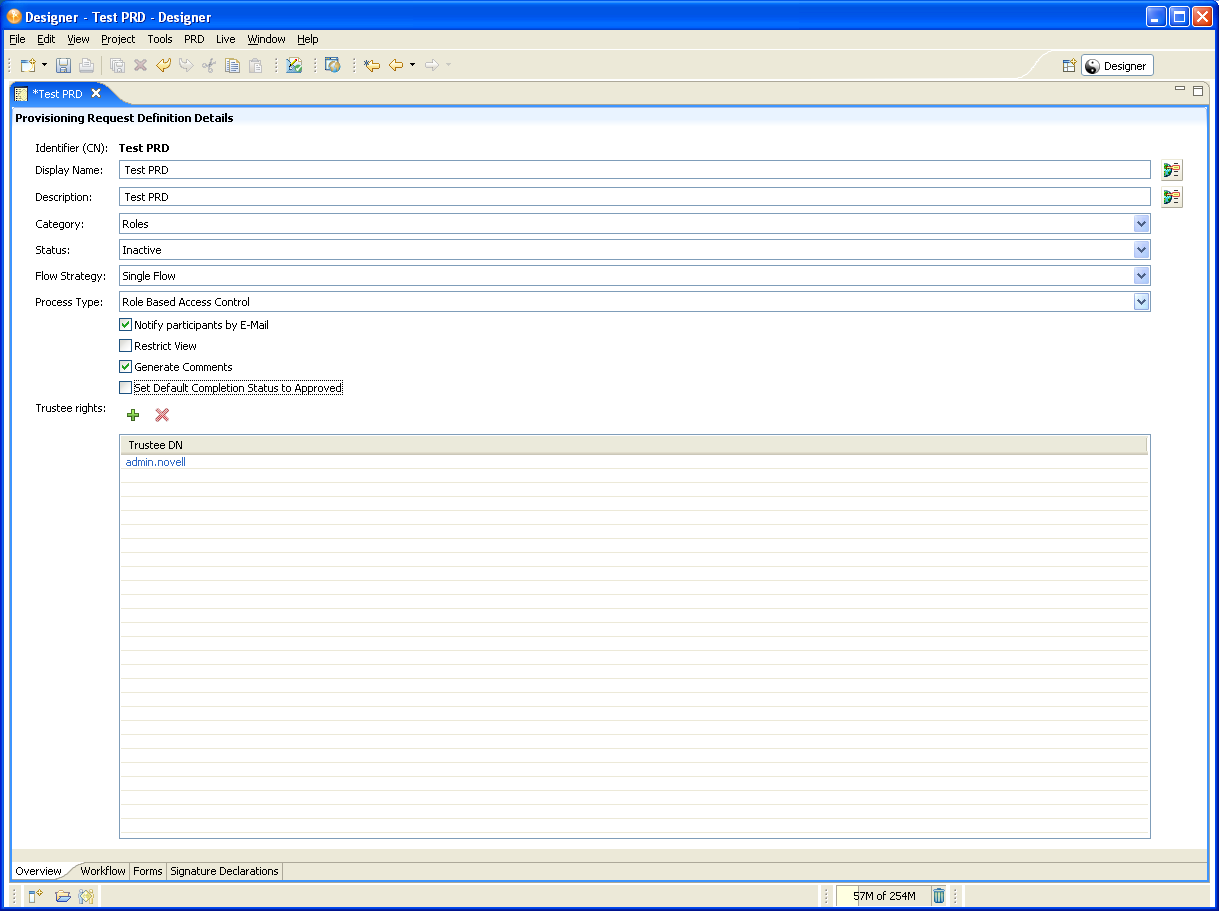

    Designer displays the Provisioning Request Definition Details panel on the Overview tab (see Section 4.2.6, Modifying Settings of a Provisioning Request Definition).

    For more details on defining the associated workflow, see Section 6.6, Guidelines for Creating Roles Based Workflows.

4.2.6 Modifying Settings of a Provisioning Request Definition

You use the Overview tab to define the basic information about the provisioning request definition (for example, the name of the provisioning request definition, the category to which it belongs, and who can access it).

Modifying Basic Settings

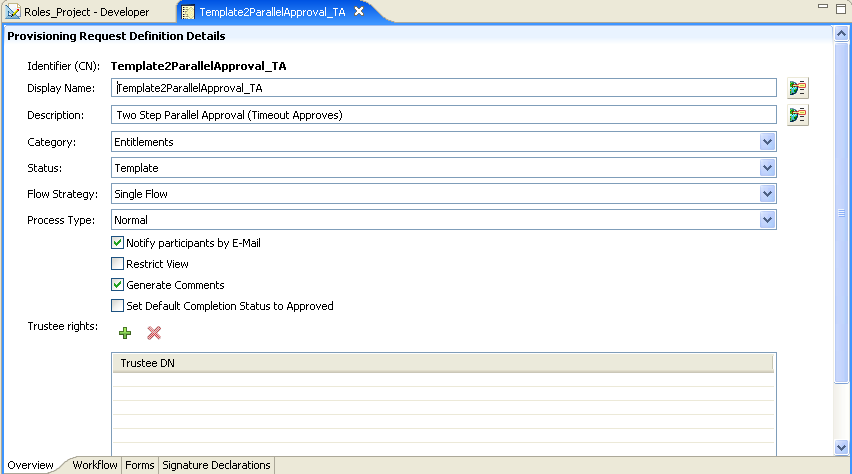

Figure 4-1 Overview Tab

The following table describes each property that you can configure on the Overview tab.

Table 4-3 Overview Properties

Field

Description

Identifier (CN)

Displays the CN (common name) of the provisioning request definition. The CN cannot be changed.

Display Name

Specifies the display name of the provisioning request definition. This is the name that is displayed to the user in Designer and Identity Manager.

Description

Specifies the description of the provisioning request definition.

Category

Specifies the category to which the provisioning request definition belongs from the list of Provisioning Categories defined in the directory abstraction layer. The Provisioning view displays the provisioning request definitions by categories.

Status

Specifies the status of the provisioning request definition:

Active: Select this option to make the provisioning request definition available for use in the User Application.

Inactive: Select this option to make the provisioning request definition temporarily unavailable for use in the User Application. You can use this option when you want keep the roles of the person who develops the provisioning request definition separate from the person who activates the provisioning request definition. For example, a developer could be responsible for marking the provisioning request definition as Inactive, and an administrator could be responsible for changing the status to Active.

Template: Select this option if you want to use this provisioning request definition as the basis for other provisioning request definitions. Templates are not available for use in the User Application.

Retired: Select this option to mark the provisioning request definition as permanently unavailable for use in the User Application (you can still change the status of the provisioning request definition at any time). This status provides a way of keeping a historical record of a provisioning request definition that is no longer in use.

Flow Strategy

Specifies the flow strategy for the provisioning request definition:

Single Flow: This strategy allows one workflow with one recipient.

Flow per member: This strategy allows the recipient to be a group DN. If you select this strategy, the User Application starts a workflow instance for each member of the group, and each workflow can be approved or denied separately. For example, assume there is a provisioning request definition for the recipient Human Resources. The Human Resource group has the members ablake and kchester. The User Application passes the Human Resources DN to the provisioning start. The provisioning interface starts two workflow instances, one for ablake and one for kchester.

Single Flow Provision Members: This strategy allows the recipient to be a group DN. If you select this strategy, the User Application starts a single workflow for the group. The workflow spawns multiple provisioning steps (one for each member) within the single workflow. The workflow is approved or denied to the group as a whole, not for each individual member.

Process Type

Specifies the type of provisioning request definition. Values are:

Normal: Used for typical workflow definitions that are not related to roles.

Role Based Access Control: Specify this type if the workflow is used for roles approvals. When this is set, the workflow is available to the Roles Configuration editor and the SoD Editor. It ensures that the NrfRequest object data item is available in the data item mapping.

Role Based Access Control Separation of Duties: Specify this type if the workflow is used for separation of duties constraints exceptions approvals.

WARNING:If you change the process type from Role Based Access Control or Role Based Access Control Separation of Duties to Normal, you must also remove any ECMA expressions related to the NrfRequest object. ECMA expressions related to the NrfRequest object are only valid in role based workflows. Including these expressions in non-roles-related workflows cause runtime errors in the User Application.

Notify participants by E-Mail

Specifies whether approvers are notified by e-mail about pending approval tasks, and whether initiators are notified by e-mail of workflow completion. If Notify participants by email is not selected, then users must look at the Requests and Approvals tab in the User Application for notifications about tasks.

For information about selecting an e-mail template and customizing e-mail template parameters, see Section 7.13, Finish Activity.

Restrict View

Specifies that the list of tasks that can be viewed by the user in My Requests in the User Application is restricted to tasks initiated by the user. The default behavior (that is, Restrict View is not selected) is that the user can see any requests that the user initiated or for which the user is the recipient.

Generate Comments

Specifies that the workflow engine should generate comments as the workflow progresses. These comments can be displayed by clicking the following:

  • View Comment and Flow History in a Request Detail form in the User Application

  • View Comment History in a Task Detail form in the User Application

Set Default Completion Status to Approved

Specifies that the default completion status of the provisioning request is approved if selected, or denied if not selected. This feature can be useful for provisioning requests that do not contain a provisioning activity (an Entitlement or Entity). The value of this parameter can be overridden by explicitly setting the completion status by using a Provisioning activity or Workflow Status activity.

Trustee Rights

Specifies the users and groups that can use the provisioning request definition.

Designer allows you to modify the properties of more than one provisioning request definition at a time. The provisioning request definitions must be of the same category. You will see a different set of properties for provisioning request definitions whose categories are Attestations or Roles. See Modifying Properties of Attestation or Roles Based Provisioning Request Definitions.

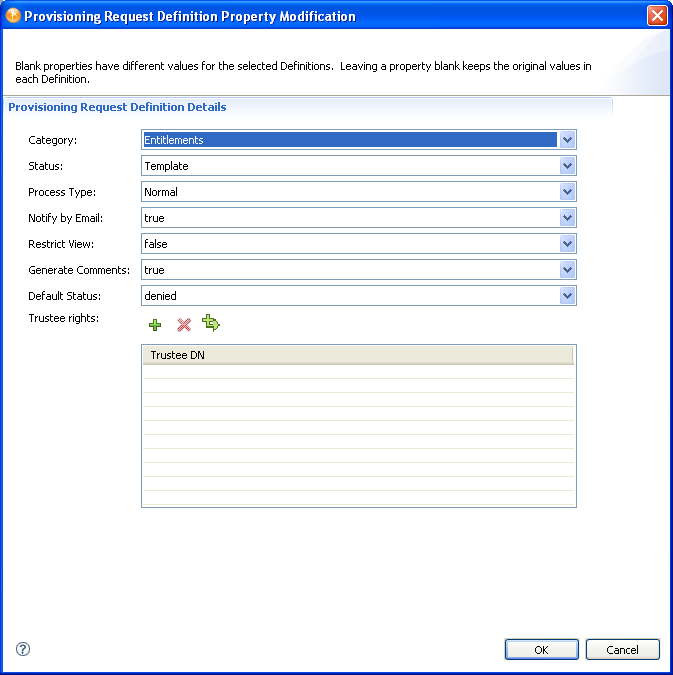

  1. With the Provisioning view open, select one or more provisioning request definitions, right-click, then select Properties. A dialog box like the following displays (the properties you can modify depend on the type of provisioning request definitions you have selected):

  2. Modify the selected provisioning request definitions as desired by changing the value for that property.

    If you have selected multiple provisioning request definitions and one of the properties does not contain a value, the corresponding field is blank. If you modify that field, then the value you specify is applied to all of the selected provisioning request definitions.

  3. For Trustees, delete, add, or merge the values for the selected provisioning request definitions.

    A merge adds all of the trustees in the selected provisioning request definitions to all of the selected provisioning request definitions.

  4. Click OK to save your changes.

Modifying Properties of Attestation or Roles Based Provisioning Request Definitions

The provisioning request definitions that support Attestations and Roles cannot be opened in the Provisioning Request Definition editor so you cannot set their properties by using the Overview tab. You can set several important properties, such as Trustee Rights, before deploying them.

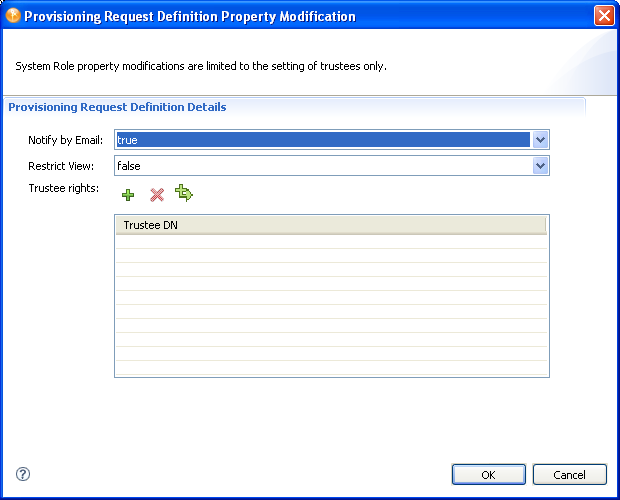

  1. With the Provisioning view open, select one (or more) of the Roles or Attestation provisioning request definitions, right-click, then select Properties.

  2. Fill in the fields as follows:

    Field Name

    Description

    Notify by E-Mail

    Specifies whether approvers are notified by e-mail about pending approval tasks, and whether initiators are notified by e-mail of workflow completion. If Notify participants by email is not selected, then users must look at the Requests and Approvals tab in the User Application for notifications about tasks.

    For information about selecting an e-mail template and customizing e-mail template parameters, see Section 7.13, Finish Activity.

    Restrict View

    Specifies that the list of tasks that can be viewed by the user in My Requests in the User Application is restricted to tasks initiated by the user. The default behavior (that is, Restrict View is not selected) is that the user can see any requests that the user initiated or for which the user is the recipient.

    Trustee Rights

    Specifies the users and groups that can use the provisioning request definition.

  3. For Trustees, delete, add, or merge the values for the selected provisioning request definitions.

    A merge adds all of the trustees in the selected provisioning request definitions to all of the selected provisioning request definitions.

  4. Click OK to save your changes.
