5.5 Form Control Reference

This section describes the controls you can add to a form.

Table 5-5 Control Types and Supported Data Types

Control Type

Data Types

Boolean

Date

Decimal

DN

Integer

String

Time

CheckBoxPickList

x

x

x

x

x

DatePicker

x

DateTimePicker

x

DNContainer

x

DNDisplay

x

DNLookup

x

DNMaker

x

DNQuery

x

Global List

x

Html











x



MVCheckbox

x

x

x

x

MVEditor

x

x

x

x

PickList

x

x

x

x

Static List

x

x

x

x

Text

x

x

x

x

Text Area

x

Title

x

TrueFalseRadioButtons

x

TrueFalseSelectBox

x

5.5.1 Data Type for Roles Based Request Forms

Designer supports a specialized form control called nrfRequestDN of data type Role Request. The control type is Text. It is defined by default when you create a copy of the standard roles based provisioning request definitions. It represents the Role Request object.

5.5.2 Controls for User-Entered Comments

Designer supports a special internal control you can add to a form to allow users to add comments to a workflow or to view previously entered comments. Comments are required on forms that use CommentAction or UpdateAction. The comments are not part of the workflow data so you cannot access them via the flowdata object. The comments are special data items stored in the afcomment table of the workflow database. The comments are persisted as long as the row for the requestid in the afprocess table exists.

To create a form that supports user comments:

  1. Add a control to your form. Select Comment as the data type. The Form Field name is automatically defined as apwaComment and the Control Type is TextArea. A single form can contain only one comment field.

  2. Add a CommentAction or UpdateAction to the form.

    For more information, see Section 5.4, Action Reference.

5.5.3 General Form Control Properties

The properties in the following table are available for each control.

Table 5-6 General Properties

Property Name

Description

Display label

Specifies the label to display to identify the control. It is localizable.

Editable

Specifies if the control is editable (True). Otherwise, it displays as read-only.

Events

Specifies an event for the control. Possible values include the following:

  • OnChange: Fires when one of the following occurs:

    • Immediately after onload.

    • Another script changes the value of the control.

    • The user commits a change to the data value associated with the control. This occurs when the user has tabbed out of the control or otherwise caused it to lose focus. For example, this can happen when the user tabs away from the control (for text entry based controls like Text, TextArea, DatePicker), or when the user selects a different entry choice for choice-based controls like PickList, MVCheckbox, and StaticList).

  • onLoad: The onload event for a control fires just once, when the control is loaded into the page for the first time. It can be used to set initial values or preselect entries; however, there is no guarantee that controls load in a particular order.

Multivalued

This is a read-only property. It specifies if the control supports multivalue attributes (True).

Required

Specifies whether the control requires user input (True).

Tooltip

Specifies the text for the control’s tooltip. It is localizable.

Visible

Specifies whether the control is displayed in the user interface (True).

Sort Order

List-based controls sort content alphabetically. For DN-based lists, the sort order is alphabetical based on the Display expression property result. For all other types, the sort order is based on the display label.

5.5.4 CheckBoxPickList

Use the CheckBoxPickList control to allow users to view and choose one or more values from a dynamically generated list of choices displayed as check boxes.

When the associated data type is a DN retrieved from the Identity Vault, you can display the checkbox label as the fully qualified DN or use the Display expression property to specify the attributes to display instead.

Figure 5-10 Sample CheckBoxPickList Control

Table 5-7 CheckboxPickList Properties

Property Name

Description

Entity Key for DN expression lookup

When you populate this control with a DN retrieved from the Identity Vault and you want that value to display in a user-friendly fashion, you should choose an entity from the drop-down list and specify a set of attributes in the Display expression property.

Leave this value blank if you want to display the full DN or CN value retrieved from the Identity Vault. The entity you choose must have the directory abstraction layer View property set to True and be the entity whose DN you are retrieving from the Identity Vault.

Display expression

Required when you specify an Entity Key for DN expression Lookup. Choose the attributes to display as the check box labels. For example, to display the user entity’s first and last name attributes, construct an expression like this: FirstName LastName.

The attribute’s directory abstraction layer properties for View, Read, Search, and Required must be set to True.

Allow multiple selections

When set to True, users can select more than one entry.

Sort entries

When set to Ttrue, sorts results in ascending order. For details, see Sort Order.

5.5.5 DatePicker

Use this control for display and entry of a date and time. This allows users to choose a date from a pop-up calendar or type a date in a text field. At runtime, the form automatically validates the date by using the format for the user’s locale and time zone. If the user enters an incorrect format, the form displays an error message. The DatePicker control’s tooltip displays the valid date format. The default DatePicker control looks like this:

Figure 5-11 Sample DatePicker Control

When the Show date picker property is True, the form displays the date field along with a button. When the user clicks the button, the form launches a calendar for the user to select the date. The calendar pop-up is shown here:

Figure 5-12 Sample Calendar Control

Table 5-8 DatePicker Control Properties

Property name

Description

Datetime indicator

When set to False, the Calendar pop-up does not display the time.

Day headers

A comma-separated, single-quoted list of values displayed by the Calendar pop-up to indicate the day of the week. This value is localizable.

Field Width in pixels

Use this field to configure the field’s visible width on the form. The default is 200 pixels.

Month names

A comma-separated, single-quoted list of values displayed by the Calendar pop-up to indicate the month name. This value is localizable.

Show date picker

When set to True, displays the calendar pop-up. If set to False, the calendar pop-up does not display. Users must type the date in the text field by using the proper format for their locale.

5.5.6 DateTimePicker

Use this control for display and entry of a date and time for a Time data type. This allows users to choose a date and time from a pop-up calendar or type a value in a text field. At runtime, the form automatically validates the date and time by using the format for the user’s locale and time zone. If the user enters an incorrect format, the form displays an error message. The DateTimePicker tooltip displays the valid date format. The default control looks like this:

Figure 5-13 Sample DateTimePicker Control

When the Show date picker property is set to True, the form displays a text field followed by a calendar button. When the user clicks the calendar button, the form launches a calendar control for the user to select the date and time values. The calendar pop-up is shown here:

Figure 5-14 DateTimePicker Calendar Control

Table 5-9 DateTimePicker Control Properties

Property name

Description

Day headers

A comma-separated, single-quoted list of values displayed by the Calendar pop-up to indicate the day of the week. This value is localizable.

Field width in pixels

Use this field to configure the field’s visible width on the form. The default is 200 pixels.

isDateTime

When set to False, the Calendar pop-up does not display the time.

Month names

A comma-separated, single-quoted list of values displayed by the Calendar pop-up to indicate the month name. This value is localizable.

Show date picker

When set to True, displays the calendar pop-up. If set to false, the calendar pop-up does not display. Users must type the proper format for the locale when they type the date in the text field.

5.5.7 DNContainer

Use this control to allow users to select a container object from within the root container that you specify. You can use this control to limit the user to a subtree of a container. This is a specialized version of the DNLookup control.

Figure 5-15 DNContainer Control With Root Container Specified

Table 5-10 DNContainer Control Properties

Property name

Description

Entity key used for object lookup

Choose an entity from the drop-down list. The entity that you choose limits the users ability to look up objects within the specified entity’s container. If you specify an entity key and a root container, the entity key takes precedence.

Field width in pixels

Use this field to configure the field’s visible width on the form. The default is 200 pixels.

Root container

Specify a root container for lookups when users click the Object Selector button.

Show clear button

If set to True, the form displays the Reset field button

Show object history button

If set to True, the form displays the Show history button.

Show object selector button

If set to True, the form displays the Object Selector button.

5.5.8 DNDisplay

Use this control to display a read-only DN. You populate the control from flowdata. The control can display the full DN or a set of attributes associated with the DN depending on the properties you set. The DNDisplay control cannot be modified by the workflow engine. For this reason, it is not available for post activity mapping.

Figure 5-16 Sample DNDisplay

Figure 5-17 Sample DNDisplay with Display Expression Specified

Table 5-11 DNDisplay Control Properties

Property name

Description

Display expression

Leave this value blank if you want to display the full DN or CN value.

If you want to mask the DN by displaying attributes instead, launch the expression builder and select the desired attributes from the list. (You must first specify an Entity key for DN expression lookup.)

For example, to show the user entity’s first and last name attributes, construct an expression like this: FirstName LastName.

Make sure the attribute’s View, Read, Search, and Required properties are set to True in the directory abstraction layer. See Section 3.7.2, Attribute Properties.

Entity key for DN expression lookup

Leave this value blank if you want to display the full DN or CN value retrieved from the Identity Vault.

If you want to mask the DN or CN by displaying attributes instead, choose the entity from the drop-down list and specify a set of attributes in the Display expression property.

The entity you choose must:

  • Have the directory abstraction layer View property set to True.

  • Be the entity of the DN you are working with.

For more information, see Section 5.6, Working with Distinguished Names.

5.5.9 DNLookup

Use this control to allow users to search and retrieve DNs from the Identity Vault. You can initialize the control with a DN from the flowdata. You set properties to control the entities and containers that the user can search and the format of the DN.

Figure 5-18 Sample DNLookup Control

The buttons associated with the DNLookup control are described in Table 5-12.

Table 5-12 DNLookup Control Buttons

Button

Description

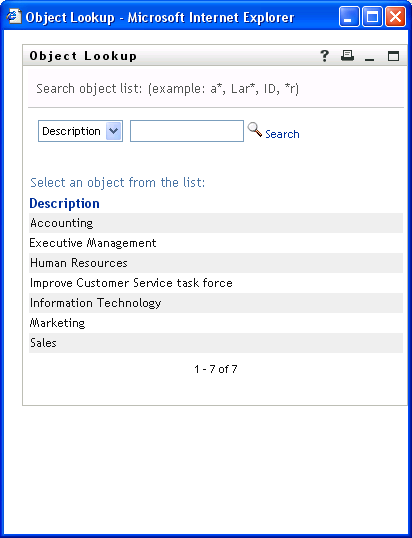

Launches an object lookup dialog box. You define whether the dialog box displays containers or objects via the Object Selector type property. The following is an example of an object lookup:

The attributes shown in the drop-down list (Description in the above example) are specified in the directory abstraction layer. The availability of this button is controlled by the Show object selector property.

Show history. Allows users to view the history of objects that they have searched. They can select from this list or clear its contents. The availability of this button is controlled by the Show object history button property.

Reset field. Deletes the field contents. The availability of this button is controlled by the Show clear button property.

Table 5-13 DNLookup Control Properties

Property Name

Description

Display expression

This property only applies when you initialize the control from flowdata. Leave this value blank if you want to display the full DN or CN value.

If you want to mask the DN by displaying attributes instead, launch the expression builder and select the desired attributes from the list. (You must first specify an Entity key for DN expression lookup.)

For example, to show the user entity’s first and last name attributes, construct an expression like this: FirstName LastName.

Make sure the attribute’s View, Read, Search, and Required properties are set to True in the directory abstraction layer. See Section 3.7.2, Attribute Properties.

Entity key for DN expression lookup

This property only applies when you initialize the control from flowdata. Leave this value blank if you want to display the full DN or CN value retrieved from the Identity Vault.

If you want to mask the DN or CN by displaying attributes instead, choose the entity from the drop-down list, then specify a set of attributes in the Display expression property.

The entity you choose must:

  • Have the directory abstraction layer View property set to True.

  • Be the entity of the DN you are working with.

For more information, Section 5.6, Working with Distinguished Names.

Object Selector type

Determines whether the object selector dialog box performs an Object Lookup or a Container Lookup. The following is an example of an Object Lookup:

paramlist: Causes the object selector dialog to perform an object lookup. You specify the lookup criteria via the Entity key for DN Expression lookup property.

container: Causes the object selector dialog to display one or more containers for selection. The containers for searching are determined by the Search container property, which is specified in the directory abstraction layer for the entity named in the required Entity Key for DN Expression lookup property. For example, if the Entity key for DN Expression lookup property is Group, the search container is set to %group-root% by default. If no search container is used, the search root specified during the User Application installation is used.

Field width in pixels

Use this field to configure the field’s visible width on the form. The default is 200 pixels.

Show clear button

If set to True, the form displays the Reset field button.

Show object history button

If set to True, the form displays the Show history button.

Show object selector button

If set to True, the form displays the object selector button.

5.5.10 DNMaker

Use this control to allow users to construct a DN value by specifying a naming value and choosing a container.

Figure 5-19 Sample DNMaker Control

Table 5-14 DNMaker Control Buttons

Button

Description

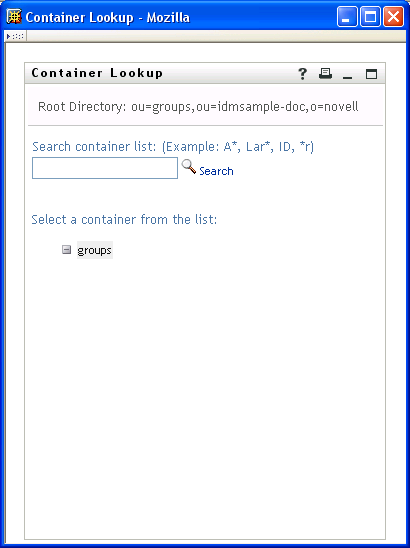

Launches an object selector for container searches like the one shown below.

The container search root is defined for the entity specified in the Entity used for object lookup property. The availability of this button is controlled by the Show object selector property.

Show history. Allows users to view the history of objects that they have searched. They can select from this list or clear its contents. The availability of this button is controlled by the Show object history button property.

Reset field. Deletes the field contents. The availability of this button is controlled by the Show clear button property.

Table 5-15 DNMaker Control Properties

Property

Description

Entity key used for object lookup

A required field. Choose an entity from the drop-down list. This will determine the search that is launched when the user clicks the object selector button.

If you specify an entity key and a root container, the entity key takes precedence

Naming attribute

The naming attribute used to construct the final DN. This value displays next to the control’s display label as an extra hint to the user.

Root container

Specify a root container for lookups when users click the object selector button. If you do not specify a Root container, the User Application uses the container for the entity in the directory abstraction layer property called Search Container. If a search container is not specified for the specified entity, then the Root Container DN specified during the User Application installation is used. If you specify an entity key and a root container, the entity key takes precedence.

Show clear button

If set to True, the form displays the Reset field button.

Show object history button

If set to True, the form displays the Show history button.

Show object selector button

If set to True, the form displays the object selector button.

5.5.11 DNQuery

DNQuery is a specialized version of the DNLookup control. Like DNLookup, DNQuery allows users to search and retrieve DNs from the Identity Vault; however, with the DNQuery, the object selector content can be driven by the result of a directory abstraction layer Queries object rather than from properties.

Table 5-16 DNQuery Control Properties

Property name

Description

DAL global query key

Specifies the key of the DAL Queries object you want executed. You can select it from the Event Action Expression Builder. For more information about using DAL queries, see Section 5.7, Using DAL Queries in Forms. For more information about defining DAL queries, see Section 3.4, Working with Queries.

DAL global query parameter(s)

Specifies the value for the query parameters. For example, this passes the String Sales to the Queries parameter called groupname:

(function (){return {"groupname":"Sales"}})();

Display expression

When you populate the control with initial data from a Data Item Mapping value, use this property to specify the attributes to display.

Entity key for DN expression lookup

This property only applies when you initialize the control from flowdata. Leave this value blank if you want to display the full DN or CN value retrieved from the Identity Vault.

If you want to mask the DN or CN by displaying attributes instead, choose the entity from the drop-down list, then specify a set of attributes in the Display expression property.

The entity you choose must:

  • Have the directory abstraction layer View property set to True.

  • Be the entity of the DN you are working with.

For more information, Section 5.6, Working with Distinguished Names.

Field width in pixels

Use this field to configure the field’s visible width on the form. The default is 200 pixels.

Show clear button

If set to True, the form displays the Reset field button

Show object history button

If set to True, the form displays the Show history button. When a DAL global query is specified, the object history button is not shown.

Show object selector button

If set to True, the form displays the Object Selector button.

5.5.12 Global List

Use this control to allow users to select a single entry from a drop-down list. The contents of the list are defined in a directory abstraction layer global list element.

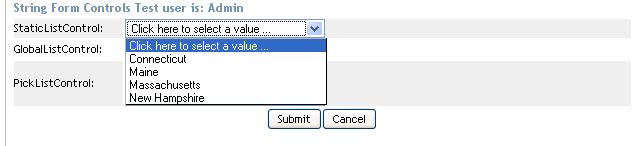

Figure 5-20 Sample Global List Control

Table 5-17 Global List Properties

Property Name

Description

DAL global list key

Specifies the unique identifier of the global list. This must correspond to the key specified in the directory abstraction layer.

For more information about global lists, see Section 3.3, Working with Lists.

5.5.13 Html

Use this control to add HTML fragments to the Form Detail. You can do this by specifying the HTML fragments in the HTML content property. In addition, you can conditionally add the HTML fragment via an event on the form control. In either case, specify the HTML through the use of an anonymous function, such as: ( function() { return "<yourTag yourAttr='your attr value' />"; } ) ();

For example:

(function(){ return "<table bgcolor='#C0C0C0'><th colspan='3' align='center'>Table Header Goes Here</th><tr><td>Value 1.1</td><td>Value 1.2</td></tr><tr><td>Value 2.1</td><td>Value 2.2</td></tr></table>"; })()

5.5.14 MVCheckbox

Use this control to display a set of labeled check boxes. You specify the label and its associated values through the List item property. A sample MVCheckbox control is shown below.

Figure 5-21 Sample MVCheckbox Control

Table 5-18 MVCheckbox Control Properties

Property Name

Description

List item

Allows you to define a set of static values that comprise the check box labels and values. Click the List property button to launch the list value dialog box shown here:

HINT:To retrieve user-entered values for this control, use flowdata.getObject() and not flowdata.get(). If you use flowdata.get(), you get only the first value.

For more information on preselecting values, see the Section 9.2.3, Form Control Examples.

5.5.15 MVEditor

Use this control to allow users to display, edit, or add multiple values in a drop-down list box. You can load the data dynamically from the Identity Vault, or allow users to enter the values.

The control’s appearance varies depending on the data type of the control and the properties that you specify. For example, if the data type is a DN, you can set properties that displays specific attributes related to the DN. You can also enable an object selector button that allows users to search and select values by setting the Entity key for DN expression lookup property.

There are also properties that let you specify a DAL Global Query to execute or specify a root DN to drive the object picker.

Table 5-19 MVEditor with Object Selector Properties Set Control Buttons

Button

Description

Launches a search dialog box called an object selector. The object selector dialog box looks like this:

The user can select a value from the list to populate the control. The attribute displayed in the drop-down list (Description in the above example) is specified in the directory abstraction layer. You specify it in the attribute’s UIControl property. See Attribute UI Control Properties. The availability of this button is controlled by the Show object selector property.

Show history. Allows users to view the history of objects that they have searched. They can select from this list or clear its contents. The availability of this button is controlled by the Show object history button property.

Reset field. Deletes the field contents. The availability of this button is controlled by the Show clear button property.

If you do not set the object lookup properties, the MVEditor displays a simple edit control.

Figure 5-22 Sample MVEditor without Object Lookup Properties Set

Table 5-20 MVEditor Control Buttons

Button

Description

Adds an item to the end of the list.

Deletes the selected list item.

Edits the selected list item.

HINT:When the MVEditor control’s Editable property is set to False, this control is read-only and the form does not display any MVEditor control buttons.

Table 5-21 MVEditor Control Properties

Property Name

Description

Add data entry text field

When set to True and there is a single row of data (and the data is not a DN), the control displays a data entry text field. The text field is displayed when the field is empty or contains only one value. Otherwise, the drop-down list is displayed. If more than one row of data exists, then the drop-down list always displays.

DAL Global Query

Specify this value if you want the control populated by the results of the Global Query that you specify. You specify the key name. You can select it from the Event Action Expression Builder. For more information about using queries in forms, see Section 5.7, Using DAL Queries in Forms. For information about defining queries, see Section 3.4, Working with Queries.

DAL Global Query Parameter(s)

Specifies the value for the query parameters. For example, this passes the String Sales to the queries parameter called groupname.

(function (){return {"groupname":"Sales"}})();

Display expression

Leave this value blank if you want to display the full DN or CN value.

If you want to mask the DN or CN by displaying attributes instead, launch the expression builder and select the desired attributes from the list. (You must first specify an Entity key for DN expression lookup.)

For example, to show the user entity’s first and last name attributes, construct an expression like this: FirstName LastName.

Make sure the attribute’s View, Read, Search, and Required properties are set to True in the directory abstraction layer. See Section 3.7.2, Attribute Properties.

Enforce uniqueness

Forces user-entered list items to be unique.

Entity key for DN expression lookup

Leave this value blank if you want to display the full DN or CN value retrieved from the Identity Vault.

If you want to mask the DN or CN by displaying attributes instead, choose the entity from the drop-down list and specify a set of attributes in the Display expression property.

The entity you choose must

  • Have the directory abstraction layer View property set to True.

  • Be the entity whose DN you are retrieving from the Identity Vault.

See Section 5.6, Working with Distinguished Names for more information.

Field width in pixels

Use this field to configure the field’s visible width on the form. The default is 200 pixels.

Ignore case

If set to True, ignore case when enforcing uniqueness.

Lower bound (for numbers only)

Minimum integer or decimal value.

Maximum length

Maximum number of characters for string values. The control blocks input when this value is reached.

Minimum length

Minimum number of characters for string values. The control validates that the user enters at least this number of characters.

Number of lines displayed

The number of lines displayed by the control. This is not the number of records retrieved or displayed, but the vertical size of the control. If you set this number to 10 and there are only 5 records to display, the control size is still 10 lines.

You can set the number of lines to 1 or to 3 or greater. You cannot set it to 2 because it does not leave enough space for the browser to display scroll bars. If you set it to 2, Designer generates a warning in the Project Checker view and resets it to 3.

Numbers only

If set to True, only numbers can be entered.

Object Selector type

Determines whether the object selector dialog box performs an Object Lookup or a Container Lookup. The following is an example of an Object Lookup:

paramlist: Causes the object selector dialog box to perform an object lookup. You specify the lookup criteria via the Entity key for DN expression lookup property.

container: Causes the object selector to display one or more containers for selection. The containers for searching are determined by the Search container property, which is specified in the directory abstraction layer for the entity named in the Entity key for DN expression lookup property. For example, if the Entity key for DN expression lookup property is Group, the search container is set to %group-root% by default. If no search container is used, the search root specified during the User Application installation is used.

Resolve DN

When set to False, the DN is displayed rather than the Display expression. Consider using this when you expect a large number of DNs to be returned, and you are concerned about performance.

Root Container

Specify a root container for lookups when users click the object selector button. If you specify an entity key and a root container, the entity key takes precedence.

Show object history button

When set to True, displays the Object History button next to the control.

Show object selector button

When set to True, displays the Object Selector button next to the control.

Sort entries

When set to True, sorts the results in ascending order. For details, see Sort Order.

Upper bound (for Numbers only)

The maximum numeric value users can enter.

HINT:To retrieve user-entered values for this control, use flowdata.getObject() and not flowdata.get(). If you use flowdata.get(), you get only the first value.

For more information about preselecting items, see Section 9.0, Working with ECMA Expressions.

5.5.16 PickList

Use the PickList control to allow users to view and choose one or more values from a dynamically generated list of choices. The list items are DN or CN values retrieved from the Identity Vault. You can display the full DN or CN or use the PickList properties to specify the attributes to display instead.

Figure 5-23 Sample PickList Control without DN Masking

Figure 5-24 Sample PickList Control with DN Masking

Table 5-22 PickList Control Properties

Property Name

Description

Allow multiple selections

When set to True, the user can select more than one list value using their platform-specific multi-select keys.

When set to True, the control displays a minimum of three lines regardless of the value specified in the Number of lines displayed property. If this value is False, the Number of lines displayed property is used.

Display expression

Leave this value blank if you want to display the full DN or CN value.

If you want to format the DN or CN by displaying attributes instead, launch the expression builder and select the desired attributes from the list. (You must first specify an Entity key for DN expression lookup.)

For example, to show the user entity’s first and last name attributes, construct an expression like this: FirstName LastName.

Make sure the attribute’s View, Read, Search, and Required properties are set to True in the directory abstraction layer. See Section 3.7.2, Attribute Properties.

Entity key for DN expression lookup

Leave this value blank if you want to display the full DN or CN value retrieved from the Identity Vault.

If you want to mask the DN or CN by displaying attributes instead, choose the entity from the drop-down list and specify a set of attributes in the Display expression property.

The entity you choose must:

  • Have the directory abstraction layer View property set to True.

  • Be the entity whose DN you are retrieving from the Identity Vault.

Field width in pixels

Use this field to configure the field’s visible width on the form. The default is 200 pixels.

Number of lines displayed

The number of lines displayed by the control. This is not the number of records retrieved or displayed, but the vertical size of the control. If you set this number to 10 and there are only 5 records to display, the control size is still 10 lines.

The number of lines displayed is related to the Allow multiple selections setting. When Allow multiple selections is set to True, the number of lines displayed is always 3 (or more). When Allow multiple selections is set to False, you can set the number of lines to 1 or to 3 or greater. You cannot set it to 2 because it does not leave enough space for the browser to display scroll bars. If you set it to 2, Designer generates a warning in the Project Checker view and resets it to 3.

Show 2 lists

When set to True, two lists are displayed. A list on the left displays the unselected values, and the list on the right displays the selected values.

The Allow multiple selections property must be set to True. If set to false Show 2 lists is ignored.

Sort Entries

When set to True, sorts results in ascending order. For details, see Sort Order.

HINT:To retrieve user-entered values for this control, use flowdata.getObject() and not flowdata.get(). If you use flowdata.get(), you get only the first value.

For more information on displaying the control with a preselected option, see Section 9.2.3, Form Control Examples.

5.5.17 Static List

Use this control to display a list of items in a drop-down list from which users can select a single item. The list items are static and are stored with the provisioning request definition. The text “Click here to select” only appears if the field is not set to Required.

Figure 5-25 Sample Static List Control

Table 5-23 Static List Properties

Property Name

Description

Field width in pixels

Use this field to configure the field’s visible width on the form. The default is 200 pixels.

List item

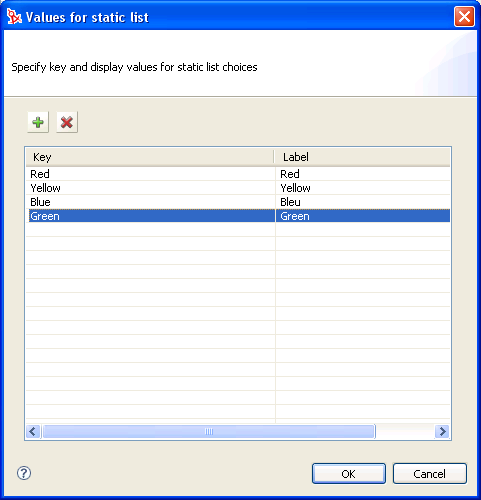

Allows you to define a set of labels and values that comprise the static list. Click the List property button to launch the list value dialog box shown here:

Click Add to add list items. Each list item must have a unique key. The dialog box automatically generates a unique key when you insert a new list item. You can click the key name and change it. A blank key (null) is valid, so it is possible to have a list item with a blank key and a blank label. The displayed label is the one defined for the default language.

5.5.18 Text

Use the Text control for data display or user input. User input is validated depending on the control’s data type.

Figure 5-26 Sample Text Control

Table 5-24 Text Control Properties

Property Name

Description

Field width in pixels

Use this field to configure the field’s visible width on the form. The default is 200 pixels.

Lower bounds (for numbers only)

The lowest number allowed for decimal or integer values.

Maximum length

The maximum length for string values. Blocks input when this length is reached.

Minimum length

The minimum length for string values. Validates that the user enters a string at least this long.

Number of characters allowed

Specifies the number of characters a user is allowed to enter. This is related to Field width in pixels.

Upper bound (for numbers only)

The highest number allowed for decimal or integer values.

Validation Mask (regular expression)

An expression used for validating the field’s data. Designer provides a default set of validation masks by default. You must enable them through Windows > Preferences > Provisioning > Validation Mask. For more information, see Section 2.3, Setting Provisioning View Preferences.

5.5.19 Text Area

Use this control to display or accept input of multi-line data. Users can select multiple lines of data using the multi-select key combination for their platform.

Figure 5-27 Sample Text Area Control

Table 5-25 Text Area Control Properties

Property Name

Description

Number of columns displayed

The visible width of the control; the number of characters wide.

Number of lines displayed

The number of lines to display at one time.

5.5.20 Title

Use this read-only control to label your form or provide instructions.

Table 5-26 Title Control Properties

Property Name

Description

Display title in signed form document

When set to False and the form is a signed form (using digital signatures), the title control is not displayed.

Font-size

Specify small, medium, or large.

Style class

Choose a font style (such as bold) and colors from a palette.

5.5.21 TrueFalseRadioButtons

Use this control to display a choice of True or False as a set of radio buttons.

Figure 5-28 Sample TrueFalseRadioButtons Control

This control has no custom properties.

5.5.22 TrueFalseSelectBox

Use this control to display a choice of True or False in a drop-down list. The text “Click here to select a value” displays only when the field is not required.

Figure 5-29 Sample TrueFalseSelectBox Control

Table 5-27 TrueFalsSelectBox Properties

Property Name

Description

Field width in pixels

Use this field to configure the field’s visible width on the form. The default is 200 pixels.
