11.5 Policy

There are several options available in Micro Focus Kanaka for Mac to direct the behavior of the client. These options offer some flexibility in the setup to allow a more customized fit for individual installations. There are options for User Management, and for Managed Client Settings.

11.5.1 User Management

Figure 11-5 User Management Page

Micro Focus Kanaka for Mac clients request various items of user-related information from eDirectory. The following options allow you to configure how these items are obtained as well as the operation of the clients themselves.

Figure 11-6 Password Management Settings

These two self-explanatory settings are selected by default.

Figure 11-7 UID Management Settings

The UID is a User ID that is unique for each user logging in to macOS. This option allows you to use an existing number or use a randomly generated number from a range of numbers defined by Micro Focus Kanaka for Mac.The auxiliary attribute class is posixAccount. The attribute is uidNumber.

Figure 11-8 GID Management Settings

The GID is a primary Group ID for a user. It defines security levels on macOS. By default, the GID is set to 20 (equivalent to “staff” on macOS) in Micro Focus Kanaka for Mac. If you want your users to have admin privileges on macOS, you can set the GID to 80 (equivalent to “admin” on macOS), but this is not recommended for lab environments. The auxiliary attribute class is posixAccount. The attribute is gidNumber.

The third option is based on an extended attribute that is added during the Kanaka installation. The class in eDirectory is named cccKanakaGidNumberClass and the attribute name is cccKanakaGidNumber. You can use this attribute to define the GID for users individually.

For example, if you want students to have a GID of 20 (staff) and teachers or administrators to have a GID of 80 (admin), you can set the cccKanakaGidNumber attribute for the teachers or administrators to a value of 80 and choose the Use Kanaka alternate GID attribute option.

Figure 11-9 Full Name Management Options

This region lets you specify how the user’s name is displayed in the Kanaka Plug-in Console, Desktop Client, and the logout option.

Figure 11-10 Home Directory Management Settings

This setting gives you the option to allow the user to log in or not if the Home Directory attribute is not populated. If you choose the proxy directory option, you need to add and configure a proxy home directory for your environment. This is a directory with limited rights, and you can display a message to explain (such as a document or HTML page) that the user does not have a home directory defined, and perhaps direct them to a contact at the Help Desk.

Figure 11-11 Settings for Invalid Home Directory Path

This setting indicates whether Micro Focus Kanaka for Mac should actually test for the existence of the path specified in the home directory attribute. By default, this option should be turned off. If you do test for existence and the path doesn’t exist, you have the option to use the proxy directory or deny login.

Figure 11-12 Shell Management Setting

This is the default shell for the user's environment on macOS.

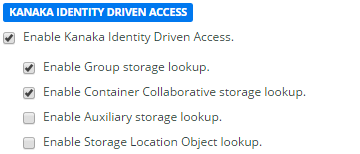

Figure 11-13 Identity Driven Access Settings

These settings enable the mounting of additional storage other than the user’s home directory.

Enable Kanaka Identity Driven Access: Selecting this option enables you to select the options below.

Enable Group storage lookup: During the installation of Micro Focus Kanaka for Mac, group objects are extended with an attribute called ccx-FSFManagedPath. In its simplest explanation, it is analogous to having a home directory attribute on a group object.

Enable Container Collaborative storage lookup: Container objects can also be extended with an attribute named ccx-FSFManagedPath. In its simplest explanation, it is analogous to having a home directory attribute on a container object. It treats users in a container as if they were members of a group, without having to manage a group object for those users.

Enable Auxiliary storage lookup: This option works only when you have Micro Focus Storage Manager implemented with Auxiliary storage defined and enabled. Auxiliary Storage is like having multiple home directory attributes.

Enable Storage Location Object lookup: These are traditional Storage Location Objects in eDirectory. Micro Focus Kanaka for Mac supports only NCP Storage Location Objects.

Figure 11-14 Login Script Settings

By enabling the Login Script Parser, the Kanaka Engine will parse any login scripts associated with the user. Login scripts are parsed with the same criteria as NetStorage logins.

Figure 11-15 Mounted Storage

11.5.2 Managed Client Settings

For several years, Apple has had a technology for managing workstations and the user experience, often referred to as MCX, or Managed Client for OS X via a Workgroup Manager server. Micro Focus Kanaka for Mac gives the administrator the ability to choose between Micro Focus Kanaka for Mac or a Workgroup Manager server to deliver these settings to the workstation.

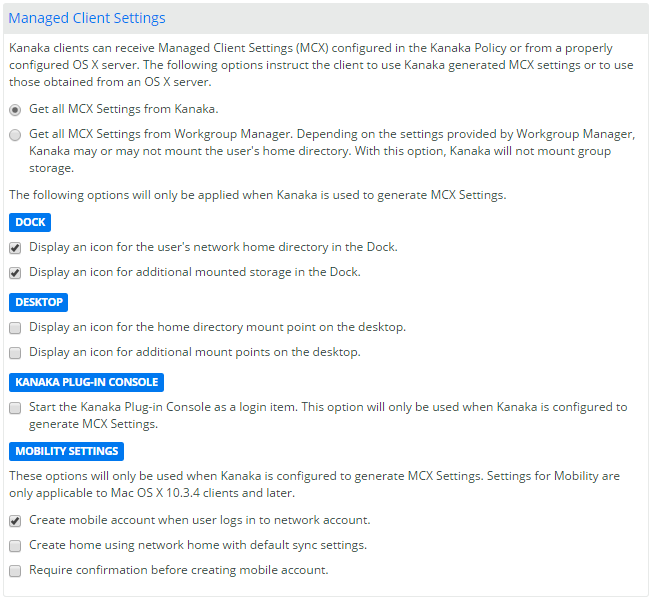

Figure 11-16 Managed Client Settings Page

Micro Focus Kanaka for Mac clients can receive Managed Client Settings (MCX) configured in the Kanaka policy or from a properly configured OS X server. The following options instruct the client to use MCX settings generated by Micro Focus Kanaka for Mac or to use settings obtained from an OS X server.

Figure 11-17 MCX Settings

If you choose the setting for Workgroup Manager, you will need to verify that your LDAP v3 settings in the macOS Directory Utility point to that server.

Figure 11-18 Dock Settings

This option displays an icon on the Dock for the user’s home directory and for any additional storage that is configured.

Figure 11-19 Desktop Settings

These options place a mount point on the user’s desktop. This mount point is at the root of the volume, so users will need to drill down to get to the folders and files they have rights to.

NOTE:Users can only see folders and files to which they have rights.

Figure 11-20 Kanaka Plug-in Console Setting

This setting enables the Kanaka Plug-in Console to automatically start after a login.

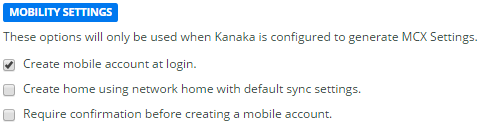

Figure 11-21 Mobility Settings

Create mobile account when user logs in to network account: This setting allows Micro Focus Kanaka for Mac to create a local “mobile” account on the workstation and keep the user’s profile and other information local. This option has the most performance benefits, because it can read the profile locally much more quickly than from the network. If you do not create a mobile account, the user profile information is created in the user’s home directory on the network.

Create home using network home with default sync settings: Micro Focus Kanaka for Mac creates a local home directory with login/logoff sync enabled. This could potentially slow down Micro Focus Kanaka for Mac.

NOTE:This is applicable for older versions of macOS and will removed in a future release.

Require confirmation before creating mobile account: Warns the user of a mobile account that is created during login.
