6.5 Adding Novell BorderManager to a Site That Already Has a Firewall
In this scenario, Company A already has a third-party firewall in place and wants to add Novell BorderManager as a proxy server. Company A wants to be able to just add the server onto the existing network. Company A has the following requirements:
The following Novell BorderManager components are used to implement this scenario, as shown in Figure 6-5.
-
Proxy Services Transparent proxy application
-
Access control (optional with the existing firewall)

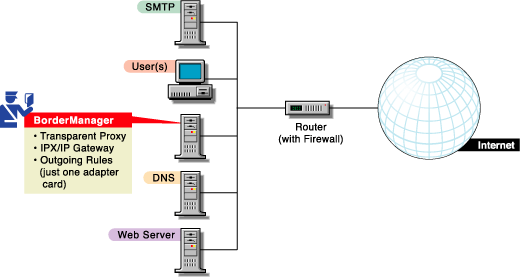

Figure 6-5 Site that already has a Firewall
To add a Novell BorderManager proxy server to an existing firewall, Company A must perform the following general sequence of steps:
-
Install Novell BorderManager. Because there is only one NIC, make sure it is selected as both Private and Public during the installation.
For more information and for Novell BorderManager installation procedures, see Novell BorderManager 3.9 Installation Guide .
-
Enable and configure the Transparent proxy application on the Novell BorderManager server.
-
(Optional) Enable and configure access control rules.
For more information on configuration, see Novell BorderManager 3.9 Administration Guide .
