2.6 Ports Used in Filr Deployments

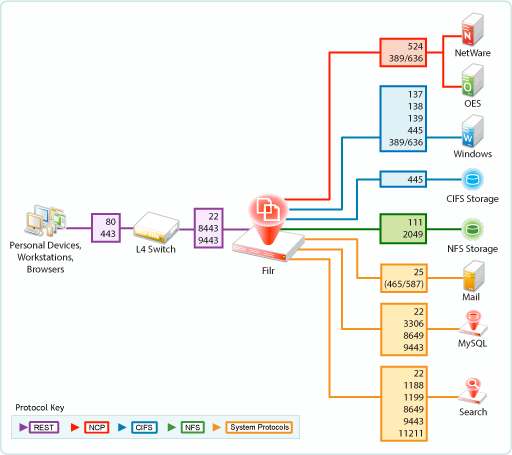

Figure 2-11 illustrates the ports that can be used in Filr deployments, including insecure ports. For information on configuring and securing Filr securely, see Setting Up Filr in a DMZ in the Novell Filr 1.2 Administration Guide.

Figure 2-11 Filr Port Usage
