2.4 Filr Clustering (Expanding a Deployment)

Filr clustering involves two or more Filr VAs sharing the same NFS or CIFS data storage location (/vashare). You can only create a cluster if your Filr appliances were deployed pointing to the same /vashare disk.

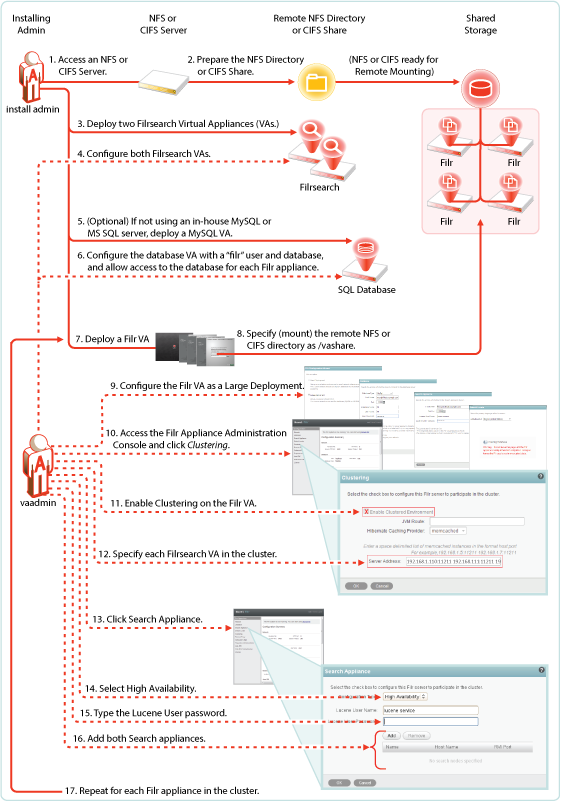

Basic steps for setting up Filr clustering are included in Figure 2-8.

Figure 2-8 Clustered Filr VAs

For step-by-step instructions, see Setting Up a Large, Expandable (Clustered) Deployment in the Novell Filr 2.0 Planning and Deployment Best Practices Guide.

For more information about clustering, see Multi-Server (Clustered) Deployment in the Filr 2.0: Installation and Configuration Guide.
