4.5 Setting Up the MySQL Appliance

Figure 4-4 illustrates that a MySQL appliance is the fourth component deployed when creating a Filr Cluster.

Figure 4-5 Filr-Clustering Task 3: Set up a MySQL appliance

NOTE:As noted in Installing the MySQL Database Appliance in the Filr 2.0: Installation and Configuration Guide, Novell recommends using an existing MySQL database if one is already available.

You can use the steps that follow to gain hands-on experience with setting up a MySQL appliance, or for general guidance as you set up a Filr-clustered deployment in your own lab or production network. For complete instructions, see the Filr 2.0: Installation and Configuration Guide.

4.5.1 Downloading, Starting, and Configuring the MySQL Appliance

  1. Download and configure the virtual environment for a MySQL appliance as documented in Downloading the MySQL Database Appliance and Configuring the Virtual Environment in the Filr 2.0: Installation and Configuration Guide.

    For example, for a VMware Workstation deployment this involves the following basic steps:

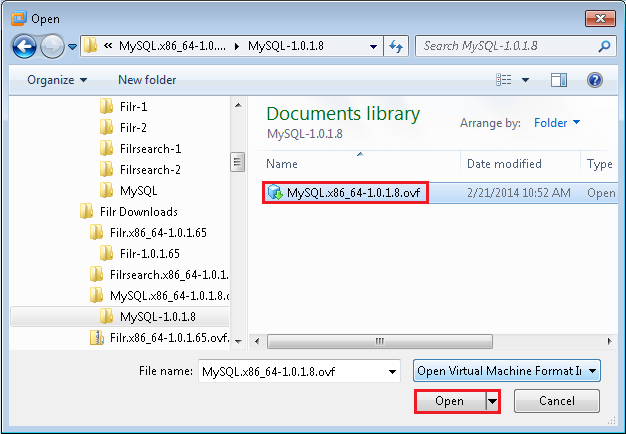

    1. Download, unzip, and open the .ovf file.

    2. Name the appliance, then click Import.

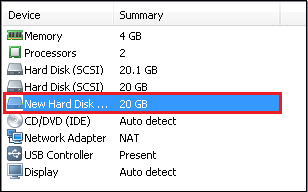

    3. Add a second hard disk to the appliance for the /vastorage mount point.

    4. Add a third hard disk to the appliance for the log files (/var) mount point.

    5. Adjust the appliance resources (RAM and so forth) as needed.

    6. Power on the appliance.

  2. Install the MySQL appliance that you downloaded and configured in Step 1 as documented in Installing the MySQL Database Appliance in the Filr 2.0: Installation and Configuration Guide.

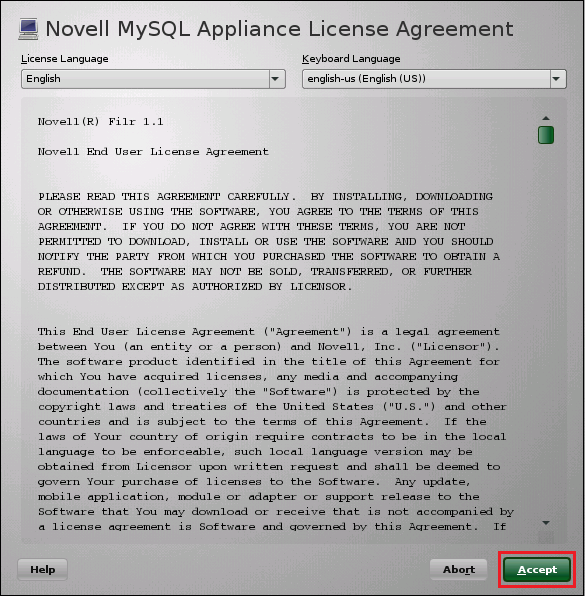

    1. Accept the license agreement.

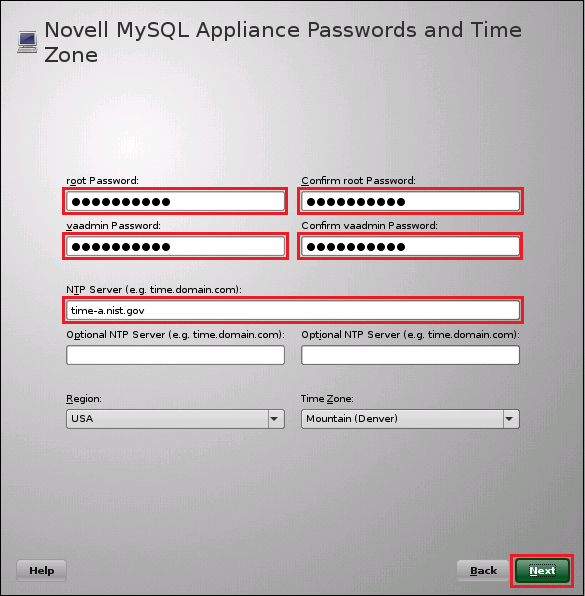

    2. Specify the passwords and time settings.

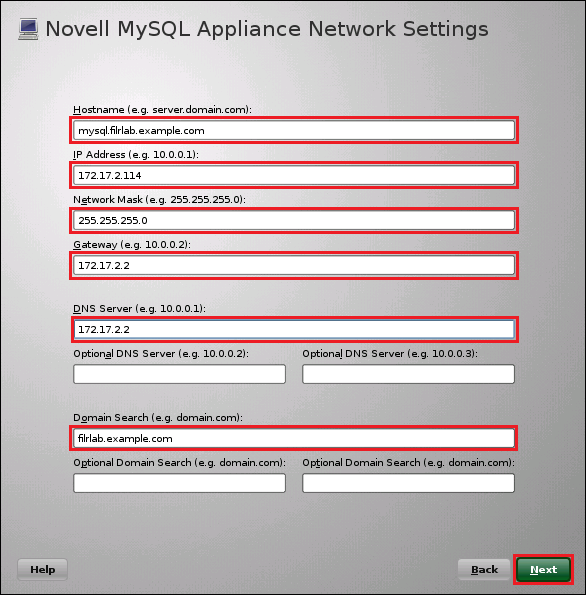

    3. Specify the network settings.

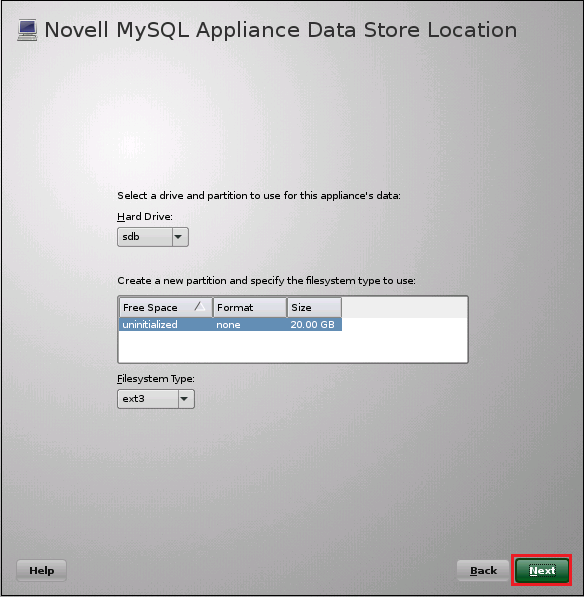

    4. Specify the second hard disk you added in Step 1.c as the data storage location for /vastorage by clicking Next.

    5. Specify the third hard disk you added in Step 1.d as the data log file location for /var by clicking Configure.

    6. When the terminal prompt screen appears, continue with Deploying the MySQL Appliance.

4.5.2 Deploying the MySQL Appliance

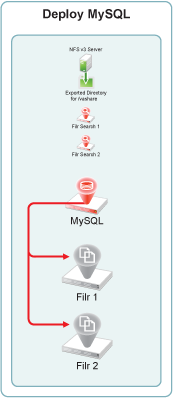

Figure 4-4 illustrates that MySQL is configured to recognize the Filr appliances and allow them to connect before they are set up and deployed.

Figure 4-6 Deploying MySQL

  1. Launch the phpMyAdmin configuration utility and change the default password as documented in Configuring the MySQL Database Appliance in the Filr 2.0: Installation and Configuration Guide.

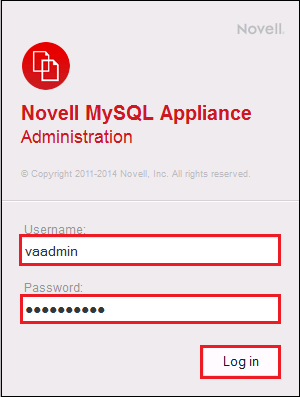

    1. Using a browser, access the Appliance Administration Utility on the MySQL appliance by entering the following URL:

      https://IP_Address:9443

      Where IP_Address is the IP address of the MySQL appliance.

    2. Log in as the vaadmin user with the password that you set in Step 2.b.

    3. Click the phpMyAdmin button to launch the phpMyAdmin utility.

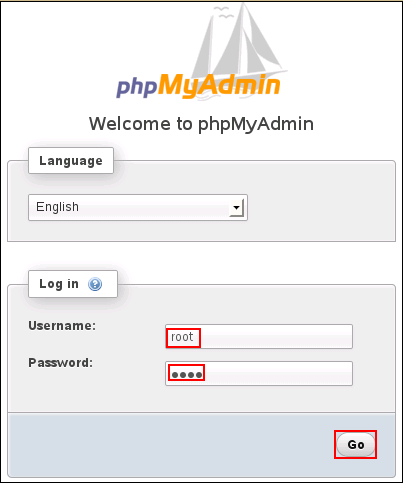

    4. Log in as root with password root.

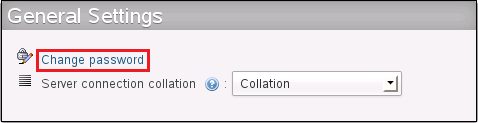

    5. Under General Settings, click Change Password.

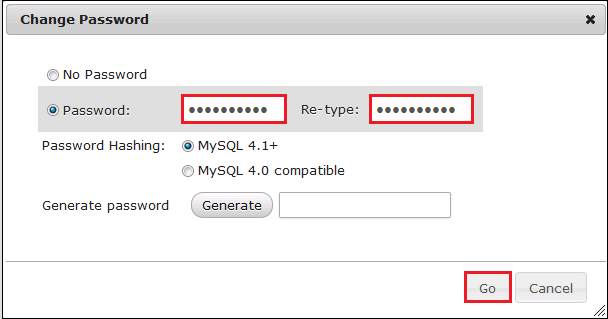

    6. Type and retype (confirm) a new password for the phpMyAdmin root user, then click Go.

  2. Add a new filr database and database-specific administrator for all of the Filr appliances that are planned to be members of the Filr cluster.

    1. Click the Users tab.

      Log in again as root with the new password that you just set.

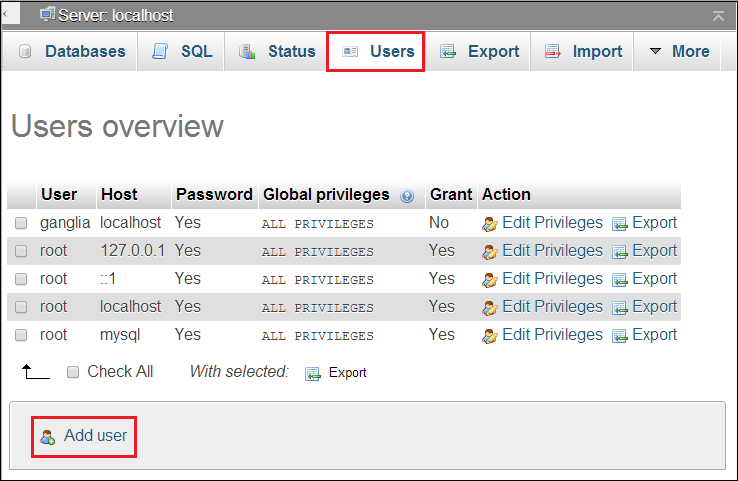

    2. Click the Users tab again, then click Add User.

    3. In the Login Information section, do the following:

      • Type filr in the User Name field.

        HINT:You can specify any name for the user and associated database. If you specify a different name, then when you set up the Filr appliances, you will need to use that name instead of filr.

      • Select Use Text Field for the Host field.

      • In the Host field, type the IP address for the first Filr appliance that is in the Filr cluster.

      • Type and re-type (confirm) a password for the new filr user, then scroll down.

        IMPORTANT:You will need this password when you configure the Filr appliances.

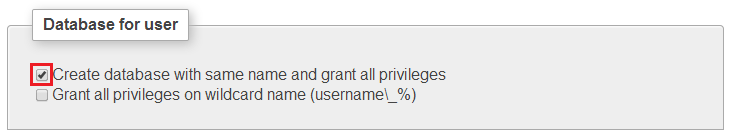

    4. In the Database for User section, select Create database with same name and grant all privileges.

    5. At the bottom right corner of the dialog, click Go.

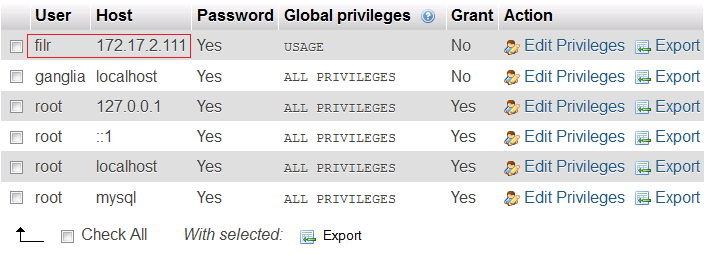

      A filr user entry is added and the corresponding database is created.

    6. Each Filr appliance in a Filr cluster must have its IP address listed as a host.

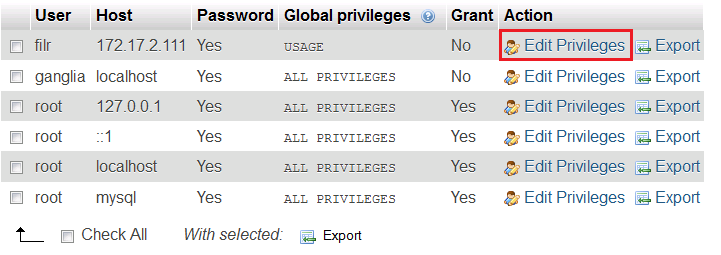

      Add another appliance to the Filr cluster by clicking the Edit Privileges link for the filr user.

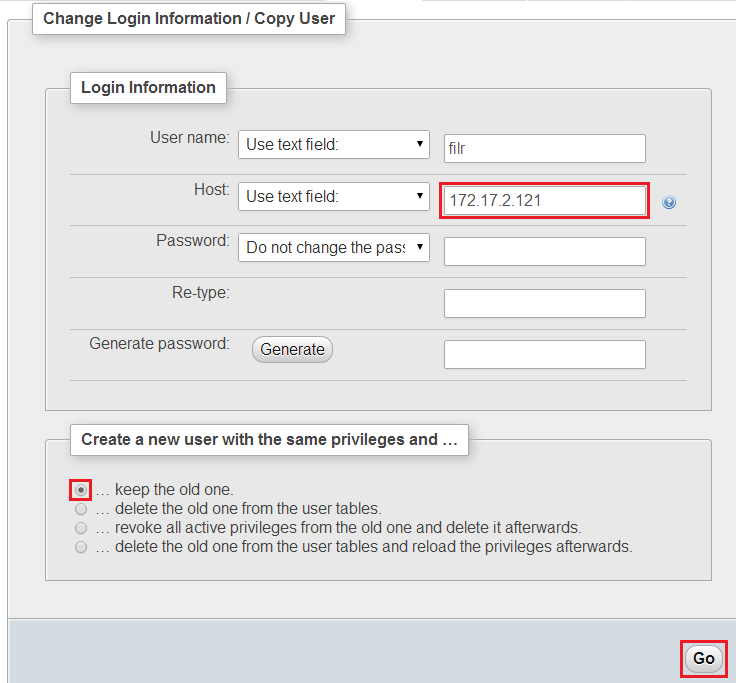

    7. Click the Login Information button, then include the next Filr appliance by changing the IP address. Then click Go, as shown in the following screen.

    8. Repeat from Step 2.g until each Filr appliance in the cluster has an entry in the database.

      For more information, see Configuring the MySQL Database Appliance in the Filr 2.0: Installation and Configuration Guide.

  3. Continue with Setting Up the Filr Appliances.
