4.5 Configuring the Archive Agent in ConsoleOne

The advantage to configuring the Archive Agent in ConsoleOne, as opposed to using startup switches in the Archive Agent startup file, is that the Archive Agent configuration settings are stored in eDirectory.

  1. In ConsoleOne, browse to and expand the Messenger Service object.

  2. Select the Messenger Server object where the Archive Agent runs.

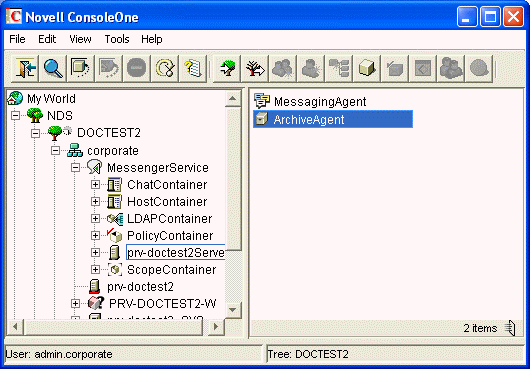

    Messenger Server objects and contents
  3. Right-click the Archive Agent object, then click Properties.

The table below summarizes the Archive Agent configuration settings in the Archive Agent object property pages and how they correspond to Archive Agent startup switches (as described in Section 4.13, Using Archive Agent Startup Switches):

Table 4-2 Archive Agent Configuration Settings

ConsoleOne Properties Pages and Settings

Corresponding Tasks and Startup Switches

Identification Page


IP Address DNS Host Name Bind to This Address Client/Server Port Message Transfer Port Description

Displays the Archive Agent server information established during installation.

General Page


Enable Messenger Services

Turns on and turns off the availability of archiving and archive searching for Messenger users.

Enable SNMP

See Using SNMP Monitoring Programs, See also /nosnmp.

Work Path

See Moving the Archive Agent Working Directory.

Security Page


Certificate Path SSL Certificate SSL Key File Set Password Enable SSL for Client/Server Enable SSL for Message Transfer Protocol

See Section 4.6, Enhancing Archive Security with SSL Encryption. See also /certpath, /certfile, /keyfile, /keypassword, and /ssl.

Log Settings Page


Log Level Enable Disk Logging Log Files Path Log Maximum Age Log Maximum Size

See Using Archive Agent Log Files. See also /loglevel, /log, /logdays, /logmax, and /logdiskoff.

Web Console Page


HTTP Port HTTP Username HTTP Password Enable SSL for Web Console

See Using the Archive Agent Console on NetWare and Windows. See also /httpport, /httpuser, /httppassword, and /httpssl.

Performance Page


Maximum Number of Users Client/Server Threads

See Section 4.11, Optimizing Archive Agent Performance. See also /maxconns and /threads.

Archive Page


Queue Path Passphrase Delay Interval Expire

See Moving the Archive Queue Directories. See also /queue. See Section 4.1, Establishing the Master Archive Agent See Section 4.12.5, Maintaining the Archive Store.
