2.1 Starting the Messaging Agent

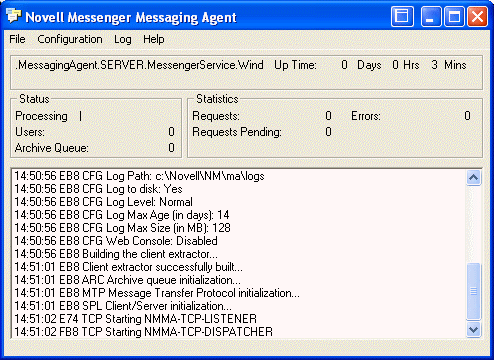

When you finish creating your Messenger system, the Installation program can start the Messenger agents for you. If you installed the Messenger agents on a Windows server, the Messaging Agent console appears on the Windows server console, as follows:

Figure 2-1 Messaging Agent Console

If you installed the Messenger agents on a Linux server, the Messaging Agent, by default, runs as a daemon and has no comparable user interface. However, you can, if desired, start it in a terminal window so that status messages are displayed, as described in Starting the Linux Messaging Agent in a Terminal Window. In addition, you can monitor the Messaging Agent from your browser, as described in Using the Messaging Agent Web Console.

The following sections help you start the Messaging Agent manually, as well as automatically whenever the server restarts:

2.1.1 Starting the Linux Messaging Agent

You have several alternatives for starting the Messaging Agent on Linux:

Starting the Linux Messaging Agent as a Daemon

To start the Messaging Agent as a daemon, use the startup script provided in the /etc/init.d directory.

  1. At the Linux server, become root by entering su and the root password.

  2. Change to the /etc/init.d directory.

  3. To start the Messaging Agent, enter the following command:

    ./novell-nmma start

    You can also use the stop, restart, and status options for the Messaging Agent from the same directory.

    Messaging Agent log files are created in the /var/opt/novell/log/messenger directory. The Messaging Agent can be monitored using the agent Web Consoles from your browser, as described in Using the Messaging Agent Web Console.

Starting the Linux Messaging Agent in a Terminal Window

To start the Messaging Agent in a terminal window, run the Messaging Agent executable.

  1. At the Linux server, become root by entering su and the root password.

  2. Change to the /opt/novell/messenger/bin directory.

  3. To start the Messaging Agent, enter the following command:

    ./nmma @/etc/opt/novell/messenger/strtup.ma

    Agent status information and messages are displayed in the terminal window.

To stop the Messaging Agent when it is running in a terminal window, press Ctrl+C and the Messaging Agent performs a normal shutdown.

Configuring the Linux Messaging Agent to Start Automatically as a Startup Service

A startup service starts automatically each time the server reboots.

Configuring the Messaging Agent as a Startup Service on SUSE Linux

  1. At the Linux server, become root by entering su and the root password.

  2. If eDirectory for Linux is installed, enter the following command:

    insserv novell-nmma

    or

    If eDirectory for Linux is not installed, use the following command to override the dependency on the ndsd service:

    insserv -f novell-nmma

If you later want to remove the Messaging Agent as a startup service, enter the following command in a terminal window:

insserv -r novell-nmma

Configuring the Messaging Agent as a Startup Service on Red Hat Linux

  1. At the Linux server, become root by entering su and the root password.

  2. Enter the following command:

    chkconfig --add novell-nmma

If you later want to remove the Messaging Agent as a startup service, enter the following command in a terminal window:

chkconfig --del novell-nmma

2.1.2 Starting the Windows Messaging Agent

Follow the instructions for the Windows installation option you chose:

Starting the Messaging Agent as a Windows Application

To start the Messaging Agent manually:

  1. Click Start > Programs > Novell Messenger Agents > Messaging Agent.

    You might want to create a desktop shortcut for this action.

To start the Messaging Agent automatically whenever the server restarts:

  1. Click Start > Settings > Taskbar & Start Menu > Advanced > Add.

  2. Browse to the directory where you installed the Messaging Agent (\novell\nm\ma).

  3. Double-click nmma.exe, then add the startup file (strtup.ma) to the command line.

    Example: nmma.exe @strtup.ma

  4. Click Next.

  5. Select the Startup folder, provide a name for the shortcut, then click Finish.

Starting the Messaging Agent as a Windows Service

To start the Messaging Agent manually:

  1. Click Start > Settings > Control Panel.

  2. Double-click Administrative Tools > Services.

  3. Right-click the Novell Messenger Messaging Agent service, then click Start.

To start the Messaging Agent automatically whenever the server restarts:

  1. Click Start > Settings > Control Panel.

  2. Double-click Administrative Tools > Services.

  3. Right-click the Novell Messenger Messaging Agent service, then click Properties.

  4. Set Startup Type to Automatic.

  5. Click OK to save the Windows service startup setting.

    If you do not want to run the Archive Agent along with the Messaging Agent, ensure that the Novell Messenger Archive Agent service is disabled.

To start the Messaging Agent without a user interface on the Windows server desktop:

  1. Click Start > Settings > Control Panel.

  2. Double-click Administrative Tools > Services.

  3. Right-click the Novell Messenger Messaging Agent service, then click Properties.

  4. Click Log On, then deselect Allow Service to Interact with Desktop.

    If you suppress the Messaging Agent console in this manner, the Messaging Agent can still be monitored from the Messaging Agent Web Console, as described in Using the Messaging Agent Web Console.

  5. Click OK to save the Windows service logon setting.

2.1.3 Changing the eDirectory Access Method for Starting the Messaging Agent

The Messaging Agent cannot start if it cannot read its configuration settings from the Messaging Agent object in eDirectory. During installation, an eDirectory access method was selected, as described in Installing a Novell Messenger System in the Novell Messenger 3.0 Installation Guide.

Figure 2-2 Directory Access Page in the Messenger Installation Program

The information for the eDirectory access method was stored in the Messaging Agent startup file as settings for the following startup switches:

Table 2-1 Startup Switches

Access Method

Startup Switch

Description

Use Direct Access

/dirreplicaipaddr

Specifies the IP address of the server where the eDirectory replica resides (for direct access on a Linux or Windows server).

Use LDAP to Access the Directory

/ldapipaddr

Specifies the IP address of the LDAP server.



/ldapport

Specifies the port number on which the LDAP server listens for service requests. Port 636 indicates an SSL connection; port 389 indicates a non-SSL connection.



/ldapssl

Indicates whether the LDAP server uses an SSL connection, depending on whether you filled in the Root Certificate field.



/ldapsslkey

Specifies the full path to the root certificate for the server if SSL is in use.

To change the directory access method selected during installation, follow the appropriate set of instructions:

Using LDAP Access for the Messaging Agent

  1. Edit the Messaging Agent startup file (strtup.ma).

    On Linux, the startup file is located in /etc/opt/novell/messenger.

    On Windows, the startup file is located in the Messenger Agent installation directory. You can edit the startup file from the Messaging Agent console. See Controlling the Messaging Agent from the Messaging Agent Console.

  2. Comment out the /dirreplicaaddr switch.

  3. Scroll down to the bottom of the startup file.

  4. Remove the comment character (;) from the /ldap* switches and provide the required LDAP information, as listed in Table 2-1.

  5. Save the startup file.

  6. Stop and then start the Messaging Agent so that it reads its updated startup file and uses LDAP access to eDirectory.

If you have already created an LDAP profile to configure eDirectory access for Messenger users, as described in Providing LDAP Access to eDirectory for Messenger Users, the LDAP profile continues to be used for users, while the startup switches now control how the Messaging Agent accesses eDirectory to obtain its configuration information.

Using Direct Access for the Messaging Agent

  1. Edit the Messaging Agent startup file (strtup.ma).

    On Linux, the startup file is located in /etc/opt/novell/messenger.

    On Windows, the startup file is located in the Messenger Agent installation directory. You can edit the startup file from the Messaging Agent console. See Controlling the Messaging Agent from the Messaging Agent Console.

  2. Remove the comment character (;) from the /dirreplicaaddr switch and provide the IP address of the eDirectory replica that you want the Messaging Agent to access.

  3. Scroll down to the bottom of the startup file.

  4. Comment out the /ldap* switches.

    Removing the LDAP information causes the Messaging Agent to access the eDirectory replica directly.

  5. If you want users to continue to use LDAP access, create an LDAP profile for them, as described in Providing LDAP Access to eDirectory for Messenger Users.

  6. Save the startup file.

  7. Stop and then start the Messaging Agent so that it reads its updated startup file and uses direct access to eDirectory.
