4.3 Monitoring Access Gateway Statistics

Access Gateway statistics are available for each Access Gateway and for clusters:

4.3.1 Viewing Access Gateway Statistics

The Statistics page allows you to monitor the amount of data and the type of data the Access Gateway is processing.

In the Administration Console, click Devices > Access Gateways > [Name of Server] > Statistics.
Select from the following types:
Click Close.

Server Activity

Access Gateways > [Name of Server] > Statistics

Select whether to monitor live or static statistics:

Statistics: Select this option to view the statistics as currently gathered. The page is static and the statistics are not updated until you click Live Statistics Monitoring.

Live Statistics Monitoring: Select this option to view the statistics as currently gathered and to have them refreshed at the rate specified in the Refresh Rate field.

These general statistics are grouped into the following categories:

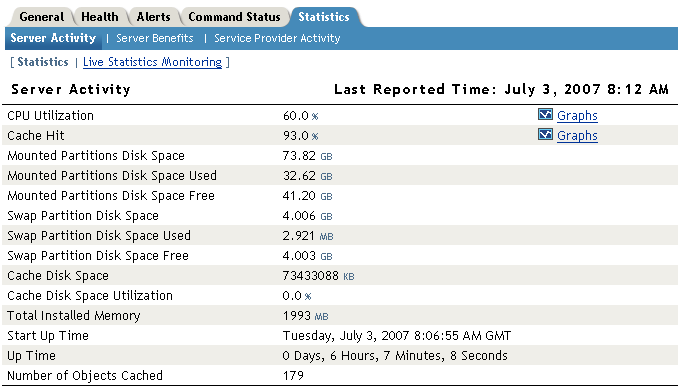

Server Activity

The Server Activity section displays general server utilization statistics.

Table 4-2 Server Activity

Statistic	Description
CPU Utilization	Displays the current CPU utilization rate. Use the available graph for capacity planning. Click Graphs to view the CPU usage for a specific unit of time (1 hour, 1 day, 1 week, 1 month, 6 months, or 12 months). The Value axis displays the percentage of use.
Cache Hit	Displays the current cache hit rate. A high cache hit rate indicates that the caching system is off-loading significant request processing from the Web servers whose objects have been cached. Click Graphs to view the number of cache hits for a specific unit of time (1 hour, 1 day, 1 week, 1 month, 6 months, or 12 months). The Value axis displays the number of hits.
Mounted Partitions Disk Space	Displays the total disk space configured on mounted partitions.
Mounted Partitions Disk Space Used	Displays the disk space in use on mounted partitions.
Mounted Partitions Disk Space Free	Displays the disk space available on mounted partitions.
Swap Partition Disk Space	Displays the total disk space for the swap partition.
Swap Partition Disk Space Used	Displays the disk space in use on the swap partition.
Swap Partition Disk Space Free	Displays the disk space available on the swap partition.
Cache Disk Space	Displays the total disk space available for caching.
Cache Disk Space Utilization	Reserved. Not currently used.
Total Installed Memory	Displays the amount of memory that is installed on the Access Gateway.
Start Up Time	Displays the last time the Access Gateway was started.
Up Time	Displays the total time the Access Gateway has been running since it was last started.
Number of Objects Cached	Reserved. Not currently used.

Connections

The connection statistics show the current and peak levels of usage in terms of TCP connections.

Table 4-3 Connections

Statistic	Description
Current Connections to Origin Server	Displays the current number of connections that the Access Gateway has established with Web servers.
Current Connections to Browsers	Displays the current number of connections that the Access Gateway has established with browsers.
Current Total Connections	Displays the current total of all connections that the Access Gateway has established.
Connections to Origin Server	Displays the total number of connections that the Access Gateway has established with Web servers since it was last started. Click Graphs to view the number of connections for a specific unit of time (1 hour, 1 day, 1 week, 1 month, 6 months, or 12 months). The Value axis displays the number of connections.
Peak Connections from Origin Server	Displays the peak number of connections that the Access Gateway has established with Web servers.
Connections to Browsers	Displays the total number of connections that the Access Gateway has established with browsers since it was last started. Click Graphs to view the number of connections for a specific unit of time (1 hour, 1 day, 1 week, 1 month, 6 months, or 12 months). The Value axis displays the number of connections.
Peak Connections to Browsers	Displays the peak number of connections that the Access Gateway has established with browsers.
Total Connections through SOCKS	Displays the total number of connections the Access Gateway has established through a firewall.
Failed Connection Attempts	Displays the total number of failed connection attempts the Access Gateway has made while attempting to fill its Web object cache.

Bytes

The bytes statistics show how fast information is being sent in response to the following types of requests:

Browser requests to the Access Gateway
Access Gateway requests to the Web servers

Table 4-4 Bytes

Statistic	Description
Bytes per Second from Origin Server	Displays the number of bytes of data being sent each second from the Web servers to the Access Gateway.
Bytes per Second to Browsers	Displays the number of bytes of data being sent each second from the Access Gateway to the browsers.
Total Bytes per Second	Displays the total number of bytes of data being sent each second from the Access Gateway and from the Web servers.
Bytes Received from Origin Server	Displays the total number of bytes of data sent to the Access Gateway from the Web servers since the Access Gateway last started.
Bytes Sent to Browser	Displays the total number of bytes of data sent to the browsers from the Access Gateway since the Access Gateway last started.
Total Bytes	Displays the total number of bytes of data sent from the Access Gateway and from the Web servers since the Access Gateway was last started.

Requests

The request statistics show the number of requests that are being sent from the browsers to the Access Gateway and from the Access Gateway to the Web servers.

Table 4-5 Requests

Statistic	Description
Current Requests to Origin Server	Displays the current number of requests that the Access Gateway has made to the Web servers.
Current Requests from Browsers	Displays the current number of requests that the browsers have made to the Access Gateway.
Total Current Requests	Displays the total number of current requests that the Access Gateway has received from the browsers and that the Access Gateway has sent to the Web servers.
Successful Requests to Origin Server	Displays the total number of successful requests that the Access Gateway has sent to the Web servers since the Access Gateway last started.
Failed Requests to Origin Server	Displays the total number of failed requests that the Access Gateway has sent to the Web servers since the Access Gateway last started.
Cumulative Requests to Origin Server	Displays the total number of requests that the Access Gateway has sent to the Web servers since the Access Gateway last started.
Cumulative Requests to Browsers	Displays the total number of requests that the browsers have sent to the Access Gateway since the Access Gateway last started.
Total Cumulative Requests	Displays the total number of cumulative requests that the Access Gateway has processed since the Access Gateway last started.
Requests per Second to Origin Server	Displays the number of requests that are being sent each second from the Access Gateway to the Web servers.
Requests per Second from Browsers	Displays the number of requests that are being sent each second from the browsers to the Access Gateway.
Total Requests per Second	Displays the total number of requests that are being sent each second from the Access Gateway and from the browsers.
Peak Requests per Second to Origin Server	Displays the peak number of requests that have been sent in one second from the Access Gateway to the Web servers.
Peak Requests per Second from Browsers	Displays the peak number of requests that have been sent in one second from the browsers to the Access Gateway.

Cache Freshness

The cache freshness statistics display information about the cache refresh process.

Table 4-6 Cache Freshness

Statistic	Description
Total “Get If Modified Since” Request	Displays the total number of Get If Modified Since requests that the Access Gateway has received from browsers.
Total Not Modified Replies	Displays the total number of 304 Not Modified replies that the Access Gateway has received from the Web servers for updated content.
Cache Freshness	Displays the percentage of objects in cache that are considered fresh.
Oldest Object in Memory	Displays how long the oldest cache object has been cached.

Server Benefits

Select whether to monitor live or static statistics:

Statistics: Select this option to view the statistics as currently gathered. The page is static and the statistics are not updated until you click Live Statistics Monitoring.

Live Statistics Monitoring: Select this option to view the statistics as currently gathered and to have them refreshed at the rate specified in the Refresh Rate field.

The Server Benefits page displays information about bandwidth and DNS caching:

Table 4-7 Server Benefits

Statistic	Description
Total Bandwidth Saved	Displays the amount of bandwidth saved by using data cached by the Access Gateway rather than requesting the data from the Web servers.
Bytes Saved per Second	Displays how many bytes of data the Access Gateway was able to send from cache rather than requesting it from the Web servers.
Bandwidth Saved	Displays the amount of bandwidth saved by using data cached by the Access Gateway rather than requesting the data from the Web servers.
Total DNS Lookups Saved	Displays the number of DNS requests that the Access Gateway could solve locally without performing a DNS lookup.
DNS “Modified Since” Queries Returning False	Displays the number of DNS Modified Since queries that the Access Gateway was able to service with a false value.
Total Number of Connections Saved	Displays the number of connections that the Access Gateway has with clients minus the number of connections that the Access Gateway has with Web servers. This statistic indicates the number of connections that the Access Gateway is off loading from the Web servers.

Service Provider Activity

Select whether to monitor live or static statistics:

Statistics: Select this option to view the statistics as currently gathered. The page is static and the statistics are not updated until you click Live Statistics Monitoring.

Live Statistics Monitoring: Select this option to view the statistics as currently gathered and to have them refreshed at the rate specified in the Refresh Rate field.

The ESP Activity page displays information about the communication process between the Access Gateway module (ESP) and the Identity Server. These statistics are grouped into the following categories:

Click Graphs to review historical statistics.

Application

Statistic	Description
Free Memory	The percentage of free memory available to the JVM (Java Virtual Machine). Click Graphs to view memory usage for a specific unit of time (1 hour, 1 day, 1 week, 1 month, 6 months, or 12 months). The Value axis displays the percentage of memory that is free for the selected time period.

Authentications

Statistic	Description
Provided Authentications	The number, since the Identity Server was started, of successful provided authentications given out to external entities.
Consumed Authentications	The number, since the Identity Server was started, of successful consumed authentications.
Provided Authentication Failures	The number, since the Identity Server was started, of failed provided authentications given out to external entities.
Consumed Authentication Failures	The number, since the Identity Server was started, of failed consumed authentications.
Logouts	The number of explicit logouts performed by users. This does not include logouts where an inactive session was destroyed.
Cached Sessions	The number of currently active cached user sessions. This represents the number of users currently logged into the system with the following caveat: If a single person has two browser windows open on the same client and if that person performed two distinct authentications, then that person has two user sessions. Click Graphs to view the number of cached session for a specific unit of time (1 hour, 1 day, 1 week, 1 month, 6 months, or 12 months). The Value axis displays the number of cached sessions. If no sessions have been cached, the value axis is not meaningful.
Cached Ancestral Sessions	The number of cached ancestral session IDs. An ancestral session ID is created during the failover process. When failover occurs, a new session is created to represent the previous session. The ID of the previous session is termed an “ancestral session ID,” and it is persisted for subsequent failover operations.
Cached Subjects	The number of current cached subject objects. Conceptually, the cached subjects are identical to the cached principals.
Cached Principals	The number of current cached principal objects. A principal can be thought of as a single directory user object. Multiple users can log in using a single directory user object in which case multiple cached sessions would exist sharing a single cached principal.
Cached Artifacts	The number of current cached artifact objects. During authentication, an artifact is generated that maps to an assertion. This cache holds the artifact to assertion mapping until the artifact resolution request is received. Under normal operations, artifacts are resolved within milliseconds of being placed in this cache.

Incoming HTTP Requests

Incoming HTTP requests are divided into three categories: active, interval, and historical. As soon as a request is complete, it is placed into the interval category. The interval represents the last 60 seconds of processed requests. At the completion of the 60 second interval, all requests in the interval category are merged into the historical category.

Statistic	Description
Total Requests	The total number of incoming HTTP requests that have been processed since the Identity Server was started.Click Graphs to view the number of requests for a specific unit of time (1 hour, 1 day, 1 week, 1 month, 6 months, or 12 months). The Value axis displays the number of requests for the selected time period.
Currently Active Requests	The number of currently active incoming HTTP requests.
Oldest Active Request (Milliseconds)	The age of the oldest currently active incoming HTTP request.
Last Interval Maximum Request Duration (Milliseconds)	The age of the longest incoming HTTP request that was processed during the last 60 second interval.
Last Interval Mean Request Duration (Milliseconds)	The mean age of all incoming HTTP request that were processed during the last 60 second interval.
Historical Maximum Request Duration (Milliseconds)	The age of the longest incoming HTTP request that was processed since the Identity Server was started.
Historical Mean Request Duration (Milliseconds)	The mean age of all incoming HTTP requests that were processed since the Identity Server was started.

Outgoing HTTP Requests

Outgoing HTTP requests are divided into three categories: active, interval, and historical. As soon as a request is complete, it is placed into the interval category. The interval represents the last 60 seconds of processed requests. At the completion of the 60 second interval, all requests in the interval category are merged into the historical category.

Statistic	Description
Total Requests	The total number of outgoing HTTP requests that have been processed since the Identity Server was started. Click Graphs to view the number of requests for a specific unit of time (1 hour, 1 day, 1 week, 1 month, 6 months, or 12 months). The Value axis displays the number of requests for the selected time period.
Currently Active Requests	The number of currently active outgoing HTTP requests.
Oldest Active Request (Milliseconds)	The age of the oldest currently active outgoing HTTP request.
Last Interval Maximum Request Duration (Milliseconds)	The age of the longest outgoing HTTP request that was processed during the last 60 second interval.
Last Interval Mean Request Duration (Milliseconds)	The mean age of all outgoing HTTP request that were processed during the last 60 second interval.
Historical Maximum Request Duration (Milliseconds)	The age, since the Identity Server was started, of the longest outgoing HTTP request that was processed.
Historical Mean Request Duration (Milliseconds)	The mean age, since the Identity Server was started, of all outgoing HTTP requests that were processed.

Liberty

Statistic	Description
Liberty Federation	The number, since the Identity Server was started, of Liberty protocol federations performed.
Liberty De-Federations	The number, since the Identity Server was started, of Liberty protocol de-federations performed.
Liberty Register-Names	The number, since the Identity Server was started, of Liberty protocol register names performed.

Clustering

An authoritative server is the cluster member that holds the authentication information for a given user session. For a request associated with a given session to be processed, it must be routed (“proxied”) to the authoritative cluster member. If an L4 Switch causes a request to go to a non-authoritative cluster member, then that cluster member proxies that request to the authoritative cluster member.

When a request is received, a cluster member uses multiple means to determine which cluster member is the authoritative server for the request. It looks for a parameter on the query string of the URL indicating the authoritative server. It looks for an HTTP cookie, indicating the authoritative server. If these do not exist, the cluster member examines the payload of the HTTP request to determine the authoritative server. Payload examinations result in immediate identification of the authoritative server or a user session ID or user identity ID that can be used to locate the authoritative server.

If a user session ID or user identity ID is found, the ID is broadcast to all cluster members asking which member is the authoritative server for the given ID. The authoritative server receives the broadcast message, determines that it indeed holds the given session or user, and responds accordingly.

The higher the number of proxied requests, the lower the performance of the entire system. Furthermore, the higher the number of payload examinations and ID broadcasts, the lower the performance of the entire system.

Statistic	Description
Currently Active Proxied Requests	The number of currently active proxied HTTP requests.
Total Proxied Requests	The total number, since the Identity Server was started, of proxied requests that have been processed. This is the case where the request hits a non-authoritative (wrong) box.
Total Non-Proxied Requests	The total number, since the Identity Server was started, of non-proxied requests that have been processed. This is the case where the request hits the authoritative (correct) box.
Authoritative Server Obtained from URL Parameter	The total number, since the Identity Server was started, of authoritative servers identified using the parameter from the URL query string.
Authoritative Server Obtained from Cookie	The total number, since the Identity Server was started, of authoritative servers identified using the HTTP cookie.
Payload Examinations	The total number, since the Identity Server was started, of attempted payload examinations to identify the authoritative server.
Successful Payload Examinations	The total number, since the Identity Server was started, of successful payload examinations to identify the authoritative server.
Identity ID Broadcasts	The total number, since the Identity Server was started, of attempted Identity ID Broadcasts to identify the authoritative server.
Successful Identity ID Broadcasts	The total number, since the Identity Server was started, of successful Identity ID Broadcasts to identify the authoritative server.
Session ID Broadcasts	The total number of attempted Session ID Broadcasts to identify the authoritative server.
Successful Session ID Broadcasts	The total number, since the Identity Server was started, of successful Session ID Broadcasts to identify the authoritative server.

4.3.2 Viewing Cluster Statistics

To view general performance statistics of the servers assigned to the selected cluster:

In the Administration Console, click Devices > Access Gateways > [Name of Cluster] > Statistics.

To determine performance, analyze the following statistics:

Column	Description
Server Name	Lists the name of the Access Gateways that belong to the group. To view additional statistical information about a specific Access Gateway, click the name of an Access Gateway.
CPU %	Displays the current CPU utilization rate. Use this statistic for capacity planning.
Cache Hit Rate %	Displays the current cache hit rate. A high cache hit rate indicates that the caching system is off-loading significant request processing from the Web server whose objects have been cached. If the percentage is low, you might want to configure a pin list. For this and other caching options, see Section 5.0, Configuring the Content Settings.
Bytes per second to/from Server	Displays the rate at which the Access Gateway is requesting Web objects from the Web servers it is protecting.
Bytes per second to/from Browser	Displays the rate at which browser clients are requesting Web objects.
Current Connections	Displays the total number of TCP connections that are active, idle, or closing.
Statistics	Allows you to view all the statistics for a selected server. Click View to see these additional statistics. For more information, see Section 4.3, Monitoring Access Gateway Statistics.

Click Close.
