7.3 Viewing SSL VPN Statistics

The Statistics page allows you to view information such as the number of active client connections and the time when the SSL VPN server was started.

7.3.1 Viewing the SSL VPN Server Statistics

  1. In the Administration Console, click Devices > SSL VPNs > [Server Name] > Statistics.

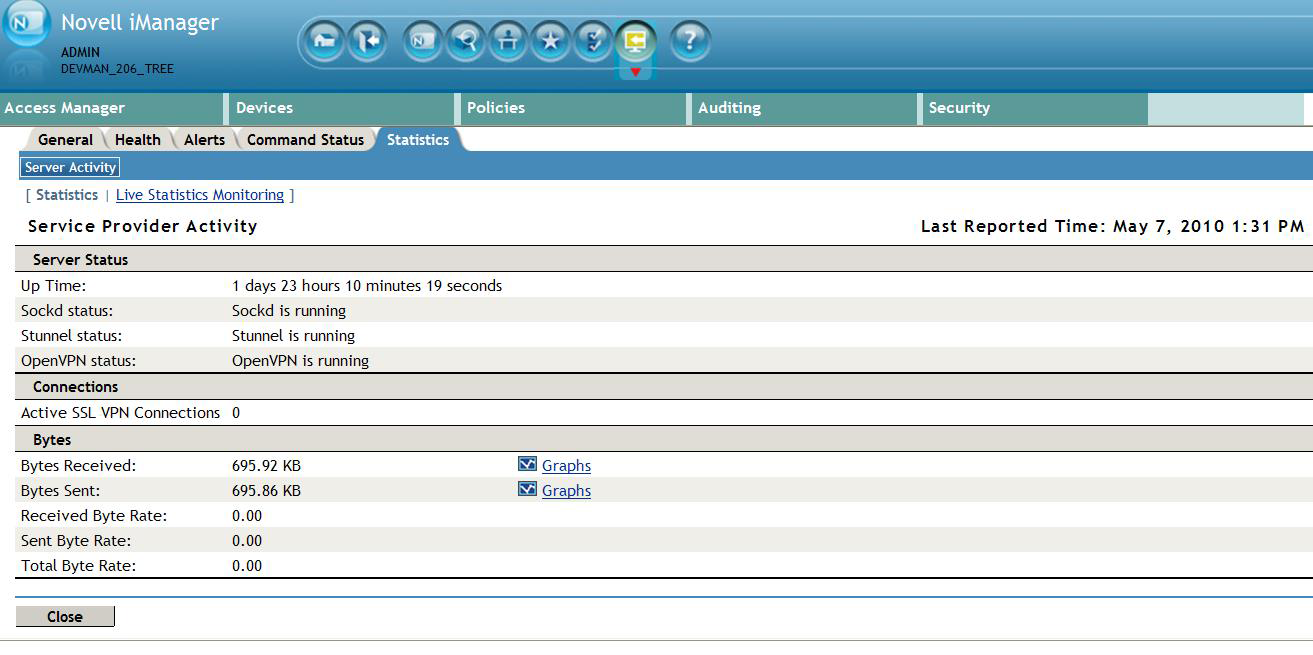

    Viewing the statistics page

    Server Status information is gathered in the following sections:

    Column

    Description

    Up Time

    Displays the duration for which the server has been up and running.

    Sockd Status

    Displays if the sockd is running or not.

    Stunnel Status

    Displays if the Stunnel is running or not.

    Connection information is gathered in the following sections:

    Column

    Description

    Active SSL VPN Connections

    Displays the number of active SSL VPN connections. Also displays the username, role of the user, and uptime of each user for each active connection.

    Bytes information is gathered in the following sections:

    Column

    Description

    Bytes Received

    Displays the number of bytes received. You can also view a graph, which lists the number of bytes sent for fixed intervals. For more information, see Section 7.3.3, Viewing the Bytes Graphs.

    Bytes Sent

    Displays the number of bytes sent. You can also view a graph, which lists the number of bytes sent for fixed intervals. For more information, see Section 7.3.3, Viewing the Bytes Graphs.

    Received Byte Rate

    Displays the percentage of bytes received.

    Sent Byte Rate

    Displays the percentage of bytes sent.

    Total Byte Rate

    Displays the total percentage of bytes transferred.

  2. Select one of the following options:

    • Statistics: To display the number of active client connections and the time when the server was started, click Statistics.

    • Live Statistics Monitoring: To refresh the statistics for a specified interval, click Live Statistics Monitoring. You can select the refresh interval from the Refresh Rate drop-down list.

  3. Click Close to close the Statistics tab.

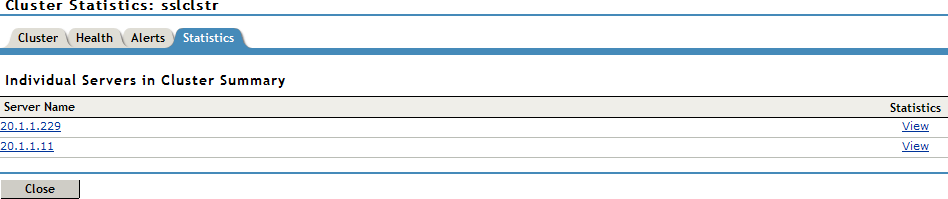

7.3.2 Viewing the SSL VPN Server Statistics for the Cluster

  1. In the Administration Console, click Devices > SSL VPNs > [Cluster Name] > Statistics.

  2. The Statistics page has the following information:

    Server Name: The IP address identifying the SSL VPNs in the cluster. Click the Edit link to edit server information.

    Statistics: Click the View link to get a summary of the statistics of individual servers in a cluster. For more information on viewing the statistics details of individual servers, see Section 7.3, Viewing SSL VPN Statistics.

  3. Click Close to close the Statistics tab.

7.3.3 Viewing the Bytes Graphs

The number of bytes sent and bytes received can be viewed in the form of graphs. You can view graphs for the following time frames:

  • 1 Hour: The number of bytes sent or received every ten minutes.

  • 1 Day: The number of bytes sent or received every four hours.

  • 1 Week: The number of bytes sent or received every day.

  • 1 Month: The number of bytes sent or received every week.

  • 6 Months: The number of bytes sent or received every month for six months.

  • 12 Months: The number of bytes sent or received every month for one year.

To view graphs:

  1. In the Administration Console, click Devices > SSL VPNs > [Server Name] > Statistics.

  2. Select Graphs from either the Bytes Received or Bytes Sent section, depending on your needs.

    Viewing bytes graph
  3. Click Close to close the Graphs page.
