19.3 Migration Procedure

  1. Install the OES 2 SP3 Linux server as the target server for the Archive and Version Services into the same edirectory tree as the source server.

    For more information on installing Novell Archive and Version Services, see Setting Up Archive and Version Services in the OES 2 SP3: Novell Archive and Version Services 2.1 Administration Guide for Linux.

  2. To stop the Archive and Version Services on source server and continue to run the MySQL database, enter

    arkstop

  3. To stop the Archive Service on the target server, enter

    rcnovell-ark stop

    This command stops the Archive server and the default instance of the PostgreSQL database.

  4. If you have configured the Archive server with the default configuration, restart the PostgreSQL database with the following command:

    /opt/novell/arkmanager/bin/pg_restart.sh

  5. Migrate data from Archive volume on the NetWare server to the OES 2 SP3 server.

    The migration is from the NetWare NSS source volume to the OES 2 SP3 Linux NSS target volume, where the source and target servers are in the same eDirectory tree. For more information, refer to the OES 2 SP3: NSS File System Administration Guide for Linux.

    IMPORTANT:You need to migrate the Archive volume before migrating the Archive and Version Service; otherwise, versions of files created on the NetWare server are unusable on OES 2 SP3 Linux server.

  6. (Optional) Migrate data from the Primary volume on the NetWare server to the OES 2 SP3 Linux server, using either command line utilities or the GUI interface. For more information, refer to the OES 2 SP3: NSS File System Administration Guide for Linux.

  7. Decide how to migrate Archive and Version Services.

    The Migration Tool GUI has a plug-in architecture and is made up of command line utilities with a GUI wrapper. You can migrate Archive and Version Services by using either of the following methods:

19.3.1 Using the Migration Tool GUI

  1. Click Computer> More Applications> System > Novell Migration Tools to launch the Migration Tool GUI.

    For more information on using the Migration Tool GUI, refer to Section 5.0, Using the Migration Tool GUI.

  2. Authenticate to the source and target server. Archive and Version Services is listed in the Service panel.

    Select the Migration Type as Consolidate for migrating Archive service, or to Transfer ID for Transfer ID scenario.

  3. In the Services to Migrate panel, click Add and select Novell Archive and Versioning Services.

    The Status of the service is Not Configured.

  4. Select Novell Archive and Versioning Service and click Configure.

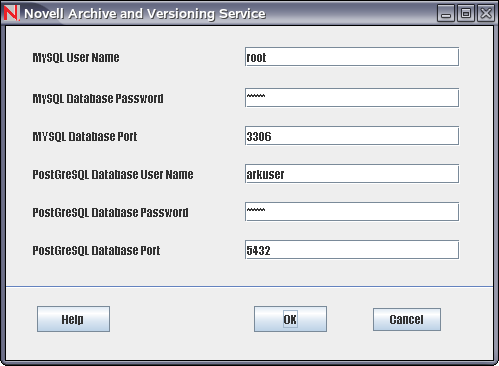

  5. Fill in the fields, using the information in the following table:

    Parameter

    Description

    MySQL User Name

    Specify a username for the administrator of the MySQL database on the source server.

    MySQL Database Password

    Specify a password for the MySQL user.

    MySQL Database Port

    Specify a port number used for the archive database communications on the source server. Port 3306 is the default.

    PostgreSQL Database User Name

    Specify a username for the administrator of the archive database (the PostgreSQL database for the archived data) on the OES 2 SP3 Linux server.

    IMPORTANT:The Postgres user must be an unprivileged user, not the root user.

    PostgreSQL Database Password

    Specify a password for the PostgreSQL user.

    PostgreSQL Database Port

    Specify a port number to use for the archive database communications on the OES 2 SP3 server. Port 5432 is the default.

  6. Click OK.

    The Status of the service is Ready.

  7. Click Start to proceed with migration. The Status is Migrating.

    In the Status pane, Service tab, you can view the progress of migration. On completion of migration, the Status changes to Migrated.

    NOTE:If you encounter any errors during migration, check the Logs tab in the Service pane. After resolving the errors, execute the migration procedure again.

19.3.2 Using the Command Line

  1. To run the Archive and Version migration utility through command line, run /opt/novell/migration/bin/migark.sh with the following details:

    Option

    Description

    --mysqldb-user=<opt>

    Specify a username for the administrator of the MySQL database.

    --mysqldb-passwd=<opt>

    Specify a password for the MySQL user.

    --mysqldb-port=<opt>

    Specify a port number used for the archive database communications on NetWare server. Port 3306 is the default.

    --hostname=<opt>

    Specify the host name or IP address of the NetWare server on which Archive and Version Services resides.

    --username=<opt>

    Specify the fully distinguished eDirectory name and context of the administrator user. For example, cn=admin.o=novell

    NOTE:Use the dot (.) format for specifying the eDirectory name and context, not the comma (,) format.

    --password=<opt>

    Specify a password for the Admin user.

    --pg_db-user=<opt>

    Specify a username for the administrator of the archive database (the PostgreSQL database for the archived data) on the Novell OES 2 SP3 server.

    IMPORTANT:The Postgres user must be an unprivileged user, not the root user.

    --pg-db-passwd

    Specify a password for the PostgreSQL user.

    --pg_db-port=<opt>

    Specify a port number to use for the archive database communications on the OES 2 SP3 Linux server. Port 5432 is the default.

    For example:

    /opt/novell/migration/bin/migark.sh --mysqldb-user=root --mysqldb-passwd=novell --mysqldb-port=3306 --hostname=192.168.1.255 --username=cn=admin.o=novell --password=novell12 --pg_db-user=arkuser --pg_db-passwd=novell12 --pg_db-port=5432

NOTE:If you encounter any errors during migration, check the archive_migration.log file in the /var/opt/novell/log/migration/ folder. After resolving the errors, execute the migration procedure again.
