5.1 Upgrading AFP File Services to OES

5.1.1 About AFP File Services in OES 2

Starting with OES 2 SP1, the AFP file services that were previously available only on NetWare® through the Native File Access Protocols (NFAP) service have now been ported to OES as Novell® AFP.

The Novell AFP service lets users on Macintosh workstations access and store files on OES 2 SP1 and later servers with NSS volumes without installing any additional software, such as the Novell Client™ (see Figure 5-1).

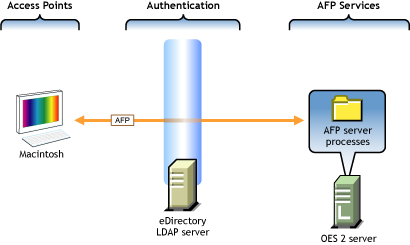

Figure 5-1 How Novell AFP Works

The following table explains the information illustrated in Figure 5-1.

Access Points

Authentication

AFP File Services

eDirectory™ users on Macintosh workstations have native access to the OES 2 server.

All file service access is controlled by LDAP-based authentication through the eDirectory LDAP server.

Although shown separately, eDirectory could be installed on the OES 2 server.

Of course, the same files can also be accessed through other OES file services (such as NetStorage) that connect to Linux volumes.

5.1.2 Platform Differences in AFP File Services

The differences in AFP services on NetWare and OES 2 are summarized in the following table.

Table 5-1 Platform Differences in AFP File Services

Feature Description

AFP for NetWare

AFP for OES

Administering

Limited to starting and stopping the server.

See Enabling and Disabling AFP in the NW 6.5 SP8: AFP, CIFS, and NFS (NFAP) Administration Guide

Ability to configure AFP server parameters through iManager.

See Administering the AFP Server in the OES 2 SP3: Novell AFP For Linux Administration Guide.

Filenames and Paths

sys:\etc\ctxs.cfg

sys:\etc\afpvol.cfg

sys:\etc\afptcp.log

/etc/opt/novell/afptcpd/afpdircxt.conf

/etc/opt/novell/afptcpd/afpvols.conf

/etc/opt/novell/afptcpd/afptcpd.conf

/var/log/afptcpd/afptcp.log

Installation

Customized installation during installation of NetWare 6.5.

See, Installing Novell Native File Access Protocols on a NetWare 6.5 Server in the NW 6.5 SP8: AFP, CIFS, and NFS (NFAP) Administration Guide

Installation through YaST along with associated dependencies.

See Installing and Setting Up AFP in the OES 2 SP3: Novell AFP For Linux Administration Guide.

Simple Password support

Yes

No

Universal Password

Yes. Limited to 8 characters.

Yes. Over 8 characters.

Upgrade/migration support

Not Applicable

Support to upgrade AFP from NetWare to OES.

See Migrating AFP from NetWare to OES 2 SP3 Linux in the OES 2 SP3: Novell AFP For Linux Administration Guide.

Mac versions supported

Classic Mac, Mac OS* 10.3, 10.4 and 10.5

Mac OS 10.3, 10.4 and 10.5

Cross-protocol locking

Supported among AFP, CIFS, and NCP™.

Supported among AFP, CIFS, and NCP.

Authentication methods

Clear text

Clear text

Two-Way Random Key Exchange

Random Exchange

Diffie-Hellman Exchange

Dynamic detection of volumes

Yes

Yes, but the AFP server needs to be reloaded.

Choosing volumes to be exported

Yes

No. Exports all the volumes.

Support for 64-bit architecture

No

Yes

5.1.3 Planning to Transfer AFP Services

The OES 2 SP3 Migration Tool supports transferring AFP file services from NetWare to OES 2 SP3. The process is quite straightforward, but there are, of course, some planning steps that you must take to ensure a successful upgrade.

Requirements

Table 5-2 AFP Source and Target Server Requirements

Source Server

Target Server

NetWare 5.1 or later

OES 2 SP3



The Novell AFP service pattern is installed but not configured.



Data can be moved independently of the service. Users can always see what they have rights to see.

Limitations

The OES 2 SP3 Migration Tool does not support transferring AFP services across eDirectory trees. However, AFP services can be effectively transferred by first moving the data to an OES 2 SP3 target server in the other tree, and then configuring AFP on the target server.

For details, see Migrating Data to a Server in a Different Tree in the OES 2 SP3: Migration Tool Administration Guide and Installing and Setting Up AFP in the OES 2 SP3: Novell AFP For Linux Administration Guide.

Universal Password

Although Simple Passwords were an option with AFP on Netware, Novell AFP requires Universal Password, as listed in Section 5.1.2, Platform Differences in AFP File Services.

The process of upgrading AFP services to OES ensures that a Universal Password policy is assigned to all of the eDirectory contexts listed for AFP users on the NetWare server. If users currently have a Universal Password policy assigned, the tool checks for compliance with AFP requirements and modifies the policy if required.

5.1.4 Upgrading AFP

You can use either of the two migration types offered by the Migration Tool to transfer AFP file services from NetWare to OES 2:

To transfer Novell AFP from NetWare to OES 2, follow the instructions in Migrating AFP from NetWare to OES 2 SP3 Linux in the OES 2 SP3: Migration Tool Administration Guide.

5.1.5 Post-Upgrade Checks

Verify Upgrade Success

After the process is complete, be sure to complete the instructions in Verifying the Migration Process in the OES 2 SP3: Migration Tool Administration Guide.

Preparing for the First Login

You must do two things to ensure that users can authenticate seamlessly to the transferred AFP service:

  1. Restart eDirectory with the environment variable NDSD_TRY_NDSLOGIN_FIRST set to TRUE.

  2. Make sure that each user logs in for the first time by using either the Diffie-Hellman Exchange or clear-text authentication method.

For more information, see Cross-Platform Issues in the OES 2 SP3: Migration Tool Administration Guide.
