9.18 Creating or Deleting Cluster SBD Partitions

If a single node (or group of nodes) somehow becomes isolated from other nodes, a condition called split brain results. Each side believes the other has failed, and forms its own cluster view that excludes the nodes it cannot see. Neither side is aware of the existence of the other. If the split brain is allowed to persist, each cluster will fail over the resources of the other. Since both clusters retain access to shared disks, corruption will occur when both clusters mount the same volumes.

OES Cluster Services provides a split-brain detector (SBD) function to detect a split-brain condition and resolve it, thus preventing resources from being loaded concurrently on multiple nodes. The SBD partition contains information about the cluster, nodes, and resources that helps to resolve the split brain condition.

OES Cluster Services requires an SBD partition for a cluster if its nodes use physically shared storage. Typically, you create the SBD when you configure the cluster on the first node. You can alternatively configure an SBD for the cluster after you configure the first node, but before you configure OES Cluster Services on the second node of the cluster. You might also need to delete and re-create an SBD partition if the SBD becomes corrupted or its device fails.

An SBD must exist and the cluster must be enabled for shared disk access before you attempt to create shared storage objects in a cluster, such as pools and volumes. OES Linux Volume Manager (NLVM) and other NSS management tools need the SBD to detect if a node is a member of the cluster and to get exclusive locks on physically shared storage.

This section describes how to use the OES Cluster Services SBD Utility (sbdutil) to create and delete SBD partitions.

9.18.1 Requirements and Guidelines for Creating an SBD Partition

Consider the requirements and guidelines in this section when you create a OES Cluster Services SBD (split-brain detector) partition for an existing cluster.

IMPORTANT:Check to see if a cluster SBD partition already exists before you create a new one. See Section 9.18.2, Before You Create a Cluster SBD Partition.

Preparing OES Cluster Services

Before you create an SBD partition for an existing cluster, you must take the cluster down and stop OES Cluster Services software on all nodes. Do not restart OES Cluster Services and rejoin nodes to the cluster until after you create the new SBD and configure the Shared Disks flag attribute for the Cluster object.

You can mirror an existing SBD while the cluster is up and running.

Using a Shared Disk System

You must have a shared disk system (such as a Fibre Channel SAN or an iSCSI SAN) connected to your cluster nodes before you create a split-brain-detector (SBD) partition. See Section 4.8, Shared Disk Configuration Requirements for more information.

Preparing a SAN Device for the SBD

Use the SAN storage array software to carve a LUN to use exclusively for the SBD partition. The 512 byte device should have at least 20 MB of free available space and the 4096 (4Kn) byte device should have at least 80 MB of free available space. Connect the LUN device to all nodes in the cluster.

For device fault tolerance, you can mirror the SBD partition. Use the SAN storage array software to carve a second LUN of the same size to use as the mirror. Connect the LUN device to all nodes in the cluster.

The device you use to create the SBD partition must not be a software RAID device. A hardware RAID configured in a SAN array is seen as a regular device by the server.

If you attach new devices to the server while it is running, you should scan for new devices on each cluster node to ensure that the devices are recognized by all nodes. Log in as the root user, launch a terminal console, then enter

nlvm -s rescan

Initializing and Sharing a Device for the SBD

Before you use sbdutil to create an SBD, you must initialize each of the SAN devices that you created for the SBD and mark each device as Shareable for Clustering. When you mark the device as Shareable for Clustering, share information is added to the disk in a free-space partition that is about 4 MB in size. This space becomes part of the SBD partition.

When the cluster is down and OES Cluster Services is stopped, you can use NSSMU, the Storage plug-in for iManager, the nlvm init command, or an NSS utility called ncsinit to initialize a device and set it to a shared state. To minimize the risk of possible corruption, you are responsible for ensuring that you have exclusive access to the shared storage at this time.

Working with NLVM Commands in a Cluster

If you have physically shared storage and the SBD does not exist, NSS management tools cannot detect if the node is a member of the cluster and cannot get exclusive locks to the physically shared storage. In this state, you can use the -s NLVM option with NLVM commands to override the shared locking requirement and force NLVM to execute the commands. To minimize the risk of possible corruption, you are responsible for ensuring that you have exclusive access to the shared storage at this time.

Determining the SBD Partition Size

You use the size option with the SBD Utility to specify the desired size of the SBD partition. You can specify how much free space to use for the SBD, or you can specify the -1 option to use the entire device (the maximum size). If you specify a device to use as a mirror, the same amount of space is used. If you specify to use the maximum size and the mirror device is bigger than the SBD device, you will not be able to use the excess free space on the mirror for other purposes.

Because an SBD partition ends on a cylinder boundary, the partition size might be slightly smaller than the size you specify. When you use an entire device for the SBD partition, you can use the -1 option as the size, and let the software determine the size of the partition.

Replacing an Existing SBD Partition

To replace an existing SBD partition, you must first delete the old SBD partition, and then create the new one. To reuse the SBD partition’s device, you must remove the SBD partition, then re-initialize and share the device.

You must take the cluster down and stop OES Cluster Services on all nodes before you delete the existing SBD partition. Do not restart OES Cluster Services and rejoin nodes to the cluster until after you create the new SBD.

9.18.2 Before You Create a Cluster SBD Partition

Before you create a OES Cluster Services SBD partition, you should ensure that an SBD does not already exist on your cluster. The new SBD partition is not recognized until the old partition is deleted.

  1. Log in as the root user to any node in the cluster, and launch a terminal console.

  2. At the command prompt, enter

    sbdutil -f

    The -f option tells you whether an SBD partition exists for the cluster, and identifies the SAN device where the SBD partition is located. It returns NotFound if the SBD partition does not exist.

  3. If an SBD partition already exists, use one of the following methods to delete the existing SBD partition before attempting to create another one:

9.18.3 Creating a Non-Mirrored Cluster SBD Partition with SBDUTIL

If you did not create a cluster SBD partition during the OES Cluster Services installation on the first node of the cluster, you can create it later by using the SBDUTIL utility (/opt/novell/ncs/bin/sbdutil). You might also need to delete and re-create an SBD partition if the SBD becomes corrupted or its device fails. See the man page for sbdutil for more information on how to use it.

If a cluster partition does not exist, create one by using the SBDUTIL:

  1. Ensure that nobody else is changing any storage on any nodes at this time.

    Until the SBD exists and the cluster is set up for shared disk access, you are responsible for ensuring that you have exclusive access to the shared storage.

  2. Take the cluster down:

    1. Log in to any node in the cluster as the root user, then open a terminal console.

    2. At the command prompt, enter

      cluster down
  3. On each cluster node, stop OES Cluster Services:

    1. Log in to the cluster node as the root user, then open a terminal console.

    2. At the command prompt, enter

      rcnovell-ncs stop

      or

      systemctl stop ncs.service
    3. After you have stopped OES Cluster Services on all nodes, continue with the next step.

  4. Prepare a SAN device to use for the SBD partition:

    1. Use the SAN storage array software to carve a device to use exclusively for the SBD partition.

    2. Attach the device to all nodes in the cluster.

    3. On each node, log in as the root user and rescan for devices:

      nlvm -s rescan

      Use the -s NLVM option to override the shared locking requirement and force the command to execute.

  5. Log in to any node in the cluster as the root user, then open a terminal console.

  6. View a list of the devices and identify the leaf node name (such as sdc) of the SAN device that you want to use for the SBD partition. At the command prompt, enter

    nlvm -s list devices

    Use the -s NLVM option to override the shared locking requirement and force the command to execute.

    The device information shows the leaf node name, the size, the amount of free available space, the partitioning format (such as MSDOS or GPT), the shared state (whether it is marked as Shareable for Clustering), and the RAID state (whether the device is an NSS software RAID device). Do not use an NSS software RAID for the device.

    For example, an uninitialized device reports a format of None and a shared state of No:

    sdc size=102.00MB free=0KB format=None shared=No RAID=No
  7. Initialize and share the device. At the command prompt, enter

    nlvm -s init <device_name> format=msdos shared

    WARNING:Initializing a device destroys all data on the device.

    Replace device_name with the leaf node name (such as sdc) of the SAN device you want to use as the SBD partition.

    Specify a partitioning format of msdos.

    Specify the shared option to mark the device as Shareable for Clustering.

    Use the -s NLVM option to override the shared locking requirement and force the command to execute.

    You can list the devices to visually verify that the device is formatted and shared:

    nlvm -s list devices

    For example, the formatted device sdc reports a format of MSDOS and a shared state of Yes:

    sdc size=102.00MB free=101.98MB format=MSDOS shared=Yes RAID=No
  8. As the root user, enter the following at the command prompt:

    sbdutil -c -n <cluster_name> -d <device_name> -s <size>

    For the -n option, replace cluster_name with the name of the cluster, such as cluster1. This name must match the name of an existing cluster that has a Cluster object in eDirectory. The name is case sensitive.

    For the -d option, replace device_name with the leaf node name of the device where you want to create the cluster partition, such as sdc.

    For the -s option, use one of the following methods for specifying the size of the SBD partition. For information about size requirements, see Preparing a SAN Device for the SBD.

    • Specify a value: Replace size with the size (in MB) to use for the SBD partition.

      For example, the following command creates the /dev/nss/mycluster1.sbd partition with a size of 200 MB:

      sbdutil -c -n mycluster1 -d sdc -s 200
    • Specify -1: You can specify the size as -1 to use all free space on the device. This option allows OES Cluster Services to use a whole disk/LUN (or LUNs) that you set aside for SBD.

      For example, the following command creates the /dev/nss/cl1.sbd partition on the CX4-LUN000 device, and uses the entire device:

      sbdutil -c -n cl1 -d CX4-LUN000 -s -1
    • Use default size: If the -s option is not used, the default size is 8 MB.

      For example, the following command creates the /dev/nss/cl2.sbd partition on the sdd device with the default size of 8 MB:

      sbdutil -c -n cl2 -d sdd
  9. On each node, log in as the root user and rescan for devices:

    nlvm -s rescan

    Use the -s NLVM option to override the shared locking requirement and force the command to execute.

  10. (Optional) You can use the sbdutil -f -s command to view the path of the SBD partition.

  11. Modify the Cluster object in eDirectory to enable its NCS: Shared Disk Flag attribute.

    This step is required only if the cluster has never had an SBD partition. However, it does no harm to verify that the NCS: Shared Disk Flag attribute is enabled.

    1. In a web browser, open iManager, then log in to the eDirectory tree that contains the cluster you want to manage.

      IMPORTANT:Log in as an administrator user who has sufficient rights in eDirectory to delete and modify eDirectory objects.

    2. Select Directory Administration, then select Modify Object.

    3. Browse to locate and select the Cluster object of the cluster you want to manage, then click OK.

    4. Under Valued Attributes, select the NCS: Shared Disk Flag, then click Edit.

    5. Select (enable) the NCS: Shared Disk Flag check box, then click OK.

    6. Click Apply to save changes.

  12. On each cluster node, start OES Cluster Services:

    1. Log in to the cluster node as the root user, then open a terminal console.

    2. At the command prompt, enter

      rcnovell-ncs start

      or

      systemctl start ncs.service
    3. After you have restarted OES Cluster Services on all nodes, continue with the next step.

  13. On each cluster node, join the cluster. At the command prompt, enter

    cluster join
  14. (Optional) Continue with Section 9.18.4, Mirroring an Existing SBD Partition with NSSMU.

9.18.4 Mirroring an Existing SBD Partition with NSSMU

You can mirror an existing OES Cluster Services SBD partition to provide device fault tolerance. It is not necessary to take the cluster down or stop the cluster software.

This section describes how to use NSSMU to mirror the SBD partition. For information about using OES Linux Volume Manager (NLVM) commands to mirror an SBD, see Mirroring an Existing SBD Partition with NLVM in the OES 2018 SP2: NLVM Reference.

  1. Prepare a SAN device to use as the mirror segment for the SBD partition:

    1. Use the SAN storage array software to carve a device that is at least the size of the existing SBD partition’s device.

    2. Attach the device to all nodes in the cluster.

    3. On each node, log in as the root user and rescan for devices:

      nlvm rescan
  2. Initialize and mark the device as Shareable for Clustering:

    1. Log in to any node of the cluster as the root user, then open a terminal console.

    2. Launch NSSMU:

      nssmu
    3. In the NSSMU Main Menu, select Devices and press Enter.

    4. In the Devices list, select the device that you want to use for the SBD mirror, press F3 to initialize the device, then press y (Yes) to confirm and continue.

      WARNING:Initializing a device destroys all of the data on it.

    5. Select the DOS partitioning scheme for the device, then press Enter.

      DOS supports devices up to 2 TB in size. GPT supports devices of any size.

      Wait for the page to refresh before continuing.

    6. Press F6 to mark the device as shareable for clustering.

      The Shareable for Clustering value changes from No to Yes.

    7. Press Esc to return to the NSSMU Main Menu.

  3. In NSSMU, mirror the SBD partition:

    1. Select Partitions from the NSSMU Main Menu.

    2. From the list of partitions, select the SBD partition that you want to mirror. The partition is named the same as the cluster with an .sbd extension, such as clus1.sbd.

    3. Press F3 to open the dialog to create the RAID1 mirror.

    4. Type the cluster name (such as clus1) for the RAID, then press Enter.

      This is the same name as the SBD partition but without the .sbd extension.

    5. From the list of available devices, select a device to use as the second segment of the mirror, then press the space bar to choose it.

      When the device is selected, the asterisk next to the device stays there even if you move the cursor up and down in the list.

    6. Press F3 again to accept your selection and create the mirror.

    7. In the confirmation message, press y (Yes) to approve the RAID1 creation.

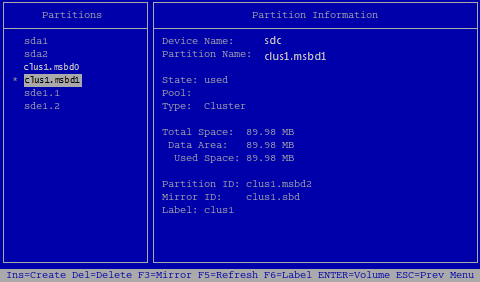

      The SBD partitions are renamed with the partition name, and now have the extension of .msbd0 (mirrored SBD partition 0) and .msbd2 (mirrored SBD partition 1).

      For example, for a cluster named clus1, the mirrored SBD partitions are clus1.msbd0 and clus1.msbd1.

    8. Press Esc to return to the NSSMU Main Menu.

  4. In NSSMU, verify that the RAID1 device was created for the SBD:

    1. Select RAID Devices from the NSSMU Main Menu.

    2. Select the RAID1 device that you created to view details about the mirrored SBD device.

    3. View the RAID Status to ensure that synchronization has begun.

      Synchronization is complete when the status is Synchronized.

  5. Press Esc twice to exit NSSMU.

9.18.5 Creating a Mirrored Cluster SBD Partition with SBDUTIL

You can create a mirrored OES Cluster Services SBD partition to provide device fault tolerance for the SBD. You must take the cluster down and stop the cluster software.

Use the procedure in this section to create a new mirrored SBD partition by using the sbdutil utility. For information about using OES Linux Volume Manager (NLVM) commands to create a new mirrored SBD partition, see Creating a Mirrored SBD Partition with NLVM in the OES 2018 SP2: NLVM Reference.

  1. Ensure that nobody else is changing any storage on any nodes at this time.

    Until the SBD exists and the cluster is set up for shared disk access, you are responsible for ensuring that you have exclusive access to the shared storage.

  2. Take the cluster down:

    1. Log in to any node in the cluster as the root user, then open a terminal console.

    2. At the command prompt, enter

      cluster down
  3. On each cluster node, stop OES Cluster Services:

    1. Log in to the cluster node as the root user, then open a terminal console.

    2. At the command prompt, enter

      rcnovell-ncs stop

      or

      systemctl stop novell-ncs.service
    3. After you have stopped OES Cluster Services on all nodes, continue with the next step.

  4. Prepare two SAN devices to use for the SBD partition:

    1. Use the SAN storage array software to carve two devices of equal size to use exclusively for the mirrored SBD partition.

    2. Attach the devices to all nodes in the cluster.

    3. On each node, log in as the root user and rescan for devices:

      nlvm -s rescan

      Use the -s NLVM option to override the shared locking requirement and force the command to execute.

  5. Log in to any node in the cluster as the root user, then open a terminal console.

  6. View a list of the devices and identify the leaf node name (such as sdc) of the two SAN devices that you want to use for the mirrored SBD partition. At the command prompt, enter

    nlvm -s list devices

    Use the -s NLVM option to override the shared locking requirement and force the command to execute.

    The device information shows the leaf node name, the size, the amount of free available space, the partitioning format (such as MSDOS or GPT), the shared state (whether it is marked as Shareable for Clustering), and the RAID state (whether the device is an NSS software RAID device). Do not use an NSS software RAID for the device.

    For example, uninitialized devices report a format of None and a shared state of No:

    sdc size=102.00MB free=0KB format=None shared=No RAID=No
    sdd size=102.00MB free=0KB format=None shared=No RAID=No
  7. Initialize and share the two devices. At the command prompt, enter

    nlvm -s init <device_name1>,<device_name2> format=msdos shared

    WARNING:Initializing a device destroys all data on the device.

    Replace device_name1 and device_name2 with the leaf node names (such as sdc and sdd) of the two SAN devices you want to use for the mirrored SBD partition.

    Specify a partitioning format of msdos.

    Specify the shared option to mark the devices as Shareable for Clustering.

    Use the -s NLVM option to override the shared locking requirement and force the command to execute.

    For example, to initialize devices sdc and sdd, enter

    nlvm -s init sdc,sdd format=msdos shared

    You can list the devices to visually verify that the device is formatted and shared:

    nlvm -s list devices

    For example, the formatted devices sdc and sdd report a format of MSDOS and a shared state of Yes:

    sdc size=102.00MB free=101.98MB format=MSDOS shared=Yes RAID=No
    sdd size=102.00MB free=101.98MB format=MSDOS shared=Yes RAID=No
  8. Create a mirrored SBD partition. At the command prompt, enter

    sbdutil -c -n <cluster_name> -d <device_name1> -d <device_name2> -s <size>

    Replace cluster_name with the name of the cluster, such as cluster1. This name must match the name of an existing cluster that has a Cluster object in eDirectory. The name is case sensitive.

    Replace device_name1 and device_name2 with the leaf node names (such as sdc and sdd) of the two SAN devices you want to use for the mirrored SBD partition. The cluster1.msbd0 mirrored SBD partition is created on the first device option instance in the command. The cluster1.msbd1 mirrored SBD partition is created on the second device option instance in the command.

    For the -s option, replace size with the size (in MB) to use for each of the SBD RAID1 segments. Specify the size only once. Both devices should be the same size, but if they are not, the size of the RAID segments is determined by the size of the smaller device. Use one of the following methods for specifying the size of the SBD partition. For information about size requirements, see Preparing a SAN Device for the SBD.

    • Specify a value: Replace size with the size (in MB) to use for the SBD partition.

      For example, the following command creates the cl1.sbd mirrored RAID device and the cl1.msbd0 and cl1.msbd1 partitions. Each segments is up to 1020 MB in size, depending on where the last cylinder boundary lies.

      sbdutil -c -n cl1 -d CX4-LUN000 -d CX4-LUN001 -s 1020
    • Specify -1: You can specify the size as -1 to use all free space on the device. This option allows OES Cluster Services to use a whole disk/LUN (or LUNs) that you set aside for SBD.

      For example, the following command uses devices sdc and sdd to create the cluster1.sbd mirrored RAID device and the SBD mirrored partitions cluster1.msbd0 and cluster1.msbd1. It uses all available free space on the smaller device as the segment size.

      sbdutil -c -n cluster1 -d sdc -d sdd -s -1
    • Use default size: If the -s option is not used, the default size is 8 MB.

  9. On each node, log in as the root user and rescan for devices:

    nlvm -s rescan

    Use the -s NLVM option to override the shared locking requirement and force the command to execute.

  10. (Optional) You can use the sbdutil -f -s command to verify the path and name of the SBD RAID device.

    You can also use NSSMU, the Storage plug-in to iManager, or the nlvm -s list partitions command to view the partitions used by the RAID device.

  11. Modify the Cluster object in eDirectory to enable its NCS: Shared Disk Flag attribute.

    This step is required only if the cluster has never had an SBD partition. However, it does no harm to verify that the NCS: Shared Disk Flag attribute is enabled.

    1. In a web browser, open iManager, then log in to the eDirectory tree that contains the cluster you want to manage.

      IMPORTANT:Log in as an administrator user who has sufficient rights in eDirectory to delete and modify eDirectory objects.

    2. Select Directory Administration, then select Modify Object.

    3. Browse to locate and select the Cluster object of the cluster you want to manage, then click OK.

    4. Under Valued Attributes, select the NCS: Shared Disk Flag, then click Edit.

    5. Select (enable) the NCS: Shared Disk Flag check box, then click OK.

    6. Click Apply to save changes.

  12. On each cluster node, start OES Cluster Services:

    1. Log in to the cluster node as the root user, then open a terminal console.

    2. At the command prompt, enter

      rcnovell-ncs start

      or

      systemctl start novell-ncs.service
    3. After you have restarted OES Cluster Services on all nodes, continue with the next step.

  13. On each cluster node, join the cluster. At the command prompt, enter

    cluster join

9.18.6 Removing a Segment from a Mirrored Cluster SBD Partition

You can remove a segment from a mirrored cluster SBD partition and keep the remaining SBD partition. The software RAID definition remains, so if you delete the remaining partition later, you must delete the software RAID instead of simply deleting the partition as with a stand-alone SBD partition.

IMPORTANT:You can use NLVM commands to completely unmirror the SBD RAID1 device, and keep the SBD partition. See Unmirroring a Mirrored SBD Partition with NLVM in the OES 2018 SP2: NLVM Reference.

You can specify which segment to keep when you use NSSMU to remove a segment from a software RAID 1 (mirror) device.

  1. Log in to any node as the root user, then launch a terminal console.

  2. At the command prompt, enter

    cluster maintenance on

    This causes all cluster servers to enter maintenance mode.

  3. Remove a segment from the SBD RAID1 device.

    1. Launch NSSMU:

      nssmu
    2. In the NSSMU Main Menu, select RAID Devices.

    3. Select the software RAID1 device for the cluster SBD that you want to manage.

    4. Press Enter to show its member segments.

    5. Select the member segment you want to delete, press Delete to remove the RAID segment, then press y (Yes) to confirm the removal.

    6. Press Esc to return to the Software RAIDs page.

      The RAID definition remains for the remaining segment of the mirrored SBD partition. The SBD RAID1 reports that it has one segment.

    7. Press Esc twice to exit NSSMU.

  4. At the terminal console of one cluster server, enter

    cluster maintenance off

    This causes all cluster servers to return to normal mode.

9.18.7 Deleting a Non-Mirrored Cluster SBD Partition

You might need to delete and re-create a OES Cluster Services SBD partition if the SBD becomes corrupted or its device fails. Use the procedure in this section to delete the SBD partition, then create a new SBD partition as described in Section 9.18.3, Creating a Non-Mirrored Cluster SBD Partition with SBDUTIL or Section 9.18.5, Creating a Mirrored Cluster SBD Partition with SBDUTIL.

IMPORTANT:You must take the cluster down and stop OES Cluster Services on all nodes before you delete the existing SBD partition. Do not restart OES Cluster Services and rejoin nodes to the cluster until after you create a new SBD.

  1. Ensure that nobody else is changing any storage on any nodes at this time.

    Until the SBD exists and the cluster is set up for shared disk access, you are responsible for ensuring that you have exclusive access to the shared storage.

  2. Take the cluster down:

    1. Log in to any node in the cluster as the root user, then open a terminal console.

    2. At the command prompt, enter

      cluster down
  3. On each cluster node, stop OES Cluster Services:

    1. Log in to the cluster node as the root user, then open a terminal console.

    2. At the command prompt, enter

      rcnovell-ncs stop

      or

      systemctl stop novell-ncs.service
    3. After you have stopped OES Cluster Services on all nodes, continue with the next step.

  4. Delete the SBD partition.

    1. Log in to any node in the cluster as the root user, then launch a terminal console.

    2. Launch NSSMU:

      nssmu
    3. In the NSSMU Main Menu, select Partitions.

    4. Select the SBD partition you want to delete, such as clus1.sbd.

    5. Press Delete to delete the partition, then press y (Yes) to confirm the deletion.

    6. Press Esc twice to exit NSSMU.

  5. Use one of the following methods to create a new SBD partition:

    Do not restart OES Cluster services and rejoin nodes to the cluster until after you create the new SBD.

9.18.8 Deleting a Mirrored Cluster SBD

You might need to delete and re-create a OES Cluster Services SBD partition if the SBD becomes corrupted or its device fails. Use the procedure in this section to delete a mirrored SBD partition, then create a new SBD partition as described in Section 9.18.3, Creating a Non-Mirrored Cluster SBD Partition with SBDUTIL or Section 9.18.5, Creating a Mirrored Cluster SBD Partition with SBDUTIL.

IMPORTANT:You must take the cluster down and stop OES Cluster Services on all nodes before you delete the existing mirrored SBD RAID1 device and its mirrored SBD partitions. Do not restart OES Cluster Services and rejoin nodes to the cluster until after you create a new SBD.

  1. Ensure that nobody else is changing any storage on any nodes at this time.

    Until the SBD exists and the cluster is set up for shared disk access, you are responsible for ensuring that you have exclusive access to the shared storage.

  2. Take the cluster down:

    1. Log in to any node in the cluster as the root user, then open a terminal console.

    2. At the command prompt, enter

      cluster down
  3. On each cluster node, stop OES Cluster Services:

    1. Log in to the cluster node as the root user, then open a terminal console.

    2. At the command prompt, enter

      rcnovell-ncs stop

      or

      systemctl stop novell-ncs.service
    3. After you have stopped OES Cluster Services on all nodes, continue with the next step.

  4. Delete the mirrored software RAID that you used for the SBD partition:

    1. Log in to any node in the cluster as the root user, then launch a terminal console.

    2. Launch NSSMU:

      nssmu
    3. In the NSSMU Main Menu, select RAID Devices.

    4. Select the software RAID1 for the mirrored SBD you want to delete.

    5. Press Delete to delete the software RAID1 and its two mirrored SBD partitions, then press y (Yes) to confirm the deletion.

    6. Press Esc twice to exit NSSMU.

  5. Use one of the following methods to create a new SBD partition:

    Do not restart OES Cluster services and rejoin nodes to the cluster until after you create the new SBD.

9.18.9 Additional Information about SBD Partitions

See the following resources for additional information about SBD partitions:
