Setting Up Secure Workstation

This section provides information on the following:


Installing Secure Workstation

By default, Secure Workstation program files are installed with the Complete option during a SecureLogin 3.51.2 client installation. As the following figure illustrates, however, the Quick Login/Logout Interface isn't installed by default.

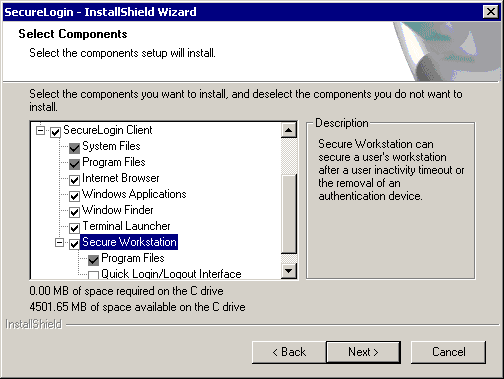

The Select Components dialog box

If you selected the Custom option and deselected the Secure Workstation component, you can quickly add it.

  1. Run setup.exe, found in the \client directory on the SecureLogin 3.51.2 image.

    If SecureLogin is already installed, InstallShield launches the Modify, Repair, or Remove dialog box.

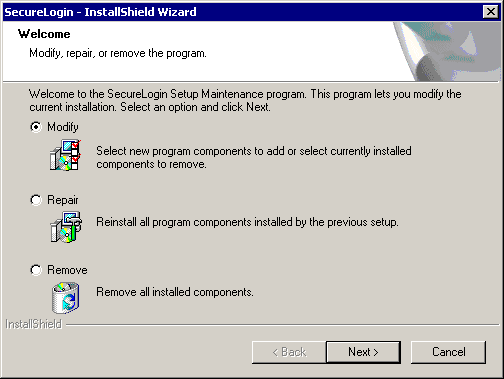

    The Modify, Repair, or Remove dialog box

  2. Select Modify, then click Next.

  3. Check the SecureLogin check box and the desired subcomponents.

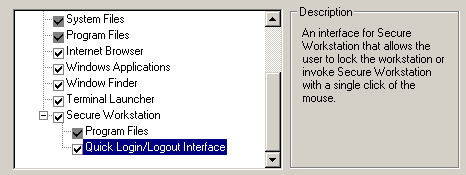

    Secure Workstation Subcomponents

  4. Click Next, then click Finish.


Installing the ConsoleOne Snap-In to Secure Workstation

You administer Secure Workstation by using ConsoleOneTM and by configuring Secure Workstation settings on the workstation.

The Secure Workstation snap-in to ConsoleOne is installed when you install the post-login method. You can also run nwsnapin.exe, found in the \consoleone\snapins directory on the SecureLogin 3.51.2 image.
