4.2 Windows: Setting Up a Basic Teaming Site

You should already have reviewed Section 3.0, Planning a Basic Teaming Installation and filled out the Basic Teaming Installation Summary Sheet. The following sections step you through the process of installing and starting Novell Teaming on Windows.

4.2.1 Performing Pre-Installation Tasks on Windows

  1. Make sure that the Windows server where you plan to install Novell Teaming meets the system requirements listed in Section 2.1, Teaming Server Requirements.

  2. If a Web server is currently running on the Teaming server, stop it, and preferably disable it.

    For example, to stop and disable the Internet Information Services (IIS) Web server:

    1. On the Windows desktop, click Start > Administrative Tools > Services.

    2. Right-click World Wide Web Publishing Service, then click Properties.

    3. In the Startup type drop-down list, select Disabled.

    4. Click Stop, then click OK.

  3. Make sure that the Windows PATH environment variable includes the path to your database server.

    1. Right-click My Computer, then click Properties.

    2. On the Advanced tab, click Environment Variables.

    3. In the System Variables list, locate the PATH environment variable.

    4. If the path includes your database server software directory, click Cancel.

      or

      If the path does not include your database server software directory, add the directory, then click OK.

4.2.2 Running the Windows Teaming Installation Program

  1. Log in to the Windows server as a user with Administrator rights.

  2. In Windows Explorer, browse to the directory where you downloaded and extracted the Novell Teaming software.

  3. Make sure that there is a license-key.xml file in the directory.

    The Teaming Installation program does not start without a license file, and it has a different name when you download it.

    For more information about licensing, see Section 6.0, Updating Your Teaming License.

  4. Double-click the installer-teaming.exe file to start the Teaming Installation program.

  5. Accept the License Agreement, then click Next.

    Windows Teaming Installation program Welcome page

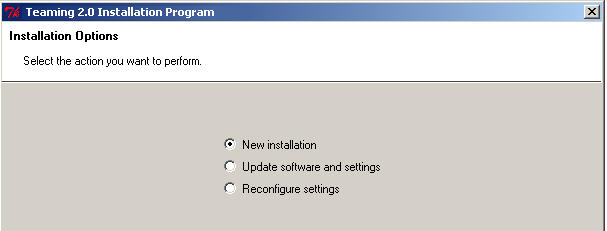

  6. Click Next to accept the default of New installation.

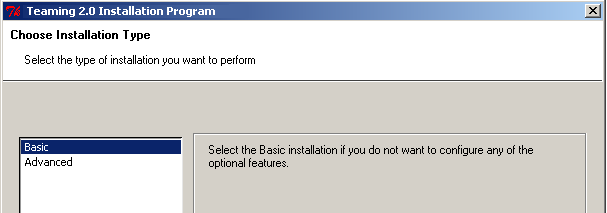

    Installation Type page
  7. Click Next to accept the default of Basic.

  8. Use the information that you have gathered on the Basic Teaming Installation Summary Sheet to provide the information that the Teaming Installation program prompts you for:

    The Installation program stores the information it gathers in the installer.xml file in the same directory where you started the Installation program.

  9. After you have provided all the requested information, click Install to begin the Teaming installation.

  10. When the installation is completed, click Finish to exit the Teaming Installation program.

    Information about the installation process is written to the installer.log file in the same directory where you ran the Installation program. If a problem arises during the installation, the installer.log file provides information that can help you resolve the problem.

  11. Continue with one of the following sections, depending on how you want to run the Teaming software:

4.2.3 Running Teaming as a Windows Service

Configuring Teaming as a Windows Service

The Novell Teaming Installation program created a service.bat file for configuring Teaming to run as a Windows service.

  1. In a Command Prompt window, change to the following directory:

    c:\Program Files\Novell\Teaming\apache-tomcat-version\bin

    where version is the version number of Tomcat that was installed along with Teaming (for example, 6.0.18).

  2. Use the following command to configure Teaming as a Windows service:

    service.bat install Teaming


    This creates a service named Apache Tomcat Teaming.

Starting Teaming as a Windows Service

  1. On the Windows desktop, click Start > Administrative Tools > Services.

  2. Right-click Apache Tomcat Teaming, then click Start.

Configuring the Teaming Service to Start Automatically on Reboot

When you run Novell Teaming as a Windows service, you can configure Teaming to start automatically each time you reboot the Windows server.

  1. On the Windows desktop, click Start > Administrative Tools > Services.

  2. Right-click Apache Tomcat Teaming, then click Properties.

  3. In the Startup type drop-down list, select Automatic, then click OK.

Restarting the Teaming Service

You need to restart Novell Teaming whenever you use the Teaming Installation program to make configuration changes, as described in Section 10.0, Performing an Advanced Teaming Installation.

  1. On the Windows desktop, click Start > Administrative Tools > Services.

  2. Right-click Apache Tomcat Teaming, then click Restart.

  3. Close the Services window.

Stopping the Teaming Service

  1. On the Windows desktop, click Start > Administrative Tools > Services.

  2. Right-click Apache Tomcat Teaming, then click Stop.

  3. Close the Services window.

4.2.4 Running Teaming as a Windows Application

Starting Teaming as an Application

The Novell Teaming Installation program created a startup.bat file for starting Teaming.

  1. In a Command Prompt window, change to the following directory:

    c:\Program Files\Novell\Teaming\apache-tomcat-version\bin

    where version is the version number of Tomcat that was installed along with Teaming (for example, 6.0.18).

  2. Run the startup.bat file to start Teaming as an application.

Stopping Teaming as an Application

  1. In a Command Prompt window, change to the following directory:

    c:\Program Files\Novell\Teaming\apache-tomcat-version\bin

    where version is the version number of Tomcat that was installed along with Teaming (for example, 6.0.18).

  2. Run the shutdown.bat file to stop the Teaming application.

4.2.5 Uninstalling Teaming

If you move the Novell Teaming site to a different server, you can delete the Teaming files from the original server to reclaim disk space. The default Teaming file locations are:

Teaming Software

c:\Program Files\Novell\Teaming

Teaming File Repository

c:\Novell\Teaming

MS SQL Database

c:\Program Files\Microsoft SQL Server\MSSQL\Data

For a complete list of your Teaming files, check the installer.xml file in the directory where you originally ran the Teaming Installation program.
