26.2 Generating Reports

Most Novell Vibe reports are created in CSV format, so that you can import them into a spreadsheet and easily manipulate the data to suit your needs. The default CSV filename is report.csv. If you create multiple reports without manually renaming them, the default filename is incremented (report-n.csv). The default location to save the report varies by platform:

Linux:

/tmp

Windows:

Your current Windows default directory

26.2.1 Login Report

The Login report lists the Vibe users who have logged in to the Vibe site during a specified period of time. In addition, it can include a dated list of every login by each user.

  1. Log in to the Vibe site as the Vibe administrator.

  2. Click the Settings icon in the upper right corner of the page, then click the Administration Console icon .

  3. Under Reports, click Login Report.

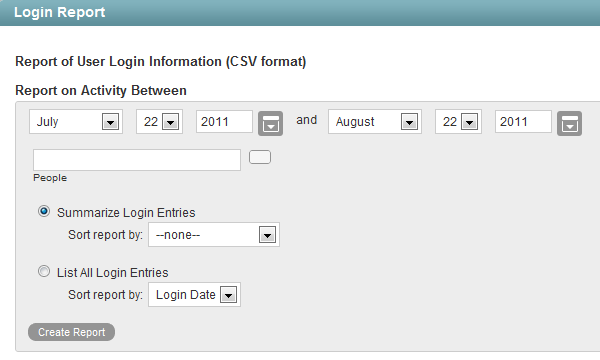

    Login Report page
  4. Specify the date range for the Login report.

  5. Leave the People field blank to list all user logins.

    or

    In the People field, start typing the first name of a Vibe user, then in the drop-down list of names that match what you have typed, select a user whose logins you want to be reported. Repeat this process to include multiple users in the report.

  6. Select the type of Login report that you want to generate.

    Summarize Login Entries: Lists how many times the selected users have logged into the Vibe site. In the Sort Report By drop-down list, select User, Last Login, or Number of Logins to organize the data.

    List All Login Entries: Lists each individual user login and includes the following data about the action:

    • First name

    • Last name

    • Username

    • Date

    • Time

    In the Sort report by drop-down list, select Login Date or User to organize the data most helpfully.

  7. Click Create Report to generate the Login report.

  8. Select a text editor to view the report in, then click OK.

    For a short report, you might obtain the information you need by viewing the CSV file.

  9. (Optional) Save the CSV file with a meaningful name in a convenient location, then retrieve it into a spreadsheet program for further examination.

26.2.2 User Activity Report

The User Activity report lists how many times specified users have viewed, added, modified, or deleted content on the Vibe site during a specified period of time. In addition, it can include the date and time of each action, along with the location of the action.

  1. Log in to the Vibe site as the Vibe administrator.

  2. Click the Settings icon Login Report page in the upper right corner of the page, then click the Administration Console icon Login Report page.

  3. Under Reports, click User Activity Report.

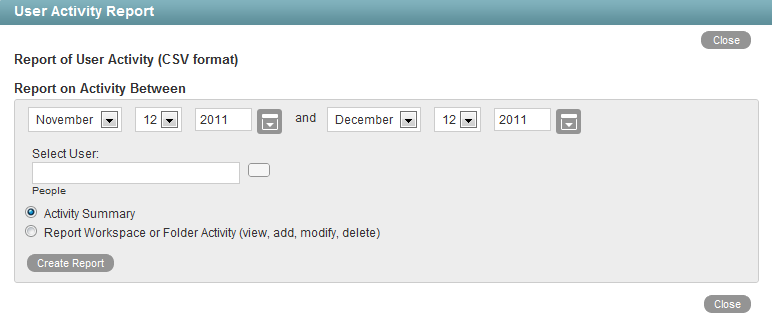

    Activity by User page
  4. Specify the date range for the User Activity report.

  5. Leave the Select User field blank to list all user activity.

    or

    In the Select User field, start typing the first name of a Vibe user.

    In the drop-down list of names that match what you have typed, select a user whose activity you want to be reported. Repeat this process to include additional users.

  6. Select the type of User Activity report that you want to generate.

    Activity Summary: Lists how many times the selected users have performed the following actions in the Vibe site:

    • View

    • Add

    • Edit

    • Delete (purge)

    • Pre-Delete (delete but not purge)

    • Restore (restore a deleted item that has not been purged)

    Workspace or Folder Activity: Lists each individual user action and includes the following data about the action:

    • User

    • Activity

    • Date

    • Time

    • Folder

    • Entry title

    • Entry type

  7. Click Create Report to generate the User Activity report.

  8. Select a text editor to view the report in, then click OK.

    For a short report, you might obtain the information you need by viewing the CSV file.

  9. (Optional) Save the CSV file with a meaningful name in a convenient location, then retrieve it into a spreadsheet program for further examination.

26.2.3 User Access Report

The User Access report lists the locations on the Vibe site where a specified user has access rights. In addition, you can view, and if necessary, change or remove the access rights for any location. This report is especially useful on Vibe sites where Guest user access has been granted, as described in Section 5.4, Allowing Guest Access to Your Vibe Site.

  1. Log in to the Vibe site as the Vibe administrator.

  2. Click the Settings icon Activity by User page in the upper right corner of the page, then click the Administration Console icon Activity by User page.

  3. Under Reports, click User Access Report.

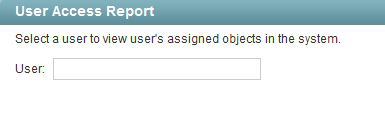

    User Access page
  4. Start typing the first name of a Vibe user.

  5. In the drop-down list of names that match what you have typed, select the user whose site access you want to be reported.

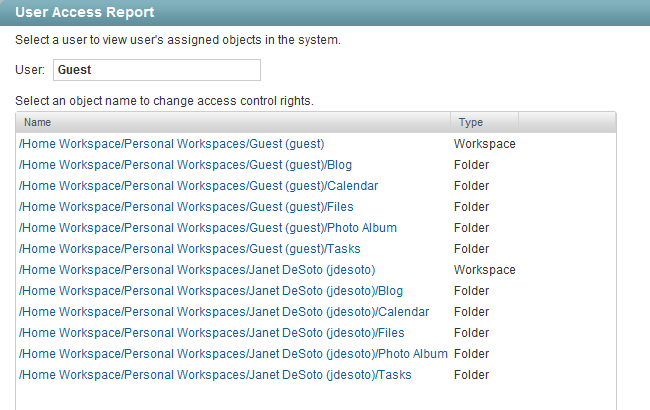

    User Access report results

    In this example, the Guest user has access to the Guest workspace and also to Janet DeSoto’s personal workspace. This could be appropriate if Janet DeSoto’s job is to maintain a publicly available workspace, but would not be appropriate if the Guest access has been granted in error.

  6. (Conditional) If you want to change the current access:

    1. Click the name of a location to display the Configure Access Control page for that location.

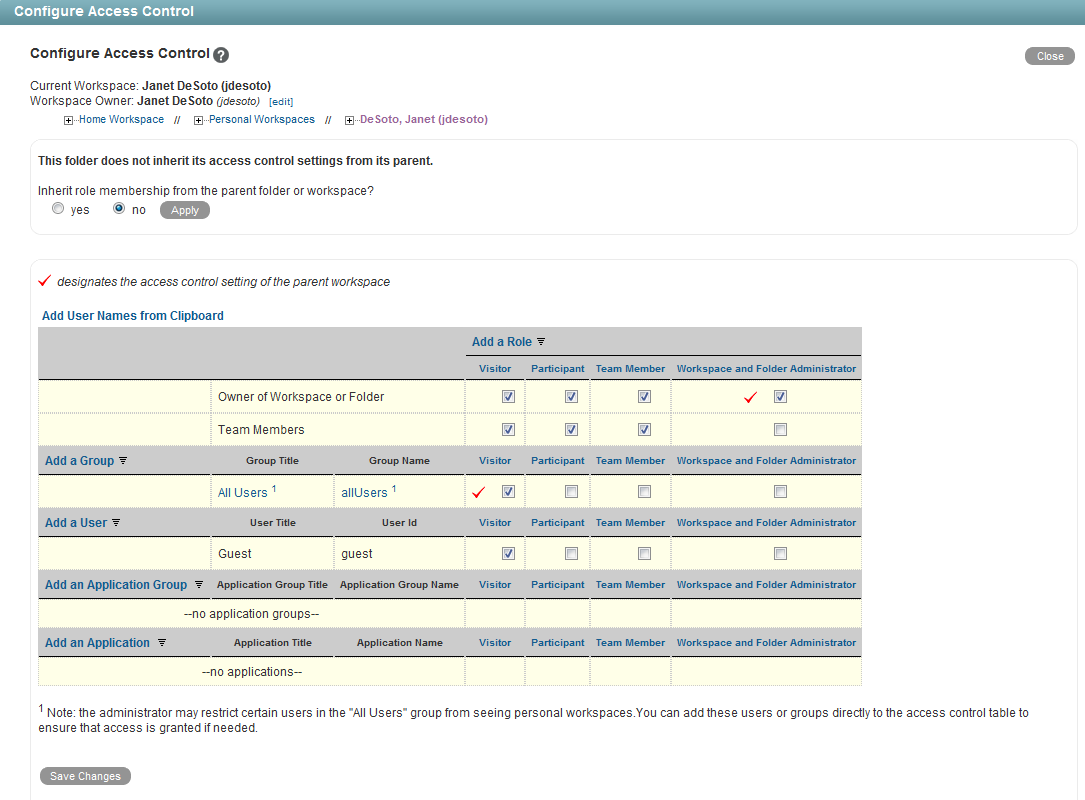

      Configure Access Control page

      In this example, the Guest user has been granted Visitor access to Janet DeSoto’s personal workspace.

    2. Select or deselect access rights as needed.

    3. Click Save Changes, then click Close to return to the User Access Report page

    4. Rerun the report to view the results of your changes.

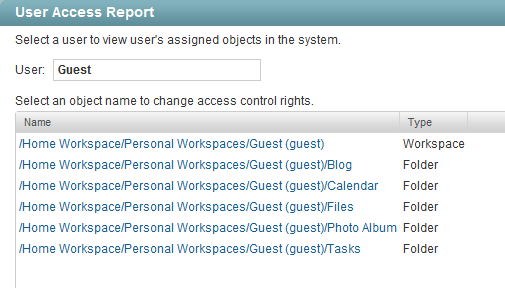

      For example, if you removed the Guest access rights from Janet DeSoto’s personal workspace, her workspace is no longer listed in the User Access report for the Guest user.

      User Access Report page
  7. (Conditional) If you want to save the user access information, select it and copy it into a text editor.

  8. Click Close when you are finished checking user access rights.

26.2.4 Content Modification Report

The Content Modification report lists changes to workspaces, folders, and folder entries, as well as users, groups, access rights, and workflows. By generating a Content Modification report, you can determine who has performed any of the following actions:

  • Added, modified, moved, or deleted a workspace

  • Added, modified, moved, or deleted a folder

  • Added, modified, renamed, or deleted a file or one of its versions

  • Added, modified, moved, or deleted an entry

    For purposes of this report, users and groups are handled as if they are folder entries.

  • Started or modified a workflow

  • Modified or deleted access rights

The Content Modification report can also help you recover data that has been accidentally deleted.

  1. Log in to the Vibe site as the Vibe administrator.

  2. Determine the exact name of the workspace, folder, file entry, and so on where you want to check for content modifications.

  3. Click the Settings icon User Access Report page in the upper right corner of the page, then click the Administration Console icon User Access Report page.

  4. Under Reports, click Content Modification Log.

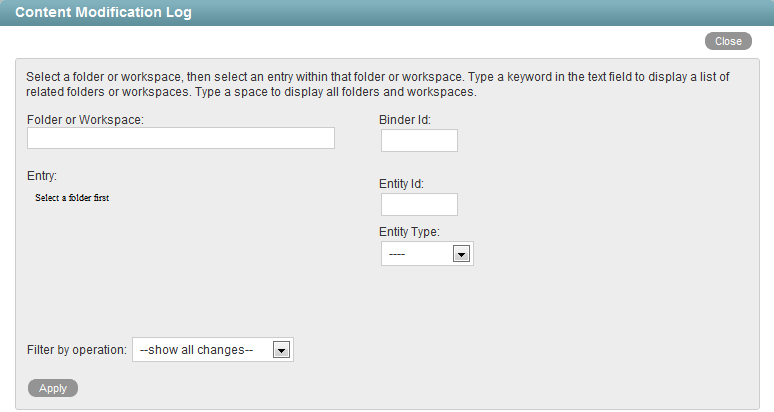

    Content Modification Log page
  5. Fill in the fields to specify where to check for content modifications and the type of modifications to check for:

    Folder or Workspace: Start typing the name of a folder or workspace. In the drop-down list of names that match what you have typed, select the folder or workspace where you want to check for content modifications. The internal ID of the folder or workspace is displayed for reference.

    Entry: (Optional) To restrict the content modification check to a specific entry in a folder, start typing text in the title of the entry. In the drop-down list of entry titles that match what you have typed, select the entry where you want to check for content modifications. The internal ID of the entry is displayed for reference.

    Entity Type: (Optional) To further restrict the content modification check, select one of the following:

    • Workspace (not the contents of the workspace, but the workspace itself)

    • Folder (not the contents of the folder, but the folder itself)

    • Folder entry (the contents of the folder entry)

    • Profiles (the contents of the Personal Workspaces folder where there is a personal workspace for each user)

    • User (the contents of a user’s personal profile, such as the user’s name, e-mail address, and locale)

    • Group (the contents of the group)

    Filter by Operation: Further restrict the content modification check by selecting a specific action performed on the selected workspace, folder, or entry (add, modify, rename, delete, and so on).

  6. Click Apply to generate the Content Modification report.

    The results are displayed as an XML file.

    Content Modification report
  7. (Conditional) If the results are too extensive, restrict the scope of the content modification check until you locate the modification that you are seeking.

  8. Click Close when you are finished checking for content modifications.

A specialized use of the Content Modification report is to restore accidentally deleted data. For example, you can use the following steps to recover an accidentally deleted folder entry:

  1. Run the Content Modification report to list all entry deletions in the folder where the entry was accidentally deleted.

  2. Record the entry ID of the deleted entry.

  3. Run the Content Modification report on the entry ID, selecting folderEntry in the Entity Type field.

  4. Use the modification history of the entry to reconstruct the accidentally deleted entry.

26.2.5 Data Quota Exceeded Report

The Data Quota Exceeded report lists individual users who have exceeded the data quota. The report provides a spreadsheet with the following information for each user:

  • Data Quota Used (MB): Displays the amount of disk space the user is currently using.

  • Data Quota: Displays the user’s individual quota if one has been set.

    For information on how to set a quota for individual users, see Section 20.4.2, Setting User Data Quotas.

  • Max Group Quota (MB): Displays the largest data quota for any group that the user is a member of. Users are assigned the highest of all data quotas for any group for which they are a member.

  • Default Data Quota (MB): Displays the site-wide default quota.

    For information on how to set a default data quota, see Section 20.4.2, Setting User Data Quotas.

To generate the Data Quota Exceeded report:

  1. Log in to the Vibe site as the Vibe administrator.

  2. Click the Settings icon Content Modification report in the upper right corner of the page, then click the Administration Console icon Content Modification report.

  3. Under Reports, click Data Quota Exceeded Report.

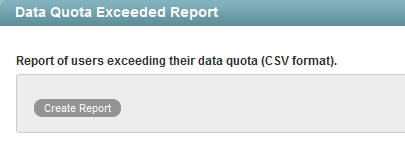

    Data Quota Exceeded Report
  4. Click Create Report to generate the report.

    The report is launched in a spreadsheet.

26.2.6 Data Quota Highwater Exceeded Report

The Data Quota Highwater Exceeded report lists individual users who have exceeded the data quota high-water mark. The report provides the following information for each user:

  • Data Quota Used (MB): Displays the amount of disk space the user is currently using.

  • Data Quota: Displays the user’s individual quota if one has been set.

    For information on how to set a quota for individual users, see Section 20.4.2, Setting User Data Quotas.

  • Max Group Quota (MB): Displays the largest data quota for any group that the user is a member of. Users are assigned the highest of all data quotas for any group for which they are a member.

  • Default Data Quota (MB): Displays the site-wide default quota.

    For information on how to set a default data quota, see Section 20.4.2, Setting User Data Quotas.

To generate the Data Quota Highwater Exceeded report:

  1. Log in to the Vibe site as the Vibe administrator.

  2. Click the Settings icon Data Quota Exceeded Report in the upper right corner of the page, then click the Administration Console icon Data Quota Exceeded Report.

  3. Under Reports, click Data Quota Highwater Exceeded Report.

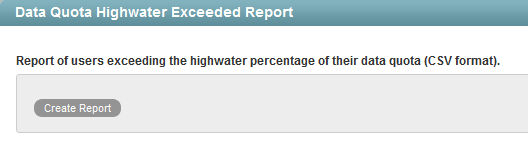

    Data Quota Highwater Exceeded Report
  4. Click Create Report to generate the report.

    The report is launched in a spreadsheet.

26.2.7 Disk Usage Report

The Disk Usage report lists the amount of disk space for workspaces on the Vibe site by user, by workspace, or by both. In addition, you can restrict the reporting to only those workspaces that exceed a specified number of megabytes.

  1. Log in to the Vibe site as the Vibe administrator.

  2. Click the Settings icon Data Quota Highwater Exceeded Report in the upper right corner of the page, then click the Administration Console icon Data Quota Highwater Exceeded Report.

  3. Under Reports, click Disk Usage Report.

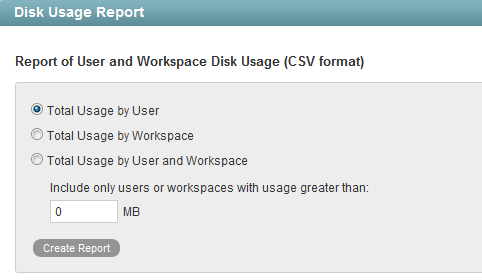

    Disk Usage Report page
  4. Select the type of Disk Usage report that you want to generate.

    Total Usage by User: Lists all Vibe users whose disk space usage is above the amount specified in the Usage Greater Than field.

    Total Usage by Workspace: Lists all workspaces where disk space usage is above the amount specified in the Usage Greater Than field. Disk space usage for each folder in each workspace is listed separately. The data is organized by workspace and folder ID.

    Total Usage by User and Workspace: Combines the user and workspace data into a single report.

    Usage Greater Than: Specify the number of megabytes above which you want to list disk space usage. This eliminates smaller disk space usages from the report.

  5. Click Create Report to generate the Disk Usage report.

  6. Select a text editor to view the report in, then click OK.

    For a short report, you might obtain the information you need by viewing the CSV file.

  7. (Optional) Save the CSV file with a meaningful name in a convenient location, then retrieve it into a spreadsheet program for further examination.

  8. Click Close when you are finished checking disk space usage.

26.2.8 E-Mail Report

The E-Mail Report lists mail messages that have been sent from and into the Vibe site. It also lists e-mail errors that have been encountered.

  1. Log in to the Vibe site as the Vibe administrator.

  2. Click the Settings icon Disk Usage Report page in the upper right corner of the page, then click the Administration Console icon Disk Usage Report page.

  3. Under Reports, click E-Mail Report.

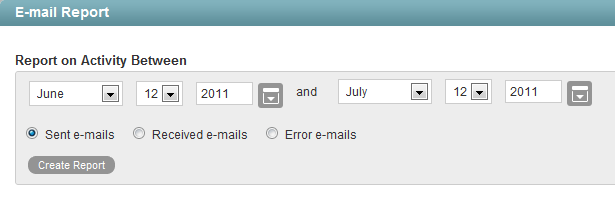

    E-Mail Report page
  4. Specify the date range for the E-Mail report.

  5. Select whether you want a report on e-mail that was sent from Vibe, e-mail that was sent into Vibe, or e-mail errors that occurred.

  6. Click Create Report.

    The report contains the following information:

    Send Date: Date when the e-mail was sent.

    From Address: Address that the e-mail was sent from.

    This is the e-mail address that the user has defined in his or her user profile.

    To Address: Address that the e-mail was sent to.

    This is the e-mail address if the message was sent from Vibe, or it is the folder or workspace if the message was sent into Vibe.

    Type: For messages that are sent from Vibe, this is the action that caused the message to be sent. For example, workflowNotification indicates that the e-mail message was sent as a result of a workflow notification. For messages that are sent into Vibe, this is emailPosting, which indicates that the e-mail message was converted to a Vibe entry via the internal Email Posting Agent.

    Status: Status of the message, such as Sent or Received.

    Subject Line: Subject line of the message.

    Attached Files: Filename of any attachments that were included in the e-mail message.

    Errors: Any errors that are associated with the e-mail message.

26.2.9 License Report

The License report lists information about your Vibe license, as well as information about the number of users in your Vibe site and how many of those users have accessed the site.

  1. Log in to the Vibe site as the Vibe administrator.

  2. Click the Settings icon E-Mail Report page in the upper right corner of the page, then click the Administration Console icon E-Mail Report page.

  3. Under Reports, click License Report.

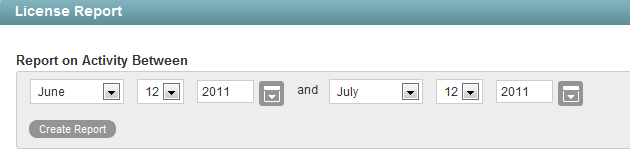

    License Report page
  4. Specify the date range for the License report, then click Create Report.

    The License report lists the following information:

    • Vibe version

    • License key type

    • Date the license key was issued

    • Date range when the license key is valid

    • Maximum number of logged-in users during the date range

    • Current active user count

    • List of dates in the date range with the following user license information:

      • Local Users: The user account was created within Vibe, and is not being synchronized from an LDAP directory.

      • Users Synchronized from LDAP: The user account was created from an LDAP source. (Only synchronized accounts that are not marked as Deleted or Disabled are counted.)

      • Users Who Used Vibe During the Previous 365 Days: Users who have logged in at least once in the past year.

        User logins are counted only after your Vibe system is upgraded to Vibe 3 or later. The number of users who have logged in is always 0 for dates prior to the upgrade to Vibe 3 or later.

        To see how many people accessed the Vibe site prior to the upgrade to Vibe 3 or later, or just for more detailed information in this area, run the Login report. For more information about the Login report, see Section 26.2.1, Login Report.

    The Vibe software does not limit the number of Vibe users that you can create, but sites where Vibe licenses have been purchased and the Vibe software installed are periodically audited against their purchased number of licenses.

    The Vibe with Guest Access License is not displayed on this page. However, the Guest user feature described in Section 5.4, Allowing Guest Access to Your Vibe Site must be purchased in addition to the Standard Vibe license if you are using Guest user for non-registered Vibe users. If you are using Guest user only for registered users, then you do not need to purchase a new license to use the Guest user feature. For more information, see Updating Your Vibe License in the Novell Vibe 3.2 Installation Guide.

  5. Click Close when you are finished reviewing the License report.

For information on how to install a new Vibe license, see Updating Your Vibe License in Basic Installation in the Novell Vibe 3.2 Installation Guide.

26.2.10 XSS Report

Cross-site scripting (XSS) is a client-side computer attack that is aimed at Web applications. Because XSS attacks can pose a major security threat, Novell Vibe contains a built-in security filter that protects against XSS vulnerabilities. For more general information about XSS, see Section 37.3.10, Securing the Vibe Site against XSS.

The XSS report in Vibe enables you to remove potentially harmful XSS threats from your Vibe site.

IMPORTANT:Because XSS attacks often are designed to wait for users with extra privileges (such as the administrator) to view the page where the attack was set, it is important that you don’t navigate to the page after you run the report.

For information about how to run the XSS report and safely remove XSS threats, see TID 7007381: Running the XSS Report in Novell Vibe in the Novell Support Knowledgebase.
