Novell Vibe enables you to view a visual representation of your workflow, which makes the creation process easier by allowing you to envision the workflow in every step of its development.
As you create your workflow in thesection, the changes you make are automatically added to the section.

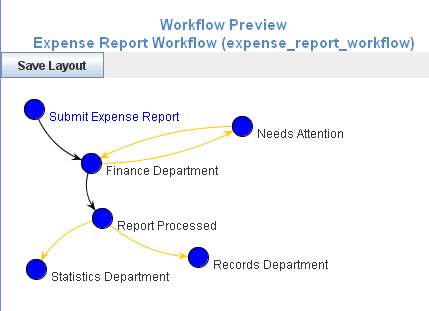

Figure 11-3 Workflow Preview Section
You can modify the workflow layout in thesection. You must save the layout after you have modified it.
You can easily modify the visual representation of a workflow. Modifying the workflow layout can make it easier to understand how a workflow process operates because it enables you to better visualize the process.
In thesection, click a workflow state and drag the state to the desired location.
Transition arrows automatically adjust to the new locations of the workflow states.
By default, every time you make a change in thesection when you create a workflow, any changes that you previously made in the section are reverted to the state when you last saved.
To save your layout in thesection:
Clickafter you have modified your workflow layout.
Now, when you make changes in thesection, the changes that you previously made to your workflow layout in the section are retained.
