18.1 Configuring System Update Settings

You should configure System Update before attempting to use it. Configure as many of the following settings as necessary for your system:

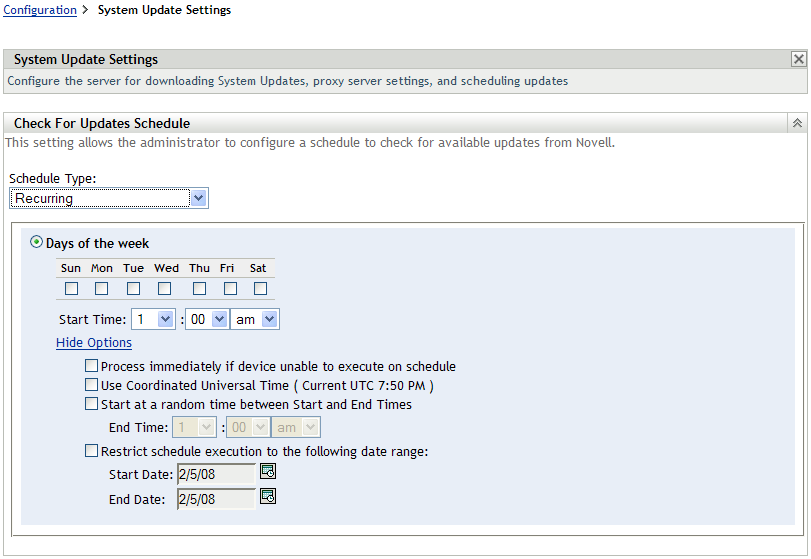

18.1.1 Check for Updates Schedule

The default is to not schedule update checking (No Schedule is displayed in the Schedule Type field). With this scheduling option selected, the only way you can check for software updates is to do so manually in the Available System Updates panel on the System Updates tab.

You can specify how often you want to check for updates. When you do this, information on available updates is automatically downloaded from Novell to the Available System Updates panel on the System Updates tab when the schedule fires. This does not download the update content itself. Downloading can be scheduled in the Download Schedule panel (see Download Schedule).

To schedule checking for the ZENworks software updates:

  1. In ZENworks Control Center, click Configuration in the left pane, then click the Configuration tab.

  2. Click Management Zone Settings to expand its options, click Infrastructure Management to expand its options, then select System Update Settings.

    In the Check for Updates panel, there are two scheduling options for updates:

    • No Schedule: The default is to not schedule update checking. With this scheduling option selected, the only way you can check for software updates is to do so manually in the Available System Updates panel on the System Updates tab. To specify the No Schedule option, continue with Step 3.

    • Recurring: Lets you specify how often you want to check for updates. When you set this option, information on available updates is automatically downloaded from Novell to the Available System Updates panel on the System Updates tab when the schedule fires. This does not download the update content itself. To set a recurring schedule, skip to Step 4.

  3. (Conditional) To exclude scheduled checking for software updates (the default), click the down-arrow in the Schedule Type field, select No Schedule, click Apply to save the schedule change, then skip to Step 6.

    With this option selected, you must check for updates manually. For more information, see Manually Downloading Updates.

  4. (Conditional) To set a recurring schedule for checking for updates to your ZENworks software, click the down-arrow in the Schedule Type field, then select Recurring.

  5. Fill in the fields:

    1. Select one or more check boxes for the days of the week.

    2. To set the time of day for checking to occur, use the Start Time box to specify the time.

    3. (Optional) For additional scheduling options, click More Options, then select the following options as necessary:

      • Process Immediately if Device Unable to Execute on Schedule: Causes checking for updates to occur as soon as possible if the checking cannot be done according to schedule. For example, if a server is down at the scheduled time, checking for updates occurs immediately after the server comes back online.

      • Use Coordinated Universal Time: Causes the schedule to interpret the times you specify as UTC instead of local time.

      • Start at a Random Time Between Start and End Times: Allows checking for updates to occur at a random time between the time you specify here and the time you specified in Step 5.b. Fill in the End Time fields.

      • Restrict Schedule Execution to the Following Date Range: In addition to the other options, you can specify a date range for when the checking can occur.

    4. When you have finished configuring the recurring schedule, click Apply to save the schedule change.

  6. To exit this page, click OK when you are finished configuring the schedule.

    If you did not click Apply to make your changes effective, clicking OK does so. Clicking Cancel also closes the page, but loses your unapplied changes.

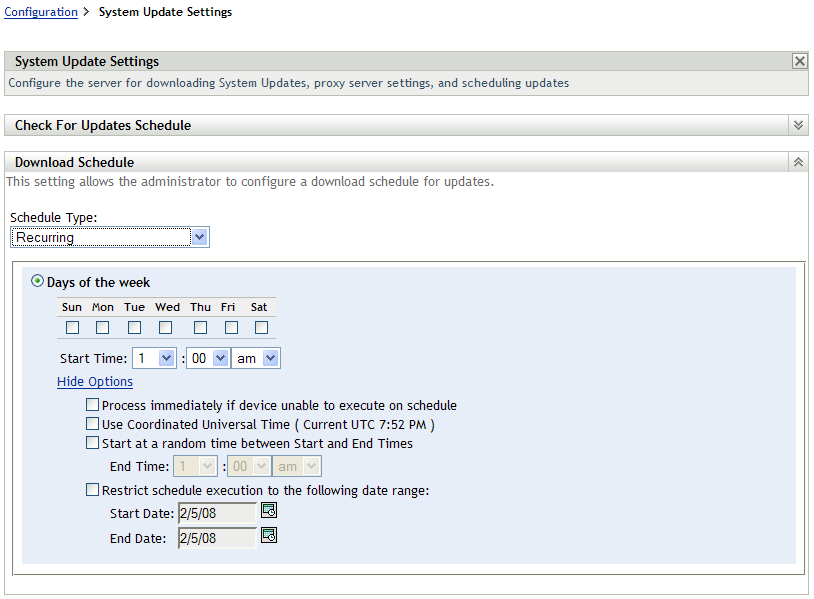

18.1.2 Download Schedule

The default is to not schedule downloading of updates (No Schedule is displayed in the Schedule Type field). With this scheduling option selected, the only way you can download updates is to do so manually in the Available System Updates panel on the System Updates tab.

If you do specify how often you want to download updates, you should set this schedule in conjunction with the schedule to check for updates (see Check for Updates Schedule).

After an update has been checked for and its information displayed in the Available System Updates panel on the System Updates tab, you can schedule the download from Novell to automatically occur when the schedule fires.

To schedule ZENworks software updates:

  1. In ZENworks Control Center, click Configuration in the left pane, then click the Configuration tab.

  2. Click Management Zone Settings to expand its options, click Infrastructure Management to expand its options, then select System Update Settings.

    In the Download Schedule panel, there are two scheduling options for downloading updates:

    • No Schedule: The default is to not schedule downloading of updates (No Schedule is displayed in the Schedule Type field). With this scheduling option selected, the only way you can download updates is to do so manually in the Available System Updates panel on the System Updates tab. To specify the No Schedule option, continue with Step 3.

    • Recurring: You can specify how often you want to download updates. After an update has been checked for and its information displayed in the Available System Updates panel on the System Updates tab, you can schedule the download from Novell to automatically occur when the schedule fires. To set a recurring schedule, skip to Step 4.

  3. (Conditional) To exclude scheduled downloading of software updates (the default), click the down-arrow in the Schedule Type field, select No Schedule, click Apply to save the schedule change, then skip to Step 6.

    With this option selected, you must download updates manually. For more information, see Section 19.2, Downloading Updates.

  4. (Conditional) To set a recurring schedule for downloading updates to your ZENworks software, click the down-arrow in the Schedule Type field, then select Recurring.

  5. Fill in the fields:

    1. Select one or more check boxes for the days of the week.

    2. To set the time of day for downloading to occur, use the Start Time field to specify the time.

    3. (Optional) For additional scheduling options, click More Options, then select the following options as necessary:

      • Process Immediately if Device Unable to Execute on Schedule: Causes checking for updates to occur as soon as possible if the checking cannot be done according to schedule. For example, if a server is down at the scheduled time, checking for updates occurs immediately after the server comes back online.

      • Use Coordinated Universal Time: Causes the schedule to interpret the times you specify as UTC instead of local time.

      • Start at a Random Time Between Start and End Times: Allows downloading of updates to occur at a random time between the time you specify here and the time you specified in Step 5.b. Fill in the End Time fields.

      • Restrict Schedule Execution to the Following Date Range: In addition to the other options, you can specify the days when downloading can occur.

    4. When you have finished configuring the recurring schedule, click Apply to save the schedule change.

  6. To exit this page, click OK when you are finished configuring the schedule.

    If you did not click Apply to make your changes effective, clicking OK does so. Clicking Cancel also closes the page, but loses your unapplied changes.

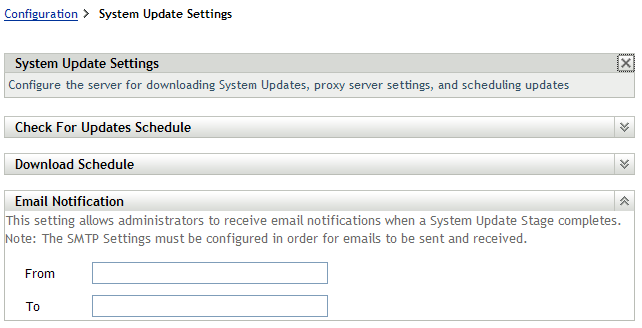

18.1.3 E-Mail Notification

In conjunction with using stages, you can set up e-mail notifications to indicate when each stage has completed. When you deploy an update, you can specify to use the e?mail notifications.

  1. In ZENworks Control Center, click Configuration in the left pane, then click the Configuration tab.

  2. Click Management Zone Settings to expand its options, click Events and Messaging, then select SMTP Settings to display the E?mail Notification panel:

    Staging must be used to receive notifications, and the stage behavior must be set to one of the following:

    • Advance Through Stage Automatically With Notification

    • Advance To Next Stage and Notify When Complete

    SMTP must be configured in order for the staging e-mail configuration to work.

  3. (Conditional) If you do not have SMTP configured:

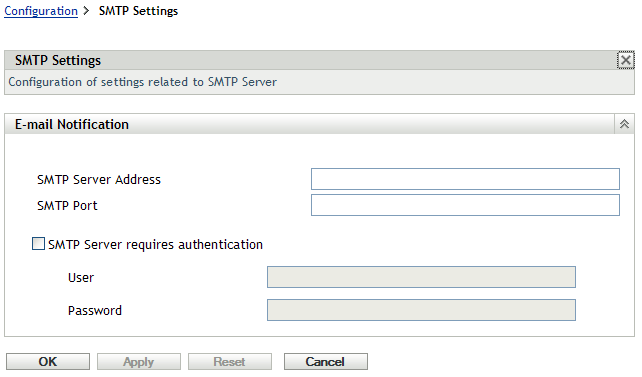

    1. To access the SMTP Settings page, click Configuration in the left pane, click the arrows in the Management Zone Settings heading to expand its options, click Event and Messaging, then select SMTP Settings.

    2. In the E-mail Notification section, fill in the fields:

      SMTP Server Address: Specify the DNS name or IP address of the SMTP server.

      SMTP Port: Specify the SMTP server’s communication port.

      Use SSL: To use an encrypted SSL channel for sending e-mails. By default this option is disabled.

      SMTP Server Requires Authentication: If authentication is required, select this check box, then specify the User and Password information.

    3. Click OK to save the changes.

    4. Click Management Zone Settings to expand its options, click Infrastructure Management, then select System Update Settings to display the E-mail Notification panel:

  4. Fill in the fields:

    From: Either specify your administrator e?mail address, or type something descriptive, such as System-Update-Stage-Notice. Do not use spaces between words.

    To: Specify your administrator’s e-mail address. You can specify multiple e-mail addresses separated by a comma (,).

    This is the person you want to be notified when the stage ends.

  5. Click Apply to make the changes effective.

  6. Either click OK to close the page, or continue with another configuration task.

    If you did not click Apply to make your changes effective, clicking OK does so. Clicking Cancel also closes the page, but loses your unapplied changes.

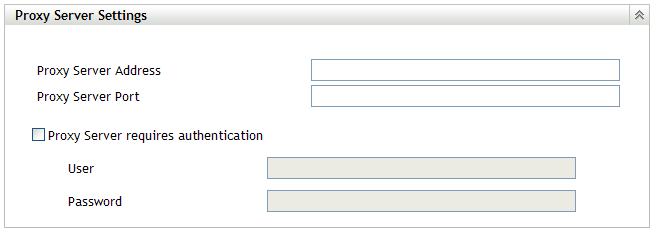

18.1.4 Proxy Server Settings

This option is useful for restrictive environments where you do not want all of your production servers to have Internet access. This is used in conjunction with the Dedicated Server Settings panel.

To specify a proxy server:

  1. In ZENworks Control Center, click Configuration in the left pane.

  2. On the Configuration tab, expand the Management Zone Settings section (if necessary), click Infrastructure Management, then click System Update Settings to display the Proxy Server Settings panel.

  3. Fill in the fields:

    Proxy Server Address: Specify the DNS name or IP address of the proxy server.

    Proxy Server Port: Specify the proxy server’s communication port.

    Proxy Server Requires Authentication: When you select this check box, the User and Password fields become editable. If authentication is required, select this check box and specify the username and password for access to the proxy server.

  4. Click Apply to make the changes effective.

  5. Either click OK to close the page, or continue with another configuration task.

    If you did not click Apply to make your changes effective, clicking OK does so. Clicking Cancel also closes the page, but loses your unapplied changes.

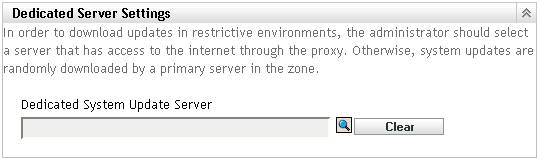

18.1.5 Dedicated Server Settings

By default, any available Primary Server in the Management Zone can be used randomly to download the updates. However, you can specify one ZENworks Server to be dedicated to handling your update downloads. The server that you select should have access to the Internet, directly or through a proxy server.

The following sections contain more information:

Specifying a Dedicated Update Server

  1. In ZENworks Control Center, click Configuration in the left pane.

  2. On the Configuration tab, expand the Management Zone Settings section (if necessary), click Infrastructure Management, then click System Update Settings to display the Dedicated Server Settings panel:

  3. Browse for and select a ZENworks Primary Server.

    The server’s identification is displayed in the Dedicated System Update Server field.

    This ZENworks Server must be a member of the Management Zone.

  4. Click Apply to make the changes effective.

  5. Either click OK to close the page, or continue with another configuration task.

    If you did not click Apply to make your changes effective, clicking OK does so. Clicking Cancel also closes the page, but loses your unapplied changes.

Clearing a Dedicated Update Server

Clearing a dedicated update server causes your updates to be retrieved randomly from any Primary Server in the Management Zone.

  1. In ZENworks Control Center, click Configuration in the left pane.

  2. On the Configuration tab, expand the Management Zone Settings section (if necessary), click Infrastructure Management, then click System Update Settings to display the Dedicated Server Settings panel:

  3. Click Clear to remove the dedicated server from the Dedicated System Update Server field.

  4. (Conditional) If you need to revert to the last saved dedicated server setting, click Reset.

    This resets the dedicated server to the last saved setting, such as when you last clicked Apply or OK.

  5. Click Apply to make the change effective.

    IMPORTANT:Previous settings cannot be restored after you click Apply.

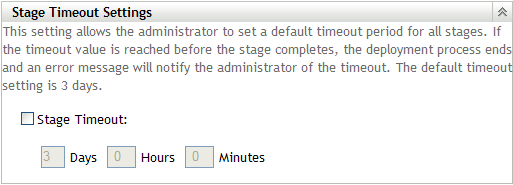

18.1.6 Stage Timeout Settings

Deployment stages are optional; however, stages allow you to deploy an update one step at a time, such as to a test group first, then to your managed devices. If a failure occurs during the update process, the process is halted. E?mail notifications can let you know when each stage has completed.

The global default timeout setting is 3 days. This provides the same timeout length for each stage. For information about setting the timeout for individual stages, see Modifying the Stage Timeout.

Set this value to be long enough to accommodate updating all of the devices you plan to update.

When the timeout value is reached, the stage’s deployment stops and an e-mail message is sent, if e-mail notification is configured. You can cancel the deployment, or you can clear the error to restart the stage and reset the timeout. Or, you can ignore all pending devices to trigger a stage progression (either automatic, or wait for administrator action based on the setting).

You can use E-mail notification to know when a stage has completed.

To configure global stage timeout settings:

  1. In ZENworks Control Center, click Configuration in the left pane.

  2. On the Configuration tab, expand the Management Zone Settings panel (if necessary), click Infrastructure Management, then click System Update Settings to display the Stage Timeout Settings panel:

  3. Select the Stage Timeout check box, then specify the days, hours, and minutes desired.

  4. Click Apply to make the changes effective.

  5. Either click OK to close the page, or continue with another configuration task.

    If you did not click Apply to make your changes effective, clicking OK does so. Clicking Cancel also closes the page, but loses your unapplied changes.

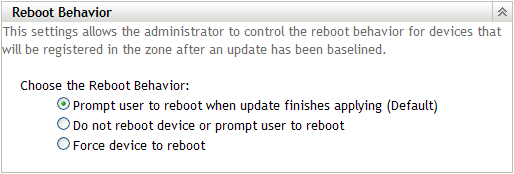

18.1.7 Reboot Behavior

Some updates do not require a device to be rebooted after they have been deployed to a device. However, if a reboot is required to complete the update process, the deployment is not completed until the device is rebooted.

To configure the reboot behavior:

  1. In ZENworks Control Center, click Configuration in the left pane.

  2. On the Configuration tab, expand the Management Zone Settings panel (if necessary), click Infrastructure Management, then click System Update Settings to display the Reboot Behavior panel:

  3. Select one of the following options:

    • Prompt User to Reboot When Update Finishes Applying (Default): After the update has been applied, a request to reboot is immediately displayed. If the user initially rejects rebooting, the user is periodically requested to reboot the device, until the device is rebooted.

    • Do Not Reboot Device: The device does not reboot; however, the user is periodically requested to reboot the device, until the device is rebooted.

    • Force Device to Reboot: After the update has been applied, the device is automatically rebooted without user intervention if a reboot is required by the update.

  4. Click Apply to make the changes effective.

  5. Either click OK to close the page, or continue with another configuration task.

    If you did not click Apply to make some of your changes effective, clicking OK does so. Clicking Cancel also closes the page, but loses your unapplied changes.
