2.4 Scheduling Reports

The following sections provide information to help you schedule reports:

2.4.1 Scheduling and Running a Report

NOTE:Before scheduling the report, you must configure the Outbound Email Server details. For more information about the Outbound Email Server, see the ZENworks Reporting 5 Installation Guide.

You can set up the job, when to run it, and how often to run it.

  1. On the Home page, click View Reports, or click View > Repository.

  2. Right-click the report name, then select Schedule.

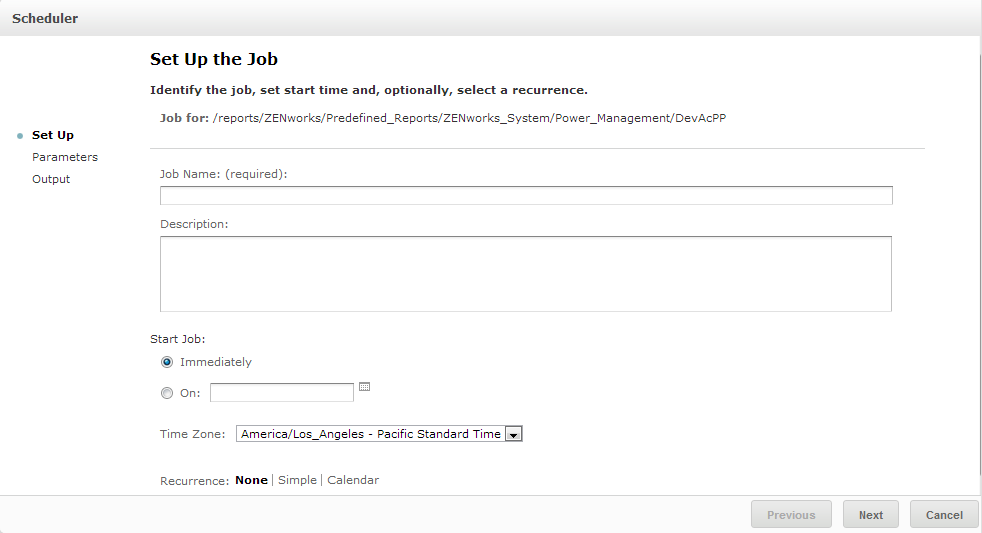

  3. Click Schedule Job, to display the Scheduler panel.

  4. In the Job Name field, specify a name for the job, for example, Weekly Report. The description is optional.

  5. Set the following schedule attributes:

    • Start Job: Choose one of the following:

      • Immediately: Start the job as soon as you finish it.

      • On: Start the job at future time. Click the calendar icon and select the future start date and time. To set the time for the job to run, at the bottom of the calendar, click the hours and minutes.

    • Time Zone: Specify the time zone for the schedule. The default time zone is the time zone of the server, the time zone you entered at log in. If you are in a different time zone, set this field accordingly.

    • Recurrence: Choose one of the following settings:

      • None: Run the report once.

      • Simple: Repeat the job at an hourly, daily, or weekly interval.

      • Calendar: Repeat the job on days of the week or days of the month.

        If you select Simple or Calendar, additional fields are displayed. For more information, see Section 2.4.4, Simple and Calendar Options.

  6. Click Next.

  7. (Conditional) If the report you are scheduling has input controls, you are prompted for the input.

    If there are any Saved values, they display in a drop-down list at the top of the Set the Parameter Values panel. In the Use saved values drop-down, you can set the input controls defined for the report that you are scheduling. You can set the input values for the scheduled report, and click Save Current Values to save the input value.

  8. Choose a set of saved values, or set the input controls, then click Next.

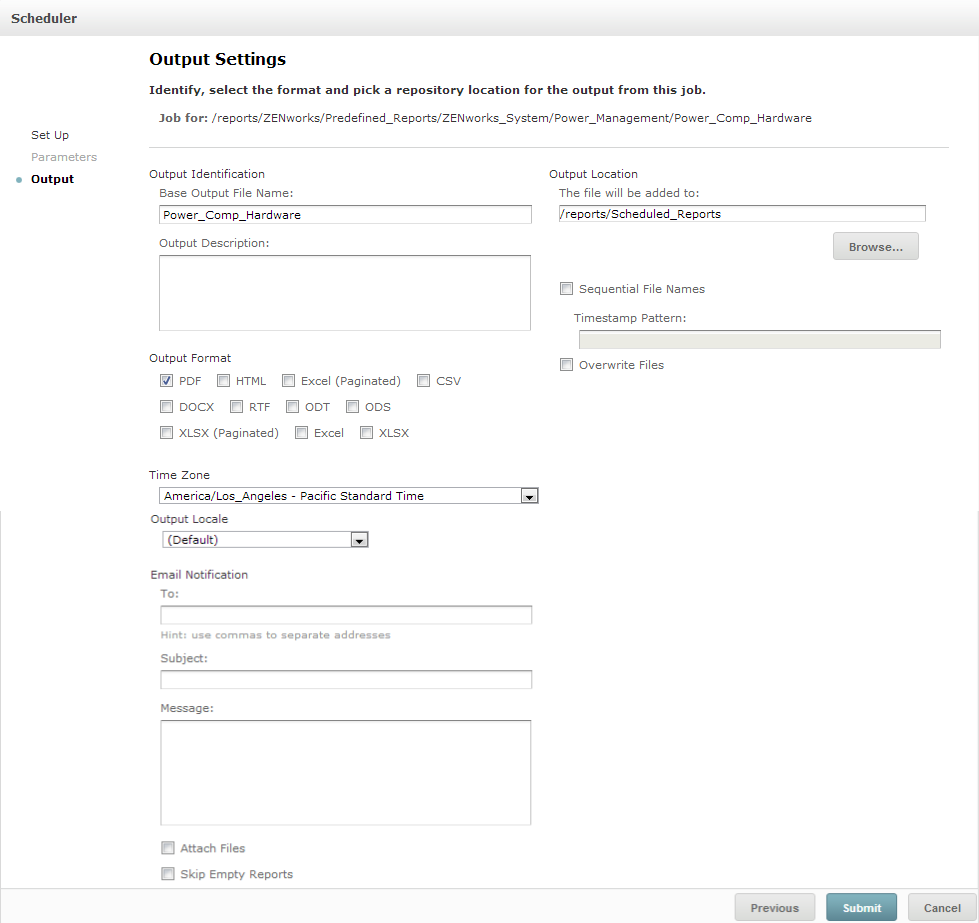

  9. Set output options in the Output Settings panel.

    For more information, see Section 2.4.2, Output Options.

  10. Click Submit.

    The job displays in the list of Scheduled Jobs, as shown in Step 2.

  11. Click Run Now to run the report in the background.

2.4.2 Output Options

In the Output Details panel, you can change the output settings. You must first setup the job, then output options.

For information, see Section 2.4.1, Scheduling and Running a Report.

On the Output Details panel, you can change these settings:

  • Base Output File Name: Specify a name for the Job file.

  • Output Description: (Optional) Specify a description for the Job file.

  • Output Format: Select the format in which you want to save the Job file. When you select more than one format, each format is stored as a separate file in the repository and attached as a separate file to the email notification.

  • Output Locale: Select the locale settings for generating the report.

    The report must support locales, for example a report based on a domain with language bundles.

  • To: Specify the email addresses for email notifications.

  • Subject: Specify a subject for the email notification.

  • Message: Specify a message for the email notification.

  • Attach Files: Select this option to send the output of the report with the email notification.

  • Skip Empty Reports: Select to prevent the server from attaching empty report output files to email notifications when report execution fails.

  • Output Location: Browse to the folder where you want to save the report. You must have the write permission for the folder.

  • Sequential File Names: Select this option to append a timestamp to the names of files created by the job. This is useful for the output of recurring jobs or for time-sensitive reports where the output must be dated. When the timestamp is used, the output of the file name is <basename>-<timestamp>.<extension>.

  • Timestamp Pattern: An optional pattern for the timestamp. Valid patterns for report output files can only contain letters, numbers, dashes, underscores, and periods. The default pattern is yyyyMMddHHmm. For example, 201307030601.

  • Overwrite Files: Select this option to overwrite old output files with new files. This is useful when you do not have sequential file names or when you specify a timestamp pattern that could lead to identical file names.

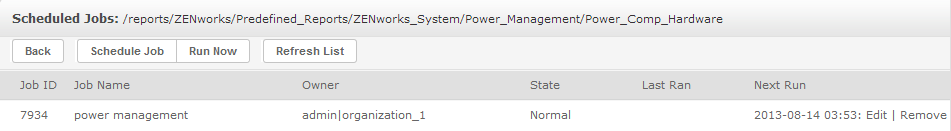

2.4.3 Viewing the List of Scheduled Jobs

Scheduled jobs are displayed in the Repository panel with a icon. Users can view the jobs that they have defined; administrators can view the jobs defined by all users.

  1. On the Home page, click View Reports.

  2. Right-click the report, then select Schedule.

    The list of scheduled jobs is displayed.

The Scheduled Jobs panel displays the ID for the job, the owner who created the job, and the status of the job. The job statuses includes the following:

  • Normal: The job is scheduled.

  • Running: The server is generating the report.

  • Complete: The server has finished running the job and placed the output file in the repository.

  • Error: The scheduler encountered an error while scheduling or triggering the job. This does not include cases in which the job is successfully triggered but an error occurs while it runs.

The Scheduled Jobs panel includes the following options:

  • Edit: You can edit the scheduled job and save the changes.

  • Remove: You can delete the scheduled job.

    When the server receives a request to delete a job that is running, the server finishes running the job before deleting it.

You can perform the following tasks from the Scheduled Jobs panel:

  • Click Back to go back to the list of reports.

  • Click Schedule Job to define a new job.

  • Click Run Now to run the report in the background, while you continue working on the server.

2.4.4 Simple and Calendar Options

To run reports automatically on a regular basis, select simple or calendar recurrences on the Set Up the Job page:

  • A Simple recurrence regularly runs the job at an hourly, daily, or weekly interval.

  • A Calendar recurrence involves more settings: time of day, days of the week, or days of the month and months of the year.

Simple recurrence options are:

  • Repeat every: Sets the interval between jobs, in minutes, hours, days, or weeks.

  • Indefinitely: Runs the job until you delete it.

  • Times: Runs the job for a specified number of times.

  • Until: Runs a job until the specified date is reached. Click to select the date.

Calendar recurrence options are:

  • Months: The months during which the report runs.

  • Days: The days on which the report runs:

    • Every Day

    • Week Days

    • Month Days: Enter dates or date ranges, separated by commas. For example: 1, 15.

  • Times: The time of day in minutes and hours when the job should run. The hours use 24-hour format.

    You can also enter multiple minutes or hours, and ranges, separated by commas. For example, if you specify 0, 15, 30, and 45 for the minutes, and 9-17 for the hours, the report runs every 15 minutes from 9:00 A.M. to 5:45 P.M. Enter an asterisk (*) to run the job every minute or every hour.

  • Recur Until: The Calendar recurrence runs until the specified date is reached. Click to select the date.

2.4.5 Running a Job in the Background

Running a job in the background generates a report, potentially without affecting performance of the server. After the job is finished, you can export the report directly to any format and save it in the repository. You can share a report with others by sending the generated report through email.

Running a job in the background is equivalent to scheduling the report to run immediately.

  1. On the Home page, click View Reports.

  2. Right-click the report, then select Run in Background.

    If the report that you are running has input controls or filters, you are prompted for the inputs.

  3. Choose a set of saved values, or set the fields one at a time, then click Next.

  4. In the Setting Output Options panel, specify the details, then click Submit. For output options, see Section 2.4.2, Output Options.

  5. Click Save.

    The report runs immediately.
