The Traffic Analysis Agent (version 1.30) for Windows NT/2000 runs on a Windows NT/2000 server or on a Windows NT workstation. The Traffic Analysis Agent for Windows NT/2000 monitors traffic on Ethernet, FDDI, or token ring segments.
The Traffic Analysis Agent for Windows NT/2000 is an RMON agent that implements functionality defined by the RMON MIB. It implements token ring extensions for RMON (RFC 1513) for token ring media, and a Novell proprietary MIB for FDDI media, in addition to implementing an RMON (RFC 1757) for Ethernet media.
The agent collects information about activity on your network and makes it available to ConsoleOne via SNMP. The Traffic Analysis Agent for Windows NT/2000 also implements the first two groups of RMON2 (RFC 2021).

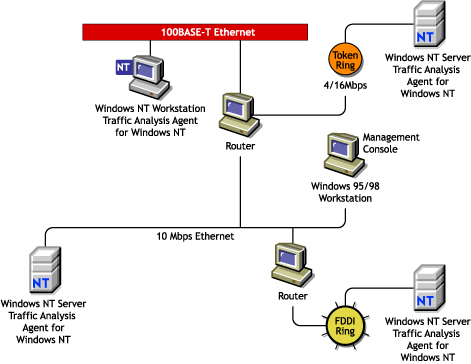

The following figure illustrates a functional view of the Traffic Analysis Agent for Windows NT/2000:
When you install the Traffic Analysis Agent for Windows NT/2000, the following files are copied to Windows NT/2000:
IMPORTANT: The default directory location for the LANZCON application is ZFS_AGNT\LANZCON. You can change the location of LANZCON during installation.
The following sections provide information about optimizing and using the Traffic Analysis Agent for Windows NT/2000:
The Traffic Analysis Agent for Windows NT/2000 requires configuration of the Windows NT/2000 SNMP service before installing the agent. This section contains: Perform the following tasks to allow communication with the management server:
Before installing the ZfS agent, you must install and configure the Windows NT SNMP service. This is required to enable communication with the management server.
To install and configure SNMP on Windows NT:
Install the SNMP service.
Configure SNMP to start automatically.
Configure the SNMP Trap service to start automatically.
Specify the trap community name and trap destination address so that the agent sends traps to the management server.
In the Control Panel, double-click Network.
Click the Services tab > select SNMP Service.
Click Properties.
Click the Traps tab.
Select a name from the Community Names box > click Add.
The Add button is disabled if there are no Community Names available.
If the public community name is not present, type public.
Click Add.
Use the Trap Destinations box to add other DNS names and IP addresses in addition to the loopback IP address for the workstations or servers that should receive traps.
Click OK.
Set the SNMP security options trap community name so that SNMP packets from any host are accepted by the agent.
In the Control Panel, double-click Network.
Click the Services tab > select SNMP Service.
Click Properties.
Click the Security tab.
In the Accepted Community Names box, click Add.
In the Community Name box, type public.
The Accepted Community Names list displays the community names from which Windows NT will accept requests.
Click Add.
Select Accept SNMP Packets from Any Host > click OK.
Before installing the ZfS agent, you must install and configure the Windows 2000 SNMP service. This is required to enable communication with the management server.
To install and configure SNMP on Windows 2000:
Install the SNMP service.
In the Control Panel, select Administrative Tools > Configure Your Server.
In the Application Server option, select Terminal Services.
Click Start.
In the Windows Components Wizard, double-click Management and Monitoring Tools.
Select Simple Network Management Protocol.
Click OK.
Click Next.
SNMP is started automatically after installation.
Configure the SNMP Trap service to start automatically.
Specify the trap community name and trap destination address so that the agent sends traps to the management server.
In the Control Panel, select Administrative Tools > Services
Double-click SNMP Service.
Click Properties.
Click the Traps tab.
Select a name from the Community Names box > click Add.
The Add button is disabled if there are no Community Names available.
If the public community name is not present, type public.
Click Add.
Use the Trap Destinations box to add other DNS names and IP addresses in addition to the loopback IP address for the workstations or servers that should receive traps.
Click OK.
Set the SNMP security options trap community name so that SNMP packets from any host are accepted by the agent.
In the Control Panel, select Administrative Tools > Services.
Double-click SNMP Service.
Click Properties.
Click the Security tab.
In the Accepted Community Names box, click Add.
Select a name from the Community Name box.
The Accepted Community Names list displays the community names from which Windows 2000 will accept requests.
Click Add.
Select Accept SNMP Packets from Any Host > click OK.
IMPORTANT: After installing the SNMP services, you should re-install the service packs again.
The Traffic Analysis Agent for Windows NT/2000 parameters are configured for optimal performance on Windows NT/2000. You can optimize the performance of the agent to suit your networking environment.
This section explains how to optimize the agent and monitor the functionality Traffic Analysis Agent for Windows NT/2000 using the agent console (LANZCON) for Windows NT/2000. For details, see Using LANZCON .
The following sections explain the Traffic Analysis Agent for Windows NT/2000 configuration options:
The Traffic Analysis Agent for Windows NT/2000 provides default values for modules and parameters. You can change the default values to optimize the performance of the Traffic Analysis Agent for Windows NT/2000.
You can configure the following modules of the Traffic Analysis Agent for Windows NT/2000:
For details, see Configuring the Modules of the Traffic Analysis Agent for Windows NT/2000 .
You can configure the following parameters of the Traffic Analysis Agent for Windows NT/2000:
For details, see Configuring the Parameters of the Traffic Analysis Agent for Windows NT/2000 .
By default, all agent modules are enabled to load. You can choose to disable the modules.
To disable the modules of the Traffic Analysis Agent for Windows NT/2000:
From the LANZCON main menu, click Configure > LANalyzer Agent Modules > Disable.
Deselect the module you want the agent to monitor.
Click OK.
The Traffic Analysis Agent for Windows NT/2000 modules are loaded with default parameters. You can modify the parameters to optimize the performance of the agent.
The following table describes the parameters of the Memory Manager module:
To modify the Memory Bound parameter:
From the LANZCON main menu, click Configure > LANalyzer Agent Parameters.
Click the Memory Manager tab.
Move the Memory Bound slider to the point you want to set as the memory bound value.
To modify the Memory Age parameter:
From the LANZCON main menu, click Configure > LANalyzer Agent Parameters.
Click the Memory Manager tab.
Move the Memory Age slider to the point you want to set as the memory age value.
IMPORTANT: Restart the Traffic Analysis Agent for Windows NT/2000 to ensure that the agent utilizes the changed parameter values. For details, see Installing and Setting Up Management and Monitoring Services in the Installation guide.
The following table describes the parameters of the Station Monitor module:
To specify the number of TopN reports you want the agent to generate:
From the LANZCON main menu, click Configure > LANalyzer Agent Parameters.
Click the Station Monitor tab.
Select the number of TopN reports.
To stop generation of duplicate IP address alarms:
From the LANZCON main menu, click Configure > LANalyzer Agent Parameters.
Click the Station Monitor tab.
Deselect the Generate Duplicate IP Address Alarms check box.
The following table describes the Network Trend parameter:
Parameter | Default Path | Description |
---|---|---|
Trend Files Location |
system root\GTREND |
Specifies the directory path and location where trend files (*.GT) are created and updated. |
IMPORTANT: If you delete the *.GT file. all the previous trend information will be lost.
To specify a path to a location for storing trend data:
From the LANZCON main menu, click Configure > LANalyzer Agent Parameters.
Click the Network Trends tab.
Enter or browse to select the directory path to the location where you want the Traffic Analysis Agent for Windows NT/2000 to store trend data.
The Traffic Analysis Agent depends on the Microsoft* SNMP service on Windows NT/2000. When SNMP starts, it loads agent DLLs in its address space. Once the agent is installed, it will be always loaded by the SNMP service, by default, whenever the service starts.
You can enable or disable loading of the agent DLLs with SNMP by checking the desired options in the Novell Traffic Analysis Agent Loading with SNMP dialog box. If you disable the agent, the SNMP service will start normally but the Traffic Analysis Agent will not work. The Traffic Analysis Agent will neither capture packets by placing the NIC cards into the promiscuous mode nor will respond to SNMP requests.
This section explains how you can use the LANZCON utility to configure and diagnose the Traffic Analysis Agent for Windows NT/2000.
LANZCON for Windows NT/2000 is a graphical user interface provided by the Traffic Analysis Agent for Windows NT/2000 to configure the agent modules and parameters and to diagnose the agent. You can use LANZCON to obtain information about network segments monitored by the agent to help you troubleshoot problems.
To open the LANZCON utility, do one of the following:
You can perform the following tasks with LANZCON:
On loading LANZCON, you will see the Network Adapters window. The Network Adapters window displays information about monitored adapters in two panes.
The following table describes the two panes in the Network Adapters window:
Pane | Displays | Description |
---|---|---|
Left pane |
Adapter Tree view |
Displays a list of network adapters discovered by the Traffic Analysis Agent for Windows NT/2000. The default view displays a collapsed tree. You can expand each network adapter in the tree to view the list of RMON tables for the selected adapter. |
Right pane |
Table view |
Displays details about the object you select in the left pane. If you select an adapter in the left pane, interface table (RFC 1213) details such as media type, MAC address, and description of the selected adapter are displayed in the right pane. If you select an RMON table in the left pane, table data is displayed in the right pane. |
The Traffic Analysis Agent for Windows NT/2000 collects information about monitored adapters and displays it in the right pane of the Network Adapters window.
By default, adapter monitoring is enabled. LANZCON lets you disable adapter monitoring. If you disable adapter monitoring, the Traffic Analysis Agent for Windows NT/2000 will stop collecting data for the adapter and the RMON tables for the adapter will be deleted.
IMPORTANT: You cannot disable monitoring FDDI adapters through LANZCON.
To enable adapter monitoring:
Select an adapter in the left pane of the Network Adapters window.
Click View > NetWork Adapters > Enable.
To disable adapter monitoring:
Select an adapter in the left pane of the Network Adapters window.
Click View > NetWork Adapters > Disable.
The Traffic Analysis Agent for Windows NT/2000 logs significant events and error messages that occurred during a session.
To view the agent log:
From the LANZCON main menu, click View > Agent Log.
You can view the status of the agent from the LANalyzer Agent Status window. The agent status window indicates whether the agent modules are loaded or not loaded.
To view the agent status:
From the LANZCON main menu, click View > Agent Status.
RMON tables are listed under each network adapter. You can view the RMON tables by selecting a table in the left pane of the Network Adapters window. RMON table data is displayed in the right pane.
The Network Adapter tree displays the following RMON tables:
The Alarm Information tree displays the following RMON tables:
The Traffic Analysis Agent for Windows NT/2000 monitors network segments and sends traps to the management server. ConsoleOne displays the alarm when it receives the trap from the management server.
Trap information is displayed in the SNMP Traps window. For each trap, the table shows trap data that can be obtained.
Statistic | Explanation |
---|---|
Receive Time |
Displays the time when the trap occurred |
Trap Summary |
Displays a description of the trap |
IMPORTANT: LANZCON will receive trap notifications if you have ensured that Windows NT/2000 SNMP has been configured to send traps to a loopback trap destination address. For details, see Planning to Install the Traffic Analysis Agent for Windows NT/2000 .
To view SNMP traps from LANZCON main menu, click > View > SNMP Traps.
