Inventory Database Schema in ZfS

The following section describes the database schema classes and the extensions and associations made to the CIM schema for use in ZfS. These extensions have ZENworks or ManageWise as their schema name. ZENworks.classname refers to the extended class in the ZENworks schema and ManageWise.classname refers to the extended class in the ManageWise schema.

The following sections will help you understand the ZfS 3 database schema:

Case Study of CIM Schema Implementation in ZfS

The following scenario describes an inventoried server that has two parallel ports with a specified interrupt number.

In the following schema diagram, the CIM_UnitaryComputerSystem represents a managed inventory system.

In this illustration, class CIM.PointingDevice associates to CIM.UnitaryComputerSystem using the association CIM.SystemDevice with SystemDevice.GroupComponent pointing to CIM.UnitaryComputerSystem and SystemDevice.PartComponent pointing to CIM.PointingDevice. The relationship between the two classes is one to many. This means a computer system might have more than one pointing devices.

Class CIM.IRQ associates to CIM.PointingDevice using the association CIM.AllocatedResource. Dependent pointing to CIM.PointingDevice and Antecedent pointing to CIM.IRQ.

Class ZENworks.ZENKeyboard associates to CIM.UnitaryComputerSystem using the association CIM.SystemDevice with SystemDevice.GroupComponent pointing to CIM.UnitaryComputerSystem and SystemDevice.PartComponent pointing to ZENworks.ZENKeyboard. The relationship between the two classes is one to one. This means a computer system can have only one Keyboard.

Class ZENworks.BIOS associates to CIM.UnitaryComputerSystem using the association CIM.SystemDevice with SystemDevice.GroupComponent pointing to CIM.UnitaryComputerSystem and SystemBIOS.PartComponent pointing to ZENworks.BIOS. The relationship between the two classes is one to one. This means a computer system can have only one BIOS.

Class CIM.ZENworks.ParallelPort associates to CIM.UnitaryComputerSystem using the association CIM.SystemDevice with SystemDevice.GroupComponent pointing to CIM.UnitaryComputerSystem and SystemDevice.PartComponent pointing to CIM.ZENworks.ParallelPort. The relationship between the two classes is one to many. This means a computer system might have more than one parallel port.

Class ZENworks.BUS associates to CIM.UnitaryComputerSystem using the association CIM.SystemDevice with SystemDevice.GroupComponent pointing to CIM.UnitaryComputerSystem and SystemBUS.PartComponent pointing to ZENworks.BUS. The relationship between the two classes is one to one. This means a computer system can have only one BUS.

Class ManageWise.Usera associates to CIM.UnitaryComputerSystem using CurrentLoginUser and LastLoginUser. In the CurrentLoginUser association, the specific instance of User is the one who is currently logged into the inventoried server. In the LastLoginUser association, the specific instance of User is the one who logged last into the inventoried server.

Class CIM.IRQ associates to CIM.ParallelPort using the association CIM.AllocatedResource. Dependent pointing to CIM.ParallelPort and Antecedent pointing to CIM.IRQ.

Schema diagram for CIM_UnitaryComputerSystem with its associations

The schema diagram illustrates the following:

All components that a computer system manages are represented as associations from the UnitaryComputerSystem class. The type of references (1..n, 1..1) between two classes are marked.

Those associations that do not have a schema name are assumed as CIM schema.
There are three instances of ZENworks_ParallelPort associated to one instance of: CIM_UnitaryComputerSystem using three instances of CIM_SystemDevice associations, CIM_SystemDevice.GroupComponent references UnitaryComputerSystem, CIM_SystemDevice.PartComponent references ParallelPort.

This is called 1 to n object reference relationship and is depicted in the illustration as 1..*. Similarly, every instance of ParallelPort has a corresponding instance of CIM_IRQ designating the port's irq. This is one-to-one relationship and is depicted as 1..1.

All other classes follow similar representation. For an explanation of the CIM and extended classes, see CIM Classes and Extension Classes in ZfS . For schema diagrams of other classes, see Schema Diagrams of CIM and the Extension Schema in ZfS .

Legends for Schema Diagrams

The legends for reading the schema diagrams are as follows:

Class names are enclosed in boxes with the class name as the heading and the attribute names within it.
Red lines connect two classes using an association class.
Blue lines indicate the class inheritance hierarchy. The class pointed by the arrow is the class that is being inherited from. The class from where the arrow emanates is the inheriting class.
The association class name is shown within the line joining two classes.
References of the association class are marked on either side of the associated classes.

For an explanation about CIM schema, see the CIM 2.2 schema specification on the DMTF Web site.

CIM Classes and Extension Classes in ZfS

The following table describes the CIM and extension classes that ZfS uses:

CIM and Extension Class in ZfS	Description of the details that the Class Models
CIM.PointingDevice	Any pointing device available on the managed system. Mostly used to model the mouse.
ZENworks.SystemInfo	Identification details about the system such as serial number and asset tag.
ZENworks.PointingDeviceDeviceDriver	Device driver that is installed with the pointing device.
ZENworks.SerialPort	Serial ports on the managed system.
ZENworks.ParallelPort	Parallel ports on the managed system.
ZENworks.ZENKeyboard	Attributes modeling the properties of the system keyboard.
ZENworks.BIOS	BIOS software on the system.
ZENworks.Bus	System bus in the system.
ManageWise.User	Details of the user who was logged in to the inventoried server.
ManageWise.MSDomainName	Name of the domain to which the Windows NT inventoried server is attached.
ManageWise.NDSName	DN name and tree under which the managed inventoried server is registered in Novell eDirectory^TM.
CIM.VideoBIOSElement:	Video driver.
CIM.Processor	Processor of the inventoried server.
ZENworks.Videoadapter	Properties of the monitor and the adapter connecting it.
ZENworks.ZENOperatingSystem	Details of the operating system.
ZENworks.InventoryScanner	Details of the inventory scanner that has scanned for hardware and software details of the managed inventoried server.
ZENworks.NetwareClient	NetWare client version of the inventoried server.
CIM.Product	Software installed on the managed system. Key attributes are the names of the product, vendor, and version.
ZENworks.ZENNetworkAdapter	Information on the properties of the network adapter.
ZENworks.NetworkAdapterDriver	Network card adapter driver information.
CIM.IPProtocolEndpoint	IP address of the inventoried server.
CIM.IPXProtocolEndpoint	IPX address of the inventoried server.
CIM.LANEndpoint	Active MAC address.
ManageWise.DNSName	DNS name of the inventoried server.
ZENworks.SoundAdapter	Description of the multimedia adapter on the inventoried server.
ZENworks.ZENPOTSModem	Physical configuration of the modem device.
CIM.DMA	Information about the system DMA channels.
CIM.CacheMemory	Information about the configured system cache.
CIM.IRQ	List of Interrupt channels and their status on the system. They are also associated to devices that use the specified interrupt number.
ZENworks.MotherBoard	Information about the motherboard on the inventoried server.
CIM.PowerSupply	Information about the power supply unit of the inventoried server.
CIM.Battery	Physical details of the system battery.
CIM.Card	Details of adapter cards mounted on the system board.
CIM.Slot	Expansion slots available on the system board.
ZENworks.StoragePhysicalMedia	Physical information about the storage devices on the inventoried server, such as hard disk, floppy drives, CD drives, and others.
ZENworks.LogicalDiskette	Drive mapped to the floppy drive.
ZENworks.PhysicalDiskette	Derived from ZENworks.StoragePhysicalMedia to model the floppy disk drive.
ZENworks.PhysicalDiskDrive	Derived from ZENworks.StoragePhysicalMedia to model the hard disk.
ZENworks.LogicalDiskDrive	Information about the local drives on the hard disk.
CIM.LocalFileSystem	Information about the local file system installed on the Windows servers.
ZENworks.PhysicalCDROM	Derived from ZENworks.StoragePhysicalMedia to model the CD drive.
ZENworks.WinOperatingSystem	Details of the Windows operating system.
ZENworks.NetWareOperatingSystem	Details of the NetWare operating system.
ZENworks.ZENDiskDrive	Details of fixed or removable disk drives.
ZENworks.LogicalCDROM	Drive mapped to the CD drive.

Schema Diagrams of CIM and the Extension Schema in ZfS

The following schema diagrams of the CIM and extension schema model the Inventory database in ZfS.

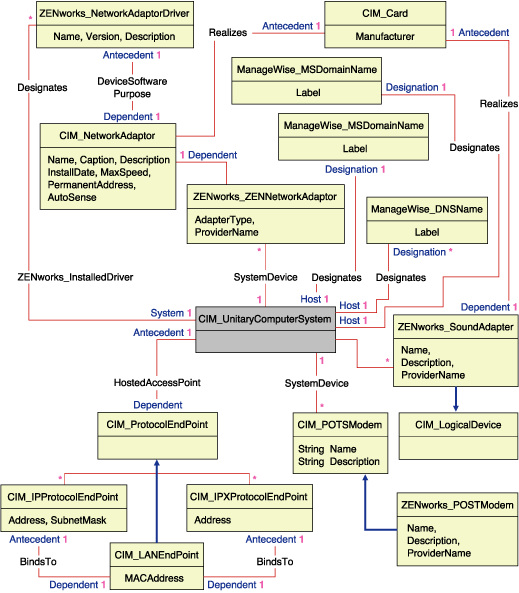

In the following schema diagram, the CIM_UnitaryComputerSystem represents a managed inventory system.

Class CIM.IRQ associates to CIM.PointingDevice using the association CIM.AllocatedResource. Dependent pointing to CIM.PointingDevice and Antecedent pointing to CIM.IRQ.

Class ManageWise.User has two associations with CIM.UnitaryComputerSystem; CurrentLoginUser and LastLoginUser. In the CurrentLoginUser association, the specific instance of User is the one who is currently logged into the inventoried server. In the LastLoginUser association, the specific instance of User is the one who logged last into the inventoried server.

Class CIM.IRQ associates to CIM.ParallelPort using the association CIM.AllocatedResource. Dependent pointing to CIM.ParallelPort and Antecedent pointing to CIM.IRQ.

Schema diagram for CIM_UnitaryComputerSystem

Sample Inventory Database Queries

The following are sample queries for retrieving the inventory information from the ZfS Inventory database.

Refer to the schema diagrams in Schema Diagrams of CIM and the Extension Schema in ZfS to find out the associated schema classes and attribute information.

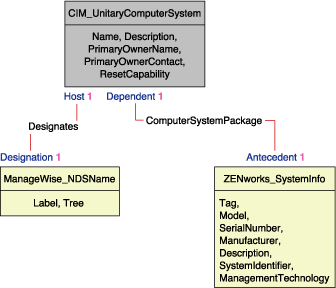

Retrieve the name and ID of all inventoried servers from the database and also to the eDirectory tree to which these servers are registered. The query is as follows:
SELECT u.id$,m.label,m.tree FROM managewise.NDSName m,cim.UnitaryComputerSystem u,managewise.Designates s where s.Designation=m.id$and s.HOST=u.id$
Retrieve the asset tag, manufacturer, and serial number of all the inventoried servers in the database. The query is as follows:
SELECT m.Tag,m.Manufacturer,m.SerialNumber FROM cim.UnitaryComputerSystem u,zenworks.SystemInfo m,cim.ComputerSystemPackage s WHERE s.Antecedent=m.id$and s.Dependent=u.id$
Retrieve all the software applications with their versions that are installed on the inventoried server 'SJOHN164_99_139_79' registered under the 'NOVELL_AUS' eDirectory tree. The query is as follows:
SELECT m.name,m.version FROM cim.Product m,cim.UnitaryComputerSystem u,zenworks.InstalledProduct s,managewise.NDSName m1,managewise.Designates s1 WHERE (s.Product=m.id$and s.ComputerSystem=u.id$) AND (s1.Designation=m1.id$and s1.Host=u.id$) AND m1.label='SJOHN164_99_139_79' and m1.tree='Novell_AUS'
Retrieve the processor information for the inventoried server 'SJOHN164_99_139_79'. The query is as follows:
SELECT m.DeviceID,m.Family,m.Stepping,m.OtherFamilyDescription, m.MaxClockSpeed,m.Role,m.UpgradeMethod FROM cim.Processor m,cim.UnitaryComputerSystem u,cim.ComputerSystemProcessor s managewise.NDSName m1,managewise.Designates s1 WHERE (s.PartComponent=m.id$and s.GroupComponent=u.id$) AND m1.label='SJOHN164_99_139_79'
Retrieve the ID of the UnitaryComputerSystem used for the inventoried server 'SJOHN164_99_139_79'. The query is as follows:
SELECT name from CIM.UnitaryComputerSystem WHERE name='SJOHN164_99_139_79'
When you know the ID of the UnitaryComputerSystem for a particular inventoried server from the query as shown in query 5, query 4 can be modified as:
SELECT m.DeviceID,m.Family,m.Stepping,m.OtherFamilyDescription, m.MaxClockSpeed,m.Role,m.UpgradeMethod FROM cim.Processor m,cim.UnitaryComputerSystem u, cim.ComputerSystemProcessor s u.id$=? and s.PartComponent=m.id$ and s.GroupComponent=u.id$

Substitute the ID of the specified inventoried server in place of the ? value for u.id in the query.
List the IP address, IPX address, and MAC address of all inventoried servers in the database. The query is as follows:
SELECT ip.Address, ipx.Address, mac.MACAddress FROM cim.IPProtocolEndpoint ip, cim.IPXProtocolEndpoint ipx, cim.LANEndpoint mac, cim.UnitaryComputerSystem u, cim.HostedAccessPoint s WHERE (s.Dependent=ip.id$ and s.Antecedent=u.id$) AND (s.Dependent=ipx.id$ and s.Antecedent=u.id$) AND (s.Dependent=mac.id$ and s.Antecedent=u.id$)

Modify the same query to get the information for a specified inventoried server as follows:

SELECT ip.Address, ipx.Address, mac.MACAddress FROM cim.IPProtocolEndpoint ip, cim.IPXProtocolEndpoint ipx, cim.LANEndpoint mac, cim.UnitaryComputerSystem u, cim.HostedAccessPoint s WHERE (s.Dependent=ip.id$ and s.Antecedent=u.id$) AND (s.Dependent=ipx.id$ and s.Antecedent=u.id$) AND (s.Dependent=mac.id$ and s.Antecedent=u.id$)AND u.id$=?

Use the query as shown in query 5 to retrieve the ID of the specified inventoried server and substitute the ID in place of the ? value for u.id in the query.
Retrieve the name and other properties of the drives on the hard disk of the specified inventoried server.
SELECT m.id$,n.id$,m.DeviceID,n.FileSystemSize, n.AvailableSpace,m.VolumeSerialNumber,m.caption as VolumeLabel, n.FileSystemType FROM ZENworks.LogicalDiskDrive m,CIM.LocalFileSystem n,CIM.HostedFileSystem s,CIM.ResidesOnExtent r WHERE (s.GroupComponent=? and s.PartComponent=n.id$) AND (r.Antecedent=m.id$and r.Dependent=n.id$)

Use the query shown in query 5to retrieve the ID of the specified inventoried server and substitute the ID in place of the ? for u.id$ in the query.
