Novell Internet Access Server 4.1 TCP/IP subsystem software includes the following NLM and database files:

• NetWare TCP/IP NLM file (TCPIP.NLM)
• Simple Network Management Protocol NLM file (SNMP.NLM)
• SNMP Event Logger NLM file (SNMPLOG.NLM)
• TCP/IP Console NLM file (TCPCON.NLM)
• Sample Internet database files (HOSTS, NETWORKS, PROTOCOL, and SERVICES)
• ICMP Echo NLM files (PING.NLM and TPING.NLM)
• BootP Forwarder NLM file (BOOTPFWD.NLM)
• IP Filter support (IPFLT.NLM)
• IP Tunnel (IPTUNNEL.LAN)
• IP Relay (IPRELAY.LAN)
• XCONSOLE/TELNET support (XCONSOLE.NLM)

The TCP/IP NLM files are installed in the SYS:SYSTEM directory. The Internet database files are installed in the SYS:ETC\SAMPLES directory.

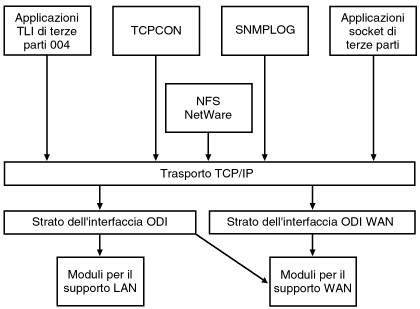

Figure 2-1 illustrates the architectural relationships of the TCP/IP subsystem.

Figure 2-1.
TCP/IP Subsystem
Architectural
Relationships
