2.9 Server Provider

2.9.1 Introduction

The Server provider for JNDI allows for server management and control functionality. The Server Provider has a context that represents a NetWare server. This context allows access to attribute information and provides federation to three name spaces associated with the server: File System, NCPExtensions, and Bindery.

2.9.2 Server Provider Components

The important components (interfaces and classes) of the server provider are the following:

  • NWServer interface represents a NetWare server, allowing you to perform functions on the NetWare server.
  • ServerDirContext Represents a NetWare server with the attriburtes enumerated below(ServerCounts, ServerDescription, ServerDiagnostics, ServerLoginStatus, and ServerVersion). The server has three bindings: File System, NCPExtensions, and Bindery.
  • ServerCounts interface corresponds to a specific attribute of a ServerDirContext. The ID of the attribute is equal to ATTR_ID, and its value is an object that implements this interface.
  • ServerCountsImpl class provides the value of ServerCounts, a ServerDirContext attribute, and is an implementation class for the ServerCounts interface.
  • ServerDescription interface corresponds to a specific attribute of a ServerDirContext. The ID of the attribute is equal to ATTR_ID, and its value is an object that implements this interface.
  • ServerDescriptionImpl class provides the value of ServerDescription, a ServerDirContext attribute, and is an implementation class for the ServerDescription interface.
  • ServerDiagnostics interface corresponds to a specific attribute of a ServerDirContext. The ID of the attribute is equal to ATTR_ID, and its value is an object that implements this interface.
  • ServerDiagnosticsImpl class provides the value of ServerDiagnostic, a ServerDirContext attribute, and is an implementation class for the ServerDiagnostic interface.
  • ServerLoginStatus interface corresponds to a specific attribute of a ServerDirContext. The ID of the attribute is equal to ATTR_ID, and its value is an object that implements this interface.
  • ServerLoginStatusImpl class provides the value of ServerLoginStatus, a ServerDirContext attribute, and is an implementation class for the ServerLoginStatus interface.
  • ServerVersions interface corresponds to a specific attribute of a ServerDirContext. The ID of the attribute is equal to ATTR_ID, and its value is an object that implements this interface.
  • ServerVersionsImpl class provides the value of ServerVersions, a ServerDirContext attribute, and is an implementation class for the ServerVersions interface.

2.9.3 Server Initial Context Implementation

In order to access the Server interfaces and classes you must specify an initial context factory to use or you can access the Server through federation from another name space. Following is an example of how the Server initial context factory implementation might be done:

   Hashtable properties = new Hashtable();

   property.put(Context.INITIAL_CONTEXT_FACTORY,

      "com.novell.service.server.ServerInitialContextFactory");

   property.put(Context.PROVIDER_URL, <server name>);

   DirContext initCtx = new InitialDirContext(properties);

To access a server through federation you might do the following:

   serverDirContext = lookup(<server name>+"/");

For a detailed discussion of initial context implementation see Initial Context Implementations in the Novell Services Introduction.

2.9.4 Important Server Provider Methods

Listed below are some important Server provider methods of which to be aware. For a complete list of available methods, go to the Reference Guide documentation.

  • NWServer.getTime - Returns the time of the NetWare Server.
  • NWServer.setTime - Sets the time of the NetWare Server.
  • NWServer.loadNLM - Loads an NLM on the NetWare Server using the load command parameter for the NLM: {VOLUME NAME:}{PATH}NLMName{.ext}{parameters}.
  • NWServer.unloadNLM - Unloads the specified NLM from the NetWare Server.

2.9.5 Relationship of Server Classes and Interfaces

The relationship between the Server interfaces and classes is illustrated in the diagram below, followed by a brief description of the relationship each interface and class has with other interfaces and classes.

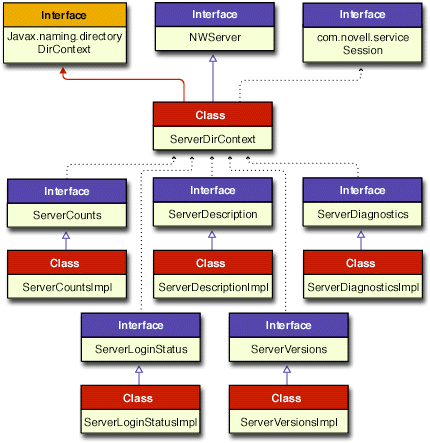

Figure 2-13 Server Interfaces and Classes

In this diagram of interfaces and classes a solid blue line ending with a hollow arrow represents an implementation of an interface. A solid red line ending with a solid arrow represent an extension of a class. The dotted black lines ending with a small solid arrow imply some relationships between the different interfaces and classes. Links are provided to the Reference Guide documentation for each of these important Server interfaces and classes.

  • NWServer is implemented by the ServerDirContext class. NWServer represents a NetWare server on which various functions can be performed.
  • ServerDirContext class implements the NWServer interface and extends the Javasoft DirContext interface indirectly through the ComponenetDirContext class. ServerDirContext has bindings to three name spaces with binding names of File System, Bindery, and NCP Extensions.
  • Session interface provides the current session for the ServerDirContext.
  • ServerCounts interface is implemented by the ServerCountsImpl class, which provides the ServerCounts attribute value.
  • ServerCountsImpl class implements the ServerCounts interface providing it with the attribute value.
  • ServerDescription interface is implemented by the ServerDescriptionImpl class, which provides the ServerDescription attribute value.
  • ServerDescriptionImpl class implements the ServerDescription interface providing it with the attribute value.
  • ServerDiagnostics interface is implemented by the ServerDiagnosticsImpl class, which provides the ServerDiagnostic attribute value.
  • ServerDiagnosticsImpl class implements the ServerDiagnostic interface providing it with the attribute value.
  • ServerLoginStatus interface is implemented by the ServerLoginStatusImpl class, which provides the ServerLoginStatus attribute value.
  • ServerLoginStatusImpl class implements the ServerLoginStatus interface providing it with the attribute value.
  • ServerVersions interface is implemented by the ServerVersionsImpl class, which provides the ServerVersionsI attribute value.
  • ServerVersionsImpl class implements the ServerVersions interface providing it with the attribute value.

Documentation for the methods provided by each of the server attribute classes (ServerCounts, ServerDescription, ServerDiagnostics, ServerLoginStatus and ServerVersions) can be viewed by going to the Server Package of the Reference Guide and opening each of these attribute classes.
