Developing exteNd Director Applications
CHAPTER 26
Project File Locations
A typical exteNd Director project contains a large set of editable subsystem configuration files and application resources. This chapter helps you quickly locate different types of files in your EAR or WAR project.
NOTE: For convenient access, a link to this document is available in the contents pane of the help system.
This chapter has these sections:
![Top of page Top of page](../../../support/totopup.gif)
Related documentation
Understanding project disk structure
This chapter assumes you have a basic familiarity with the exteNd Director product architecture and design patterns.
Understanding project resources
This chapter assumes you have a basic familiarity with the exteNd Director project resources.
For information, see Using the Resource Set in an exteNd Director Application.
Using resource management to locate files

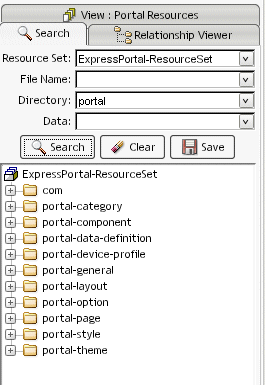

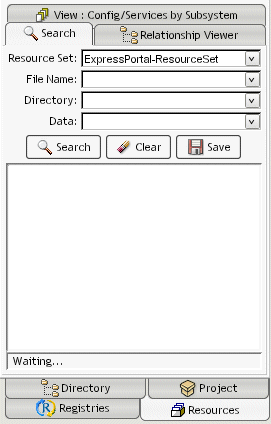

exteNd Director provides a set of tools that can be very useful for locating project files. For information, see:
![Top of page Top of page](../../../support/totopup.gif)
Configuration files
![Top of section Top of section](../../../support/totoph2up.gif)
Content Management subsystem configuration files
Project archive
|
Layout type
|
Location
|
EAR
|
Archive
|
project_name.spf\library\ConfigService.jar\ContentMgmtService-conf\config.xml
|
Source
|
project_name.spf\library\ConfigService\ConfigService.spf\ContentMgmtService-conf\config.xml
|
WAR
|
Archive
|
project_name.spf\WEB_INF\lib\ConfigService.jar/ContentMgmtService-conf\config.xml
|
Source
|
project_name.spf\WEB_INF\lib\ConfigService\ConfigService.spf\ContentMgmtService-conf\config.xml
|
CM task list configuration file
Project archive
|
Layout type
|
Location
|
EAR
|
Archive
|
project_name.spf\library\ConfigService.jar\ContentMgmtService-conf\Default_tasklist.xml
|
Source
|
project_name.spf\library\ConfigService\ConfigService.spf\ContentMgmtService-conf\Default_tasklist.xml
|
WAR
|
Archive
|
project_name.spf\WEB_INF\lib\ConfigService.jar\ContentMgmtService-conf\Default_tasklist.xml
|
Source
|
project_name.spf\WEB_INF\lib\ConfigService\ConfigService.spf\ContentMgmtService-conf\Default_tasklist.xml
|
CM task types configuration file
Project archive
|
Layout type
|
Location
|
EAR
|
Archive
|
project_name.spf\library\ConfigService.jar\ContentMgmtService-conf\tasktypes.xml
|
Source
|
project_name.spf\library\ConfigService\ConfigService.spf\ContentMgmtService-conf\tasktypes.xml
|
WAR
|
Archive
|
project_name.spf\WEB_INF\lib\ConfigService.jar\ContentMgmtService-conf\tasktypes.xml
|
Source
|
project_name.spf\WEB_INF\lib\ConfigService\ConfigService.spf\ContentMgmtService-conf\tasktypes.xml
|
![Top of section Top of section](../../../support/totoph2up.gif)
Directory subsystem configuration file
Project archive
|
Layout type
|
Location
|
EAR
|
Archive
|
project_name.spf\library\ConfigService.jar\DirectoryService-conf\config.xml
|
Source
|
project_name.spf\library\ConfigService\ConfigService.spf\DirectoryService-conf\config.xml
|
WAR
|
Archive
|
project_name.spf\WEB_INF\lib\ConfigService.jar\DirectoryService-conf\config.xml
|
Source
|
project_name.spf\WEB_INF\lib\ConfigService\ConfigService.spf\DirectoryService-conf\config.xml
|
![Top of section Top of section](../../../support/totoph2up.gif)
Framework subsystem configuration file
Project archive
|
Layout type
|
Location
|
EAR
|
Archive
|
project_name.spf\library\ConfigService.jar\FrameworkService-conf\config.xml
|
Source
|
project_name.spf\library\ConfigService\ConfigService.spf\FrameworkService-conf\config.xml
|
WAR
|
Archive
|
project_name.spf\WEB_INF\lib\ConfigService.jar\FrameworkService-conf\config.xml
|
Source
|
project_name.spf\WEB_INF\libConfigService\ConfigService.spf\FrameworkService-conf\config.xml
|
![Top of section Top of section](../../../support/totoph2up.gif)
Novell-portlet configuration file
Project archive
|
Layout type
|
Location
|
EAR
|
Archive
|
project_name.spf\Web_app_name.war\WEB-INF\novell-portlet.xml
|
Source
|
project_name.spf\Web_app_name.spf\WEB-INF\novell-portlet.xml
|
WAR
|
Archive
|
project_name.spf\WEB-INF\novell-portlet.xml
|
Source
|
project_name.spf\WEB-INF\novell-portlet.xml
|
![Top of section Top of section](../../../support/totoph2up.gif)
Portal subsystem configuration file
Project archive
|
Layout type
|
Location
|
EAR
|
Archive
|
project_name.spf\library\ConfigService.jar\PortalService-conf\config.xml
|
Source
|
project_name.spf\library\ConfigService\ConfigService.spf\PortalService-conf\config.xml
|
WAR
|
Archive
|
project_name.spf\WEB_INF\lib\ConfigService.jar\PortalService-conf\config.xml
|
Source
|
project_name.spf\WEB_INF\lib\ConfigService\ConfigService.spf\PortalService-conf\config.xml
|
![Top of section Top of section](../../../support/totoph2up.gif)
Portlet configuration file
Project archive
|
Layout type
|
Location
|
EAR
|
Archive
|
project_name.spf\library\ConfigService.jar\PortletService-conf\config.xml
|
Source
|
project_name.spf\library\ConfigService\ConfigService.spf\PortletService-conf\config.xml
|
WAR
|
Archive
|
project_name.spf\WEB_INF\lib\ConfigService.jar\PortletService-conf\config.xml
|
Source
|
project_name.spf\WEB_INF\lib\ConfigService\ConfigService.spf\PortletService-conf\config.xml
|
![Top of section Top of section](../../../support/totoph2up.gif)
RSS subsystem configuration file
Project Archive
|
Layout Type
|
Location
|
EAR
|
Archive
|
project_name.spf\library\ConfigService.jar\RSSService-conf\config.xml
|
Source
|
project_name.spf\library\ConfigService\ConfigService.spf\RSSService-conf\config.xml
|
WAR
|
Archive
|
project_name.spf\WEB_INF\lib\ConfigService.jar\RSSService-conf\config.xml
|
Source
|
project_name.spf\WEB_INF\lib\ConfigService\ConfigService.spf\RSSService-conf\config.xml
|
![Top of section Top of section](../../../support/totoph2up.gif)
Rule subsystem configuration file
Project Archive
|
Layout Type
|
Location
|
EAR
|
Archive
|
project_name.spf\library\ConfigService.jar\RuleService-conf\config.xml
|
Source
|
project_name.spf\library\ConfigService\ConfigService.spf\RuleService-conf\config.xml
|
WAR
|
Archive
|
project_name.spf\WEB_INF\lib\ConfigService.jar\RuleService-conf\config.xml
|
Source
|
project_name.spf\WEB_INF\lib\ConfigService\ConfigService.spf\RuleService-conf\config.xml
|
![Top of section Top of section](../../../support/totoph2up.gif)
Search subsystem configuration file
Project archive
|
Layout type
|
Location
|
EAR
|
Archive
|
project_name.spf\library\ConfigService.jar\SearchService-conf\config.xml
|
Source
|
project_name.spf\library\ConfigService\ConfigService.spf\SearchService-conf\config.xml
|
WAR
|
Archive
|
project_name.spf\WEB_INF\lib\ConfigService.jar\SearchService-conf\config.xml
|
Source
|
project_name.spf\WEB_INF\lib\ConfigService\ConfigService.spf\SearchService-conf\config.xml
|
![Top of section Top of section](../../../support/totoph2up.gif)
Security subsystem configuration file
Project archive
|
Layout type
|
Location
|
EAR
|
Archive
|
project_name.spf\library\ConfigService.jar\SecurityService-conf\config.xml
|
Source
|
project_name.spf\library\ConfigService\ConfigService.spf\SecurityService-conf\config.xml
|
WAR
|
Archive
|
project_name.spf\WEB_INF\lib\ConfigService.jar\SecurityService-conf\config.xml
|
Source
|
project_name.spf\WEB_INF\lib\ConfigService\ConfigService.spf\SecurityService-conf\config.xml
|
![Top of section Top of section](../../../support/totoph2up.gif)
User subsystem configuration file
Project archive
|
Layout type
|
Location
|
EAR
|
Archive
|
project_name.spf\library\ConfigService.jar\UserService-conf\config.xml
|
Source
|
project_name.spf\library\ConfigService\ConfigService.spf\UserService-conf\config.xml
|
WAR
|
Archive
|
project_name.spf\WEB_INF\lib\ConfigService.jar\UserService-conf\config.xml
|
Source
|
project_name.spf\WEB_INF\lib\ConfigService\ConfigService.spf\UserService-conf\config.xml
|
![Top of section Top of section](../../../support/totoph2up.gif)
WebDAV subsystem configuration file
Project archive
|
Layout type
|
Location
|
EAR
|
Archive
|
project_name.spf\library\ConfigService.jarWebDAVService-conf\config.xml
|
Source
|
project_name.spf\library\ConfigService\ConfigService.spf\WebDAVService-conf\config.xml
|
WAR
|
Archive
|
project_name.spf\WEB_INF\lib\ConfigService.jar\WebDAVService-conf\config.xml
|
Source
|
project_name.spf\WEB_INF\lib\ConfigService\ConfigService.spf\WebDAVService-conf\config.xml
|
![Top of section Top of section](../../../support/totoph2up.gif)
Web tier configuration file
Project archive
|
Layout type
|
Location
|
EAR
|
Archive
|
project_name.spf\Web_app_name.war\WEB-INF\conf\config.xml
|
Source
|
project_name.spf\Web_app_name.spf\WEB-INF\conf\config.xml
|
WAR
|
Archive
|
project_name.spf\WEB-INF\conf\config.xml
|
Source
|
project_name.spf\WEB-INF\conf\config.xml
|
![Top of section Top of section](../../../support/totoph2up.gif)
Workflow subsystem configuration file
Project archive
|
Layout type
|
Location
|
EAR
|
Archive
|
project_name.spf\library\ConfigService.jar\WorkflowService-conf\config.xml
|
Source
|
project_name.spf\library\ConfigService\ConfigService.spf\WorkflowService-conf\config.xml
|
WAR
|
Archive
|
project_name.spf\WEB_INF\lib\ConfigService.jar\WorkflowService-conf\config.xml
|
Source
|
project_name.spf\WEB_INF\lib\ConfigService\ConfigService.spf\WorkflowService-conf\config.xml
|
![Top of page Top of page](../../../support/totopup.gif)
Services files
![Top of section Top of section](../../../support/totoph2up.gif)
Content Management subsystem services file
Project archive
|
Layout type
|
Location
|
EAR
|
Archive
|
project_name.spf\library\ConfigService.jar\ContentMgmtService-conf\services.xml
|
Source
|
project_name.spf\library\ConfigService\ConfigService.spf\ContentMgmtService-conf\services.xml
|
WAR
|
Archive
|
project_name.spf\WEB_INF\lib\ConfigService.jar/ContentMgmtService-conf\services.xml
|
Source
|
project_name.spf\WEB_INF\lib\ConfigService\ConfigService.spf\ContentMgmtService-conf\services.xml
|
![Top of section Top of section](../../../support/totoph2up.gif)
Directory subsystem services file
Project archive
|
Layout type
|
Location
|
EAR
|
Archive
|
project_name.spf\library\ConfigService.jar\DirectoryService-conf\services.xml
|
Source
|
project_name.spf\library\ConfigService\ConfigService.spf\DirectoryService-conf\services.xml
|
WAR
|
Archive
|
project_name.spf\WEB_INF\lib\ConfigService.jar\DirectoryService-conf\services.xml
|
Source
|
project_name.spf\WEB_INF\lib\ConfigService\ConfigService.spf\DirectoryService-conf\services.xml
|
![Top of section Top of section](../../../support/totoph2up.gif)
Framework subsystem services file
Project archive
|
Layout type
|
Location
|
EAR
|
Archive
|
project_name.spf\library\ConfigService.jar\FrameworkService-conf\services.xml
|
Source
|
project_name.spf\library\ConfigService\ConfigService.spf\FrameworkService-conf\services.xml
|
WAR
|
Archive
|
project_name.spf\WEB_INF\lib\ConfigService.jar\FrameworkService-conf\services.xml
|
Source
|
project_name.spf\WEB_INF\libConfigService\ConfigService.spf\FrameworkService-conf\services.xml
|
![Top of section Top of section](../../../support/totoph2up.gif)
Portal subsystem services file
Project archive
|
Layout type
|
Location
|
EAR
|
Archive
|
project_name.spf\library\ConfigService.jar\PortalService-conf\services.xml
|
Source
|
project_name.spf\library\ConfigService\ConfigService.spf\PortalService-conf\services.xml
|
WAR
|
Archive
|
project_name.spf\WEB_INF\lib\ConfigService.jar\PortalService-conf\services.xml
|
Source
|
project_name.spf\WEB_INF\lib\ConfigService\ConfigService.spf\PortalService-conf\services.xml
|
![Top of section Top of section](../../../support/totoph2up.gif)
Portlet services file
Project archive
|
Layout type
|
Location
|
EAR
|
Archive
|
project_name.spf\library\ConfigService.jar\PortletService-conf\services.xml
|
Source
|
project_name.spf\library\ConfigService\ConfigService.spf\PortletService-conf\services.xml
|
WAR
|
Archive
|
project_name.spf\WEB_INF\lib\ConfigService.jar\PortletService-conf\services.xml
|
Source
|
project_name.spf\WEB_INF\lib\ConfigService\ConfigService.spf\PortletService-conf\services.xml
|
![Top of section Top of section](../../../support/totoph2up.gif)
Resource set configuration file
Project archive
|
Layout type
|
Location
|
EAR
|
Archive
|
project_name.spf\Web_app_name.war\WEB-INF\conf\resourceset.xml
|
Source
|
project_name.spf\Web_app_name.spf\WEB-INF\conf\resourceset.xml
|
WAR
|
Archive
|
project_name.spf\WEB-INF\conf\resourceset.xml
|
Source
|
project_name.spf\WEB-INF\conf\resourceset.xml
|
![Top of section Top of section](../../../support/totoph2up.gif)
RSS subsystem services file
Project archive
|
Layout type
|
Location
|
EAR
|
Archive
|
project_name.spf\library\ConfigService.jar\RSSService-conf\services.xml
|
Source
|
project_name.spf\library\ConfigService\ConfigService.spf\RSSService-conf\services.xml
|
WAR
|
Archive
|
project_name.spf\WEB_INF\lib\ConfigService.jar\RSSService-conf\services.xml
|
Source
|
project_name.spf\WEB_INF\lib\ConfigService\ConfigService.spf\RSSService-conf\services.xml
|
![Top of section Top of section](../../../support/totoph2up.gif)
Rule subsystem services file
Project archive
|
Layout type
|
Location
|
EAR
|
Archive
|
project_name.spf\library\ConfigService.jar\RuleService-conf\services.xml
|
Source
|
project_name.spf\library\ConfigService\ConfigService.spf\RuleService-conf\services.xml
|
WAR
|
Archive
|
project_name.spf\WEB_INF\lib\ConfigService.jar\RuleService-conf\services.xml
|
Source
|
project_name.spf\WEB_INF\lib\ConfigService\ConfigService.spf\RuleService-conf\services.xml
|
![Top of section Top of section](../../../support/totoph2up.gif)
Search subsystem services file
Project archive
|
Layout type
|
Location
|
EAR
|
Archive
|
project_name.spf\library\ConfigService.jar\SearchService-conf\services.xml
|
Source
|
project_name.spf\library\ConfigService\ConfigService.spf\SearchService-conf\services.xml
|
WAR
|
Archive
|
project_name.spf\WEB_INF\lib\ConfigService.jar\SearchService-conf\services.xml
|
Source
|
project_name.spf\WEB_INF\lib\ConfigService\ConfigService.spf\SearchService-conf\services.xml
|
![Top of section Top of section](../../../support/totoph2up.gif)
Security subsystem services file
Project archive
|
Layout type
|
Location
|
EAR
|
Archive
|
project_name.spf\library\ConfigService.jar\SecurityService-conf\services.xml
|
Source
|
project_name.spf\library\ConfigService\ConfigService.spf\SecurityService-conf\services.xml
|
WAR
|
Archive
|
project_name.spf\WEB_INF\lib\ConfigService.jar\SecurityService-conf\services.xml
|
Source
|
project_name.spf\WEB_INF\lib\ConfigService\ConfigService.spf\SecurityService-conf\services.xml
|
![Top of section Top of section](../../../support/totoph2up.gif)
User subsystem services file
Project archive
|
Layout type
|
Location
|
EAR
|
Archive
|
project_name.spf\library\ConfigService.jar\UserService-conf\services.xml
|
Source
|
project_name.spf\library\ConfigService\ConfigService.spf\UserService-conf\services.xml
|
WAR
|
Archive
|
project_name.spf\WEB_INF\lib\ConfigService.jar\UserService-conf\services.xml
|
Source
|
project_name.spf\WEB_INF\lib\ConfigService\ConfigService.spf\UserService-conf\services.xml
|
![Top of section Top of section](../../../support/totoph2up.gif)
Web tier services file
Project archive
|
Layout type
|
Location
|
EAR
|
Archive
|
project_name.spf\Web_app_name.war\WEB-INF\conf\services.xml
|
Source
|
project_name.spf\Web_app_name.spf\WEB-INF\conf\services.xml
|
WAR
|
Archive
|
project_name.spf\WEB-INF\conf\services.xml
|
Source
|
project_name.spf\WEB-INF\conf\services.xml
|
![Top of section Top of section](../../../support/totoph2up.gif)
Workflow subsystem services file
Project archive
|
Layout type
|
Location
|
EAR
|
Archive
|
project_name.spf\library\ConfigService.jar\WorkflowService-conf\services.xml
|
Source
|
project_name.spf\library\ConfigService\ConfigService.spf\WorkflowService-conf\services.xml
|
WAR
|
Archive
|
project_name.spf\WEB_INF\lib\ConfigService.jar\WorkflowService-conf\services.xml
|
Source
|
project_name.spf\WEB_INF\lib\ConfigService\ConfigService.spf\WorkflowService-conf\services.xml
|
![Top of page Top of page](../../../support/totopup.gif)
Resource set descriptors
![Top of section Top of section](../../../support/totoph2up.gif)
Framework database descriptor
Project archive
|
Layout type
|
Location
|
EAR
|
Archive
|
project_name.spf\Web_app_name.war\WEB-INF\lib\Web_app_name_resource.jar\framework-database\mydbdescriptor.xml
|
Source
|
project_name.spf\Web_app_name\Web_app_name.spf\Web_app_name-resource.spf\data\framework-database\mydbdescriptor.xml
|
WAR
|
Archive
|
Web_app_name.spf\WEB-INF\lib\Web_app_name_resource.jar\framework-database\mydbdescriptor.xml
|
Source
|
Web_app_name.spf\Web_app_name-resource.spf\data\framework-database\mydbdescriptor.xml
|
![Top of section Top of section](../../../support/totoph2up.gif)
Views descriptor
Project archive
|
Layout type
|
Location
|
EAR
|
Archive
|
project_name.spf\Web_app_name.war\WEB-INF\lib\Web_app_name_resource.jar\my-views\myview.xml
|
Source
|
project_name.spf\Web_app_name\Web_app_name.spf\Web_app_name-resource.spf\data\my-views\myview.xml
|
WAR
|
Archive
|
Web_app_name.spf\WEB-INF\lib\Web_app_name_resource.jar\my-views\myview.xml
|
Source
|
Web_app_name.spf\Web_app_name-resource.spf\data\my-views\myview.xml
|
![Top of section Top of section](../../../support/totoph2up.gif)
Portal category descriptor
Project archive
|
Layout type
|
Location
|
EAR
|
Archive
|
project_name.spf\Web_app_name.war\WEB-INF\lib\Web_app_name_resource.jar\portal-category\myportalcategory.xml
|
Source
|
project_name.spf\Web_app_name\Web_app_name.spf\Web_app_name-resource.spf\data\portal-category\myportalcategory.xml
|
WAR
|
Archive
|
Web_app_name.spf\WEB-INF\lib\Web_app_name_resource.jar\portal-category\myportalcategory.xml
|
Source
|
Web_app_name.spf\Web_app_name-resource.spf\data\portal-category\myportalcategory.xml
|
![Top of section Top of section](../../../support/totoph2up.gif)
Portal component descriptor
Project archive
|
Layout type
|
Location
|
EAR
|
Archive
|
project_name.spf\Web_app_name.war\WEB-INF\lib\Web_app_name_resource.jar\portal-component\myportalcomponent.xml
|
Source
|
project_name.spf\Web_app_name\Web_app_name.spf\Web_app_name-resource.spf\data\portal-component\myportalcomponent.xml
|
WAR
|
Archive
|
Web_app_name.spf\WEB-INF\lib\Web_app_name_resource.jar\portal-component\myportalcomponent.xml
|
Source
|
Web_app_name.spf\Web_app_name-resource.spf\data\portal-component\myportalcomponent.xml
|
![Top of section Top of section](../../../support/totoph2up.gif)
Portal data definition descriptor
Project archive
|
Layout type
|
Location
|
EAR
|
Archive
|
project_name.spf\Web_app_name.war\WEB-INF\lib\Web_app_name_resource.jar\portal-data-definition\mydatadefinition.xml
|
Source
|
project_name.spf\Web_app_name\Web_app_name.spf\Web_app_name-resource.spf\data\portal-component\mydatadefinition.xml
|
WAR
|
Archive
|
Web_app_name.spf\WEB-INF\lib\Web_app_name_resource.jar\portal-component\mydatadefinition.xml
|
Source
|
Web_app_name.spf\Web_app_name-resource.spf\data\portal-component\mydatadefinition.xml
|
![Top of section Top of section](../../../support/totoph2up.gif)
Portal device profile descriptor
Project archive
|
Layout type
|
Location
|
EAR
|
Archive
|
project_name.spf\Web_app_name.war\WEB-INF\lib\Web_app_name_resource.jar\portal-device-profile\mydeviceprofile.xml
|
Source
|
project_name.spf\Web_app_name\Web_app_name.spf\Web_app_name-resource.spf\data\portal-device-profile\mydeviceprofile.xml
|
WAR
|
Archive
|
Web_app_name.spf\WEB-INF\lib\Web_app_name_resource.jar\portal-device-profile\mydeviceprofile.xml
|
Source
|
Web_app_name.spf\Web_app_name-resource.spf\data\portal-device-profile\mydeviceprofile.xml
|
![Top of section Top of section](../../../support/totoph2up.gif)
Portal Layout descriptor
Project archive
|
Layout type
|
Location
|
EAR
|
Archive
|
project_name.spf\Web_app_name.war\WEB-INF\lib\Web_app_name_resource.jar\portal-layout \mylayout.xml
|
Source
|
project_name.spf\Web_app_name\Web_app_name.spf\Web_app_name-resource.spf\data\portal-layout\mylayout.xml
|
WAR
|
Archive
|
Web_app_name.spf\WEB-INF\lib\Web_app_name_resource.jar\portal-layout\mylayout.xml
|
Source
|
Web_app_name.spf\Web_app_name-resource.spf\data\portal-layout\mylayout.xml
|
![Top of section Top of section](../../../support/totoph2up.gif)
Portal option descriptor
Project archive
|
Layout type
|
Location
|
EAR
|
Archive
|
project_name.spf\Web_app_name.war\WEB-INF\lib\Web_app_name_resource.jar\portal-option\myportaloption.xml
|
Source
|
project_name.spf\Web_app_name\Web_app_name.spf\Web_app_name-resource.spf\data\portal-option\myportaloption.xml
|
WAR
|
Archive
|
Web_app_name.spf\WEB-INF\lib\Web_app_name_resource.jar\portal-option\myportaloption.xml
|
Source
|
Web_app_name.spf\Web_app_name-resource.spf\data\portal-option\myportaloption.xml
|
![Top of section Top of section](../../../support/totoph2up.gif)
Portal page descriptor
Project archive
|
Layout type
|
Location
|
EAR
|
Archive
|
project_name.spf\Web_app_name.war\WEB-INF\lib\Web_app_name_resource.jar\portal-page\myportalpage.xml
|
Source
|
project_name.spf\Web_app_name\Web_app_name.spf\Web_app_name-resource.spf\data\portal-page\myportalpage.xml
|
WAR
|
Archive
|
Web_app_name.spf\WEB-INF\lib\Web_app_name_resource.jar\portal-page\myportalpage.xml
|
Source
|
Web_app_name.spf\Web_app_name-resource.spf\data\portal-page\myportalpage.xml
|
![Top of section Top of section](../../../support/totoph2up.gif)
Portal portlet descriptor
Project archive
|
Layout type
|
Location
|
EAR
|
Archive
|
project_name.spf\Web_app_name.war\WEB-INF\lib\Web_app_name_resource.jar\portal-portlet\myportalpage.xml
|
Source
|
project_name.spf\Web_app_name\Web_app_name.spf\Web_app_name-resource.spf\data\portal-portlet\myportalpage.xml
|
WAR
|
Archive
|
Web_app_name.spf\WEB-INF\lib\Web_app_name_resource.jar\portal-portlet\myportalpage.xml
|
Source
|
Web_app_name.spf\Web_app_name-resource.spf\data\portal-portlet\myportalpage.xml
|
![Top of section Top of section](../../../support/totoph2up.gif)
Portal style descriptor
Project archive
|
Layout type
|
Location
|
EAR
|
Archive
|
project_name.spf\Web_app_name.war\WEB-INF\lib\Web_app_name_resource.jar\portal-style\myportalstyle.xml
|
Source
|
project_name.spf\Web_app_name\Web_app_name.spf\Web_app_name-resource.spf\data\portal-style\myportalstyle.xml
|
WAR
|
Archive
|
Web_app_name.spf\WEB-INF\lib\Web_app_name_resource.jar\portal-style\myportalstyle.xml
|
Source
|
Web_app_name.spf\Web_app_name-resource.spf\data\portal-style\myportalstyle.xml
|
![Top of section Top of section](../../../support/totoph2up.gif)
Portal theme descriptor
Project archive
|
Layout type
|
Location
|
EAR
|
Archive
|
project_name.spf\Web_app_name.war\WEB-INF\lib\Web_app_name_resource.jar\portal-theme\myportaltheme.xml
|
Source
|
project_name.spf\Web_app_name\Web_app_name.spf\Web_app_name-resource.spf\data\portal-theme\myportaltheme.xml
|
WAR
|
Archive
|
Web_app_name.spf\WEB-INF\lib\Web_app_name_resource.jar\portal-theme\myportaltheme.xml
|
Source
|
Web_app_name.spf\Web_app_name-resource.spf\data\portal-theme\myportaltheme.xml
|
![Top of section Top of section](../../../support/totoph2up.gif)
Rule descriptor
Project archive
|
Layout type
|
Location
|
EAR
|
Archive
|
project_name.spf\Web_app_name.war\WEB-INF\lib\Web_app_name_resource.jar\rule\myrule.xml
|
Source
|
project_name.spf\Web_app_name\Web_app_name.spf\Web_app_name-resource.spf\data\rule\myrule.xml
|
WAR
|
Archive
|
Web_app_name.spf\WEB-INF\lib\Web_app_name_resource.jar\rule\myrule.xml
|
Source
|
Web_app_name.spf\Web_app_name-resource.spf\data\rule\myrule.xml
|
![Top of section Top of section](../../../support/totoph2up.gif)
Rule action macro descriptor
Project archive
|
Layout type
|
Location
|
EAR
|
Archive
|
project_name.spf\Web_app_name.war\WEB-INF\lib\Web_app_name_resource.jar\rule-action-macro\myactionmacro.xml
|
Source
|
project_name.spf\Web_app_name\Web_app_name.spf\Web_app_name-resource.spf\data\rule-action-macro\myactionmacro.xml
|
WAR
|
Archive
|
Web_app_name.spf\WEB-INF\lib\Web_app_name_resource.jar\rule-action-macro\myactionmacro.xml
|
Source
|
Web_app_name.spf\Web_app_name-resource.spf\data\rule-action-macro\myactionmacro.xml
|
![Top of section Top of section](../../../support/totoph2up.gif)
Rule condition macro descriptor
Project archive
|
Layout type
|
Location
|
EAR
|
Archive
|
project_name.spf\Web_app_name.war\WEB-INF\lib\Web_app_name_resource.jar\rule-condition-macro\myconditionmacro.xml
|
Source
|
project_name.spf\Web_app_name\Web_app_name.spf\Web_app_name-resource.spf\data\rule-condition-macro\myconditionmacro.xml
|
WAR
|
Archive
|
Web_app_name.spf\WEB-INF\lib\Web_app_name_resource.jar\rule-condition-macro\myconditionmacro.xml
|
Source
|
Web_app_name.spf\Web_app_name-resource.spf\data\rule-condition-macro\myconditionmacro.xml
|
![Top of section Top of section](../../../support/totoph2up.gif)
Rule group binding descriptor
Project archive
|
Layout type
|
Location
|
EAR
|
Archive
|
project_name.spf\Web_app_name.war\WEB-INF\lib\Web_app_name_resource.jar\rule-group-binding\mygroupbinding.xml
|
Source
|
project_name.spf\Web_app_name\Web_app_name.spf\Web_app_name-resource.spf\data\rule-group-binding\mygroupbinding.xml
|
WAR
|
Archive
|
Web_app_name.spf\WEB-INF\lib\Web_app_name_resource.jar\rule-group-binding\mygroupbinding.xml
|
Source
|
Web_app_name.spf\Web_app_name-resource.spf\data\rule-group-binding\mygroupbinding.xml
|
![Top of section Top of section](../../../support/totoph2up.gif)
Rule pipeline descriptor
Project archive
|
Layout type
|
Location
|
EAR
|
Archive
|
project_name.spf\Web_app_name.war\WEB-INF\lib\Web_app_name_resource.jar\rule-pipeline\mypipeline.xml
|
Source
|
project_name.spf\Web_app_name\Web_app_name.spf\Web_app_name-resource.spf\data\rule-pipeline\mypipeline.xml
|
WAR
|
Archive
|
Web_app_name.spf\WEB-INF\lib\Web_app_name_resource.jar\rule-pipeline\mypipeline.xml
|
Source
|
Web_app_name.spf\Web_app_name-resource.spf\data\rule-pipeline\mypipeline.xml
|
![Top of section Top of section](../../../support/totoph2up.gif)
Rule pipeline binding descriptor
Project archive
|
Layout type
|
Location
|
EAR
|
Archive
|
project_name.spf\Web_app_name.war\WEB-INF\lib\Web_app_name_resource.jar\rule-pipeline-binding\mypipelinebinding.xml
|
Source
|
project_name.spf\Web_app_name\Web_app_name.spf\Web_app_name-resource.spf\data\rule-pipeline-binding\mypipelinebinding.xml
|
WAR
|
Archive
|
Web_app_name.spf\WEB-INF\lib\Web_app_name_resource.jar\rule-pipeline-binding\mypipelinebinding.xml
|
Source
|
Web_app_name.spf\Web_app_name-resource.spf\data\rule-pipeline-binding\mypipelinebinding.xml
|
![Top of section Top of section](../../../support/totoph2up.gif)
Rule user binding descriptor
Project archive
|
Layout type
|
Location
|
EAR
|
Archive
|
project_name.spf\Web_app_name.war\WEB-INF\lib\Web_app_name_resource.jar\rule-user-binding\myuserbinding.xml
|
Source
|
project_name.spf\Web_app_name\Web_app_name.spf\Web_app_name-resource.spf\data\rule-pipeline-binding\myuserbinding.xml
|
WAR
|
Archive
|
Web_app_name.spf\WEB-INF\lib\Web_app_name_resource.jar\rule-pipeline-binding\myuserbinding.xml
|
Source
|
Web_app_name.spf\Web_app_name-resource.spf\data\rule-pipeline-binding\myuserbinding.xml
|
![Top of section Top of section](../../../support/totoph2up.gif)
Security role descriptor
Project archive
|
Layout type
|
Location
|
EAR
|
Archive
|
project_name.spf\Web_app_name.war\WEB-INF\lib\Web_app_name_resource.jar\security-role\mysecurityrole.xml
|
Source
|
project_name.spf\Web_app_name\Web_app_name.spf\Web_app_name-resource.spf\data\security-role\mysecurityrole.xml
|
WAR
|
Archive
|
Web_app_name.spf\WEB-INF\lib\Web_app_name_resource.jar\security-role\mysecurityrole.xml
|
Source
|
Web_app_name.spf\Web_app_name-resource.spf\data\security-role\mysecurityrole.xml
|
![Top of section Top of section](../../../support/totoph2up.gif)
Workflow activity policy descriptor
Project archive
|
Layout type
|
Location
|
EAR
|
Archive
|
project_name.spf\Web_app_name.war\WEB-INF\lib\Web_app_name_resource.jar\workflow-activity-policy\activity-policy.xml
|
Source
|
project_name.spf\Web_app_name\Web_app_name.spf\Web_app_name-resource.spf\data\workflow-activity-policy\activity-policy.xml
|
WAR
|
Archive
|
Web_app_name.spf\WEB-INF\lib\Web_app_name_resource.jar\workflow-activity-policy\activity-policy.xml
|
Source
|
Web_app_name.spf\Web_app_name-resource.spf\data\workflow-activity-policy\activity-policy.xml
|
![Top of section Top of section](../../../support/totoph2up.gif)
Workflow process descriptor
Project archive
|
Layout type
|
Location
|
EAR
|
Archive
|
project_name.spf\Web_app_name.war\WEB-INF\lib\Web_app_name_resource.jar\workflow-process\myworkflowprocess.xml
|
Source
|
project_name.spf\Web_app_name\Web_app_name.spf\Web_app_name-resource.spf\data\workflow-process\myworkflowprocess.xml
|
WAR
|
Archive
|
Web_app_name.spf\WEB-INF\lib\Web_app_name_resource.jar\workflow-process\myworkflowprocess.xml
|
Source
|
Web_app_name.spf\Web_app_name-resource.spf\data\workflow-process\myworkflowprocess.xml
|
![Top of page Top of page](../../../support/totopup.gif)
Document Type Definitions (DTDs)
NOTE: The subsystem JARs containing the DTDs include examples that follow the DTDs. These examples are not listed in the table descriptions.
![Top of section Top of section](../../../support/totoph2up.gif)
Content Management DTDs
Project archive
|
Layout type
|
Location
|
EAR
|
Archive
|
project_name.spf\library\ContentMgmtService.jar\DTD\descriptor_name.dtd
|
Source
|
project_name.spf\library\ContentMgmtService\ContentMgmtService.spf\DTD\descriptor_name.dtd
|
WAR
|
Archive
|
project_name.spf\WEB_INF\lib\ContentMgmtService.jar\DTD\descriptor_name.dtd
|
Source
|
project_name.spf\WEB_INF\lib\ContentMgmtService\ContentMgmtService.spf\DTD\descriptor_name.dtd
|
![Top of section Top of section](../../../support/totoph2up.gif)
Framework DTDs
Project archive
|
Layout type
|
Location
|
EAR
|
Archive
|
project_name.spf\library\FrameworkService.jar\DTD\descriptor_name.dtd
|
Source
|
project_name.spf\library\FrameworkService\FrameworkService.spf\DTD\descriptor_name.dtd
|
WAR
|
Archive
|
project_name.spf\WEB_INF\lib\FrameworkService.jar\DTD\descriptor_name.dtd
|
Source
|
project_name.spf\WEB_INF\lib\FrameworkService\FrameworkService.spf\DTD\descriptor_name.dtd
|
![Top of section Top of section](../../../support/totoph2up.gif)
Portal DTDs
Project archive
|
Layout type
|
Location
|
EAR
|
Archive
|
project_name.spf\library\PortalService.jar\DTD\descriptor_name.dtd
|
Source
|
project_name.spf\library\PortalService\PortalService.spf\DTD\descriptor_name.dtd
|
WAR
|
Archive
|
project_name.spf\WEB_INF\lib\PortalService.jar\DTD\descriptor_name.dtd
|
Source
|
project_name.spf\WEB_INF\lib\PortalService\PortalService.spf\DTD\descriptor_name.dtd
|
![Top of section Top of section](../../../support/totoph2up.gif)
Rule DTDs
Project archive
|
Layout type
|
Location
|
EAR
|
Archive
|
project_name.spf\library\RuleService.jar\DTD\descriptor_name.dtd
|
Source
|
project_name.spf\library\RuleService\RuleService.spf\DTD\descriptor_name.dtd
|
WAR
|
Archive
|
project_name.spf\WEB_INF\lib\RuleService.jar\DTD\descriptor_name.dtd
|
Source
|
project_name.spf\WEB_INF\lib\RuleService\RuleService.spf\DTD\descriptor_name.dtd
|
![Top of section Top of section](../../../support/totoph2up.gif)
Security DTDs
Project archive
|
Layout type
|
Location
|
EAR
|
Archive
|
project_name.spf\library\SecurityService.jar\DTD\descriptor_name.dtd
|
Source
|
project_name.spf\library\SecurityService\SecurityService.spf\DTD\descriptor_name.dtd
|
WAR
|
Archive
|
project_name.spf\WEB_INF\lib\SecurityService.jar\DTD\descriptor_name.dtd
|
Source
|
project_name.spf\WEB_INF\lib\SecurityService\SecurityService.spf\DTD\descriptor_name.dtd
|
![Top of section Top of section](../../../support/totoph2up.gif)
Workflow DTDs
Project archive
|
Layout type
|
Location
|
EAR
|
Archive
|
project_name.spf\library\WorkflowService.jar\DTD\descriptor_name.dtd
|
Source
|
project_name.spf\library\WorkflowService\WorkflowService.spf\DTD\descriptor_name.dtd
|
WAR
|
Archive
|
project_name.spf\WEB_INF\lib\WorkflowService.jar\DTD\descriptor_name.dtd
|
Source
|
project_name.spf\WEB_INF\lib\WorkflowService\WorkflowService.spf\DTD\descriptor_name.dtd
|
![Top of page Top of page](../../../support/totopup.gif)
Portal application resources
This section describes how to locate portal resources by searching your exteNd Director project resource set.
To locate a portal resource:
In the exteNd Director development environment Navigation Pane, click the Resources tab.
Click the Search tab.
The Search tab displays a panel for specifying searches:
![Search1](CDImages/Search1.gif)
In the Directory field, enter portal and click Search.
This displays the directories containing portal resourcesfor example:
![SearchPortal](CDImages/SearchPortal.gif)
Select the appropriate directory:
Portal resource directory
|
Contents
|
portal-category
|
Portal category descriptors (xml)
|
portal-component
|
Portal component descriptors (xml)
|
portal-data-definition
|
Transcoding definition for Phonelist portlet (xml)
|
portal-device-profile
|
Device profile descriptors for supported wireless devices (xml)
|
portal-general
|
Various portal artifacts such as image files and Java script.
|
portal-layout
|
Portal layout definitions and layout descriptors (xml)
|
portal-option
|
Portal option descriptors (xml)
|
portal-page
|
Portal PID pages (html and xhtml)
|
portal-portlet
|
Portlet descriptors (xml)
|
portal-style
|
Portal style sheets (xsl and xml)
|
portal-theme
|
Style sheets and descriptors for each portal theme (css and xml).
|
TIP: To create a writable version of a resource, select it, right-click, and choose
Save as.
Copyright © 2003 Novell, Inc. All rights reserved. Copyright © 1997, 1998, 1999, 2000, 2001, 2002, 2003 SilverStream Software, LLC. All rights reserved. more ...
