Application Techniques

Providing Data to JTables in External Java Clients

How to code an external Java client (outside of the SilverStream development environment) that accesses the SilverStream Server to populate a JTable with rows of data.

About this technique



Java Client Techniques> External Java clients


You'll learn about:

Source code

You can get the source code for this technique from:

Related reading

See the chapter on writing external Java clients in the Programmer's Guide

Setting up   Top of page

For this technique, you need:

Coding the client   Top of page

Here's a class that provides a basic implementation of this technique.

  package extjtech;
  import java.awt.*;
  import java.awt.event.*;
  import javax.swing.*;
  import javax.swing.table.JTableHeader;
  import com.sssw.rt.util.*;
  // The ExtJTable class shows how you can access a SilverStream
  // server from an external Java client. It includes an example
  // of populating a JTable with data from a SilverStream server
  // object.
  public class ExtJTable {
       // Instance variables for the ExtJTable class.
       JTable table;
       JTableHeader thead;
       JScrollPane scrollpane;
       JFrame frame;
       // These instance variables are for the SilverStream
       // objects used by the ExtJTable class.
       AgrServerSession session;
       AgrData appdata;
       AgoRowCursorTableModel agmodel;
    // Constructor for the ExtJTable class. It does the following:
    // * Connects to a SilverStream server
    // * Accesses the appropriate data
    // * Loads the data into a JTable
    // * Displays the JTable in a window (JFrame)
    // It takes 3 arguments:
    // 1 SilverStream server host
    //     myserver
    // 2 SilverStream db & data source object
    // 3 Application title
    //     My Application Title
    public ExtJTable(String s3serverhost,
                     String s3dsolocation,
                     String apptitle) {
      try  {
        // Initialize the SilverStream runtime environment. Do
        // this if you need to specify a login handler for the
        // SilverStream server to call back when it requires user
        // authentication. (The login handler is a class that you
        // code and instantiate.)
        AgRuntime.init(new LoginHandlerDlg());
        // Connect to the appropriate SilverStream server. This
        // establishes a server session (represented by an instance
        // of AgrServerSession).
        // The following example connects via HTTP. In this case,
        // you wouldn't use RMI-IIOP (the connectRMI method),
        // because it doesn't support DSO access.
        session = AgRuntime.connect(s3serverhost);
        // Create an instance of AgrData (to represent the cache of
        // data you want to work with).
        appdata = new AgrData();
        // Initialize the AgrData by passing it the AgrServerSession.
        // Specify the data source for the AgrData. In this case,
        // it is a pass-through DSO.
        // Invoke the DSO to get the data for the AgrData.
        // Create a model that a JTable can use to access the
        // data in the AgrData. You can do this with an instance
        // of AgoRowCursorTableModel.
        agmodel = new AgoRowCursorTableModel(appdata);
        // Create a JTable instance and bind it to that model.
        table = new JTable(agmodel);
        // Format the JTable.
        table.setIntercellSpacing(new Dimension(8, 8));
        thead = table.getTableHeader();
        thead.setFont(new Font("Sans Serif", Font.BOLD, 14));
        table.setFont(new Font("Sans Serif", Font.PLAIN, 11));
        table.setPreferredScrollableViewportSize(new Dimension(500, 300));
        // Create a scroll pane and add the JTable to it.
        scrollpane = new JScrollPane(table);
        // Create a JFrame instance for the application's window.
        frame = new JFrame(apptitle);
        // Add the scroll pane to the frame.
        frame.getContentPane().add(scrollpane, BorderLayout.CENTER);
        // Add an event handler to close the SilverStream server
        // session when a user closes the window.
        frame.addWindowListener(new WindowAdapter() {
          public void windowClosing(WindowEvent e) {
        // Finish setting up the frame, then show it.
      catch (Exception e) {
        System.out.println("Application error in ExtJTable");
    // Main method (used for application startup).
    public static void main(String[] args) {
      if (args.length < 3) {
        // Make sure all of the required command-line args
        // have been provided to the application. If not,
        // display an error message and terminate.
        JFrame errframe = new JFrame();
          "Required arguments:\n\n" +
            "1  SilverStream server host\n" +
            "2  SilverStream db & data source object\n" +
            "3  Application title\n\n" +
          "Example:\n\n" + "java extjtech.ExtJTable " +
            "myserver " +
            " " +
            "\"My Application Title\"",
          "Missing Command-Line Arguments",
      else {
        // Get the command-line args so the application can
        // pass them to the ExtJTable constructor.
        String s3serverhost = args[0];
        String s3dsolocation = args[1];
        String apptitle = args[2];
        // Create an instance of ExtJTable. This executes the
        // constructor for the class, which then accesses the
        // SilverStream server and displays the result.
        ExtJTable extjtable = new ExtJTable(s3serverhost,

Running the client   Top of page

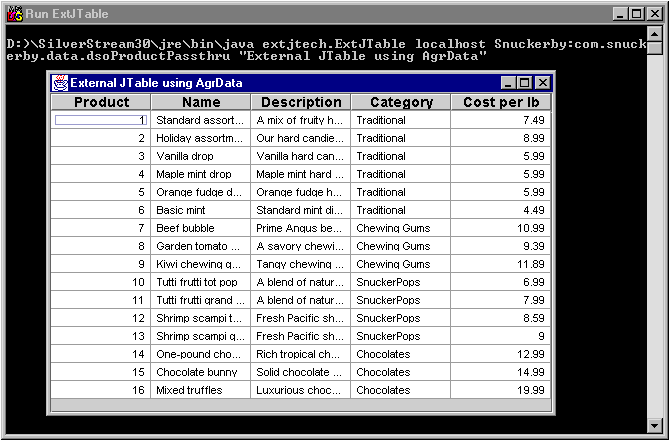

When this class runs, it retrieves rows of data from the DSO, then populates the JTable with them.
