Application Techniques



Swing Sampler: Using an Assortment of Swing Controls

Illustrates the use of several dynamically created Swing controls, including AgcJTable, JToolbar, JSplitPane, JEditorPane, and JScrollPane.

About this technique

Details

Category

Java Client Techniques> Version 3 Swing-based controls

Description

You'll learn about:

You can run this technique code from:

NOTE   First make sure that database is running on your localhost SilverStream Server

Related reading

See the techniques Using the JTable Control and Implementing a Nested Layout in the Application Techniques

In frmSwingSampler, a pane with a splitter bar contains a table and an editor pane. A toolbar lets the user change the settings of the split pane. These controls are arranged and added to the form in the addControls() method, which overrides AgfForm's addControls().

The JSplitPane control contains two panes that display a data-loaded AgcJTable and a JEditorPane. The JSplitPane has a divider, which the user can drag to control the sizes of the panes. A one-touch expander icon on the divider moves the divider to one edge or the other without dragging. Both the AgcJTable and the JEditorPane have a JScrollPane to handle scrolling.

The JToolbar control has toggle buttons that affect the split pane and its controls. The user can open a file in the editor pane, specify whether the controls are continuously adjusted as the user drags the divider, disable or enable the one-touch expander, and tile the panes horizontally or vertically.

Creating the controls    Top of page

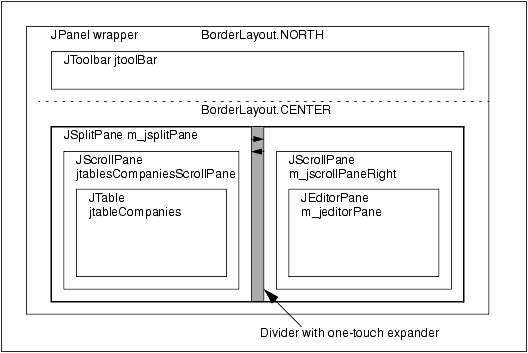

The diagram illustrates how the Swing components are nested. Scroll panes are placed in each part of the split pane, and the AgcJTable and JEditorPane are in the scroll panes. A JPanel is the container for all the components. It uses BorderLayout with the toolbar in the north section and the split pane in the center.

Creating the split pane and its contents   Top of page

This code in addControls() creates the JPanel and a scroll pane for the editor pane.

  JPanel wrapper = new JPanel ();
  wrapper.setLayout(new BorderLayout());

  // add the ScrollPane to the JEditorPane
  m_jscrollPaneRight = new JScrollPane (m_jeditorPane);

  // Create the SplitPane, with its two controls
  m_jSplitPane = new JSplitPane(JSplitPane.HORIZONTAL_SPLIT,
           jtableCompaniesScrollPane,
           m_jscrollPaneRight);

  // Add the m_jSplitPane to the wrapper panel in the Center
  wrapper.add(m_jSplitPane, BorderLayout.CENTER);

Notes on the code

Creating the toolbar   Top of page

You build up a toolbar by adding separators and buttons in the order you want them to appear. The toggle buttons have already been defined in the Designer.

This code in the addControls() method creates the toolbar and adds the first separator.

  // Create a toolbar
  JToolBar jtoolBar = new JToolBar ();

  // Add a beginning separator
  jtoolBar.addSeparator(m_bigSeparator);

Notes on the code

Getting a button image   Top of page

This code gets a button image from the image store in the current database.

  // Set up variables to help find the images for the buttons
  String sDatabaseURL = agGeneral.getDatabaseURL().toString();
  String sURL = "";
  URL urlImage = null;

  try
  {
     sURL = sDatabaseURL +
        "SilverStream/Objectstore/Images/tbOpen.gif";
     urlImage = new URL(sURL);
  }
  catch (Exception e)
  {
     agDialog.displayError(e);
  }

Notes on the code

Initializing and adding a button   Top of page

This code initializes the button with a text label and an image and adds it to the toolbar. (Getting the image from the database is described above.) All of the buttons are set up with similar code.

  jbtnOpen.setToolTipText("Open");

  ImageIcon imgIcon = new ImageIcon(urlImage, "Open");
  jbtnOpen.setIcon((javax.swing.Icon) imgIcon);

  jbtnOpen.setMargin(new Insets(0,0,0,0));
  jbtnOpen.getAccessibleContext().setAccessibleName("Open");

  jtoolBar.add(jbtnOpen);
  jbtnOpen.addActionListener (this);

Notes on the code

Finishing the layout   Top of page

This code adds the toolbar to the wrapper JPanel in its north region. (The split pane has already been added in the center region.)

  // add the toolbar to the North
  wrapper.add(jtoolBar, BorderLayout.NORTH);

This code adds the wrapper JPanel to the form and calls setBounds() to specify its size and position.

  add (wrapper);
  wrapper.setBounds (m_xWrapper, m_yWrapper,
        m_widthWrapper, m_heightWrapper);

Other controls created in the Designer need to be added in addControls().

  add (dataCompanies);
  add(lblTitle);

Loading data in the AgcJTable control   Top of page

frmSwingSampler calls the retrieveTheData() method in the formActivate event. It loads the AgcJTable with data retrieved by the AgcData control.

  public void retrieveTheData()
  {
     try
     {
        // Populate the table rows
        int[] columnIndexes =          {dataCompanies.getPropertyIndex("companyname"),
            dataCompanies.getPropertyIndex("description") };
        int valueColumnIndex =          dataCompanies.getPropertyIndex("companyid");
        dataCompanies.query("");

        // Load the table using the row cursor
        jtableCompanies.loadFromRowCursor(dataCompanies,
           columnIndexes, null, valueColumnIndex, m_sColumnTitles);
     }
     catch(Exception ex)
     {
        agDialog.displayError(ex);
     }
  }

Notes on the code

Opening a file and displaying it in the editor pane   Top of page

The first toolbar button has code that opens a file in the editor pane. This code in its actionPerformed event displays a standard file dialog to let the user choose a file.

  FileDialog fileDialog = new FileDialog (getFrame (),
        "Select a File", FileDialog.LOAD);
  fileDialog.show ();
  String sFilename = fileDialog.getFile ();
  String sDirectory = fileDialog.getDirectory ();

  //test if cancel was hit
  if (sFilename == null || sDirectory ==null) return;

  File fileSelected = new File (sDirectory + sFilename);


The event code continues with special handling for HTML, RTF, and DOC files. For other types, it just assigns the file contents to the editor.

  if (sFilename.endsWith (".htm") || sFilename.endsWith (".html"))
  {
     m_jeditorPane.setPage ("file:" + sDirectory + sFilename);
  }

  // RTF doesn't work yet
  else if (sFilename.endsWith (".rtf")
        || sFilename.endsWith (".doc"))
  {
     String sContents = getFileContents (fileSelected);
     m_jeditorPane.setContentType ("text/rtf");
     m_jeditorPane.setText (sContents);
  }
  else
  {
     String sContents = getFileContents (fileSelected);
     m_jeditorPane.setText (sContents);
  }

Notes on the code

Reading the file   Top of page

The user-defined method getFileContents() reads the file.

  public String getFileContents(File filename)
  {
     String sContents = new String();
     char[] chBuffer = new char[50000];
     InputStreamReader reader;

     try
     {
        reader = new FileReader(filename);
        int iNumCharsRead;
        while ((iNumCharsRead =
           reader.read(chBuffer, 0, chBuffer.length)) != -1)
        {
           sContents = sContents +
              new String(chBuffer, 0, iNumCharsRead);
        }
     }
     catch (java.io.IOException ex)
     {
        sContents = "Could not load file: " + filename;
     }
     return sContents;
  }

Notes on the code
