2.5 Filr Clustering (Expanding a Deployment)

Filr clustering involves two or more Filr VAs sharing the same NFS or CIFS data storage location (/vashare). You can only create a cluster if your Filr appliances were deployed pointing to the same /vashare disk.

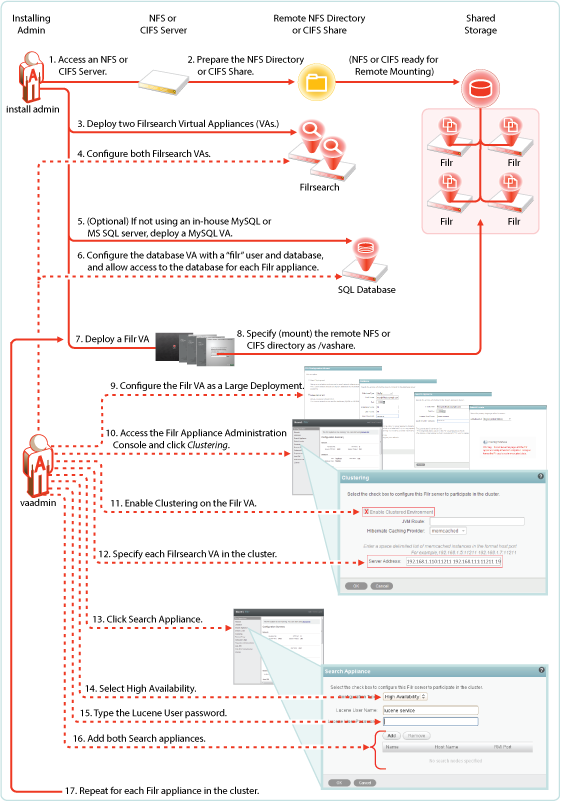

Basic steps for setting up Filr clustering are included in Figure 2-11.

Figure 2-11 Clustered Filr VAs

For step-by-step instructions, see Creating an Expandable Filr Deployment in the Filr 3.4: Installation, Deployment, and Upgrade Guide.
