2.7 Ports Used in Filr Deployments

Figure 2-14 illustrates the ports that can be used in Filr deployments, including insecure ports. For information on configuring and securing Filr securely, see DMZ Setup for Filr in the Filr 3.4: Maintenance Best Practices Guide.

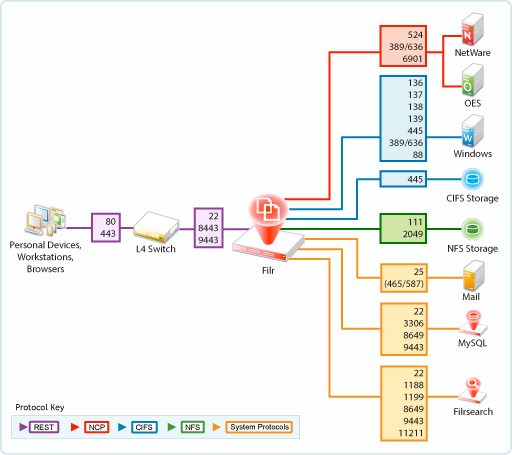

Figure 2-14 Filr Port Usage
