2.8 Testing Address Book Synchronization

After you have performed the initial address book synchronization, complete these tasks to assure yourself that you are obtaining the expected results:

2.8.1 Verifying the GroupWise External Domain in ConsoleOne

  1. In ConsoleOne, expand the GroupWise System object to display the External Post Office objects that represent Active Directory contexts.

    GroupWise external domain for Exchange users in ConsoleOne
  2. Select each External Post Office object, then click Users in the drop-down list to verify that the Exchange users in that Active Directory context are represented under the GroupWise External Domain object.

  3. Click Distribution Lists in the drop-down list to verify that the Exchange distribution groups are represented under the GroupWise External Domain object.

  4. Click Resources in the drop-down list to verify that the Exchange resources are represented under the GroupWise External Domain object.

  5. Right-click the GroupWise System object, then click Information to verify the number of users who have been synchronized from GroupWise to Exchange and from Exchange to GroupWise.

    IMPORTANT:Remember that Exchange address book synchronization requires its own license. Now that you have enabled it, your GroupWise system might be subject to additional licensing fees.

  6. Continue with Verifying the GroupWise Base Context in Active Directory.

2.8.2 Verifying the GroupWise Base Context in Active Directory

  1. In Active Directory Users and Groups, browse to the folder where you configured the MTA to create Active Directory Contact objects for GroupWise users.

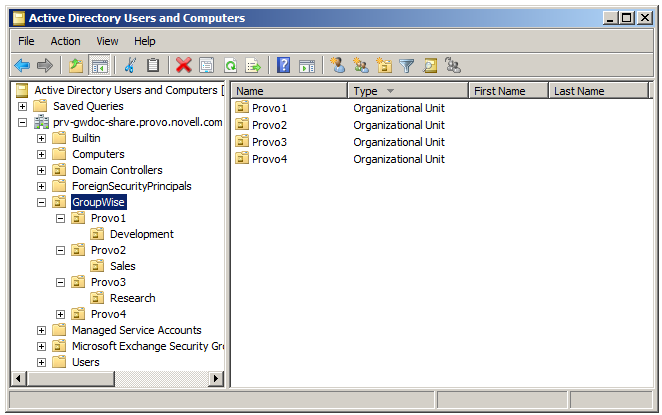

    Folders for GroupWise users in Active Directory Users and Computers
  2. Verify that the GroupWise users, distribution lists, and resources are represented in the folders that represent GroupWise post offices.

  3. Continue with Verifying Address Book Synchronization.

2.8.3 Verifying Address Book Synchronization

  1. Verify that Exchange users, distribution groups, and resources now appear in the GroupWise Address Book.

    GroupWise Address Book

    IMPORTANT:Users in Online mode see the Exchange users, distribution groups, and resources immediately. Users in Caching mode see the Exchange users, distribution groups, and resources based on their personal schedules for downloading the GroupWise Address Book to their Caching mailbox. For more information, see Automatically Downloading Address Books to Your Mailbox in Caching and Remote Modes in the GroupWise 2012 Windows Client User Guide.

  2. Verify that GroupWise users, distribution lists, and resources now appear in the Exchange Global Address List (GAL) in Outlook and in Outlook Web Access.

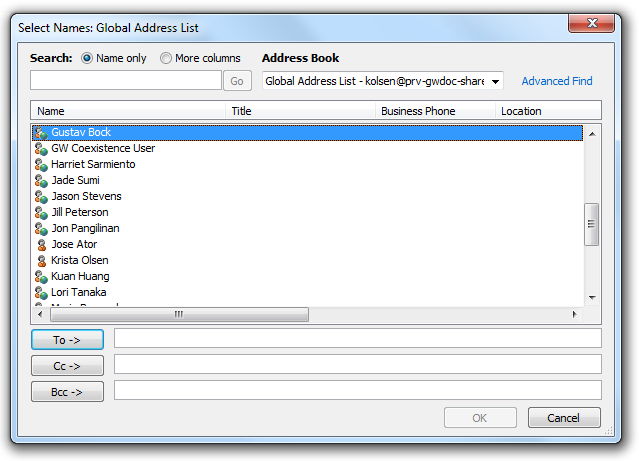

    Exchange Global Address List (GAL)
  3. Continue with Monitoring Address Book Synchronization.
