The Exchange Gateway Web console enables you to monitor and control the Exchange Gateway from any location where you have access to a Web browser and the Internet. This provides substantially more flexible access than the Exchange Gateway console, which can be accessed only from the Windows machine where the Exchange Gateway is running.

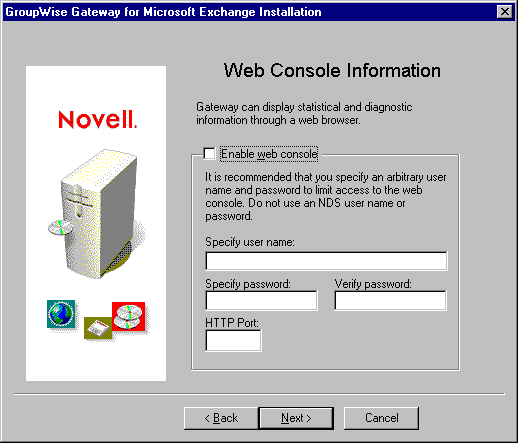

During installation, the Installation program offered you the opportunity to set up the Exchange Gateway Web console.
The information that you provided during installation was recorded in the Exchange Gateway startup file (gwexch.cfg). If you want to change the information provided during installation, you must edit the startup file. As an alternative, you can remove the Web console information from the startup file and configure the Web console in ConsoleOne as described below.
If you did not enable the Web console during installation, you can do it in ConsoleOne.
In ConsoleOne, browse to and right-click the Exchange Gateway object, then click Properties.
Click GroupWise > Network Address to display the Network Address page.
In the HTTP Port field, provide a unique port number for communication between the Exchange Gateway and your Web browser.
You might want to use a port number close to those used by the MTA and POA, for example, 7176.
Make a note of the HTTP port number. You need this information in order to access the Exchange Gateway Web console.
Click Apply to save your changes on the Network Address page.
If you want to limit access to the Exchange Gateway Web console, you can provide a username and password.
Click GroupWise > Optional Gateway Settings.
In the HTTP Settings box:
In the HTTP User Name field, specify a unique username.
Click Set Password.
Type the password twice for verification.
Click Set Password.
Do not use an eDirectory username and password because the information passes over the insecure connection between your Web browser and the Exchange Gateway.
For convenience, use the same username and password for all GroupWise agents and gateways that you plan to monitor from GroupWise Monitor. This saves you from having to provide the username and password information as Monitor accesses each agent and gateway.
Click OK to save the Exchange Gateway Web console settings.
ConsoleOne then notifies the Exchange Gateway to restart so the new settings can be put into effect.
Corresponding Startup Switches:
You could also use the /httpport, /httpuser, and /httppassword startup switches in the Exchange Gateway startup file (gwexch.cfg) to enable and secure the Exchange Gateway Web console. In addition, you can use the /httprefresh switch to control how often the Exchange Gateway refreshes the information provided to your Web browser.
To monitor the Exchange Gateway from your Web browser, view the URL where the Exchange Gateway is located by supplying the network address of the Windows machine where the Gateway runs and the port number as provided on the Network Address page in ConsoleOne.
Syntax:
http://IP_address_or_hostname:HTTP_port
Examples:
http://172.16.5.18:7176http://exchserver1:7176
The Exchange Gateway Web console provides several pages of information to help you monitor the performance of the Exchange Gateway. The bar at the top of the Exchange Gateway Web console displays the name of the Exchange Gateway and its post office. Below this bar appears the Exchange Gateway Web console menu that lists the pages of information available in the Exchange Gateway Web console.

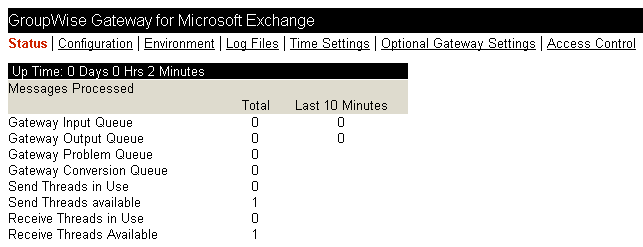

When you first access the Gateway Web console, the Status page is displayed.
The information is the same as is displayed on the Gateway console on the Windows machine where the gateway runs. For more information, see Status Box.

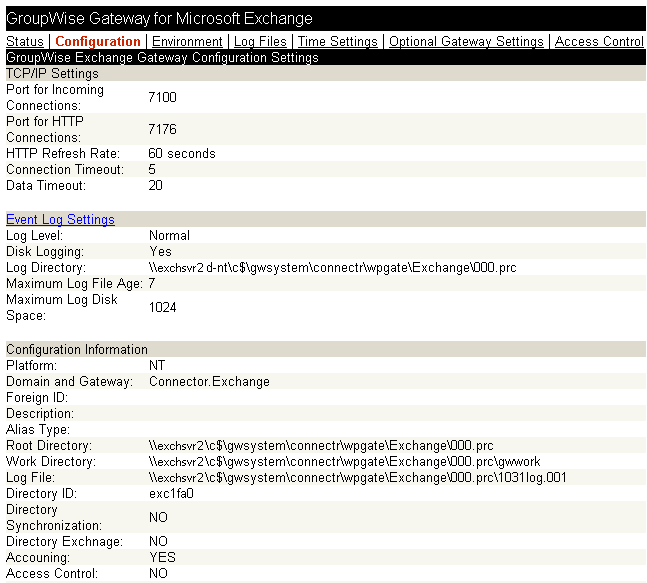

On the Exchange Gateway Web console menu, click Configuration to display the configuration information stored on various property pages on the Exchange Gateway object in ConsoleOne.
To change the log settings for the current gateway session, click Event Log Settings. All other settings listed on the Configuration page must be changed in ConsoleOne.

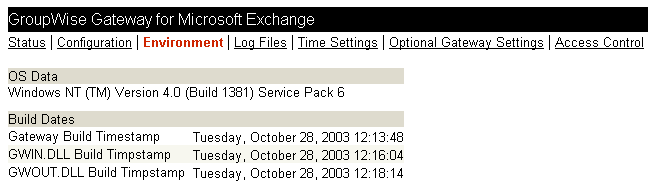

On the Exchange Gateway Web console menu, click Environment to display information about the operating system where the Exchange Gateway is running.

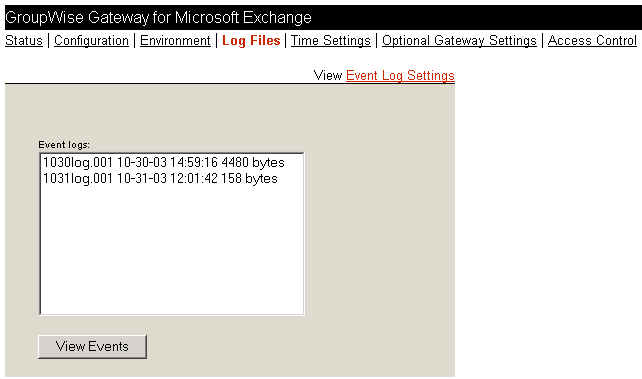

On the Exchange Gateway Web console menu, click Log Files to display gateway log files.

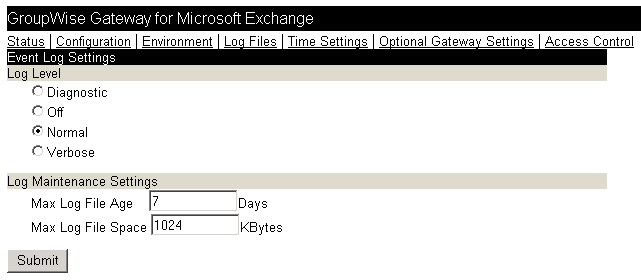

Click Event Log Settings to change the log settings for the current Exchange Gateway session.
For information about Exchange Gateway log files, see Using Exchange Gateway Log Files.

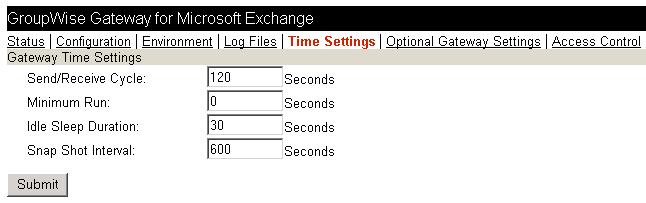

On the Exchange Gateway Web console menu, click Time Settings to display the settings listed on the Time Settings page in ConsoleOne.
Modify the settings as needed, then click Submit to change them for the current Exchange Gateway session. For information about the time settings, see Adjusting the Gateway's Send/Receive Cycle.

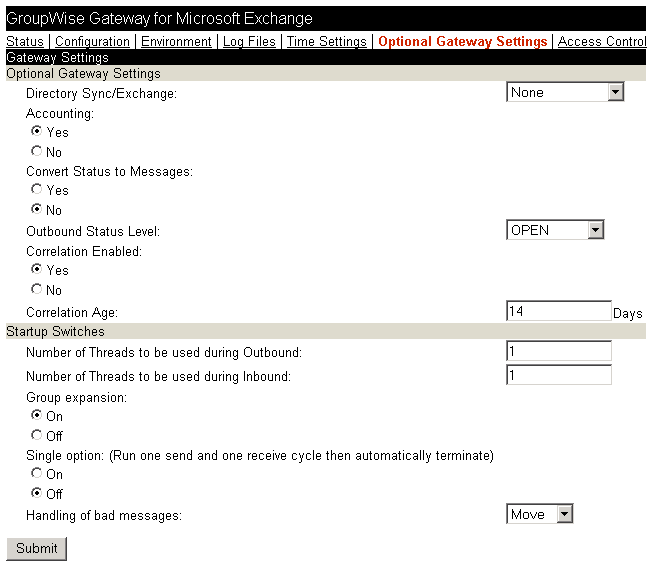

On the Exchange Gateway Web console menu, click Optional Gateway Settings to display the settings listed on the Optional Gateway Settings page in ConsoleOne.
Modify the settings as needed, then click Submit to change them for the current Exchange Gateway session. For information about the optional gateway settings, see the following topics:

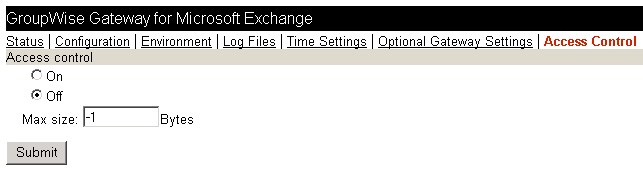

On the Exchange Gateway Web console menu, click Access Control to turn access control on and off and to adjust the maximum message size for the current Exchange Gateway session.
For information about access control, see Controlling Gateway Access.
