Getting Started With the Integration Manager Connect for Lawson Software

This section describes how to set up and configure the Integration ManagerTM Connect for Lawson Software. Before you can use the Integration Manager Connect for Lawson Software you must update the licenses for your Integration Manager installation. You need to activate your design-time and runtime copies of the Novell Integration Manager Connect for Lawson Software.

Updating the Design-time Software License

Obtain a valid license string from your Novell representative.

NOTE: You use the same license string to activate the design-time and runtime versions of Integration Manager Connect for Lawson Software.
Launch Integration Manager.
Select About Integration Managerfrom the Help menu. The About Integration Manager dialog box is displayed.
Select System. The System Information dialog box is displayed.
Click on the Licenses tab, located in the upper left corner of the System Information dialog box. The license information for your Integration Manager installation is displayed.
Scroll down until you see the row for Lawson.

NOTE: The Connect ships with an Evaluation license string which may be used for 90 days.
To use the evaluation license string, select the check box in the Enabled column and skip to Step 10. To enter a different license string, select the check box in the Enabled column. The Edit button in the Lawson row is enabled.
Select Edit in the Lawson row. The Edit License dialog box is displayed.
Type the license string for the Integration Manager Connect for Lawson in the New License field.
Scroll down until you see the row for Lawson Service.
Repeat Step 7 through Step 9 for the Lawson Service row.
Exit out of all dialogs by selecting OK.

Updating the Runtime License

NOTE: If you are using the Tomcat application server, copy the jca10apis.jar from the \NIM6\Server Resources\Tomcat directory (Windows) or nim/Server Resources/Tomcat directory (Linux) to the Tomcat Composer\lib and shared\lib directories before attempting to update the runtime license.

Make sure that the Novell Integration Manager Enterprise Server is installed.
Start the application server. The Novell Integration Manager Enterprise Server starts automatically when you start the application server.
Open a browser window and navigate to the Novell Integration Manager main administrative console. Typically, this is at:
```
  http://localhost/exteNdComposer
```
In the upper left corner of the console window, click the Integration Manager logo immediately above the words "Server Console," as shown in the following illustration.
```

```

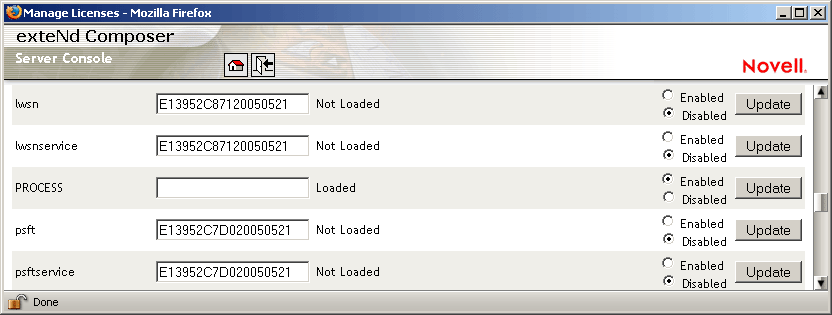

In the content area of the main frame, near the bottom, click Licenses. The Manage Licenses window is displayed. This window shows the license status of every Integration Manager Connect. See the following illustration.
Scroll down to the entry labeled "lwsn".

NOTE: The Connect ships with Evaluation license strings which may be used for 90 days.
Type a license string in the text field in the "lwsn" row; then select Enabled in the "lwsn" row. To use the evaluation license string, just select Enabled.
Select Update in the "lwsn" row.
Scroll down to the entry labeled "lwsnservice".
Type a license string in the text field in the "lwsnservice" row; then select Enabled in the "lwsnservice" row. To use the evaluation license string, just select Enabled.
Select Update in the "lwsnservice" row.
