4.3 Monitoring Cache Statistics

This section has the following information:

4.3.1 Monitoring General Cache Statistics

To view General cache statistics:

  1. Log in to the Novell Remote Manager.

  2. Select NBM Monitoring > Proxy Monitoring.

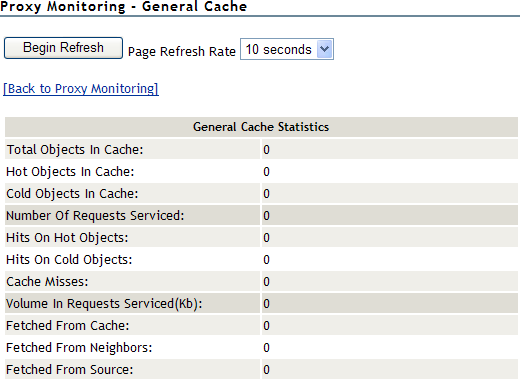

  3. Click General Cache Statistics. The Proxy Monitoring - General Cache Statistics page is displayed.

    The General Cache statistics are displayed on this page.

  4. To update the statistics at a regular interval, select a value from the Page Refresh Rate drop-down list and click Begin Refresh.

  5. To stop regular updating of statistics, click Stop Refresh.

  6. To go back to the proxy monitoring page, click Back to Proxy Monitoring.

4.3.2 Monitoring DNS Cache Statistics

To view DNS cache statistics:

  1. Log in to the Novell Remote Manager.

  2. Select NBM Monitoring > Proxy Monitoring.

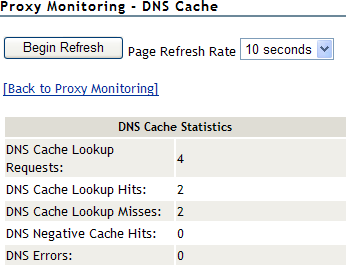

  3. Click DNS Cache Statistics. The Proxy Monitoring - DNS Cache page is displayed.

    The DNS Cache statistics are displayed on this page.

  4. To update the statistics at a regular interval, select a value from the Page Refresh Rate drop-down list and click Begin Refresh.

  5. To stop regular updating of statistics, click Stop Refresh.

  6. To go back to the proxy monitoring page, click Back to Proxy Monitoring.

4.3.3 Monitoring Connection Cache Statistics

To display the Proxy Cache Monitor window and view proxy cache activity information:

  1. Log in to the Novell Remote Manager.

  2. Select NBM Monitoring > Proxy Monitoring.

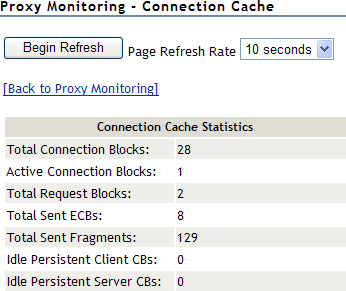

  3. Click Connection Cache Statistics. The Proxy Monitoring - Connection Cache page is displayed.

    The Connection Cache statistics is displayed on this page.

  4. To update the statistics at a regular interval, select a value from the Page Refresh Rate drop-down list and click Begin Refresh.

  5. To stop regular updating of statistics, click Stop Refresh.

  6. To go back to the proxy monitoring page, click Back to Proxy Monitoring.

4.3.4 Monitoring Download Cache Statistics

To view download cache activity information:

  1. Log in to the Novell Remote Manager.

  2. Select NBM Monitoring > Proxy Monitoring.

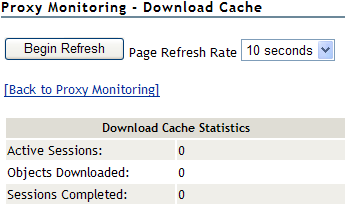

  3. Click Download Cache Statistics. The Proxy Monitoring - Download Cache page is displayed.

    The download cache statistics is displayed on this page.

  4. To update the statistics at a regular interval, select a value from the Page Refresh Rate drop-down list and click Begin Refresh.

  5. To stop regular updating of statistics, click Stop Refresh.

  6. To go back to the proxy monitoring page, click Back to Proxy Monitoring.
