9.2 Setting Up a Search Master and Defining a Cluster

After you have configured both the QuickFinder servers and virtual search servers for each server to be included in the QuickFinder Synchronization cluster, you now need to configure a search master and define one or more clusters.

9.2.1 Setting Up a QuickFinder Server to Send Updates

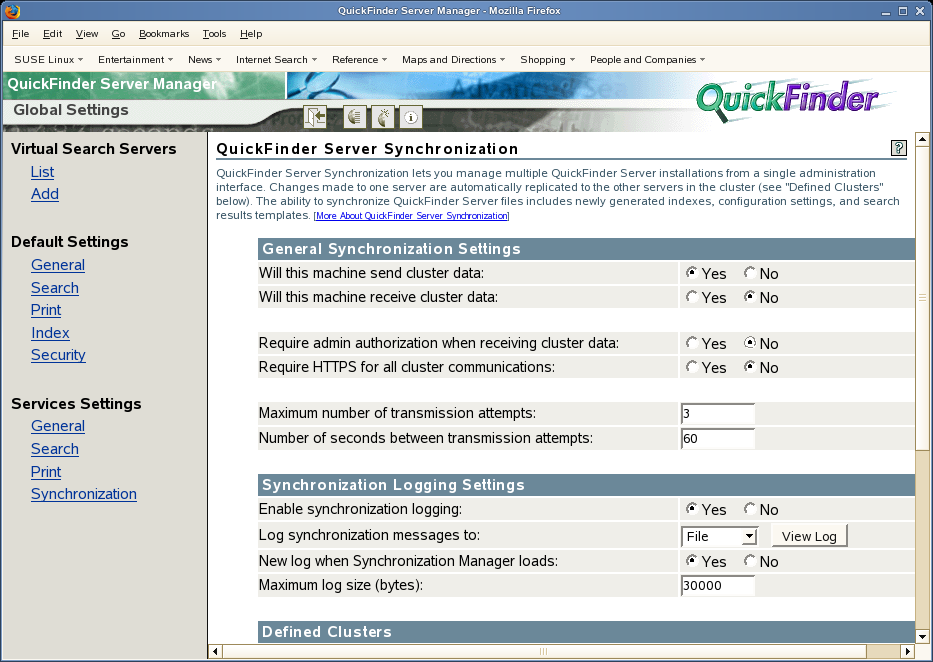

  1. On the Global Settings page of QuickFinder Server Manager, click Synchronization under Services Settings.

  2. Under General Synchronization Settings, click Yes next to Will this machine send cluster data.

  3. Click No next to Will this machine receive cluster data.

    If you want the search master to receive updates from another server in the cluster, select Yes. You can configure a QuickFinder server to both send and receive updates.

  4. Because this is the search master and will probably not be receiving cluster data, click No next to Require admin authorization when receiving cluster data.

  5. (Optional) To ensure a secure connection with the other QuickFinder Servers, click Yes next to Require HTTPS for all cluster communications.

    If the risk of intrusion to your server is low—for example, if your server is behind a firewall—it is better to disable this feature by clicking No. Enabling it can slow down system performance because of the rights checking that happens each time a request to send cluster data is received by the server.

  6. In the Maximum number of transmission attempts, specify the number of times the search master should attempt to transmit data to an unresponsive QuickFinder Server in the cluster before quitting.

    After the number of transmission attempts specified here is reached, QuickFinder stops trying to transmit data to other servers in a cluster. If the e-mail notification capability has been enabled, then QuickFinder also sends an e-mail identifying the cause of the problem. For information about enabling the e-mail feature, see Section 7.3, Configuring Services Settings.

  7. In the Number of seconds between transmission attempts, type the number of seconds QuickFinder should wait between each transmission attempt specified in the Maximum Number of Transmission Attempts.

  8. (Optional) Under Synchronization Logging Settings, click Yes next to Enable synchronization logging if you want QuickFinder to log cluster-related errors.

  9. (Optional) Specify where you want log results displayed by selecting one of the following options from the Log synchronization messages to drop-down list:

    • File: When this option is selected, you can click View Log next to the Log synchronization messages to drop-down list to display the log results in your browser.

    • Console: When this option is selected, the synchronization logging settings writes the logs to /var/opt/novell/tomcat5/logs/catalina.out file.

    • Both: Displays results in both your browser and at the system console.

  10. (Optional) Click Yes next to New log when synchronization manager loads to start a new logging session when the synchronization manager servlet is loaded (or restarted).

    The contents of the current log are replaced with the new data.

  11. (Optional) In the Maximum log size field, specify the maximum file size of the log file (in bytes) before a new one is started.

    The number you specify here is divided evenly between two log files. For example, if you specify 30000, each log file allows up to 15000 bytes of logged data. This ensures that you always have at least 15000 bytes of logged synchronization data.

  12. Click Apply.

9.2.2 Defining a Synchronization Cluster

You must identify each of the QuickFinder Servers (and their virtual search servers) that you have configured to receive cluster data. To do so, you must know the URL of each server to be included, as well as the names of each virtual search server on each of the QuickFinder servers that you want included.

Also, if you have configured any of the participating servers to require administrator authorization when being accessed by the search master, you must provide their administrator usernames and passwords.

  1. On the Global Settings page of QuickFinder Server Manager, click Synchronization under Services Settings.

  2. Under Defined Clusters, specify a name for the new cluster in the Cluster <number> Name field.

  3. In the Server <number> URL field, specify the URL of a QuickFinder Server to be included in the cluster.

  4. In the Virtual Search Server field, specify the name of a virtual search server.

  5. (Optional) If you enabled (or will enable) the Require admin authorization when receiving cluster data feature on this QuickFinder Server, specify the admin username and password in the appropriate fields.

  6. (Optional) To add another server to the cluster, click Add Server and repeat Step 1 through Step 5.

  7. Click Apply.

The synchronized cluster is formed.You can add additional clusters by clicking on the Add New Cluster tab.
