5.4 Upgrading to OES 2018 SP1

5.4.1 Using Physical Media to Upgrade

  1. Ensure that the server meets the upgrade requirements. See Meeting the Upgrade Requirements.

  2. Insert the OES 2018 SP1 Install Media into the DVD drive of the server that you are upgrading to OES 2018 SP1, then reboot the machine.

  3. From the DVD boot menu, select Upgrade, then press Enter.

    For upgrading in text mode, from the DVD boot menu, select Upgrade, press F3, select Text Mode, then press Enter.

  4. Select the language that you want to use, agree to the license terms, then click Next.

  5. On the Network Settings page, click Next.

  6. Follow the prompts, using the information contained in the following sections:

  7. Verify that the upgrade was successful. See the procedures in Verifying That the Installation Was Successful.

  8. Complete the server setup by following the procedures in Completing OES Installation or Upgrade Tasks.

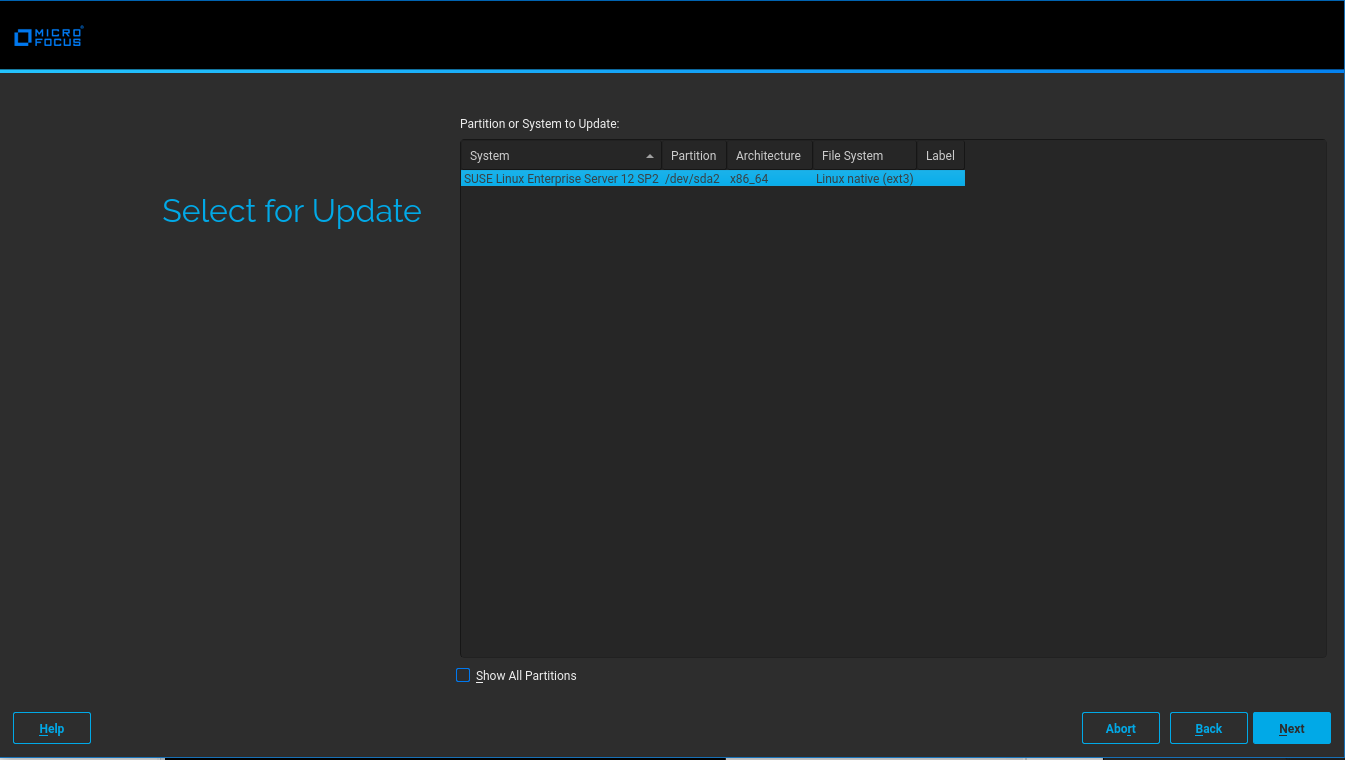

5.4.2 Specifying the Partition to Update

YaST tries to determine the correct root (/) partition. If there are several possibilities, or if YaST can’t definitely determine the correct root partition, the Select for Update page displays.

  1. If there is only one partition listed, click Next.

  2. If there are several partitions, select the root partition you want to upgrade.

  3. Click Next.

    YaST mounts the selected partition and displays all repositories that have been found on the partition that you want to upgrade.

5.4.3 Reviewing the Previously Used Repositories

On the Previously Used Repositories page, all the previous OES and SLES repositories are marked for removal. Review and click Next.

5.4.4 Specifying Customer Center Configuration Settings

To receive support and updates for your OES server, you need to register it in the Customer Center. When the Customer Center Configuration page is displayed, you have two options:

Ensure to configure the network settings using the Network Configuration... button on the top right corner of the Customer Center Configuration page before proceeding with registration.

Registering the Server Later

  1. Click Configure Later.

  2. Click Next.

Registering the Server During the Upgrade

  1. On the Customer Center Configuration page, select all of the following options, then click Next.

    Option

    What it Does

    Configure Now

    Proceeds with registering this server and the OES product in the Customer Center.

    Hardware Profile

    Sends information to the Customer Center about the hardware that you are installing OES on.

    Optional Information

    Sends optional information to the Customer Center for your registration. For this release, this option doesn’t send any additional information.

    Registration Code

    Makes the registration with activation codes mandatory.

    Regularly Synchronize with the Customer Center

    Keeps the installation sources for this server valid. It does not remove any installation sources that were manually added.

  2. After you click Next, the Contacting server message is displayed. Wait until this message disappears and the Manual Interaction Required page displays.

  3. On the Manual Interaction Required page, note the information that you will be required to specify, then click Continue.

  4. On the Customer Center Registration page, specify the required information in the following fields, then click Submit:

    • Email Address: The email address for your Login account.

    • Confirm Email Address: The same email address for your Login account

    • Activation Code for OES Components (optional): Specify your purchased or 60-day evaluation registration code for the OES product.

      If you don’t specify a code, the server cannot receive any updates or patches.

    • System Name or Description (optional): The hostname for the system is specified by default.

      If you want to change this to a description, for the Customer Center, specify a description to identify this server.

  5. When the message to complete the registration displays, click Continue.

  6. After you click Continue, the Contacting server.. message is displayed with the Manual Interaction Required page. Wait until this message disappears and the Customer Center Configuration page displays with the message: Your configuration was successful.

  7. When you see the message Your configuration was successful on the dialog box, click Ok.

  8. Click Next.

  9. Continue with Specifying the Add-On Product Installation Information.

5.4.5 Specifying the Add-On Product Installation Information

On the Add-On Product Installation page, you can add the add-on products you want that are supported on OES 2018 SP1. For example, iPrint for OES.

If you do not want to add any add-on products with OES 2018 SP1, click Next to continue with Verifying and Customizing the Update Options in Installation Settings.

5.4.6 Verifying and Customizing the Update Options in Installation Settings

IMPORTANT:To verify that previously installed services are selected for installation and to install any additional OES services during the upgrade, you must customize the Update Options on the Installation Settings page.

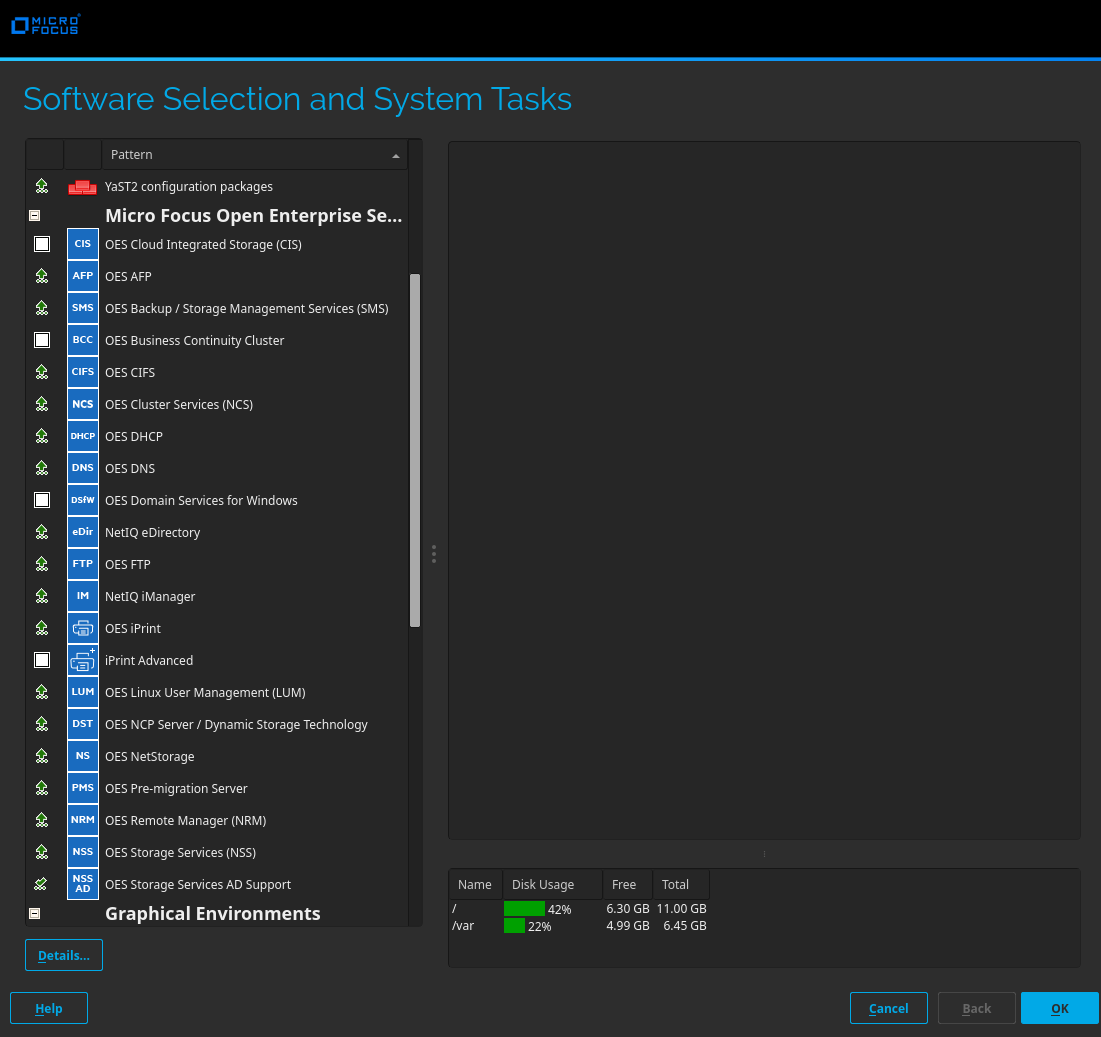

To verify or customize the software packages that are installed on the server:

  1. On the Installation Settings page, click Update Options.

  2. In the Update Options page, click Update with Installation of New Software and Features Based on the Selection > Select Patterns.

  3. All of the OES Services patterns that were previously installed are selected by default.

    Ensure that the patterns for the services you are upgrading are selected, then select the patterns for any new OES Services that you might want to also install.

    A description displays to the right of a pattern when the pattern is selected. For a description of OES Services patterns and the components selected with each pattern, see Table 2-5.

    IMPORTANT:If you deselect a pattern after selecting it, you are instructing the installation program to not install that pattern and all of its dependent patterns. Rather than deselecting a pattern, click Cancel to cancel your software selections, then click the Select Patterns heading again to choose your selections again.

    Selecting only the patterns that you want to install ensures that the patterns and their dependent patterns and packages are installed.

    If you click Accept and then return to software pattern selection page, the selections that you made become your base selections and must be deselected if you want to remove them from the installation proposal.

    Attempting to uninstall a service by deselecting its pattern is not recommended. For more information, see Section 12.0, Disabling OES 2018 SP1 Services.

    Selecting a pattern automatically selects the other patterns that it depends on to complete the installation.

  4. If you want to see the details of your selections, click Details....

  5. When you have the software components selected that you want to install, click Accept.

  6. When the notification about deleting unmaintained packages appears, click OK.

  7. (Conditional) If the prompt for Automatic Changes displays, click Continue.

  8. (Conditional) If you are prompted to resolve any dependency conflicts, resolve them.

  9. If the Update Options page displays again, click OK.

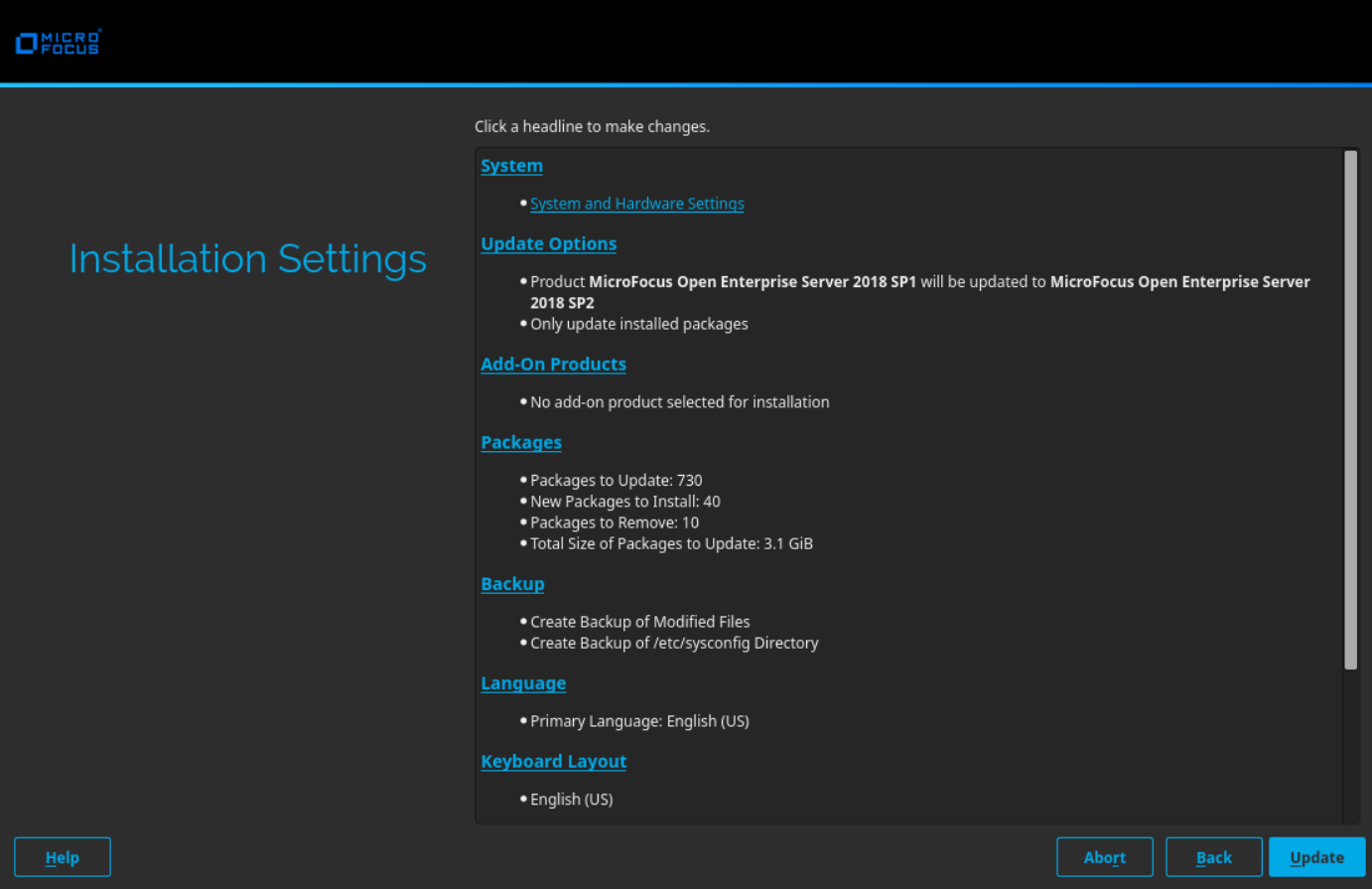

  10. On the Installation Settings page, ensure the following are listed under the Update Options:

    Product Micro Focus Open Enterprise Server <earlier version number> will be updated to Open Enterprise Server 2018 SP1

    Proceed with Section 5.4.7, Accepting the Installation Settings.

  11. If you see package conflict errors (red text under the Packages link), refer to the OES 2018 SP1: Release Notes for resolution instructions.

  12. Continue with Accepting the Installation Settings.

5.4.7 Accepting the Installation Settings

  1. Review the final Installation Settings page to ensure that you have all the Installation settings you desire. Ensure that the page shows all the OES Services that you want to update and install.

  2. After you have changed all the installation settings as desired, click Update.

  3. In the Confirm Update dialog box, click Start Update.

    The base installation settings are applied and the packages are installed.

  4. After the server reboots, continue with Specifying Configuration Information.

5.4.8 Specifying Configuration Information

When the server reboots, you are required to complete the following configuration information:

Upgrading eDirectory

OES 2018 SP1 includes eDirectory 9.1.

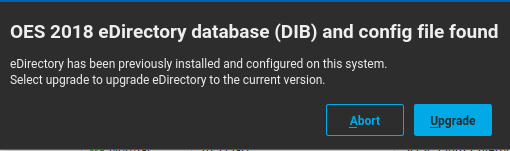

  1. When the following dialog box appears, click Upgrade.

    NOTE:

    • If you are upgrading from OES 11 SP3, this dialog will show that the OES 11 eDirectory database (DIB) and config file were found.

    • If you are upgrading from OES 2015 SP1, this dialog will show that the OES 2015 eDirectory database (DIB) and config file were found.

  2. On the eDirectory Upgrade - Existing Server Information page, type the Admin password, then click Next.

  3. On the Novell Modular Authentication Service page, click Next.

  4. Continue with Specifying LDAP Configuration Settings.

Specifying LDAP Configuration Settings

Many of the OES services require eDirectory. If eDirectory was not selected as a product to upgrade or install but other OES services that do require LDAP services were installed, the LDAP Configuration service displays so that you can complete the required information.

  1. In the eDirectory Tree Name field, specify the name for the existing eDirectory tree that you are installing this server into.

  2. In the Admin Name and Context field, specify the name and context for user Admin on the existing tree.

  3. In the Admin Password Name field, specify a password for user Admin on the existing tree.

  4. Add the LDAP servers that you want the services on this server to use. The servers that you add should hold the master or a read/write replica of eDirectory. Do the following for each server you want to add:

    1. Click Add.

    2. In the next dialog box, specify the following information for the server to add, then click Add:

      • Server IP Address

      • LDAP port

      • Secure LDAP port

    3. Click Add.

    4. (Optional) Repeat Step 4.a through Step 4.c to add additional servers.

  5. When all the LDAP servers that you want to specify are listed, click Next.

  6. Continue with Configuring Open Enterprise Server Services.

Configuring Open Enterprise Server Services

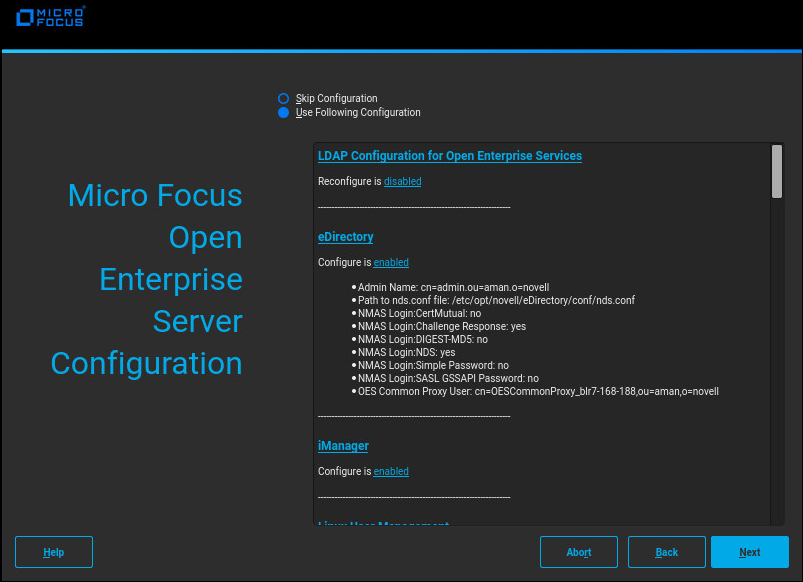

After you complete the LDAP configuration or eDirectory configuration, the Micro Focus Open Enterprise Server Configuration summary page is displayed, showing all the OES components you updated and installed and their configuration settings.

  1. Review the setting for each component and click the component heading to change any settings.

    When you specify the configuration information for OES services, see the information in Configuration Guidelines for OES Services, or click a link below:

  2. When you are satisfied with the settings for each component, click Next.

  3. When you confirm the OES component configurations, you might receive the following error:

    The proposal contains an error that must be resolved before continuing.

    If this error is displayed, check the summary list of configured products for any messages immediately below each product heading. These messages indicate products or services that need to be configured. If you are running the YaST graphical interface, the messages are red text. If you are using the YaST text-based interface, they are not red.

    For example, if you selected Linux User Management in connection with other OES products or services, you might see a message similar to the following:

    Linux User Management needs to be configured before you can continue or disable the configuration.

    If you see a message like this, do the following:

    1. On the summary page, click the heading for the component.

    2. Supply the missing information in each configuration page.

      When you specify the configuration information for OES services during the upgrade, see the information in Configuration Guidelines for OES Services.

      When you have finished the configuration of that component, you are returned to the Novell Open Enterprise Server Configuration summary page.

    3. If you want to skip the configuration of a specific component and configure it later, click Enabled in the Configuration is enabled status to change the status to Configuration is disabled.

      If you change the status to Configuration is disabled, you must configure the OES components after the installation is complete. See Installing or Configuring OES Services on an Existing OES 2018 SP1 Server.

  4. After resolving all product configuration problems, click Next to proceed with the configuration of all services and installation of iManager plug-ins.

  5. When the Readme page displays, click Next and continue with Section 5.4.9, Finishing the Upgrade.

5.4.9 Finishing the Upgrade

After a successful configuration, YaST shows the Installation Completed page.

  1. Deselect Clone This System for AutoYaST. Cloning is selected by default.

    This increases the speed of finishing the installation update.

    AutoYaST is a system for automatically installing one or more SUSE Linux Enterprise systems without user intervention. Although you can create a profile from a system that has been upgraded, it does not work to upgrade a similar system.

  2. Finish the upgrade by clicking Finish on the Installation Completed page.
