2.1 Communications Tab

Use this tab to change various server configuration settings made during the initial setup of Retain.

Path: Retain Server Manager > Configuration > Server Configuration > Communications Tab

The Communications Tab contains the following panels:

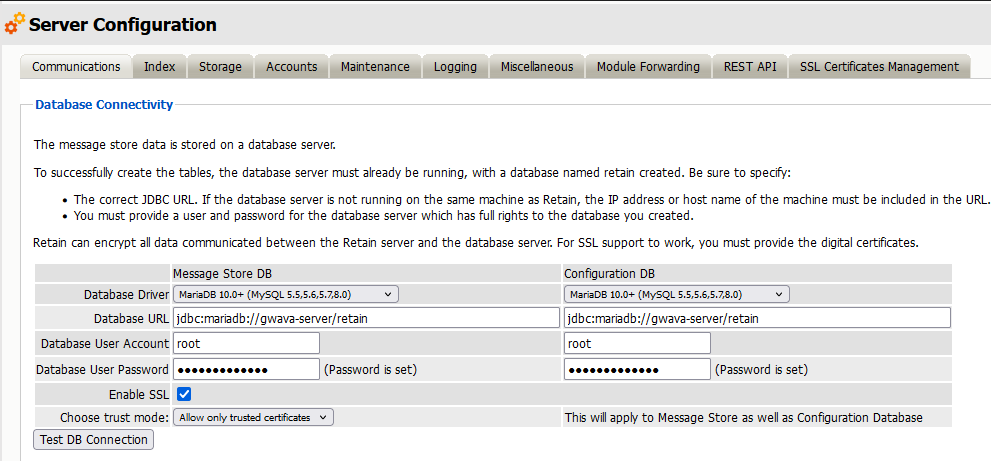

2.1.1 Database Connectivity

The Database Connectivity panel contains the connection information for both the configuration and storage databases.

WARNING:Do not change these settings except in conjunction with migrating the database server to a new location.

Path: Retain Server Manager > Configuration > Server Configuration > Communications Tab > Database Connectivity Panel

Table 2-1 Using the Database Connectivity Panel

Option, Field, or Sub-panel	Information and/or Action
Message Store DB
Database Driver	The database driver to use.
Database URL	The database URL
Database User Account	The database user
Database User Password	The password for the above
Configuration DB
Database Driver	The database driver to use.
Database URL	The database URL
Database User Account	The database user
Database User Password	The password for the above
Enable SSL	Enabling SSL secures the database connection. On upgrading to Retain 23.2, you can switch from non-SSL to SSL configuration and vice versa. NOTE: Before you enable the SSL, ensure that the certificates are uploaded and is listed under the SSL Certificates Managements tab. For more information see SSL Certificates Management Tab. For Oracle database, change the database URL to non-SSL PORT to switch from SSL to non-SSL database. If the port is not specified, the communication happens through the default port. When any modifications are made in the database connectivity section, you must restart the tomcat server.
Choose trust mode	If the SSL is enabled and the data base type is MariaDB, MySQL, PostgreSQL and MSSQL, select one of the options from the Choose Trust Mode dropdown list. Allow only trusted certificate: If the SSL is configured with the database and this option is selected, then all the certificates are trusted. Allow all certificate: This allows only trusted certificates. You can upload self signed SSL certificates during SSL configuration to the Retain trust store. Following are the supported and certified files formats: MSSQL - .pfx Postgres - .pem MariaDB -.pem and .crt MySQL - .pem and .crt Oracle - .p12 Based on the database type, the certificates can be either a lone certificate or a key pair. The certificate name must be unique, else you may not be able to upload the file. To create a key pair, upload the cert.pem file and then upload the key.pem file. Ensure that, the alias name given for both the files are same. Only self-signed certificates must be manually trusted. Registered CA-signed certificates are automatically trusted.
Test DB Connection	Ensures the database connections are established.

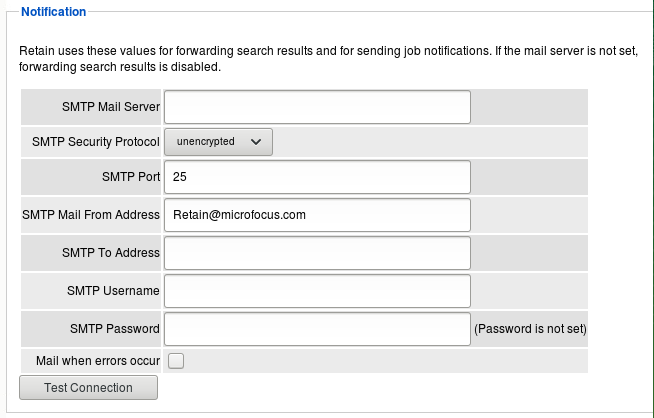

2.1.2 Notification Panel

In this location, the admin user specifies what address receives notifications about the general system, as well as what SMTP Gateway to utilize to send these notifications. This is also used for forwarding messages from Retain to the SMTP Mail Server for transmission to the recipients.

Path: Retain Server Manager > Configuration > Server Configuration > Communications Tab > Notification Panel

Table 2-2 Using the Notification Panel

Option, Field, or Sub-panel	Information and/or Action
SMTP Mail Server	The SMTP mail server
SMTP Security Protocol	Security protocol used
SMTP Port	Port used
SMTP Mail From Address	From address to use
SMTP To Address	To address to use
SMTP Username	Username to use
SMTP Password	Password
Mail when errors occur	Email address for errors
Test Connection button	Use to test validity of configuration

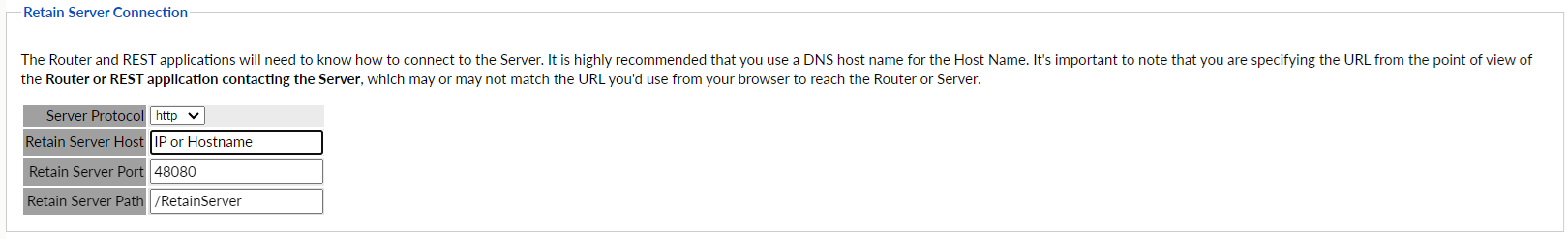

2.1.3 Retain Server Connection Panel

This specifies the connection address, port, and protocol that the Router and other REST applications should use to communicate with the Retain server. Settings must be correct for the Retain server from the point of view of the applications connecting to the Retain server.

Path: Retain Server Manager > Configuration > Server Configuration > Communications Tab > Retain Server Connection Panel

Table 2-3 Using the Retain Server Connection Panel

Option, Field, or Sub-panel	Information and/or Action
Server Protocol	Specify whether Retain uses insecure (HTTP) or secure (HTTPS) communications with other Retain components, such as the Reporting and Monitoring server or the Retain Message Router. The protocol specified here must be consistent among all the Retain components.
Retain Server Host	Specify the DNS name that other components use when communicating with the Retain server.
Retain Server Port	This field is automatically populated when you choose the Server Protocol. (http=4080, https=443) Only change this if your network uses a non-standard protocol.
Retain Server Path	This is the path where the Retain Server is installed. Only change it if you installed Retain in a non-standard location

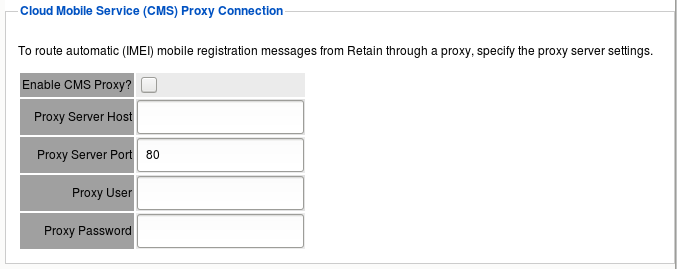

2.1.4 Cloud Mobile Service (CMS) Proxy Connection Panel

If you use Retain’s Cloud Mobile Service (CMS) to automatically provision and register devices in Retain, this option lets you specify a Proxy server for your Retain server to connect to CMS.

Path: Retain Server Manager > Configuration > Server Configuration > Communications Tab > Cloud Mobile Service (CMS) Proxy Connection Panel

Table 2-4 Using the CMS Proxy Connection Panel

Option, Field, or Sub-panel	Information and/or Action
Enable CMS Proxy?	Select this to enable CMS.
Proxy Server Host	Specify the CMS proxy server host’s IP address.
Proxy Server Port	Specify the port on which the proxy server communicates. (Default is 3128.)
Proxy User	Type the name of the user with rights to access the proxy server.
Proxy Password	Type the password of the Proxy User.
