6.2 Authentication Part 1: Username/Password or OpenID Connect

Traditionally, users authenticate to Retain by entering a username and password.

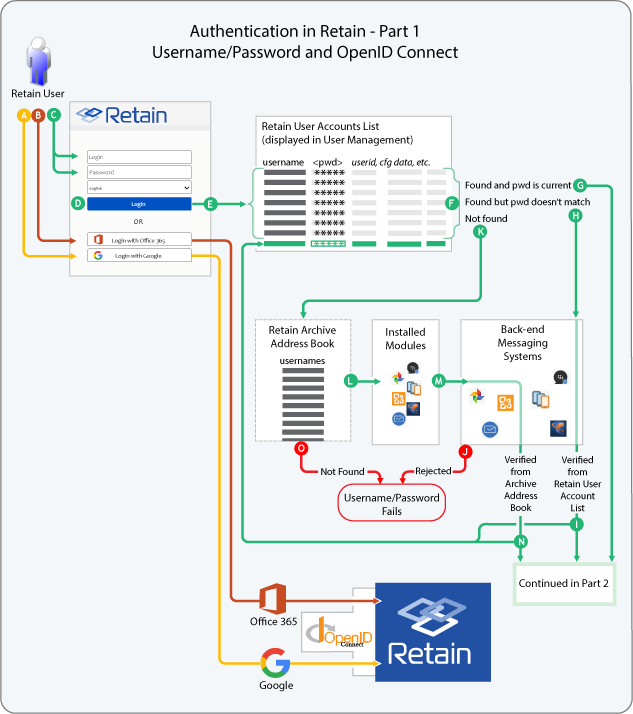

Figure 6-1 illustrates how Retain processes initial input to the Login dialog.

Figure 6-1 Authentication - Part 1

Table 6-1 Authentication - Part 1

Letter

Explanation

GSuite users who are enabled for access through Google’s OpenID Connect implementation, can click the Login with Google button.

They can then authenticate to their GSuite account and Retain recognizes the authentication as valid.

Office 365 users who can access their Office 365 account through Microsoft’s OpenID Connect implementation, can click the Login with Office 365 button.

They then authenticate to their Office 365 account and Retain recognizes the authentication as valid.

The user types a username and a password.

Then the user clicks Login.

Retain checks for the username in the User Account List and if it is found, Retain then checks the entered password against the one that is cached for the user.

There are three possible results:

  • User Account found, Password current: In this case the authentication process continues as illustrated in Figure 6-2, Authentication - Part 2.

  • User Account found, Password doesn’t match: In this case Retain requests verification with the back-end messaging system associated with the user account.

    • If the back-end system verifies the username/password, Retain updates the cached password and the request continues in Figure 6-2, Authentication - Part 2.

    • If the verification request fails, the authentication process stops and notifies the user.

  • User Account not found, the authentication process checks the archive’s Address Book.

    • If the user is in the address book, the process accesses the installed modules for back-end messaging system connections.

    • The process connects to relevant back-end messaging systems.

    • When a back-end system verifies the username/password combination, Retain encrypts the password and adds the user to the User Account list. The request then continues the process in Figure 6-2, Authentication - Part 2.

    • If the user is not in the archive’s address book or if no back-end system verifies the username/password, the verification request fails, and the authentication process stops and notifies the user.
