5.3 Exchange Module: Office365

Retain supports Office 365.

Other tools that work with the Exchange Module:

5.3.1 Prerequisites

There are several prerequisites that need to be completed for setting up a job.

5.3.2 Test Autodiscover

If Autodiscover fails for a user, serious errors will occur when Retain attempts to archive them. This option allows users to be skipped or have the job immediately aborted.

The first thing to do is to test that autodiscover is enabled for the domain.

  1. Go to the Microsoft Remote Connectivity Analyzer ( https://testconnectivity.microsoft.com/)

  2. On the Office365 tab, select "Outlook Autodiscover" from the Microsoft Office Outlook Connectivity Tests

  3. Enter your credentials and run the test. If the test fails, you will need to call Microsoft to have them turn autodiscover on.

5.3.3 Get the SMTP URL

Retain needs to know what SMTP server to use for sending notifications.

Query the DNS for the MX record or

  1. Go to the Microsoft Remote Connectivity Analyzer ( https://testconnectivity.microsoft.com/)

  2. On the Office365 tab, select "Inbound SMTP Email" from the Microsoft Office Outlook Connectivity Tests

  3. Enter your credentials and run the test.

  4. Record the SMTP server URL for Retain.

5.3.4 Set up DNS SRV Record

Microsoft has an article describing how to set up a DNS SRV record titled " A new feature is available that enables Outlook 2007 to use DNS Service Location (SRV) records to locate the Exchange Autodiscover service".

In short, the process is:

  1. Go to the DNS Manager

  2. Expand Forward Lookup Zones

  3. Locate and right-click on the external DNS zone and choose Other New Records

  4. Click Service Location (SRV) and enter:

    Service: _autodiscoverscreen
Protocol: _tcp
Port Number: 443
Host: [your SMTP host URL]

  5. Click OK

  6. Check that this works by opening a command prompt and try to ping autodiscover.yourdomain. This would be one of the successful ones from the Test Autodiscover step above. This should return a Microsoft IP address. If ping cannot connect, there is something mis-configured in the DNS or a firewall blocking the connection.

5.3.5 Set Rolling In-Place Hold

To prevent data loss, it is highly recommended that a rolling in-place hold be set so users are unable to remove items from disk before Retain has a chance to archive them.

In Exchange by default, when a user deletes a message out of Outlook, it is moved to the trash. When they empty the trash, the item is moved to the mostly hidden Recoverable Items folder, where it is kept for 14 day before being removed from disk. The user can then right-click the Trash to recover items, and in that dialog box they can purge the item which will delete it immediately. With a hold in place that item will be moved to a Purged folder that is not user accessible, where it will be kept until the hold is lifted.

Not all O365 licenses allow the setting of a hold, in such cases there is no way to prevent data loss.

In Retain, set Profile/Miscellaneous to Include user's recoverable items.

In Exchange Admin Console, set up a distribution list, for example All_Mailboxes, that contains all mailboxes. It will be best to create a policy to add new users to this distribution list by default.

Place the distribution list under a 90-day hold.

In the Exchange Management Shell:

An In-Place Hold can be set up for all mailboxes for 90 days:

New-MailboxSearch "Retain90DayHold" -ItemHoldPeriod 90 -InPlaceHoldEnabled $true -SourceMailboxes All_Mailboxes

It will take time for the hold to take effect. You can determine how many mailboxes were placed under hold with the script:

((Get-Mailbox).InPlaceHolds).Count

5.3.6 Setup Users

NOTE:Retain uses PowerShell to connect to O365. PowerShell does not allow the following special characters in names or passwords: # $ ( ) * + . [ ] ? \ / ^ { } |

Retain Impersonation User

In O365 Exchange Admin Center create the Retain Impersonation user with a mailbox, making sure to give it a license.

Give the Impersonation user the proper rights. Under Permissions, create a new Admin Role (e.g. Retain Impersonation Management), add the ApplicationImpersonation right and the Retain Impersonation user as a member.

Retain Administrator User

Retain needs a user with Administrator rights to download the address book from Office 365 every day with the Office365 Address Book Synchronization Script. This can be an existing administrator account or you may create a separate one. It needs to have sufficient rights to see all the users in the address book.

Shared Mailboxes, Rooms and Equipment

Impersonation rights allow the Retain user to enter other mailboxes but those rights do not extend to shared mailboxes. To access a shared mailbox the Retain user would need delegate rights to each shared mailbox that is to be archived. These rights can be granted through the Exchange Management Shell.

If the shared mailbox is owned by “John Doe” and your Retain impersonation account is "Retain", you would issue the following command in an Exchange Management Shell (EMC):

Add-MailboxPermission -Identity "John Doe" -User Retain -AccessRights FullAccess -InheritanceType All -AutoMapping $false

Address Book Synchronization

For Retain to authenticate users and access mailboxes for archiving, it needs to know what mailboxes are in Office365. To download the domain address book, Microsoft requires third-parties to use Powershell.

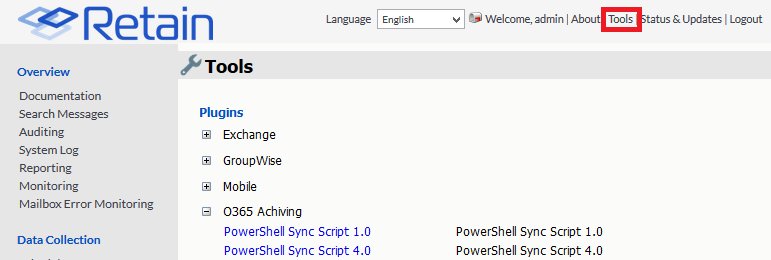

There are two scripts to do that both found under the Tools menu at the upper right of the Retain admin console.

The two scripts do the same thing: download the address book from Office365.

PowerShell Sync Script 1.0 saves the username and password in plaintext in the script.

PowerShell Sync Script 4.2 encrypts the password to a separate file.

Retain will not be able to archive members of the distribution lists if the field: HiddenFromAddressListsEnabled is True.

If using multiple modules, you will need to create separate folders for the script and the resulting CSV files. The folder location that Retain should pull the CSV file data from is set in the module as detailed below. You will also need to create a scheduled task for each script.

5.3.7 PowerShell Sync Script 1.0

If the hosted system in use is an Office 365 system, further configuration on the Office 365 system is required. Because Office 365 Exchange Servers do not directly expose LDAP information, a PowerShell script must run periodically to cache user and group information.

The script requires PowerShell 2.0. Without this script, you cannot run jobs on Office365, or authenticate users. This script connects to O365 and downloads the address book and distribution group lists into two address book CSV files, exchangeuser.csv and exchangegroup.csv.

5.3.8 Setup Process Overview

  1. Install PowerShell 2.0 or higher (not needed for Windows 7 or Windows Server 2008 R2)

  2. Install the Office 365 PowerShell cmdlets

  3. Allow PowerShell script execution policy

  4. Adapt and execute the “sync365.ps1” script provided by Micro Focus

  5. Automate the script to run regularly.

  6. Place the two resulting csv files in Retain

5.3.9 Setup

  1. Install PowerShell 2.0 or higher. (Windows 7 and Server 2008 R2 already come with PowerShell 2.0)

  2. Enable Microsoft .NET Framework 3.5.1.

  3. Install the Office 365 PowerShell cmdlets. Two packages are needed which can be downloaded from the Microsoft Azure Active Directory PowerShell Module Version Release History (which is currently found at: http://social.technet.microsoft.com/wiki/contents/articles/28552.microsoft-azure-active-directory-powershell-module-version-release-history.aspx#Where_can_I_find_the_latest_version_of_AAD_PowerShell) page:

    Microsoft Online Services Sign-In Assistant for IT Professional RTW (this is the prerequisite to the Azure AD Module)

    Azure Active Directory Module for Windows PowerShell (64-bit version)

  4. You may need to change the execution policy to allow these scripts to function:

    • Allow PowerShell script execution

      The Default Execution Policy is set to restricted, it can be viewed by entering this command in PowerShell:

      Get-ExecutionPolicy

    • The script provided by Micro Focus must be run in PowerShell while running under Administrator rights:

      Set-ExecutionPolicy RemoteSigned

  5. Download the O365 Archiving Powershell Sync Script, found on the tools page. To access the tools page, select the 'tools' link from the top right of the Retain Server administration page.

  6. If using the script on the Retain server itself: Move the “sync365.ps1” script to the "~\Program Files\Beginifinite\Retain\RetainServer\WEB-INF\cfg" folder. Otherwise, make sure that the exchangeuser.csv and excahngegroup.csv end up in that directory on the Retain server.

  7. Edit the “sync365.ps1” script with Microsoft Integrated Scripting Environment (ISE) editor.

    1. At the top you will find 3 settings: $User, $PlainPassword, $ExportBasePath:

      • Set $User to the UPN of an administrator account in Office 365.

      • Set $PlainPassword to the plain text password of the administrator account.

      • Set $ExportBasePath to a directory where the two resulting csv files will be saved. If the path does not yet exist, it must be created manually as the directory will not be created automatically. Keep in mind that your backslashes must be quoted, and a final backslash is not needed. Example: $ExportBasePath="C:\\Program Files\\Beginifinite\\Retain\\RetainServer\\WEB-INF\\cfg"

        NOTE:If it is unacceptable to set a password in clear text, please view the following solution or use the secure script below:

      http://bsonposh.com/archives/338 -presents an alternative, which loads and saves encrypted credentials from file.

    2. Execute the script by clicking the play button. This process can take a while if there are many users. Once the script has completed, a message indicating that the script is done should be displayed along the bottom status bar. The resulting files, exchangeuser.csv and exchangegroup.csv, must be placed in the "~\Program Files\Beginifinite\Retain\RetainServer\WEB-INF\\cfg" folder for Retain to access the address book.

  8. Set Task Scheduler to run the script automatically once per day. If you create it at the Task Scheduler (Local) level you will be able to find it in the Task Scheduler Library folder after it is created, in the center pane.

    1. Create a New Task

    2. On the General tab, give it a name; and, for the description, you may want it read something like "Retain address book synchronization script for Office365".

    3. Under "Security options" section, choose: “Run whether user is logged in or not”.

    4. Under the Triggers tab, click on "New..."

    5. Under "Settings", set it to "Daily" and set the "Start" time: [set it to run an hour before the archive job is set to begin, but it doesn’t take that long, Exchange does maintenance between 1-5 AM]

    6. Do not expire

    7. Check Enabled

    8. Under the Actions tab: Create a New action.

      1. Set the Action to “Start a program”

      2. Program/script: powershell

      3. Add arguments: -NoProfile -ExecutionPolicy Bypass -file "[drive]:\Program Files\Beginfinite\Retain\RetainServer\WEB_INF\cfg\sync365.ps1" -Verb RunAs

      4. Start In: (leave blank)

5.3.10 PowerShell Sync Script 4.2

The standard sync365.ps1 script requires entering a plaintext administrator password. If that is not acceptable by your security policy, there is the O365 Archiving PowerShell Sync Secure Storage Script: Save-CredentialsEncrypted.ps1 which allows you to securely save the password used by the admin user.

Requirements

  • The script can be found under O365 archiving under the Tools menu at the top-right of the Retain admin console.

  • This must be run on the same machine as it was created on as the encryption is dependent on the machine it was run on.

  • This script requires PowerShell 4.0 or higher or the script will abort.

  • If using Windows Server 2008R2 or earlier, the script will throw errors because the Task Scheduler cmdlets are not supported and the Scheduled Task must be created manually.

Running the Script

  1. After downloading and extracting the script, open PowerShell and change to the directory the script is in and type .\Save-CredentialsEncrypted.ps1

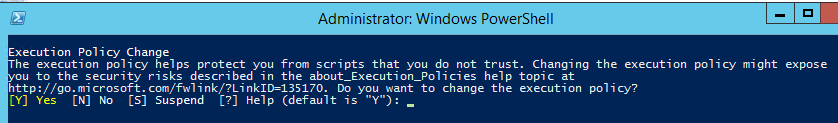

    1a. If you haven't run a PowerShell script before, you may have to change the Execution Policy to get a script to run. Set the execution policy to Set-ExecutionPolicy -ExecutionPolicy Bypass -Scope Process. If PowerShell 4.0 or higher is not installed the script will abort.

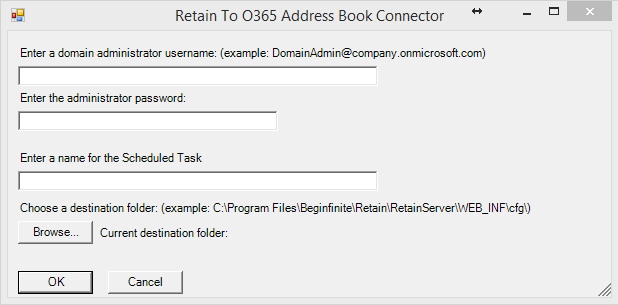

  2. A dialog box will appear requesting the credentials for an administrator user and the destination folder of the address book files.

    The administrator user must have sufficient rights to download the address book from O365. This would be the logon name and password of an administrator user (e.g. DomainAdmin@company.onmicrosoft.com).

    Provide it with a name for the Scheduled task.

    You can set the destination folder to anywhere you wish. However, the address book files exchangeuser.csv and exchangegroup.csv must end up in the ~\Program Files\Beginfinite\Retain\RetainServer\WEB_INF\cfg\ folder of the Retain Server. Retain will look for the address book files there when refreshing the address book.

    If you are using a Linux-based Retain Server, you will need to set up a process to move the address book files to the Linux-based Retain Server's opt/beginfinite/retain/RetainServer/WEB-INF/cfg folder.

    If you are running Retain will multiple modules each module will need a separate task and destination folder.

  3. The script will then setup a recurring task (SyncO365) in Task Scheduler to download the address book every day at 12:30am.

    The script will request your logon credentials as it sets up the task. The script will start the task before exiting. If you are using Windows Server 2008, multiple errors will appear because the Task Scheduler cmdlets do not exist, this is expected and the task can be created manually in Task Scheduler.

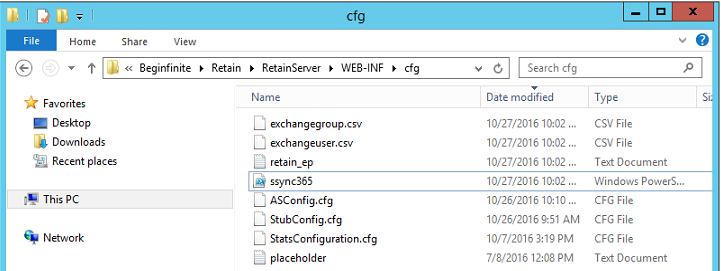

  4. It will take a moment to download the address book files: exchangeuser.csv and exchangegroup.csv. For a small system (<100 users) it may take a few minutes, for a large system (>10k users) it may take more than half an hour. After the script completes, make sure that the address book files are filled with items. If this does not generate the files it may be an execution policy issue, see notes section below.

Notes

We have found that Task Scheduler will sometimes stop working, so we recommend monitoring the .CSV files that they are updated every day.

Blank .CSV files:

Office365 requires regular password changes. If the wrong credentials are entered or the password has expired two blank .CSV files will be created. You will need to run this script again entering the Administrator logon name, the new password and the destination folder. The task will be started by the script to update the address book files.

Common Errors:

If you see red text and the window closes immediately that means, there was an error of some kind. Open a PowerShell window, change to the script folder, and run the script manually:

.\Save-CredentialsEncrypted.ps1

It may be that the proper version of PowerShell is not installed. This script requires at least version 4.0. You can determine the installed PowerShell version by running the cmdlet:

$PSVersionTable.PSVersion

To change the execution policy manually, the following command in a PowerShell window will allow execution for the current process:

Set-ExecutionPolicy -ExecutionPolicy Bypass -Scope Process

Then run the script from the same process window.

5.3.11 Using a Linux-based Retain Server with Office365

While there isn't a way to run Powershell scripts on a Linux server, you can run the sync365.ps1 script on any Windows computer with Powershell 2.0 or higher installed and copy the resulting CSV files to the Retain server.

Create a batch file to transfer the files

You can create a small Windows 7 VM that only runs the Powershell script and then you can copy the exchangeuser.csv and exchangegroup.csv to the Retain server.

You can use the free program WinSCP to copy from a Windows computer to a Linux server.

You can use windscp.com as the basis of a batch file to copy the resulting csv files to the Retain server.

Here is an example that we used:

retain.bat
"C:\Program Files (x86)\WinSCP\winscp.com" /command ^
 "option batch abort" ^
 "option confirm off" ^
 "open scp://[user]:[password]@[retain server address]" ^
 "cd /opt/beginfinite/retain/RetainServer/WEB-INF/cfg" ^
 "option transfer binary" ^
 "put [file location on windows]*.csv" ^
 "close" ^
 "exit"

Explanation of what each line does:

#Specify that all commands are run on the command line, while using ^ to split long lines for readability.
 "C:\Program Files (x86)\WinSCP\winscp.com" /command ^
# Automatically abort script on errors
 "option batch abort" ^
# Disable overwrite confirmations that conflict with the previous
 "option confirm off" ^
# Connect replacing your own username, password and retain server address
 "open scp://[user]:[password]@[retain server address]" ^
# Change remote directory
 "cd /opt/beginfinite/retain/RetainServer/WEB-INF/cfg" ^
# Force binary mode transfer
 "option transfer binary" ^
# Upload the file to current working directory
 "put [file location on windows]*.csv" ^
# Disconnect
 "close" ^
# Exit WinSCP
 "exit"

Automate the Script

You can now automate the running of this batch file in Task Scheduler as a simple task to run before the Retain archive job. Set the run time of the task so that it will complete before the Retain job begins.

5.3.12 Configure SharePoint Online/OneDrive for Archiving

In Office365 you can attach documents stored in SharePoint Online/OneDrive. However it doesn’t send the actual document but only a link to that document.

NOTE:As a cloud service these screens may change at anytime.

When Retain attempts to archive an attached document it often runs into trouble because the retain user, while it does have ApplicationImpersonation right, doesn’t have rights to anything outside of Exchange. So Retain will error because it knows there is supposed to be something there but can’t reach it.

11:04:16, 704[Thread-4920] [ERROR] ExchangeAttachment: error while creating attachment. java.io.IOException: SharePointError - Impersonation has no access to: https://gwava-my.sharepoint.com/personal/user08_gwava_onmicrosoft_com1/Documents/Email attachments/office 365 users(1) (1).txt

What needs to be done is the retain user needs be added as a “site collection administrator” in SharePoint/OneDrive. Start by going to the Office365 admin page and selecting SharePoint.

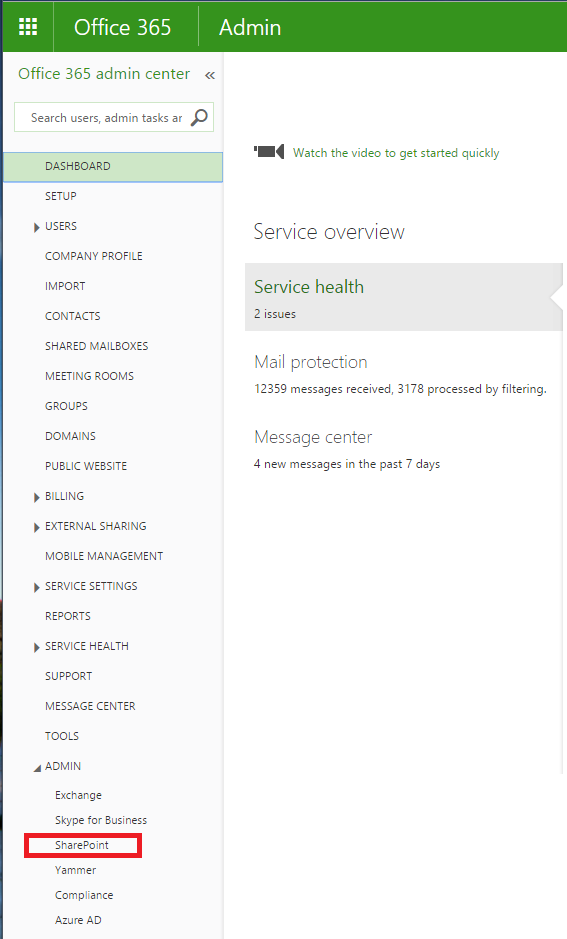

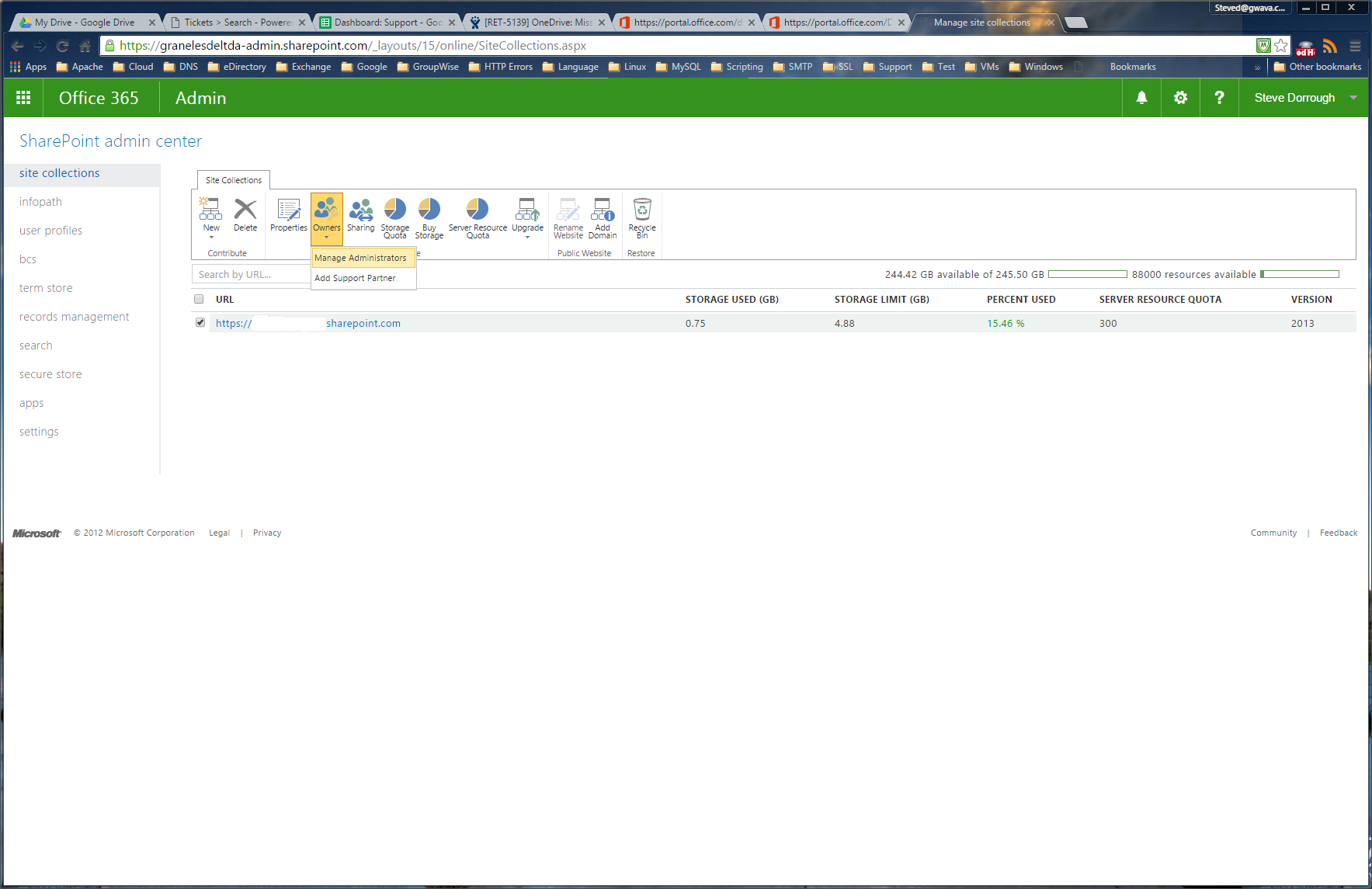

Go to the Site Collections, select the collection to add the retain user too, click the “Owners” tab.

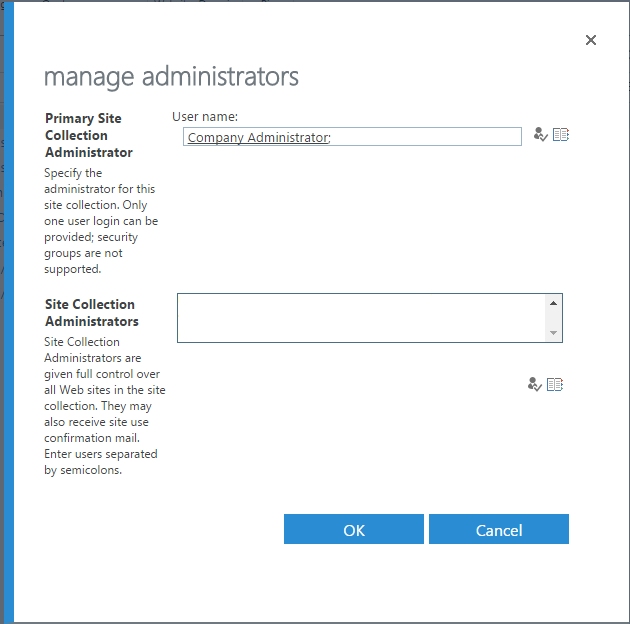

You can now add the retain user as a “Site collection administrator”. This way the retain user will have rights to access the data.

This works for individual site collections, but it would be difficult to do that individually if you have many site collections. There is no way in SharePoint to change more than one collection at a time.

Changing Across The Domain However, there is a SharePoint Online Management Shell script that you could modify for your use to do all site collections at once.

5.3.13 Configure Exchange Module for Office365

The Exchange module must be configured in the Retain Server before any communication between Retain and an existing Exchange message system can occur. Open the Retain management page on the Retain Server, and select Module Configuration.

Select the ‘Configure’ option in the Exchange module. A new window or tab will open with the module configuration.

NOTE:Ensure that your Retain Server DNS is set to the same DNS server that your Exchange server uses. The Exchange module uses these DNS setting to auto discover critical information about Exchange stored in Active Directory and will not function correctly unless both systems are pointed to the same DNS server.

5.3.14 Core Settings Tab

The Core Setting Tab allows you to disable all jobs and disable users logging into Retain.

The module needs to be enabled on this page to make it active in the Retain system.

The module can be given a name.

The Send Method option enables either the SMTP Forwarding or FTP features. For either feature to appear and function, the Module Forwarding tab must be configured on the Server Configuration page. See that section for more information.

Normally all the checkboxes on this tab are always left selected. It is rare that you would ever deselect any of them. Two cases where you might, would be: troubleshooting, (as instructed by Technical Support), or retrieving an old email system.

The Enable Address Book Caching function allows Retain to regularly cache the online email systems address book and synchronize it with Retain. This is critical for administration, authentication, and archiving purposes. It is recommended to cache the Address Book once every 24 hours to keep the Retain storage system up to date. By default, maintenance is set to cache the Address Book once every 24 hours.

The Enable Authentication checkbox determines if end-user authentication is performed when the user logs into Retain. If it is deselected, the Retain system will NOT authenticate the user against the email system and the user will not be able to log in unless another authentication method is enabled.

The Enable Jobs checkbox determines if configured data retrieval jobs are ever passed to the Worker. Even if the individual job is fully configured and enabled, if this checkbox is switched off, no jobs configured for this module will be processed.

The Message body allows the administrator to decide whether to store either the HTML or plain text message body, or both.

Send Method

The Send Method option enables either the SMTP Forwarding or FTP features. For either feature to appear and function, the Module Forwarding tab must be configured on the Server Configuration page. See that section for more information.

5.3.15 Impersonation Tab

If the Impersonation and Core Settings tabs are not completely configured with the correct information, the hosted system will not be archived correctly.

Enter the Impersonation user credentials.

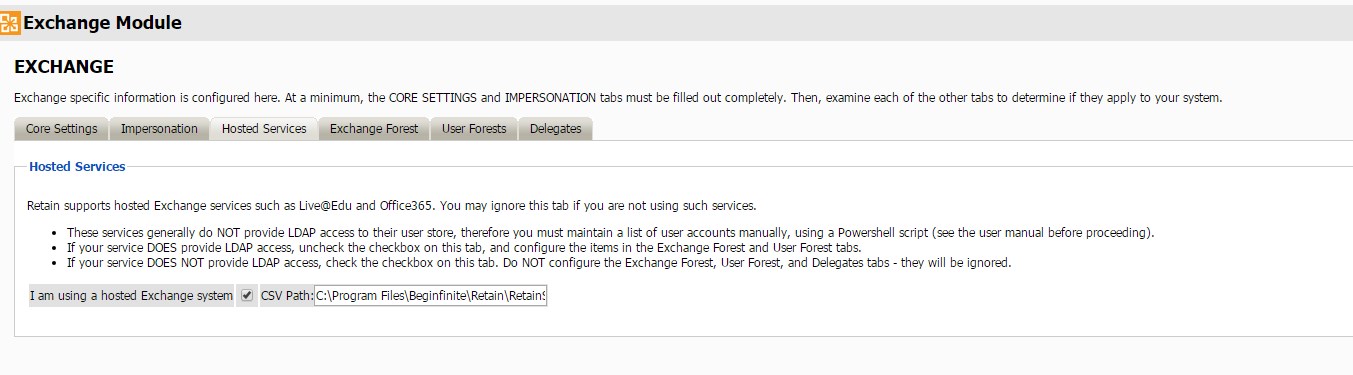

5.3.16 Hosted Services Tab

Mark the checkbox to enable Retain support for hosted Exchange services.

Provide the path that Retain will use for the CSV files that the PowerShell Sync script will save the user list. By default: C:\Program Files\Beginfinite\Retain\RetainServer\WEB-INF\cfg

All other tabs will be ignored. Save all changes before closing the Exchange Module page.

Multiple Modules

If using multiple modules, each module must have a different folder for the script and CSV files.

For example, C:\Program Files\Beginfinite\Retain\RetainServer\WEB-INF\cfg\domain1 and C:\Program Files\Beginfinite\Retain\RetainServer\WEB-INF\cfg\domain2

Each module will also need a separate Scheduled Task.

5.3.17 Refresh Address Book

After saving changes, return to the Retain Server's Module Configuration page, and trigger a refresh of the Address Book.

Depending on the size of the address book, it may take several minutes to return with information, but a successful configuration will return a correct address book cache date and no errors. The date should reflect the date of when the address book refresh was triggered.

The Status may show “Address Book Cache Never Run” or may list commonly mis-configured or missed items if the Refresh job fails.

Once the status is configured and the Address Book has been cached, Retain can connect to and archive messages from the Exchange server. The system is ready to have workers, schedules, profiles, and jobs configured, and those options will now appear on the main administrative interface.

The Address Book is refreshed whenever the button is pressed, during the nightly maintenance cycle, and before each job.

5.3.18 Next Step

Configure a job Exchange/O365 Job.
