Setting Up SDI TN3270 Plus in SecureLogin

  1. Right-click the SecureLogin icon on the system tray, then click Manage Logins.


    Selecting the Manage Logins option

  2. Click New.

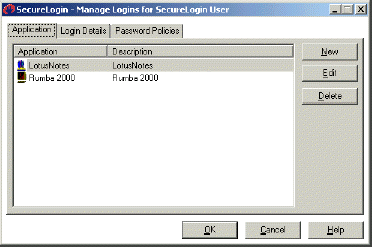

    The New button, to add an application

  3. Select New Application, type a name in the Name box, select Terminal Launcher as the type, then click Create.

    TN3270 Plus is the recommended name.

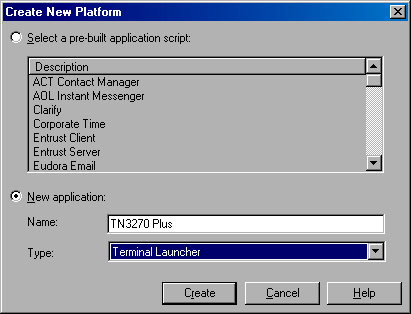

    Adding SDI TN3270 Plus as a new application

  4. Click TN3270 Plus > Edit.

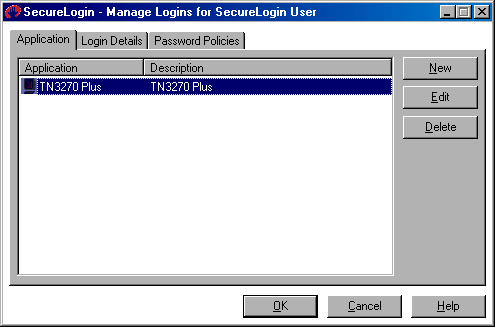

    A list of applications that you can edit

  5. Click Script, then type the following script:

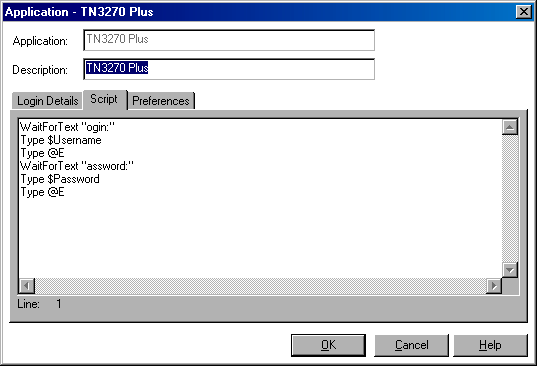

    A script for SDI TN3270 Plus

    The script is case sensitive. The omission of the "L" in login and the "P" in password allows the script to work regardless of whether the "L" and the "P" are displayed in uppercase or lowercase type. The script waits for the text "ogin". After the script detects the text "ogin", the script enters the value of the variable $Username.

  6. Click OK > OK, then close SecureLogin.
