Enabling SDI TN3270 Plus for Single Sign-On

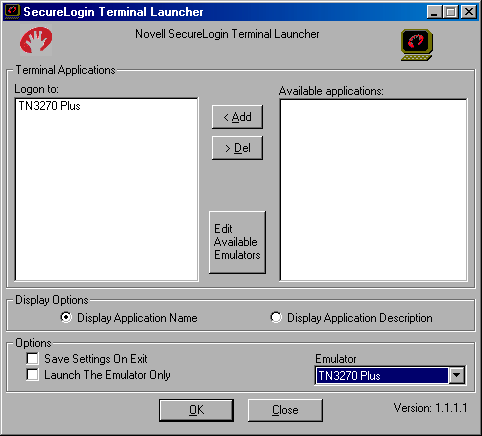

1. Run Terminal Launcher, then click Edit Available Emulators.




2. Click New.




3. Enter a name for the emulator, select WinHLLAPI as the emulator type, then click OK.

   TN3270 Plus is the recommended name.

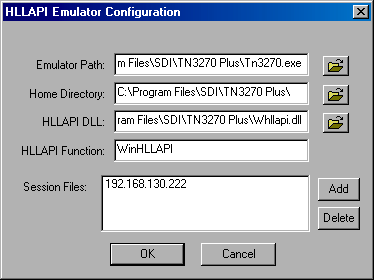

4. Configure the emulator:

   • Emulator Path

     This is the path to the tn3270.exe file.

   • Home Directory

     This is the home directory of the emulator.

   • HLLAPI.DLL

     This is the path to the whllapi.dll file.

   • HLLAPI Function

     Type WinHLLAPI.

   • Session File

     This is the IP address of the host that you want to connect to.




5. Click OK > Done.

6. Double-click TN3270 Plus in the Available Applications list, select TN3270 Plus from the Emulator drop-down list, then click OK.




7. Enter login data.

   The first time that the script is run, SecureLogin prompts the user to enter a username and password.

   Enter the Username.
Enter the Password.
Click OK.

   The emulator launches, the username and password are automatically entered, and the user is logged in to the session.
