4.2 Example Scenarios

The following are example scenarios of Event Monitor scoping that might help you configure your Event Monitor scope. For expanded information, see Section G.0, Event Monitor Scope.

Figure 4-1 Containers Specified to Include

In the example in Figure 4-1, the Event Monitor will monitor only the events that pertain to the NFMS and PrimoParts containers, including their subcontainers.

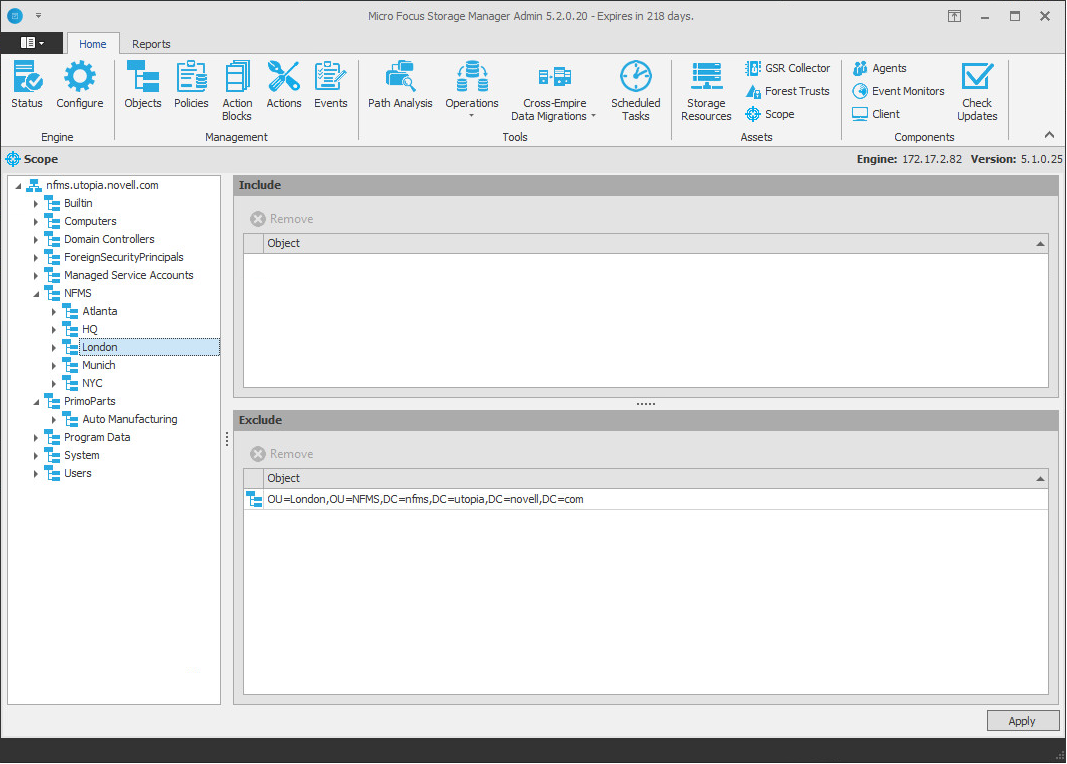

Figure 4-2 Container Specified to Exclude

In the example in Figure 4-2, the Event Monitor will monitor all containers except for the London subcontainer.

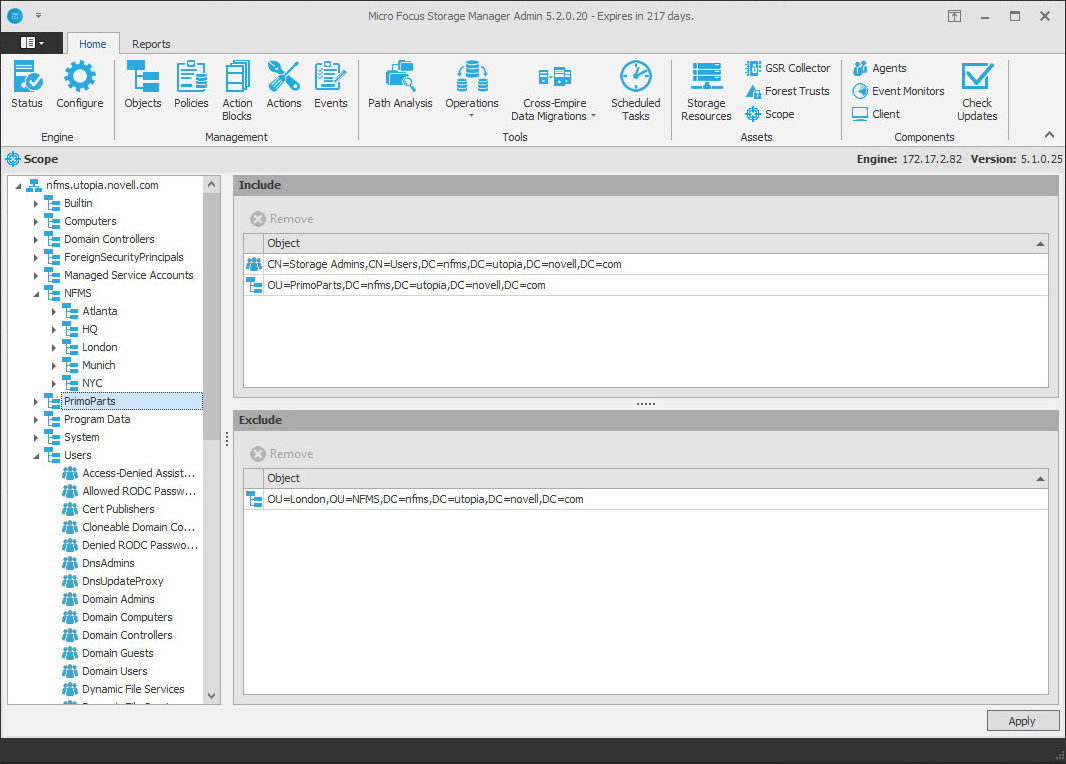

Figure 4-3 Containers Specified to Include and Exclude

In the example in Figure 4-3, the Event Monitor will monitor the PrimoParts container and Auto Manufacturing subcontainer, and all of the subcontainers in the NFMS container, with the exception of London. It will also exclusively monitor the Storage Admins group and exclude all other groups.
