9.1 Main Tab

9.1.1 Start Page

The left panes of the Start Page tool display an at-a-glance view of the management status of user storage, collaborative storage, and users and groups that have managed storage. The right pane displays links to resources and product news.

9.1.2 Engine Status

The Engine Status page provides an overview of the current status of the Engine through the Engine tab. If you are not seeing Storage Manager for eDirectory enact actions after events in eDirectory take place, viewing whether the Engine is processing and accepting events through this page is a good first step in troubleshooting.

Expanded details pertaining to events are detailed in different regions of the page. The General region provides general details including naming and version numbers. The User Event Counts region displays user storage actions. The Work Queue region provides details on actions yet to be completed. The Collaborative Event Counts region provides collaborative storage actions.

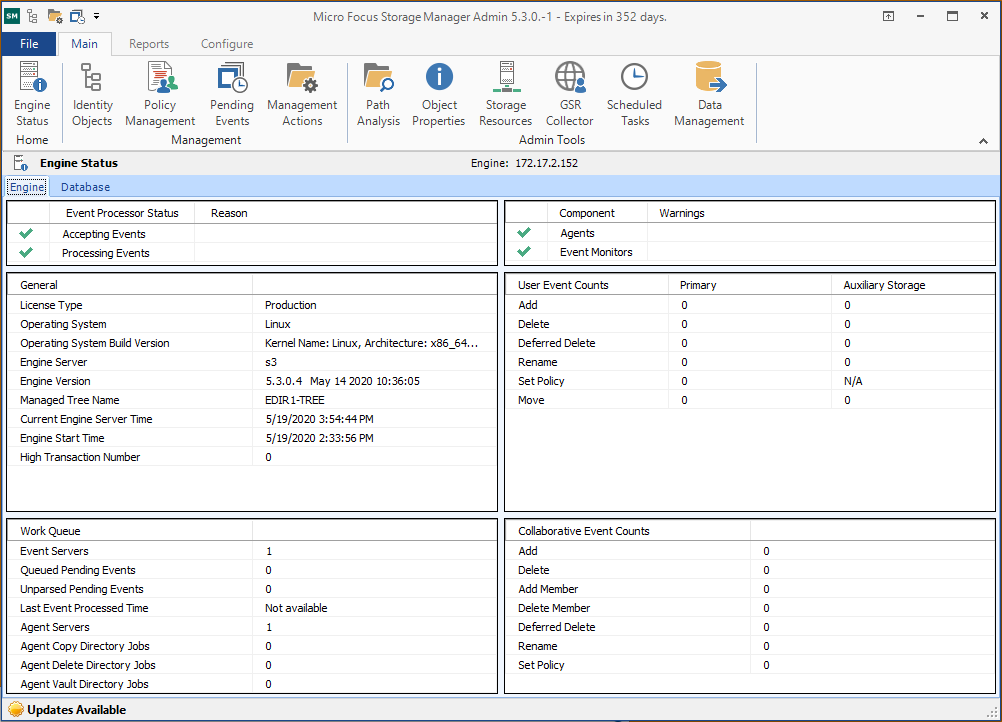

Figure 9-1 Engine Status Page

If you have Micro Focus File Reporter installed in your network, you can click the File Reporter Integration tab to view the status of the integration between Storage Manager for eDirectory and File Reporter.

NOTE:File Reporter reports on Storage Manager for eDirectory policies through a plug-in installed in the Admin Client. The plug-in allows administrators to create detailed, policy- based storage reports by reporting on the target paths associated with Storage Manager for eDirectory policies.

9.1.3 Identity Objects

The Identity Objects tool lets you manage the associations between Storage Manager for eDirectory policies and eDirectory objects such as organizational units, groups and users. This includes creating organizational units, setting context, viewing properties, performing Management Actions, and assigning policies.

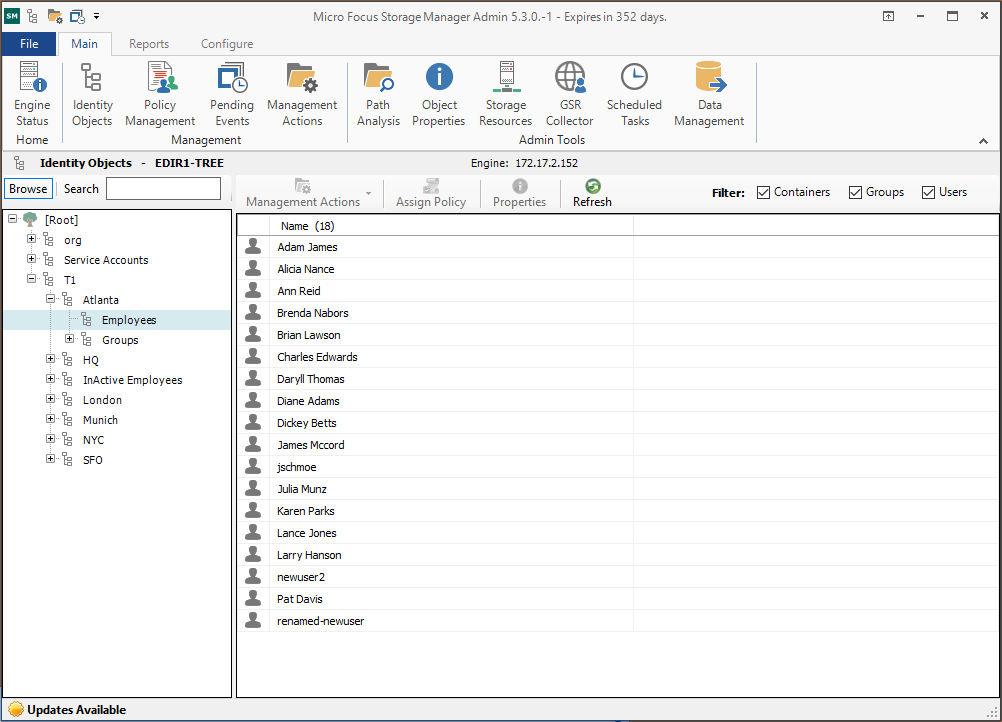

Figure 9-2 Identity Objects Page

Left Pane

Use the left pane to browse and select organizational units in the directory. Right-clicking an organizational unit in the left pane lets you take additional actions:

  • Create an organizational unit (OU)

  • Set the directory context in the left pane to display the hierarchy from the root or from the selected organizational unit

Right Pane

Use the right pane to view the objects within a selected organizational unit as well as view properties, perform Management Actions, and assign policies. The right pane displays containers, groups, and users, according to what you have selected in the Filter check boxes.

IMPORTANT:When you perform actions in the right pane, it is important that you know whether you are performing management specific to users, groups, or containers.

9.1.4 Management Actions

In managing user and collaborative storage with Storage Manager for eDirectory, there are cases when you need to retroactively apply policies, rights, attributes, and quotas to existing user storage, or perform some administrative corrective action or operation on a large set of users, groups, or containers.

In Storage Manager for eDirectory, performing these types of operations is collectively referred to as performing a Management Action, and is done through the Identity Objects page by right-clicking the object and selecting Management Action, or clicking the Management Actions drop-down menu.

You can perform a Management Action on an organizational unit, a Group object, or a User object. Management Action operations on a Group object apply to users who are members of the group. Management Action operations on an organizational unit apply to users in the organizational unit, and optionally to all subordinate organizational units.

IMPORTANT:The Management Actions vary based on whether the selected mode is User, Group, or Container. For example, if Group mode is selected, the Management Action will be performed for collaborative storage processing using Dynamic Template processing. If Collaborative mode is selected, the Management Action will be performed for container based collaborative storage.

Storage Manager for eDirectory analyzes each User object independently, regardless of whether the Management Action is initiated via organizational unit, Group objects, or User objects.

Management Actions Dialog Box

Whenever you initiate a Management Action, you work in a dialog box similar to the one below. A description of the components follows the graphic.

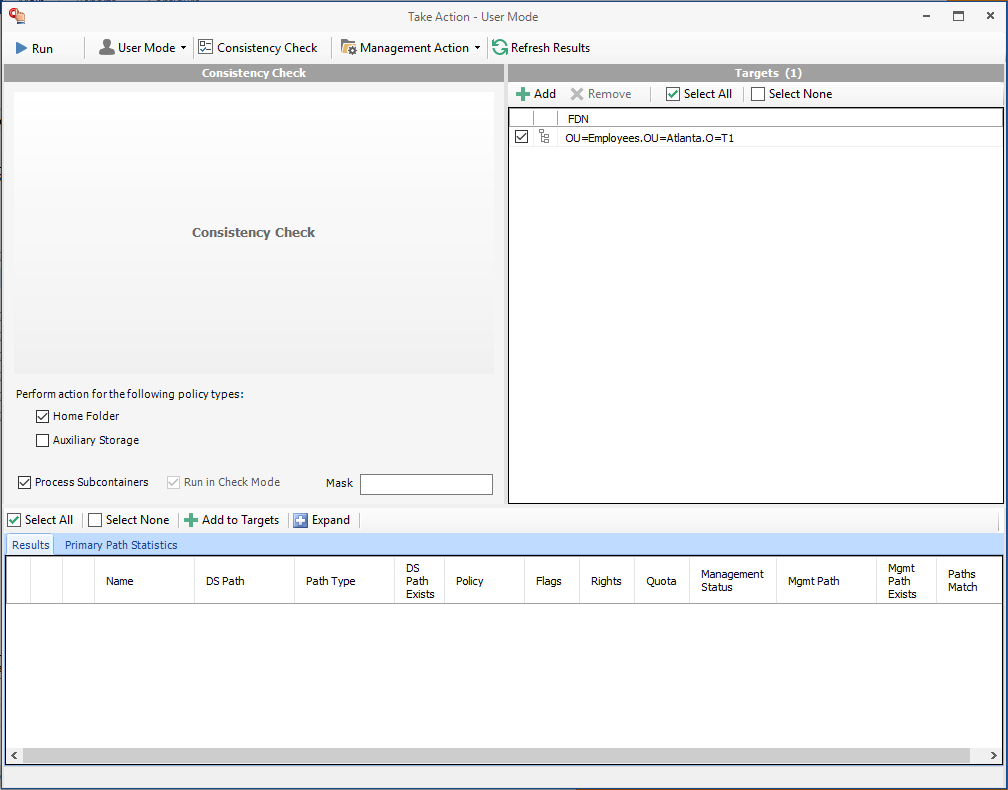

Figure 9-3 Management Actions Dialog Box

Run: Clicking this button executes the Management Action.

Mode: This drop-down menu lets you indicate if the Management Action is to apply to User, Group, or Container policy.

Consistency Check: This button lets you perform a consistency check before determining what Management Actions to perform. You can also use the Consistency Check button to view the results after you perform a Management Action.

Management Action: This drop-down menu lets you change from one Management Action to another while you are in the dialog box.

Refresh Results: This button refreshes the results displayed in the bottom pane of the dialog box.

Top Left Pane: The fields, options, and check boxes in this region vary based on the Management Action you are performing. In some cases, there is nothing in this region, because there are no settings to create. This region includes some powerful options for Management Actions, including the following:

  • Process Subcontainers

  • Run in Check Mode

  • Mask

When you perform a Management Action on a container, Storage Manager for eDirectory applies the action to all subcontainers. If you do not want the action applied to subcontainers, you can deselect the Process Subcontainers check box.

The Run in Check Mode check box lets you view the potential outcome of performing a Management Action before you actually perform the action. The action is evaluated and all tasks associated with the action are listed. We recommend that you perform all Management Actions in check mode and observe the outcomes before actually performing a Management Action.

For Management Actions performed on organizational units or Group objects, you can enter a search filter in the Mask field to limit the number of objects that Storage Manager for eDirectory analyzes. You can enter standard wild card characters with multiple strings separated by the “|” character.

Top Right Pane: This part of the dialog box lets you add, delete, or select objects to which the Management Action applies.

Bottom Pane: This part of the dialog box displays the results after the Management Action has taken place. To expand the viewable area, click Expand.

Available Management Actions

Consistency Check

This Management Action notifies you of inconsistencies or potential problems pertaining to user and group storage being managed through Storage Manager for eDirectory. These potential problems might be missing storage quotas, inconsistent directory attributes, missing and inconsistent managed paths, and more.

In addition to reporting on storage issues, consistency check reports let you review current quota assignments and can help you with the design and planning of storage policies. In Section 4.3, Running Consistency Check Reports on Existing Storage, you ran a consistency check before creating your first primary user policy to help you determine how to configure the policy.

Manage

This Management Action catalogs objects in Storage Manager for eDirectory, putting them in a managed state.

If the existing objects already have established managed paths, attributes, and rights, Storage Manager for eDirectory does not change these settings, nor does it enforce policy paths, grooming, and quota management. If you need to change attributes and rights, or enforce policy paths, grooming, and quotas, you can do so through the specific Management Actions.

If these existing objects do not have established managed paths, Manage creates the managed paths and sets the rights, attributes, quotas, etc. according to the policies that apply to the objects.

Enforce Policy Paths

This Management Action moves data to where the policy’s target path specifies. If you decide to move your user home folders from one location to another, you can simply change the target path in the policy and then run Enforce Policy Paths to move the home folders.

The Enable pre-stage data copy option lets you copy data without alerting you to failures if there are files open. When a user is moved in Active Directory and the policy dictates that the home folder is to be moved to a new target path, this option allows for all closed files to be moved. At a later time, you can go back and run an Enforce Policy Path Management Action without the Enable pre-stage data copy check box selected, to move the files that were previously open.

Groom

This Management Action carries out file grooming according to the file grooming specifications in the applied policy.

Apply Attributes

This Management Action lets you apply file system attributes. If you decide to modify the file system attributes in a policy, you can select Apply Attributes to immediately apply the new attributes for all of the affected objects.

If you cataloged existing objects with existing managed paths through Manage, the attributes for the managed path are not modified once the object’s managed path attribute is cataloged (see Manage above). If you want to modify the original attributes of the managed path, you can do so through the settings in the in the left pane of the Apply Attributes dialog box.

Apply Home Drive

When the Home Folder check box is selected, this Management Action changes the home drive letter for the user that is assigned under eDirectory, to the drive letter that is specified in the Storage Manager for eDirectory policy.

NOTE:The new drive letter does not take effect until the user logs out and then logs in again.

Apply Members

This Management Action is included to create the owner folder and personal folders in a collaborative storage area, where these folders did not exist previously. You must first modify the collaborative storage template in the policy to include -OWNER- and -MEMBER-. For more information, see Section 7.0, Managing Collaborative Storage.

If you do have personal folders in the collaborative storage area and you later change the rights on -MEMBER-, you use the Apply Members Management Action to enforce the new rights.

Apply Ownership

This Management Action lets you set ownership of the home folder and home folder contents.

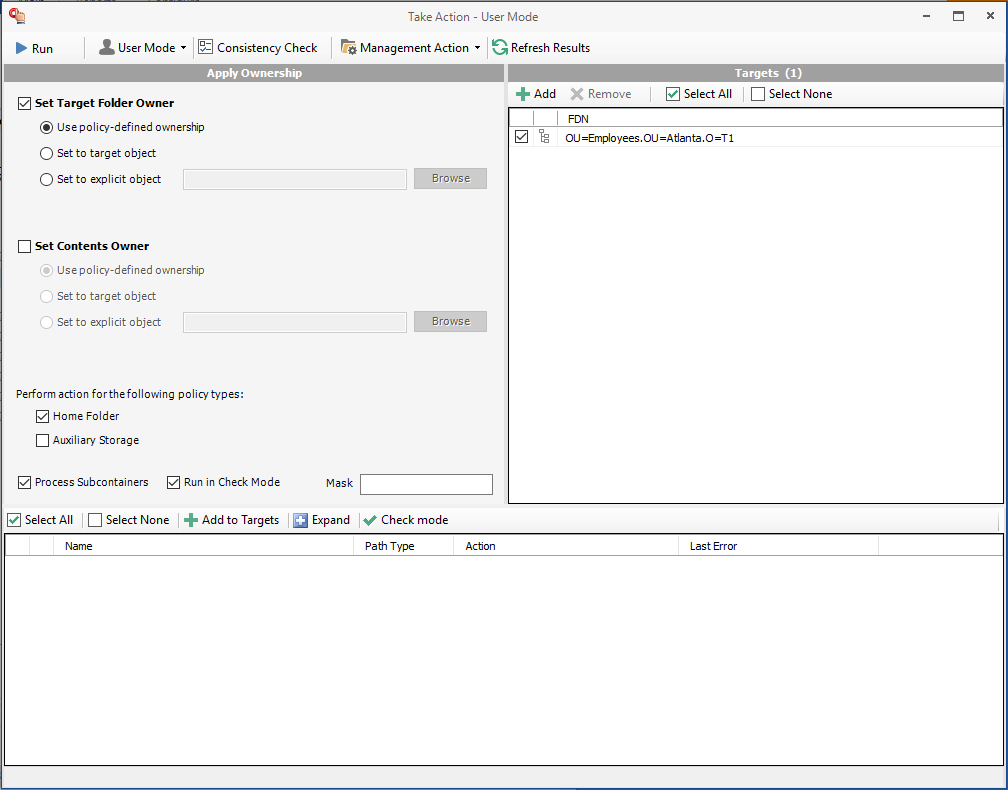

Figure 9-4 Apply Ownership Management Action Page

NOTE:The ownership specifications you make on the page shown above are applied to folders and files that exist at the time the Management Action takes place. The ownership of files and folders that are created later is not affected by this action. For example, if a user's home folder is moved due to an Enforce Policy Path action, the ownership of the user’s home folder will be determined by the settings in the policy.

Set Target Folder Owner: Select this check box to specify that the ownership applies only to the home folder and not to any subfolders.

Use policy-defined ownership: This option sets the home folder owner according to the specified owner in the Path Owner field of the policy.

Set to target object: When this option is selected, each of the selected users’ home folders is set to have that user object as the owner.

Set to explicit object: This option lets you browse to select a specific owner for the home folder.

Set Contents Owner: Select this check box to specify that the ownership applies to the subfolders and files contained in the home folder.

Use policy-defined ownership: This option sets the home folder contents owner according to the specified owner in the Path Owner field of the policy.

Set to target object: When this option is selected, each of the selected users’ home folders is set to have that user object as the owner.

Set to explicit object: This option lets you browse to select a specific owner for the contents of the home folder.

Perform action for the following policy types: Specify the policy types you want this Management Action to apply to.

Process Subcontainers: Selecting this option specifies that you want the settings on this page to apply to users that reside in the subcontainers within the container where this policy is applied.

Run in check mode: Selecting this check box lets you view the potential outcome of performing a Management Action before you actually perform it. The action is evaluated and all tasks associated with the action are listed. We recommend that you perform all Management Actions in check mode and observe the outcomes before actually performing a Management Action.

Mask: For Management Actions performed on organizational units or Group objects, you can enter a search filter in the Mask field to limit the number of objects that Storage Manager for eDirectory analyzes. You can enter standard wild card characters with multiple strings separated by the “|” character.

Apply Quota

This Management Action lets you apply managed path quotas. If you decide to modify the quota settings in a policy, you can select Apply Quota to immediately apply the new quota setting to all of the affected users.

If you cataloged existing network users with existing home folders through Manage, there might be no quota settings for the user home folders. Or, the quota settings might be inconsistent with those specified in the policy. If you want to establish or reset the quota for the home folder, you can do so through the settings in the left pane of the Apply Quota dialog box.

Apply Rights

This Management Action lets you apply file system rights. If you decide to modify the file system rights in a policy, you can select Apply Rights to immediately apply the new rights for all of the affected users.

Apply Template

This Management Action lets you apply a template specifying how to provision user or collaborative storage. If you decide to modify the template in a policy, you can select Apply Template to immediately apply the new template structure to all of the affected users. This can be especially useful if you need to quickly provision a new subfolder with a document, such as a new health benefits document for all employees. All you need to do is modify the template to include the new subfolder and document inside the subfolder and then use Apply Template to provision it to everyone.

If you cataloged existing network users with existing home folders through Manage, the file structure created by the template is not modified after the user and his or her associated home folder are cataloged (see Manage above). If you want to modify the original file structure for the home folder, you can do so through the settings in the in the left pane of the Apply Template dialog box.

Clear Managed Path Attribute

This Management Action allows removes the managed path attribute so you can create a new one. Administrators might find this useful when users have invalid values for their home folder attributes and want to start over by creating new ones.

Recover Managed Path Attribute

If the attribute for a user home folder ever becomes corrupted, this Management Action can be used to recover an uncorrupted version of the attribute from the Storage Manager for eDirectory database.

Assign Managed Path

You can use this Management Action to assign an attribute to a user folder.

Directory Merge

This Management Action lets you merge contents of one home folder with those of another. This is especially useful if a user leaves an organization and you want to transition the files from the former user to another user. Another example might be if a user has two home folders and you want to merge the contents into one.

Remove from Database

This Management Action removes object from the Storage Manager for eDirectory database and makes the object unmanaged.

Assign Policy

Lets you easily assign a User, Group, or Organizational Unit object a policy while you are in the Identity Objects page. If an effective policy is already assigned to one of these objects, you can assign a new policy, replacing the effective policy with an assigned policy.

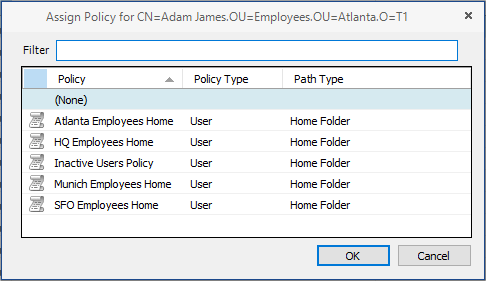

Figure 9-5 Policy Selector Dialog Box

The Filter field filters policy names as you type.

Object Properties

You can easily view an expanded set of object properties in the Identity Objects page by right-clicking an object in the right pane and selecting Object Properties.

The five tabs display the following information:

Properties: Displays eDirectory values and Engine database values. If you are working with a Support representative to resolve a problem, you might need to provide information from this screen.

Effective Policies: Lists all of the effective policies for the selected object. An effective policy is a policy that affects a user either directly through association or inheritance by membership in a organization, container, or group.

Associated Policies: Lists all of the associated policies for an object. An associated policy is an explicitly assigned policy associated with a container, group, or user.

Transactions: Shows pending events for the selected object. If there are many pending events, but you only want to see those pertaining to a particular user, you can see the pending events for the User object.

History: Shows a history of move and rename events that pertain to the selected User object.

Having historical information can be beneficial for a number of reasons. One in particular is for restoring files. Suppose a project manager was working on a project three years ago and then the company decided to discontinue funding the project. After one year, the project manager decided to delete the project files from her personal folder. Now suppose that two years later, a new executive in the organization wants to renew the project. To locate the original project files from backed up storage would be quite time consuming, but by viewing the information in the History tab, you could easily find the original location of the backed up home folder, if it was moved, and if so, where it was moved to, so that you could retrieve the project files.

9.1.5 Policy Management

The Policy Management page displays all policies, along with a summary of policy details. When you select a policy, applicable tools in the toolbar are activated. A summary of the toolbar follows.

NOTE:All of these tools are also accessible by right-clicking a selected policy.

Manage: Lets you create any of the following policies:

  • User Home Folder policy

  • Group policy

  • Container policy

  • Auxiliary policy

Rename Policy: Lets you rename the selected policy.

Delete Policy: Lets you delete the selected policy.

Edit Policy: Brings up the Policy Editor, where you can edit the selected policy.

Import Policies: Provides the ability to import policies that were previously exported through the Export Policies menu option.

NOTE:Policy associations are not imported. After policies are imported, you need to associate the policies to containers or groups.

For more information on importing policies, see Section 5.9, Importing Policies.

Export Policies: Provides the ability to export policies so that they can be imported later. For example, many customers first evaluate Storage Manager for eDirectory in a lab environment and create a large number of policies in the process. You can export these policies and later import them into the production environment. For more information, see Section 5.8, Exporting Policies.

Import Upgraded Policies: Provides the ability to import policies migrated from a Storage Manager 2.5x Engine after the Admin Client Setup Wizard has been run. This feature is provided in case you chose not to import the policies when you ran the Setup Wizard.

Actions for Auxiliary Policies: Provides menu options that are applicable to Auxiliary policies. To activate this menu, click an Auxiliary policy. Menu options include Manage, Groom, > Apply Attributes, Apply Quota, Apply Rights, and Assign Auxiliary Attributes.

Auxiliary Purpose Mappings: Auxiliary policy mappings give you the ability to specify a purpose or classification for auxiliary storage policies. For example, you might want to create an HR purpose for all of the auxiliary storage policies that create HR folders for employees. With each of the auxiliary storage policies that create HR folders assigned the same purpose, it makes it possible for Storage Manager for eDirectory to make intelligent decisions for auxiliary storage when a user is moved.

For example, if a user in the Detroit office transfers to the Dallas office, and the user has a home folder and an auxiliary storage folder in the Detroit office’s HR department, you want to migrate both the home folder and the auxiliary storage folder to correct locations in Dallas. Having the Detroit auxiliary storage policy and the Dallas auxiliary storage policy identified with the same HR purpose, ensures that the user moved from Detroit to Dallas, will have his auxiliary storage properly established with the move.

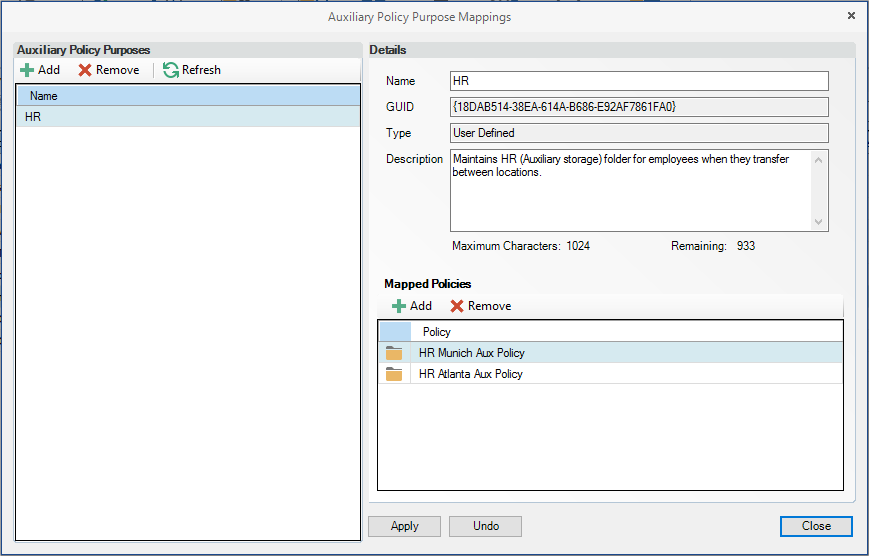

Figure 9-6 Auxiliary Purpose Mappings Dialog Box

Redistribute Policy Paths: Allows you to define additional target paths in the policy and then redistribute or load-balance the data among the various paths.

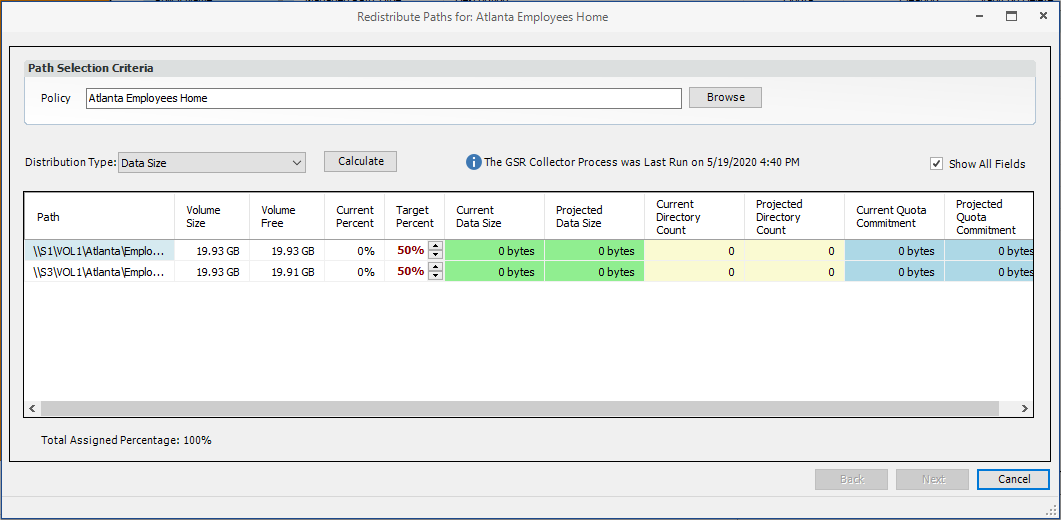

Figure 9-7 Redistribute Policy Paths Dialog Box

Using the Redistribute Policy Paths dialog box, you can redistribute the user and collaborative storage across the target paths associated with a policy.

NOTE:The data displayed in the dialog box is taken from the most recent report from the GSR Collector.

Use the Distribution Type drop-down menu to view your data distribution according data size, directory count, and quota commitment.

Click Next to view the current locations of the home folders and collaborative storage folders, and the location where Storage Manager for eDirectory proposes to redistribute the folders. If you want, you can deselect a folder for distribution by deselecting the check box corresponding to the folder. You can also indicate a new target path for the folder by clicking in the Target Policy Path column and selecting a new target path.

Clicking Submit begins the process of redistributing the folders.

Report on Policy Paths: If your network includes Micro Focus File Reporter, this button is the means of Micro Focus File Reporter reporting on Storage Manager for eDirectory policy paths.

This capability is particularly powerful because it allows you to specify the target paths where user and collaborative storage resides on the network. Because network user and collaborative home folders tend to be the source of most of the stale, redundant, and non-work-related file types, the Policy Path Reporter can quickly and easily be the means of generating reports on the storage areas that you care about most. For procedures, refer to the Micro Focus File Reporter 3.6 Administration Guide.

Refresh: Refreshes the list of policies.

NOTE:Refreshing locks the database during the refresh operation. For best performance, do not refresh more than is necessary.

Reload Policy Cache: Reloads your policies from the database. For example, you can use this tool if you have a policy that is not displayed in the list.

Check Boxes: The Admin Client shows only the policy types that are checked.

Filter: Filters policy names as you type.

9.1.6 Pending Events

This page displays a list of pending events for the Engine. All of the pending events are listed with details on the status of those events. Some events process very quickly and might actually be completed before they can be viewed in the list. Other events might remain in the queue for a long time, waiting for some condition to be met before they can be completed.

Clicking a listed event or events activates the toolbar. The toolbar has the following options:

Properties: Displays event properties such as FDN, ID, Action, and Current Status.

Make Eligible: If an event is deferred, you can click this option to make the event eligible immediately.

Defer: If an event is eligible, you can click this option to manually defer it to a specific date. The chosen deferral date is displayed in a Notes field. You can also enter any notes explaining the reason you are deferring the event. Text from the Notes field is also displayed in the Deferred Notes field of the Properties dialog box.

Bypass: Lets you bypass the status that is holding up the event.

Abort: Lets you terminate the selected event or events.

WARNING:Aborting events should only be used when really necessary, as they can leave your managed objects in an unknown state. Use aborts carefully! Be sure to only highlight the events needing to be cleared. All selected, eligible, events will be aborted. When aborting events, be sure to do extra checking of data before trying to act on objects again. Do frequent consistency checks before moves. Watch for things like home directories set to PROXYHOM. You may need to make some manual corrections before initiating further operations.

Refresh: Refreshes the event list.

Previous/Next: The arrows let you move forward or back in the event list according to the Events Per Page setting.

Events Per Page: Indicates the number of events you want displayed on each page.

NOTE:These settings are persisted across Engine restarts. Therefore, if you stop processing and restart the Engine or the server hosting the Engine reboots for some reason, event processing will remain off until you turn it back on.

  • Accepting: A green check mark indicates that Storage Manager for eDirectory is accepting events to process. You can stop accepting events to process by clicking this button. You are prompted to enter text in a field indicating your reason for stopping the acceptance of events. The text you enter is recorded on the Engine Status page.

  • Processing: A green check mark indicates that Storage Manager for eDirectory is processing events. You can stop processing events by clicking this button. You are prompted to enter text in a field indicating your reason for stopping the processing of events. The text you enter is recorded on the Engine Status page.

9.1.7 Path Analysis

The Path Analysis page shows a tree view of your network storage and provides various storage reports. These reports are a quick way to determine the trustees of a volume or folder, the number of files and file types in a given folder, whether a quota is assigned to a folder and if so, how much, and the trustees of individual files.

NOTE:Whether managed by Storage Manager for eDirectory or not, all of the storage visible in the left panel is eligible for path analysis.

Use the left pane to browse and select network volumes and folders. Use the right pane to view the files within a selected folder.

Clicking a volume or folder in the left pane activates the toolbar. Options are also available by right-clicking a volume or folder. The toolbar has the following options:

Path Analysis A drop-down menu with the following options:

  • Quota: Indicates if a quota is set for a folder, the quota size, and the amount of free space remaining in the folder.

  • File Types: Categorizes the content of the selected folder by displaying the various file types, the total number of each file type, and the total size of each file type. For example, to know if a user is storing non-work related files in his or her home folder and the total size of these files, you could use this feature to quickly determine this information.

  • Trustees: Opens the View Trustees dialog box, which lists all users and objects that have any type of rights to the selected volume, folder, or file. The View Trustees dialog box also indicates the rights that each of these users and objects have as well as how these rights are obtained.

Path Management: A drop-down menu with the following options:

  • Create Folder: Lets you create a new folder within a selected folder.

  • Rename Folder: Lets you rename a selected folder.

  • Delete Folder: Lets you delete a selected folder.

Rebuild: Rebuilds your storage resource list. You might need to do this to display the storage resource list structure after it has been modified.

Refresh: Refreshes the view within the Path Analysis page.

9.1.8 Object Properties

You can display the object properties through the Identity Objects page, and you can also display them through the Object Properties page.

Use the Browse button to select an object from the Object Browser to place the fully distinguished name of the object in the FDN field, then click Submit. The five tabs display the following information:

Properties: Displays eDirectory values and Engine database values. If you are working with a Micro Focus Support representative to resolve a problem, you might need to provide information from this page.

Effective Policies: Lists all of the effective policies for the selected object. An effective policy is a policy that affects a user either directly through association or inheritance by membership in a container or group.

Associated Policies: Lists all of the associated policies for an object. An associated policy is an explicitly assigned policy associated with a container, group, or user.

Transactions: Shows pending events for the selected object. If there are many pending events, but you only want to see those for a particular user, you can see the pending events for the User object.

History: Shows a history of managed storage that pertain to the selected User object. This information is only available after the GSR Collector has run.

9.1.9 Storage Resource List

This page lets you rebuild the storage resource cache used in Storage Manager for eDirectory. Because Storage Manager for eDirectory uses the storage resource cache to accelerate operations, there might be times when you need to use this page to populate the cache with new volumes.

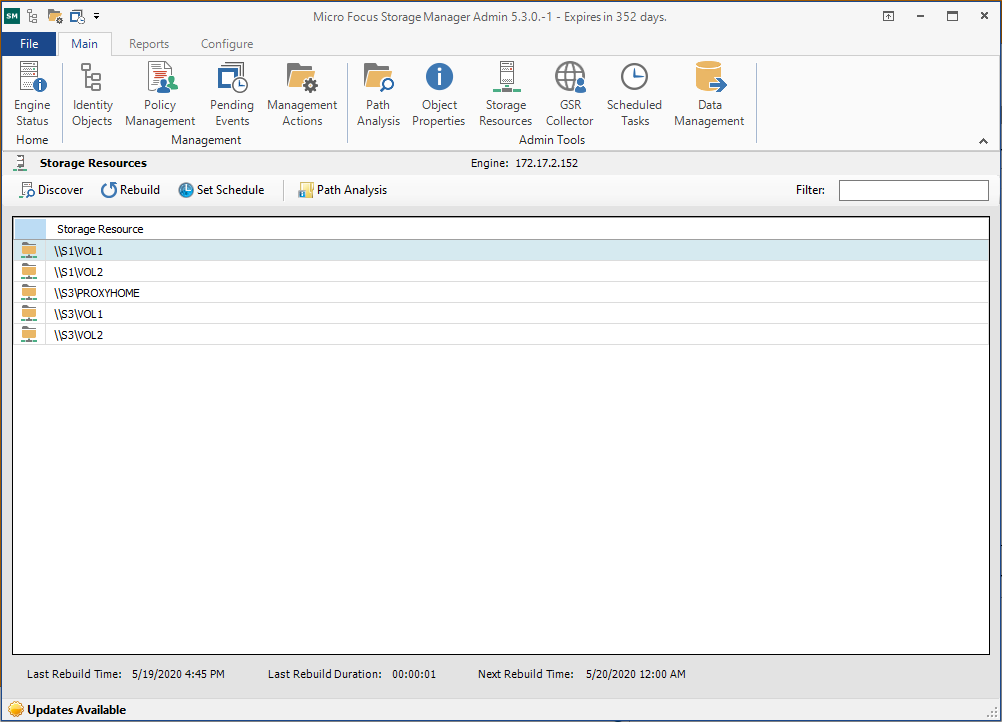

Figure 9-8 Storage Resource List Page

Discover: Clicking this button initiates a search within the entire tree for any new volumes. Depending on the size, configuration, and topology of your network, this can take a significant amount of time.

Rebuild: Clicking this button initiates a search within the entire tree for all available volumes. When you create or edit a policy, you might need to rebuild the list if the volume you need does not appear in the storage resource list. Depending on the size, configuration, and topology of your network, this can take a significant amount of time.

Set Schedule: Allows you to set the schedule for rebuilding the storage resource cache.

Path Analysis Clicking this button opens the path analysis page for the selected storage resource, allowing you to browse it and do path analysis on any folder you select.

Last Rebuild Time Displays the last date and time that the storage resource list was rebuilt.

Last Rebuild Duration: Displays the length of time it took to generate the new storage resource list.

Next Rebuild Time: Displays the date and time when Storage Manager for eDirectory next rebuilds the storage resource list. Unless rebuilt through the Rebuild Storage List button, the storage resource list is rebuilt automatically at midnight each day.

9.1.10 GSR Collector

The Global Statistics Reporting (GSR) Collector gathers and presents an extensive amount of statistical summaries pertaining to file system data. The GSR Collector provides data for the various reports that you can generate in Storage Manager.

The GSR Collector can be run manually or based on a schedule.

Additionally, the GSR Collector maintains a history in the Storage Manager for eDirectory catalog of the movement of user managed paths.

The GSR Collector can be especially useful when Storage Manager for eDirectory has archived data. When data is archived, network administrators tend to move data from one storage area to another. Each time the GSR Collector is run, Storage Manager for eDirectory records the old and new locations for the data, so that the data can be easily located; for example, if an audit is necessary.

To view the history from the Identity Objects page, display a User object in the right pane and then double-click it. In the Object Properties dialog box, click the History tab to view historical information of data movement pertaining to the User object.

The GSR Collector can be resource intensive. You should be careful when running the GSR Collector during peak traffic load on the Engine.

9.1.11 Scheduled Tasks

You can use Scheduled Tasks to view, edit, and run tasks that are currently scheduled. Scheduled tasks include storage resource discovery, file grooming, data copying, and running the GSR Collector. To edit a scheduled task, select the task listing, click Edit Scheduled Task, and then select Edit Schedule to access the schedule dialog box. You can also access the same dialog box through the GSR Collector page, the Storage Resource List page, and on the Add Scheduled Tasks page to schedule grooming.

9.1.12 Data Management

Data Management (data copying) lets you copy a specific set of data and its associated rights, ownership, and other metadata from one location to another without requiring a policy. If you choose, you can preserve all of the permissions and quota settings in the process.

Additional options let you overwrite existing duplicate files or folders, remove files from the source location once they are copied to the target location, and skip open files. If you want Storage Manager for eDirectory to attempt to copy open files after they are closed, leave this option deselected.
