6.5 Customize

6.5.1 Customize

The Customize menu allows the Administrator to brand the application where system banners can be replaced with the appropriate organizational banners. Graphics included should be PNG images. The Application Banner should be 250 x 60 pixels and all other banners should be 500 x 60 pixels.

Adding a Customized Banner

To add a customized banner:

  1. Select Setup>Customize

    Banner Type

    Displayed

    Application

    Visible on the Log in page of the system.

    User

    Visible in the portals for Supervisor, Technician, Administrator, Partner, Finance and Manager Users

    Public/Email

    Displayed on public portals for Knowledge, Outages, Surveys and Forums. This banner is also included in emails when the Setup>Email>Setup option of Include Banner is set to Yes.

    Customer

    Visible in the Customer Portal.

    NOTE:Banners for Partner Organizations can be uploaded in the Banners tab of the User>Partner Organization screen. This will override the system Customer Portal banner for Customers associated with the Partner Organization.

  2. To use Custom Banners, select the Use Custom checkbox at the top of the Customize Banners screen.

  3. To upload a new banner, click New

    A window with a browse function appears.

  4. Browse to the location of the image and click

    The image will be uploaded.

  5. Repeat the process until all banners have been replaced

  6. Click Save.

NOTE:When the Purchase Orders functionality is enabled within the Setup>Billing tab, the option to upload a logo that will be used for system generated POs is displayed. The graphic should be saved as 150x150 PNG file.

Portals Tab

All Public Access home page messages can be fully customized under the Portals tab. Links to documents and downloads may be added. The home page messages can be customized for:

  • Alerts

  • Forums

  • Knowledge Base

  • Login Page

  • Public Outages

  • Planned Outages

  • Surveys

  • Customer Portal welcome message

NOTE:Outage Home and Planned Home Messages apply in Service Manager only.

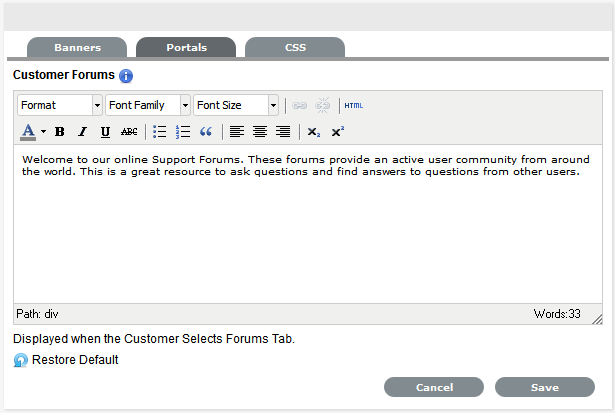

To customize a Public Access message:

  1. Select Setup > Customize

  2. Click the Portals tab

  3. Select the Name hyperlink

    The HTML editor appears.

  4. Edit the message as required

  5. Click Save.

Cascading Style Sheets

The system can be further customized using cascading style sheets (CSSs) to amend:

  • Color

  • Fonts

  • Tabs

  • Graphics

See: Cascading Style Sheets (CSS).

6.5.2 Portals

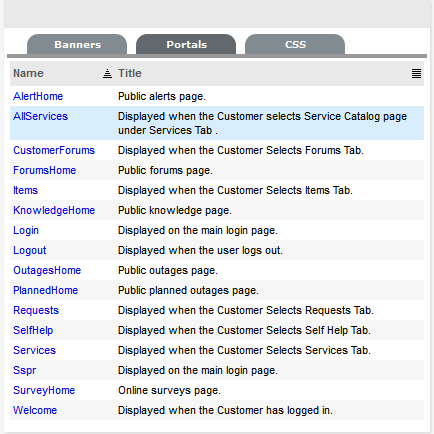

All Public Access home page messages and some Customer Portal pages can be customized within the Portals tab.

Knowledge of HTML is required to edit this section. Links to documents and downloads may be added. The content can be customized for the following system Portals:

  1. Name

    Description

    AlertHome

    Accessed by clicking the Alerts link on the system Login screen.

    AllServices

    Visible as the header within the Service Catalog screen of the Services tab in the Customer Portal.

    CustomerForums

    Visible as the header within the Forums page of the Customer Portal.

    ForumsHome

    Visible as the header within the Forums pages of Public Forums.

    Items

    Visible in the Items tab within the Customer Portal.

    KnowledgeHome

    Accessed by clicking the Knowledge Base link on the system Login screen.

    Login

    Visible on the screen where system users enter their login credentials.

    Logout

    Visible on the page displayed when system users log out.

    OutagesHome

    Accessed by clicking the Outage link on the system Login screen of Service Manager installations.

    PlannedHome

    Accessed by clicking the Planned Outage link on the system Login screen of Service Manager installations.

    Requests

    Visible in the Requests tab within the Customer Portal.

    SelfHelp

    Visible in the Self Help tab within the Customer Portal.

    Services

    Visible as the header within the Services tab of the Customer Portal.

    SurveyHome

    Displayed in the public online surveys page.

    Welcome

    Displayed on the landing page when the Customer logs into the Customer Portal.

To customize a Portal message:

  1. Select Setup > Customize

  2. Select the Name hyperlink

    The HTML editor appears.

  3. Edit the message as required

  4. Click Save

Cascading Style Sheets

The system can be further customized using cascading style sheets (CSSs) to amend:

  • Color

  • Fonts

  • Tabs

  • Graphics

6.5.3 Cascading Style Sheets (CSS)

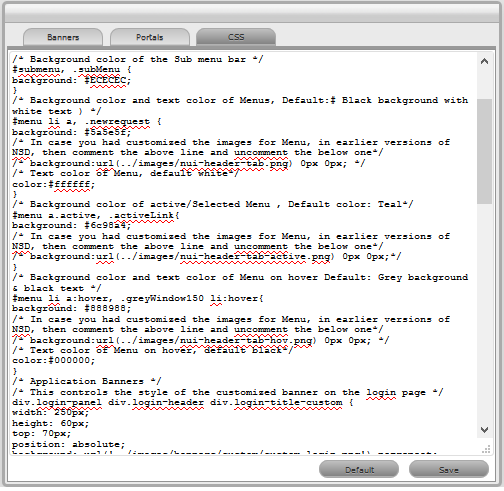

The CSS tab allows Users to customize the look and feel of banner backgrounds and tabs within the system. Knowledge of working with cascading style sheets is recommended when making changes to these settings.

The options available for configuration include:

Background Colors

CSS Editor



Background Colors



#header

This controls the background color of the header.

#menubar, .greyWindow150

This controls the background color of the menu bar.

#submenu, .subMenu

This controls the background color of the submenu bar.

#menu li a, .newrequest

This controls the color of the menu background and the text.

#menu a.active, .activeLink

This controls the background color of the active selective menu.

#menu li a:hover, .greyWindow150 li:hover

This controls the background color of menu on hover.

Example 1

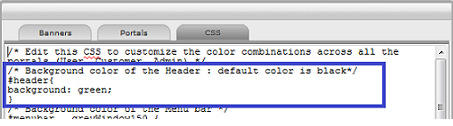

This example shows how to change the default header color to green. In the #header section for background, you can either directly specify green or use the Hex color code for green. After saving the changes, you can see a change in the background color of all portals as shown below:

Example 2

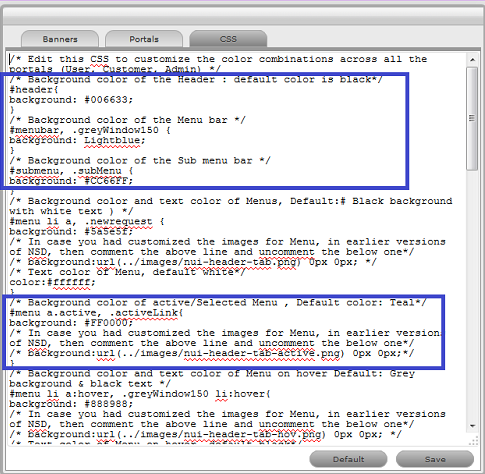

The following screen displays the customized colors of the header, menu bar, submenu bar; the active menu and the configurations made to get this result:

NOTE:After saving the changes, ensure that you clear the browser cache to view your custom changes.

Application Banners

CSS Editor



Application Banners



div.login-panel div.login-header div.login-title-custom

This controls the style of the customized banner on the Login page.

div.login-panel div.login-header div.login-title-container

This controls the style of the default banner on the Login page.

div.login-panel div.login-header span.login-app-logo

This controls the helpdesk icon graphic on the Login page.

#header .customPngBanner

This controls the style of the customized banner within the User portal.

#header .defaultBanner

This controls the style of the default banner graphic within the User portal.

#header .customPngBanner

This controls the style of the customized banner within the Customer & Public portals.

#pageHeader .defaultBanner

This controls the style of the default banner within the Customer & Public portals.

Menu Options (User Portal)



#menu a.active

This controls the highlight on the active (main) menu selection.

submenu a:hover

This (in tandem with the span extension) controls the mouseover (hover) on the submenu tabs.

#submenu a:hover span

This (in tandem with the hover default above) controls the mouseover (hover) on the submenu tabs.

#submenu a.active

This controls the highlight applied to the selected submenu options.

If unwanted changes are made to the system Style Sheets, use the Default button to return the system to the out-of-the-box format.
