The Request Information page section provides comprehensive details related to a Request.
The Following table provides a brief introduction on the information displayed in the Request Information page:
Table 2-2
Field/Section |
Description |
---|---|

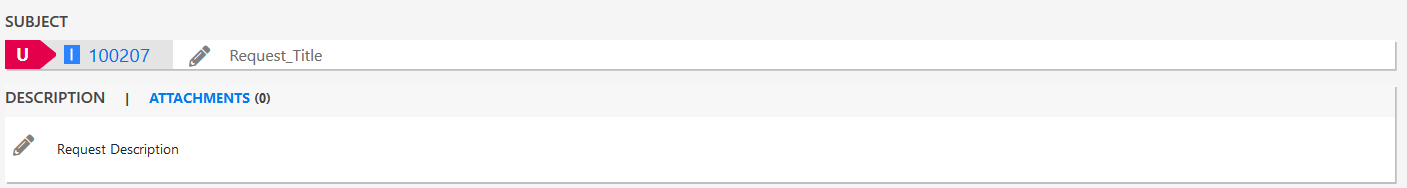

Subject |
Displays the priority of the request, Request Priority, Request Number and Request Title. NOTE:The priority is always derived and cannot be added manually selected. The available priorities are U-Urgent (highlighted in Red), H-High (highlighted in Orange), M-Medium ((highlighted in Yellow) and L-Low (highlighted in Green). Request Title:Displays the title of the request. If required, you can click the to edit the title of the request. You can edit only Requests that are assigned to you. Attachments:Displays the number of attachments associated with this request. To view or add attachments, click the Attachment link. To add an attachment, you can either click or drag and drop the file in the field. Description: Displays the description that was specified while creating a request. If required, you can click the icon to edit the description. |
Notes |
Displays the Note associated with this request. For more information on Adding Note, see the Section 2.7.5, Add Note section. |
General |
n the General panel, generic information about the request is displayed. For more information that is displayed in this panel, see the Section 2.7.1, General section. |
Impact |
In the Impact panel, generic information about the request is displayed. For more information that is displayed in this panel, see the Section 2.7.3, Impact section. |
Audit |
In the Audit panel, generic information about the request is displayed. For more information that is displayed in this panel, see the Section 2.7.4, Audit section. |
Delete |
Click to delete the Request. |
Duplicate |
Click to create a duplicate of a Request. |
Assign to Me |
Click to assign the request to yourself. |
Convert To |
Click to convert the request. |
Export as PDF |
Click to export the Request details into a PDF file. After clicking the icon, a pop-up is displayed. In the pop-up, you can select the options to include all notes or last note associated with this request, and to include Private Notes associated with this request. |
|
Click to print the Request. A preview of the request will be displayed. In the preview pop-up, Click the Print button to print the request. |

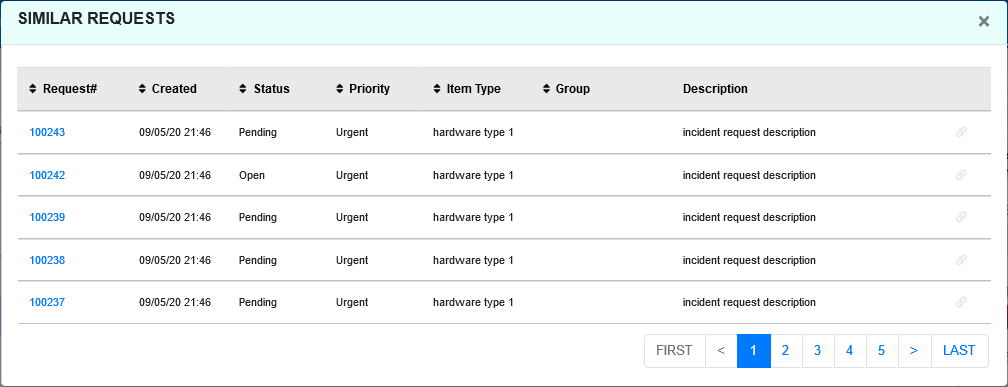

Similar Requests |
Click to view Requests similar to this request. After clicking the icon, a pop-up is displayed. In the pop-up, you can select any required request and the request opens in a new browser tab. |
Alerts |
Alerts are used by Administrators, Supervisors and Technicians to notify Users and Customers about important issues relevant to them or their environment. This panel displays the alerts associated with this request. For more information, see the Section 2.7.6, Alerts section. |
Service Terms |
The Service Terms sidebar displays the Service Level Agreement (SLA) assigned to the Service Request and provides details of key dates. For more information, see the Section 2.7.7, Service Terms section. |
OLA/UPC Configuration |
The UPC panel displays the support services provided to the Service Desk by external service providers. For more information, see the Section 2.7.8, OLA/UPC Configuration section. |
Solutions |
The Solutions panel displays the relevant solutions and workarounds that are applicable to the request. For more information, see the Section 2.7.9, Solutions section. |
Linked Requests |
In the Linked Requests panel, you can link requests with the request. For more information, see the Section 2.7.10, Linked Requests section. |

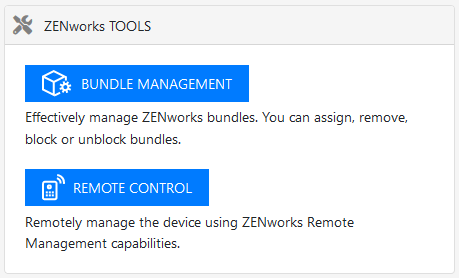

ZENworks Tools |
The ZENworks Tools panel enables you to perform Bundle Management and Remote Control operations. For more information, see the Section 2.7.11, ZENworks Tools section. |
Following are the list of panels available in the Request Summary page:
The General panel displays the following information:
Section |
Description |
---|---|
Details |
The following details are displayed:
|
Escalation |
The following details are displayed:
|
Notification |
The following details are displayed:
|
Additional Information |
The following details are displayed:
|

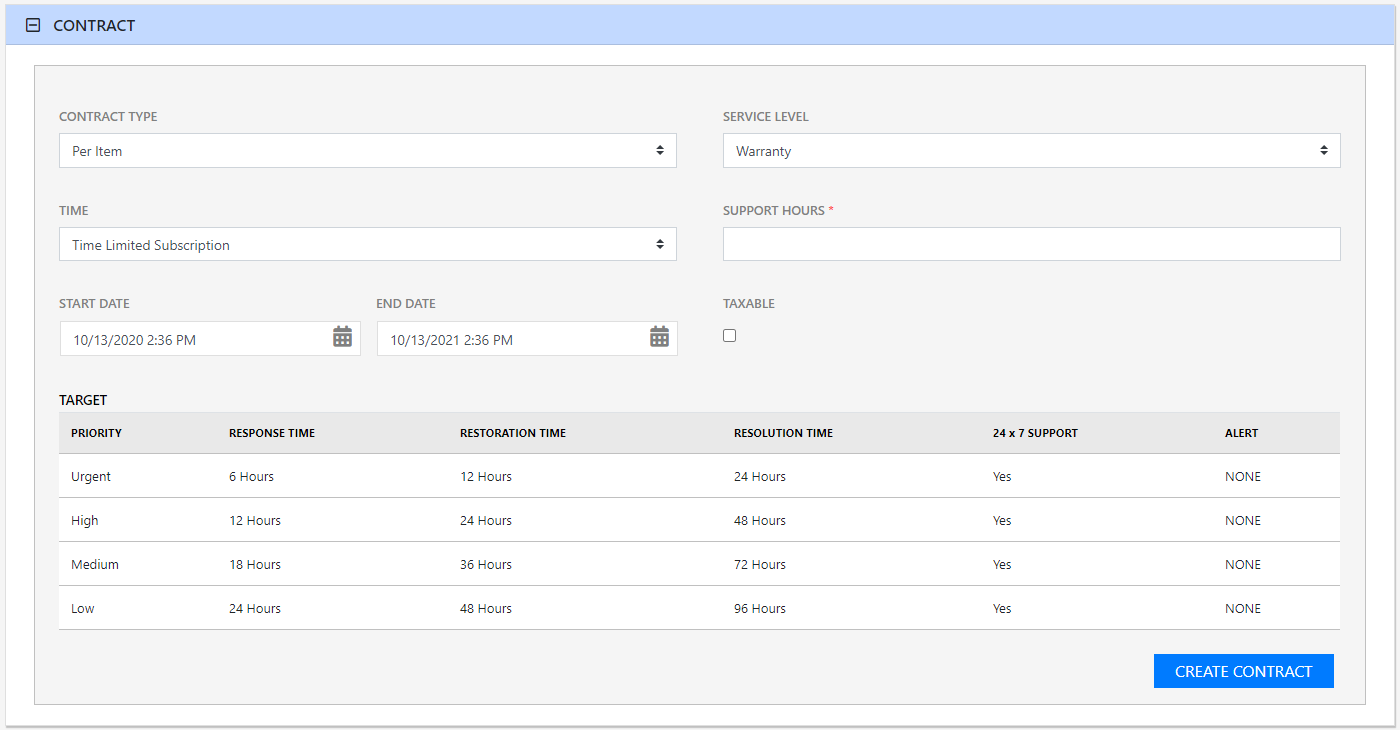

f the Contracts are enabled for the system, the Contract tab is displayed in the Request Summary page.
When Contract is enabled, the request is in non-edit mode. To change the request to edit mode, you need to create contract - per Item base or Per request base.
If the Contract panel is not enabled, then go to Setup > Billing > Setup > Enable Contracts to enable the Contracts panel.
For more information, see Contracts.

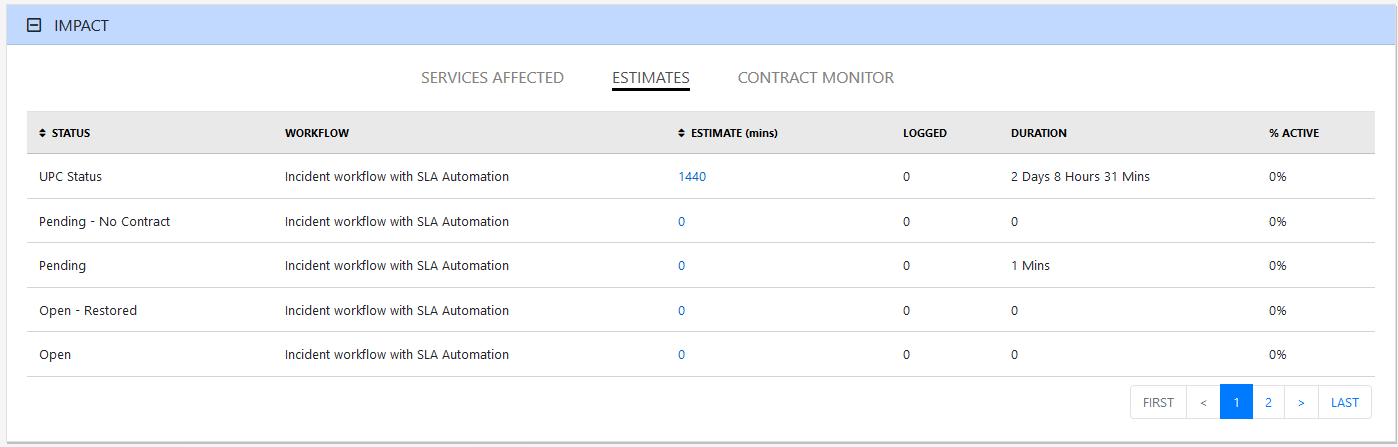

The Impact tab provides the capability to measure the progress of a Service Request relative to agreed Service Level targets and Workflow time estimates. It also includes a quick reference for identifying other Services or Items affected by the Request. This tab displays a summary of the following:
Service targets
Workflow estimates
The impact of the current Service Request on related infrastructure.
The drop-down filter options within the Impact tab include:
Options |
Description |
---|---|
Service Targets |
Displays the target response, restoration and resolution times based on the Service Level Agreement/OLA assigned to the Request. |
Service Level Breaches |
Displays service level breaches that have occurred and allows Users to assign a breach code and explanation for the breach. |
Services Affected |
Displays the Service Item Number, the Service SLA and number of Affected Users for any Services related to the Item associated with the Request. |
Estimates |
Provides a summary of the time estimated for each state of the Workflow based on the OLA assigned to the Request. |
Planned Outages |
Provides a list of all the Planned Outages for the Item assigned to the Request. Click New to create planned outages. |
Contract Monitor |
If the current Service Request Workflow State is assigned an Underpinning Contract or OLA, a table is displayed outlining the response, restoration and resolution milestones. When a milestone is met, the User is required to check the relevant checkbox. The application will automatically calculate the actual time accrued to achieve the milestone. The value displayed here is used for the Contract reports. |
Purchases |
When Purchase Orders are enabled in the system, any Purchase Orders associated with Items assigned to the Request are accessible through this option. |
The details displayed here are drawn from the Service Level assigned to the Request. These include the target Response, Restoration and Resolution times for a Request, based on the Priority assigned. If an Underpinning contract or OLA has been assigned to the Request's current state then the targets for that contract will also be listed.
When a Request Service Level Agreement is violated, a service level breach is recorded against the Request. The User assigned to the Request will be notified and asked to provide a reason for the breach, and assign a Breach Code.
To assign a Breach Code:
Click the Request number
Click Edit
Select Impact > Service Level Breaches
Select the Phase of the SLA that was breached
If more than one SLA Phase has been breached, multiple options will be available in the Phase breached field.
Click Edit
The breached Phase is locked down and the Additional Info field is opened in Edit mode.
Assign a Breach Code
(The available codes are created by the Supervisor within the Service tab.)
Add any additional information, if required.
Click Save.
All breach information is used for reporting on Service Level Agreements.
When the request is logged against an Item that is associated with Services within the Item Relationships tab, the Services Affected option displays the following:
Service Item Number
Service SLA
Number of affected Users
The Estimates option allows Users to view an indication of the approximate time a Request should remain in each State of the Service Request Workflow, the amount of time logged in each State and the length of time the Request resided in each State.
Options |
Description |
---|---|
Estimate |
Indicates the approximate length of time the Request will spend in the Workflow State. This field is automatically completed if an OLA or UC is assigned to the Workflow State. |
Logged |
Is a combination of time accrued against the Request when in edit mode with the automatic timers enabled, and the sum total of Note Times manually entered by Users. |
Total |
The total time a Request has resided in the Workflow State. |
% Active |
The percentage of the Total time that the Request was actively worked on when in the State. The calculation is, (Logged Time divided by Total Time) x 100. |
The Estimate Times are drawn from the OLA and Underpinning Contract assigned to the current State. However, these can also be adjusted manually for each Request. To manually adjust the estimated time for a Workflow State:
Select a Request number ID
Click Edit
Move to the Impact tab, select Estimates from the drop-down list
Select the State hyperlink within the Status column of the Estimate Time to be adjusted
An editor box is displayed.
Enter the adjusted time in the available field
Click Save within the editor box
Make any other time adjustments, if required
Select Save to record all manually entered time adjustments against the Service Request.

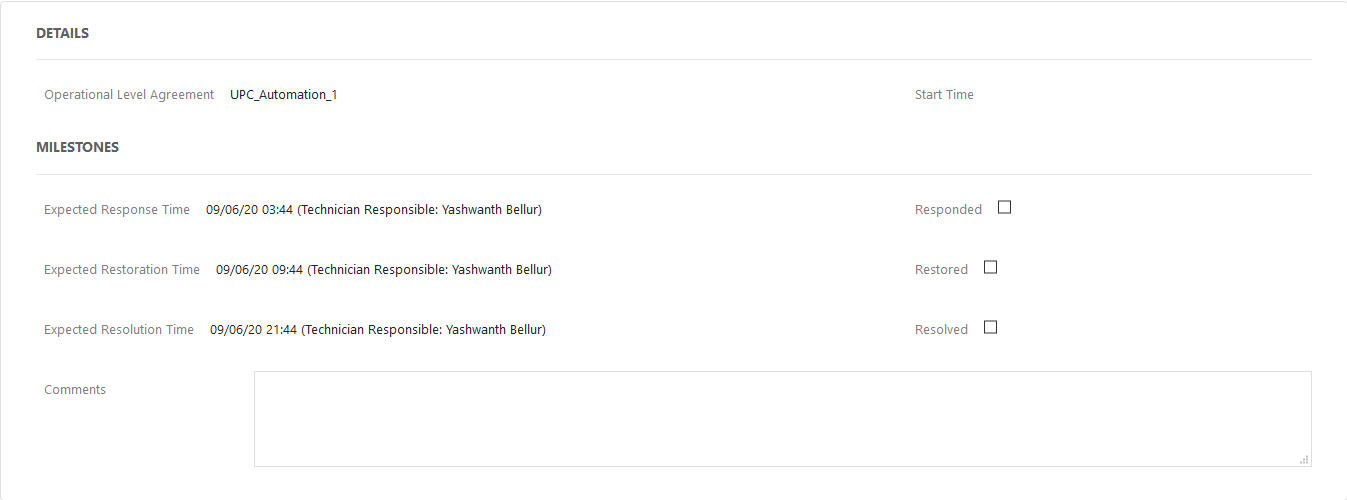

When a Workflow State with an OLA or Underpinning Contract is assigned to the Request, the Contract Monitor displays the details of the Contract. The information is used for reporting purposes and includes:
Details |
Description |
---|---|
Contract Type |
Specifies if the Contract Type is an OLA or Underpinning Contract. |
Start Time |
Auto-generated time the request moved to the current Workflow State. |
Milestones |
|
Expected Response Time |
Response Time calculated using the Contract target parameters. |
Responded |
Actual Response Time auto-calculated when the User checks the box. |
Expected Restoration Time |
Restoration Time calculated using the Contract target parameters. |
Restored |
Actual Restoration Time auto-calculated when the User checks the box. |
Expected Resolution Time |
Resolution Time calculated using the Contract target parameters. |
Resolved |
Actual Resolution Time auto-calculated when the User checks the box. |
Comments |
Allows for additional comments, if required. |
NOTE:If Milestones are breached the Response, Restoration and Resolution times are assigned a red marking.

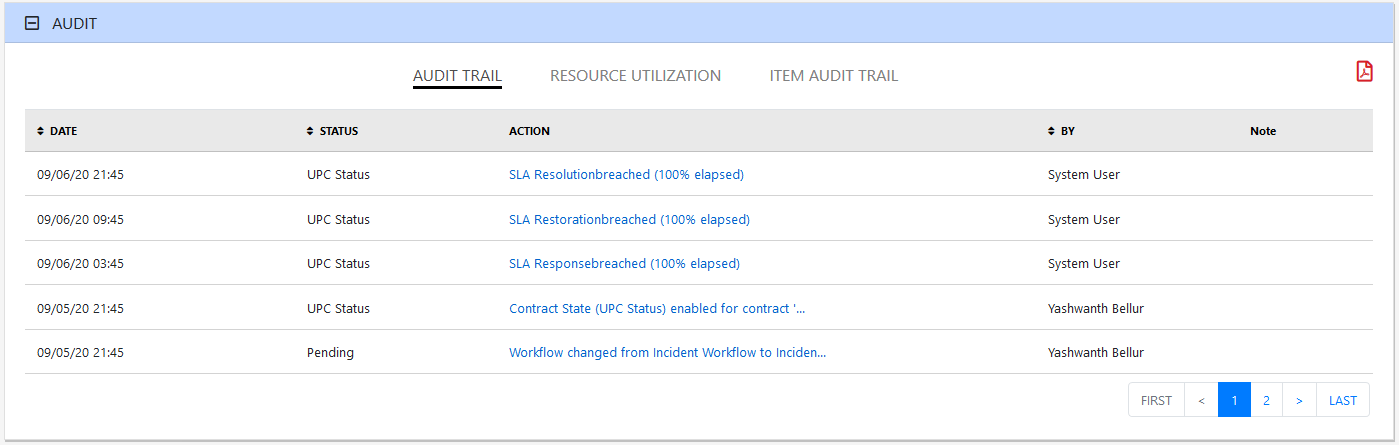

The Audit tab lists all activities that occur within the lifetime of a Request, the resources used and the history of the Request's Item. It provides access to information relating to Approval activities that are logged against the Request.
The logged changes can be exported to a PDF by clicking the icon.
The Audit Trail option records all the activity related to a Request. The recorded activity, which can be exported to PDF includes:
Date and time the Request was assigned and/or reassigned to Users
When the Request moved to a new state, or had its Priority or Due Date changed
Details of Notes added
Attachments activity
Classification change
Logged time
The Resource Utilization option displays a breakdown of the time a Request was worked on at each level of support. It details the User's name, the escalation layer they belong to, and the amount of time they spent on the Request.
The history of the Item associated with the Request is detailed within Item Audit Trail. To access more information regarding an Item Audit Trail entry, select the Action name hyperlink.
NOTE:Click the icon at the end of the request page to copy the link to the request.

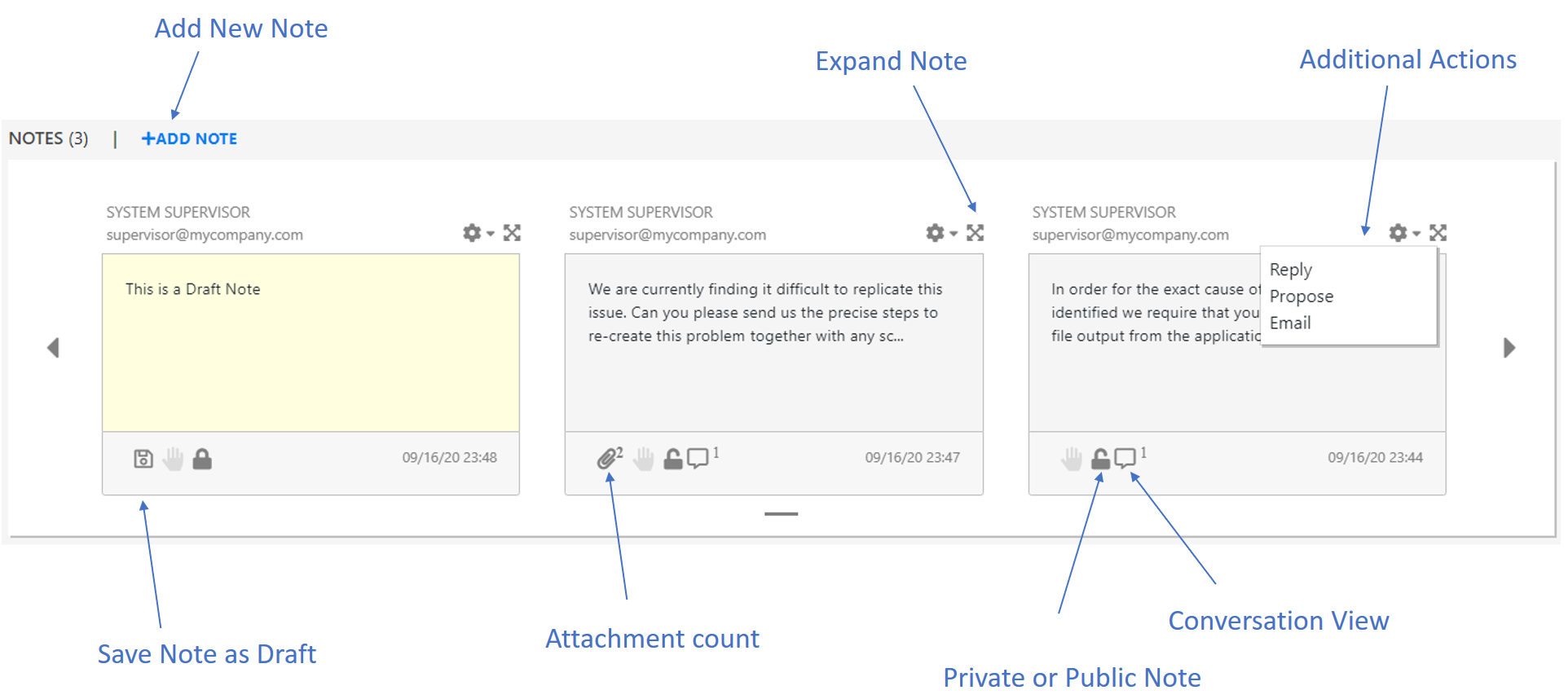

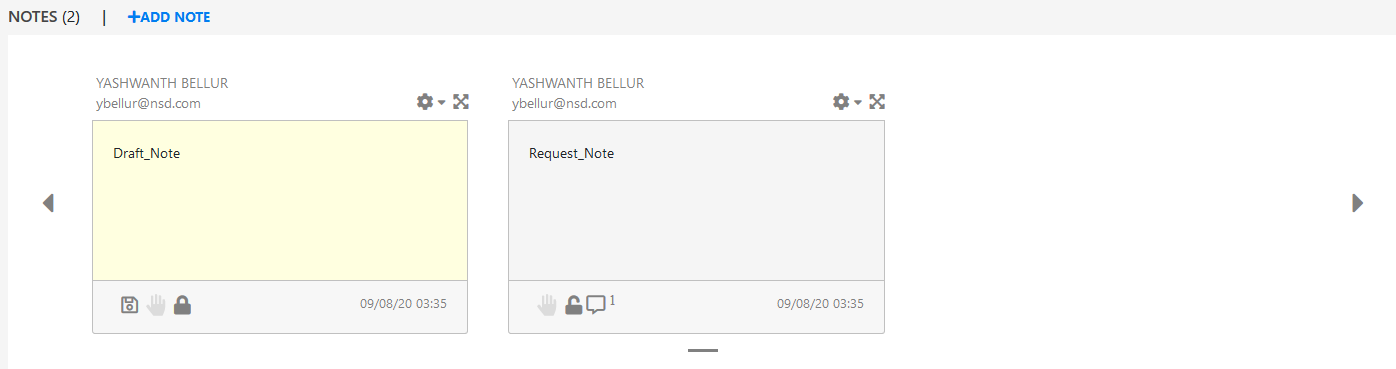

The Request Information page displays all the notes associated with the request.

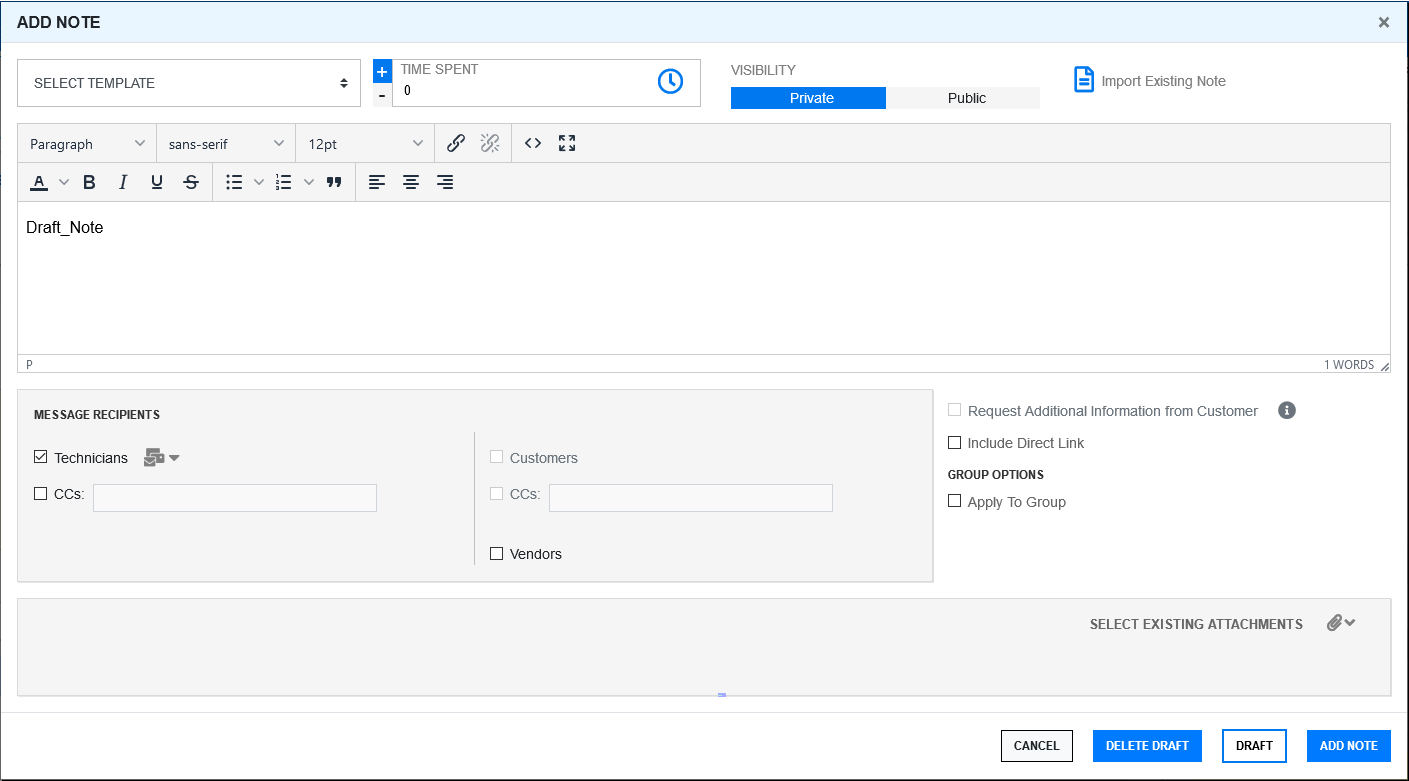

To add a new note, click +ADD NOTE. After clicking the +ADD NOTE, an Add Note pop-up is displayed. Depending on the privileges, following fields will be displayed.
Update the following required information and then you can either add the note or save the note as a draft.
Select Template: In this drop-down, select a predefined template that should be added as a note description.
Time Spent: In this field, specify the time spent on the request. The specified time will be included in the overall time spent on the request.
Visibility: Select if the note should be Private or Public.
Import Existing Note: In this field, you can view other notes added to this request.
Description: In this field, specify the description for the note.
Message Recipient: In this field, select or specify email IDs to whom the addition of note should be notified.
Request Additional Information from Customer: Select this option, if you need any additional information from the customer.
Include Direct Link: Select this option, if you want to include the direct link of the request in the Note.
Create Knowledge Base: Click this option, if you want to convert this Note as a Knowledge Base.
Select Existing Attachments: If required, you can add an attachment associated with the Request to the note. To add an attachment, click the attachment icon, and then select the available attachment.

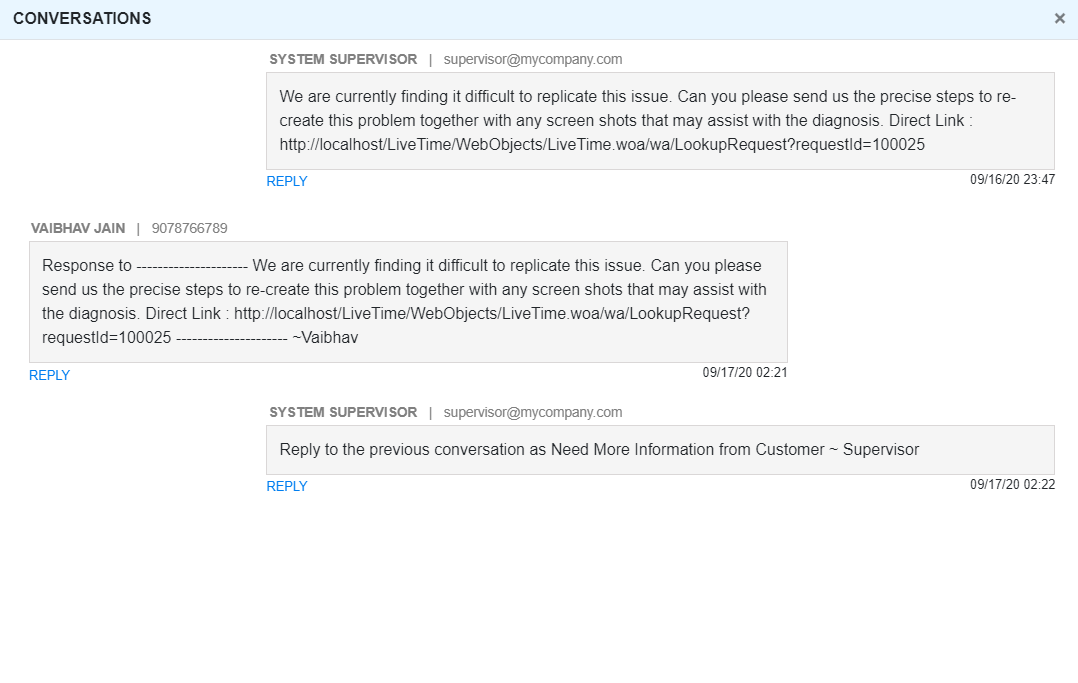

The conversational view of the notes will be displayed as shown in the following image:
Alerts are an internal mechanism used by Administrators, Supervisors and Technicians to notify Users and Customers about important issues relevant to them or their environment.

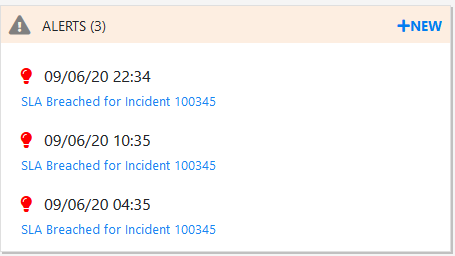

This panel displays the alerts associated with this request.
If required, you can create a new Alert by clicking the Add button.

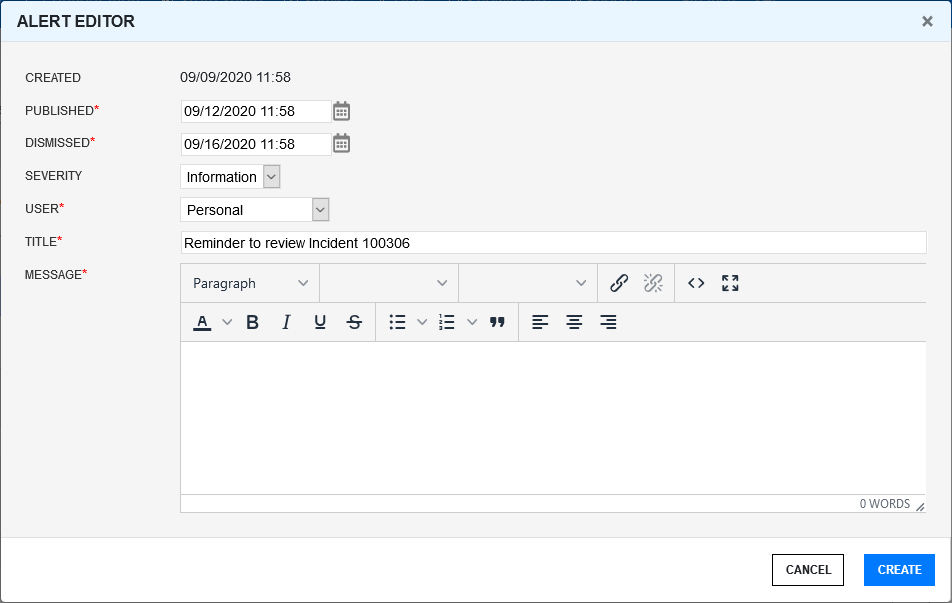

After clicking the Add button, a pop-up is displayed as shown below:
Specify the following information, and then click Create:
Created: The current date and time.
Published: The date the Alert is published. Use the calendar icon to the right of the field, to select a Publish date.
Set to a date in the future, or use the default to publish the Alert immediately.
Dismissed: The date the Alert ceases to be available. Use the calendar icon to the right of the field, to select a Publish date. On this date, the Alert will disappear from a User's Alert list.
Severity: The type of Alert to be published. The choices are:
Information – for general Alerts
Warning – to warn Users of potential issues.
Urgent – to publish an urgent actionable message.
User: The User type to receive the Alert, which include:
Specific Customer or User - In the Find User or Customer list, click search to select the recipient from the drop-down list.
User Role - An Alert sent to a User Role will go to all Users with that Role.
Personal Alert - A personal Alert appears on the User's own screen at the Publish date.
Organizational Units - In the Find Org. Unit field, search and select the recipients.
Public - A Public Alert appears when the Public Alert link is selected on the Login Page.
Title: Specify a title for the Alert
Message: Enter a main content of the Alert.

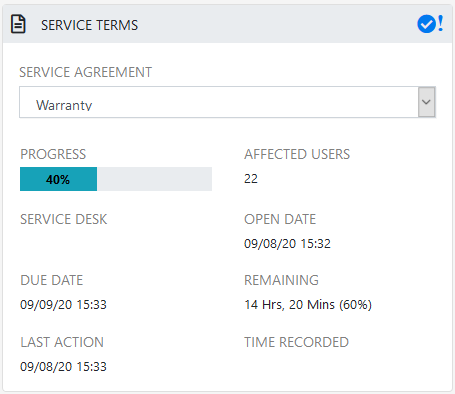

The Service Terms sidebar displays the Service Level Agreement (SLA) assigned to the Service Request and provides details of key dates.
By default the application calculates the Due Date based on the Priority of the SLA assigned to the Customer, Organizational Unit or Item. The email reminders and escalations are then managed accordingly. If an SLA is not associated with the Service Request via the Customer, Org Unit or Item, the system default SLA will be automatically assigned to the Service Request but can be manually adjusted by the Technician. Once the Workflow is moved from the default Open State, the SLA can no longer be edited.
Service Terms |
|
---|---|
Agreement |
Displays the Service Level Agreement assigned to the Request. The service level is derived from either the Customer, Organizational Unit or Item. When Contracts are not enabled, the Agreement field can be edited, when the Request is in edit mode. |
Progress |
Visually displays how the Request is tracking against the assigned SLA. The grey progress bar is gradually filled in based on the status of the SLA: - Workflow is in an SLA paused State. Triggers will not fire. - Workflow is in an SLA timers on State. Triggers will fire. - Workflow is in an Exit State and the SLA has been successfully maintained. - Assigned SLA has been breached and Workflow is in an Exit State. |
Open Date |
The open date field is automatically populated when the Request is created. |
Due Date |
By default the application calculates the Due Date based on the SLA Target for the Priority assigned to the Request, and email reminders are sent accordingly. |
Fix Date |
Auto-filled when the Request moves into a Workflow State that is defined as meeting the SLA Resolution Time. |
Remaining |
Auto-filled and visible when there is SLA time remaining. |
Time Overdue |
Auto-filled and visible when the SLA is overdue. |
Close Date |
Auto-filled when the status of a Request is set to Closed. This date is fixed. |
Resolution Time |
Auto-filled with the number of minutes it took for the Request to move from the first SLA active state to a Workflow State that is defined as meeting the SLA Resolution Time. |
Last Action Date |
Auto-filled when Done or Save is selected after the Request has been modified or opened in edit mode. As changes may be made to a Request after it has been Closed, this date may fall after the Close Date. |
Time Recorded |
Displays the sum total of automatically logged time, when the Request is in edit mode plus any manually entered Note Times. NOTE:The Automatic timer is not applicable for the redesigned request page. |
Affected Users |
Number of Customers assigned to the Item associated with the Request. |
NOTE:Each User can customize the date format within the My Account sub-menu option. To change the date format go to Home > My Account, click Edit and select the preferred format.

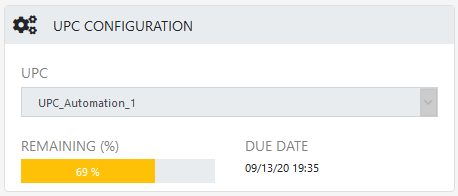

Underpinning Contracts (UPC/UC) are used to manage support services provided to the Service Desk by external service providers. These Contracts ensure the external parties maintain their service obligations to the Service Desk, which ensures the Service Desk meets the SLA expectations of its Customers.
UPC: Displays the UPC assigned to the Request. The UPC is derived from either the Customer, Organizational Unit or Item.
When Contracts are not enabled, the Agreement field can be edited, when the Request is in edit mode.
Remaining: Auto-filled and visible when there is UPC time remaining.
Due Date: By default the application calculates the Due Date based on the SLA Target for the Priority assigned to the Request, and email reminders are sent accordingly.

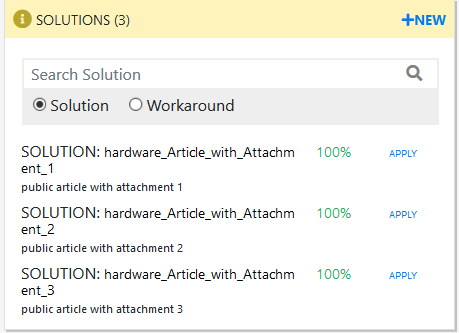

The Solutions panel displays the proposed solutions and workarounds that are applicable to the request. It also displays the applied solution, workaround or backout procedure.
Solutions are Knowledge Base Articles that could be existing in the Knowledge Base or that could have been generated as fixes for the request.
Workarounds are temporary fixes applied to a request.

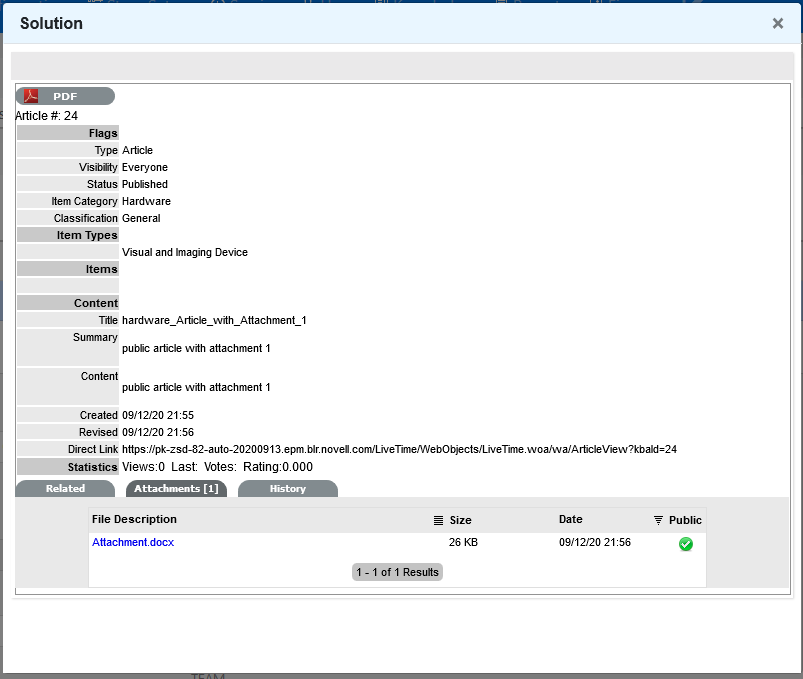

To view the details, you can click the Solution, Workaround or backout procedure. The article will be displayed in a pop-up window.
In the Solutions panel, you can perform the following actions:
Search: In the Search field, specify any keyword. Depending on the specified keywork, results will be displayed.
Apply Solution or Workaround: To apply a solution or workaround, click the Apply button.
Relevance is displayed along with All Solutions and Workarounds. Based on requirements and relevance, you can apply the solution or workaround.
Create Solution, Workaround or Backout procedure: To create a Solution, Workaround or a Backout procedure, click the New button in the panel, and then select the required option.
Specify all the required details in the new pop-up window and then click Save.
You have an option to remove the applied Solution, Workaround or Backout procedure. To remove, click the icon.
If you have already applied a solution, workaround or Backout procedure, then you will not be able to link other solution, workaround or backout procedure. To add new solution, workaround or backout procedure, remove the existing solution, workaround or backout procedure.
The note saved as a solution will also be displayed here. You also have an option to create a Knowledge Base out of that by clicking on that solution and selecting “Create Article”.
Some of the options might not be applicable based on certain criteria.

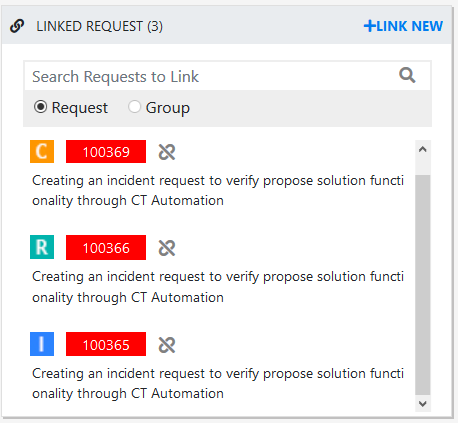

The Linked Requests panel lists the requests that are linked to the request. In the Linked Request panel, you can link requests or group with the current request. The requests that are already linked with the request will also be displayed in this panel.
In the Linked Request panel, you can perform the following actions:
To link a new request, click Link New and then select the required request type. This will create a new request of selected type, using the information for the current request, and will link with the current request.
To link with an existing request or group, specify the respective ID in the search field and then click the link icon.
Similarly, you can link groups with the request. If the request is not part of the group, the after linking the request, the request will be added to the group.
To unlink a request, click the unlink icon associated with the request.
NOTE:If the current requests is part of a group, then linking with group, or with existing request that is part of another group is not applicable.
The ZENworks Tools panel enables you to perform Bundle Management and Remote Control operations. Depending on the privileges, the tools will be displayed.
Bundle Management: Using this option, you can assign, remove, block and unblock bundles.
Remote Control: Using this option, you can remote control devices associated with the request.
To customize the displayed columns, you can perform any of the following actions:
Reorder Columns: To reorder columns, you can drag and drop the required column to the required position. The reordered column changes will be saved and displayed when you revisit the page.
Resizing Columns: To resize the column width, you can drag the required column edge left of right. The resized column changes will not be retained.

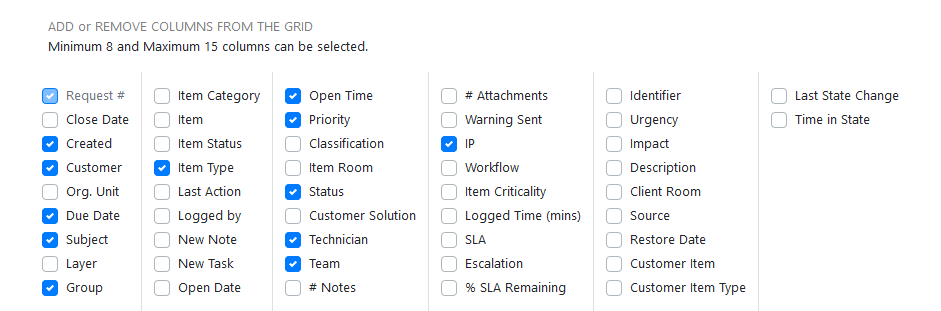

Add or Remove Columns: To add or remove columns, click the icon, and then select the required field that should be displayed.
NOTE:Minimum 8 and maximum 15 columns can be added in the display grid. The added or removed column changes will be saved and displayed when you revisit the page.

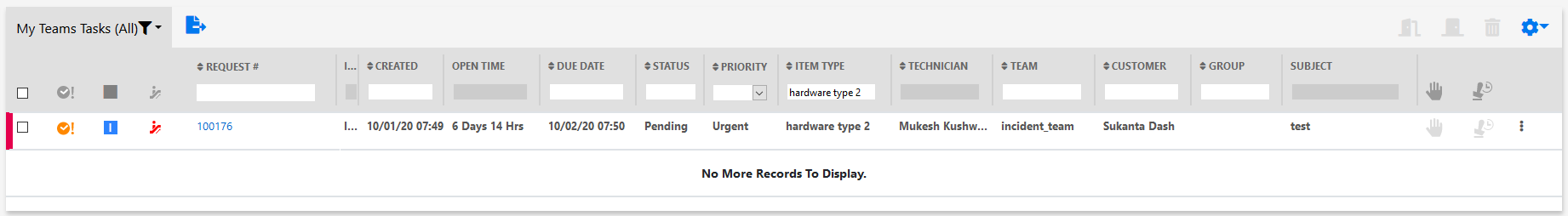

Search: To search an item within a column, specify the keyword in the search field provided below the field name.
On the left-hand side of the Request page, the Filters panel is displayed. Using the options available in this panel, you can filter the unrelated data so that only the required data is displayed in the grid.
Following are some of the actions that can be performed in this Filters panel:
Apply Filters: After making the required modifications to the filter panel, click Apply to view the results.
Reset Filter: To reset the data displayed in the grid and clear the filter fields, click the icon.
Save Filter: After modifying the filters, if required, you can save the filter for future use. To save the filter, click the Save Filter button.
Load Saved Filters: To load or apply the saved filters, click the filter list panel, and then select the required filter.

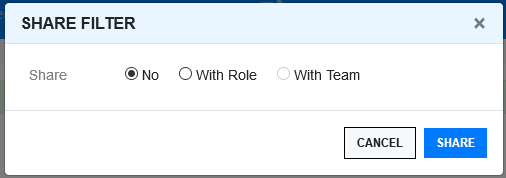

Share Filter: To share the filter, click the share icon, and then select the required option in the displayed pop-up.
The available options are:
No: Select this option to stop sharing the filters that was shared earlier.
With Role: Select this option to share the filter with those who have same roles
With Team: Select this option to share the filter with your team.
Delete Filter: Click the Delete button to delete the filter.
NOTE:Only the custom filters can be shared and deleted.
This section of the filter includes the following options:
Type: In this field, select the type of the request. The available options are Service, Incident, Problem and Change.
Scope: In this field, select if you want to view My Tasks or My Team's Tasks.
Request#: In this field, specify the request number.
Group Name: In this field, specify the name of the group.
Logged By: In this field, specify the a name who logged the request.
Team: In this field, select the required team. To select multiple teams, press and hold the Ctrl key, and select the required options.
Status: In this field, select the status of the request. The available options are Active, Inactive and All.
Priority: In this field, select the priority of the request. The available options are Urgent, High, Medium and Low.
Action: In this field, select the required action. The available options are Reported Date, Closed Date and Reported & Closed Date.
Range: In this field, select a date range. Following are the available options.
Start Date
End Date
Recent: In this field, select how recent requests should be displayed. The available options are Last Week, Last 2 Weeks, Last 30 days and Last 3 Months.
No. Of days Since Last Status Change: In this field, select a date to view the request since their last status changed.
This option will not provide accurate result, if the status was changed before upgrading to ZENworks Service Desk 8.2.
First Name: In this field, specify the first name of the requester or Requestor.
Last Name: In this field, specify the last name of the requester or Requestor.
Email: In this field, specify the email ID of the requester or Requestor.
Org. Unit: In this field, specify the name the Organizational Unit, be it a Company or Department with which the Customer is associated.
Room: In this field, specify the location of the request.
City: In this field, specify the name of the city.
Location: In this field, specify the location details of the requester or requestor.
Selected By: In this field, select an option, who had selected the item. The available options are Technician or Customer.
Item Number: In this field, specify the item number.
Room: In this field, specify the room to which the request belongs.
Category: In this field, select the category to which the request belongs.
